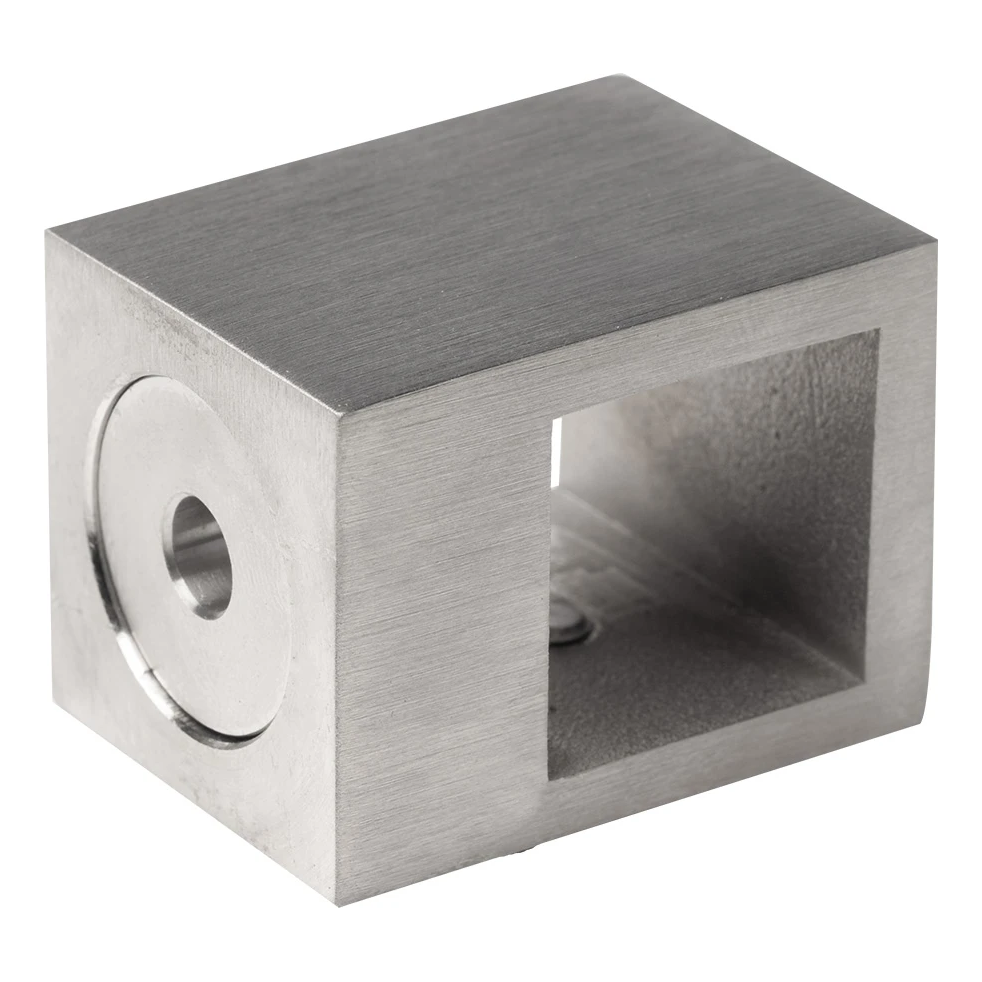

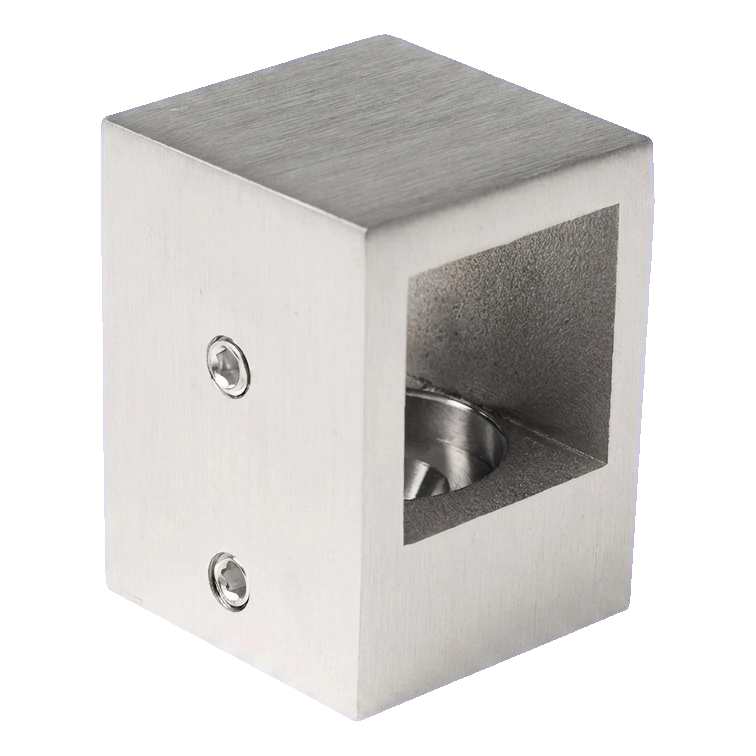

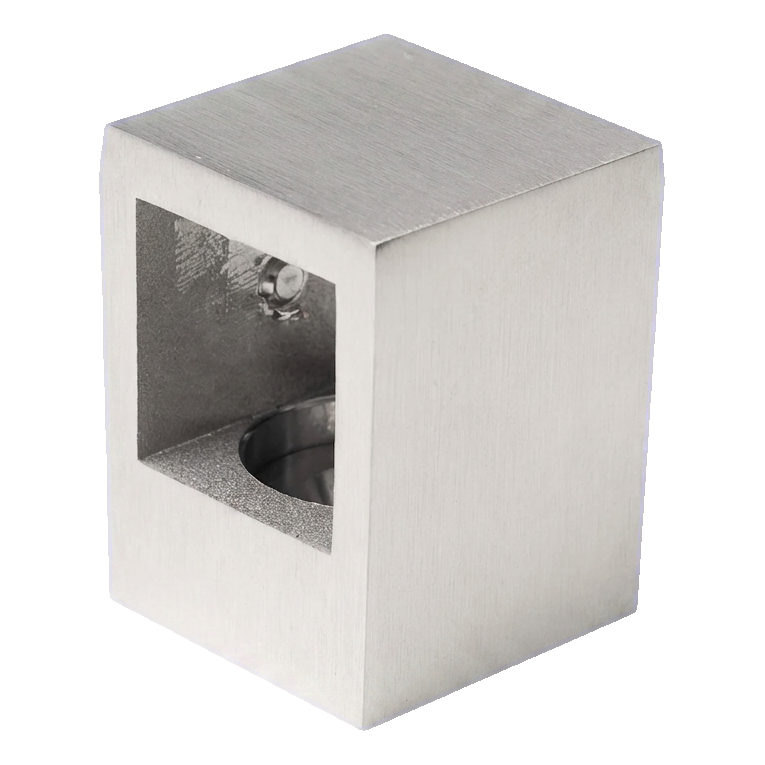

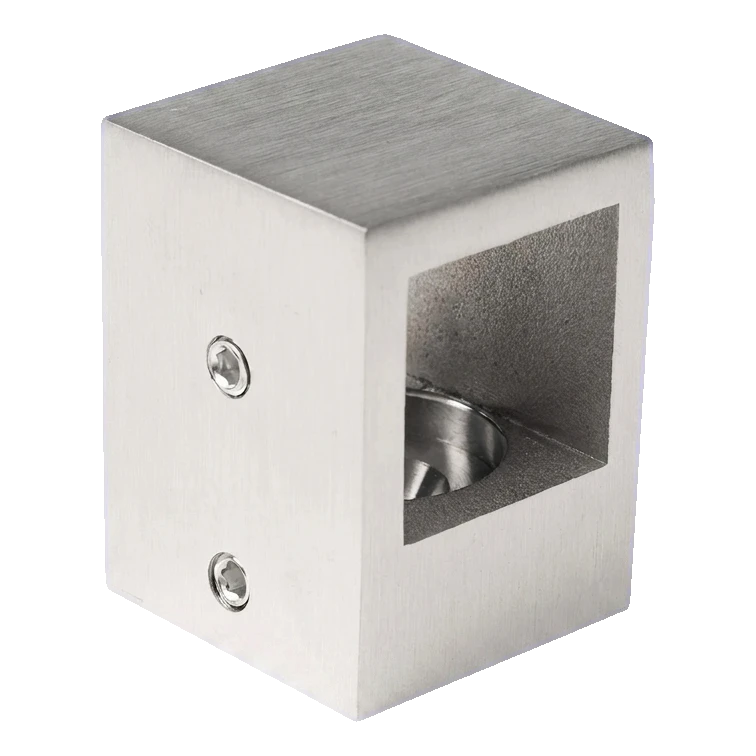

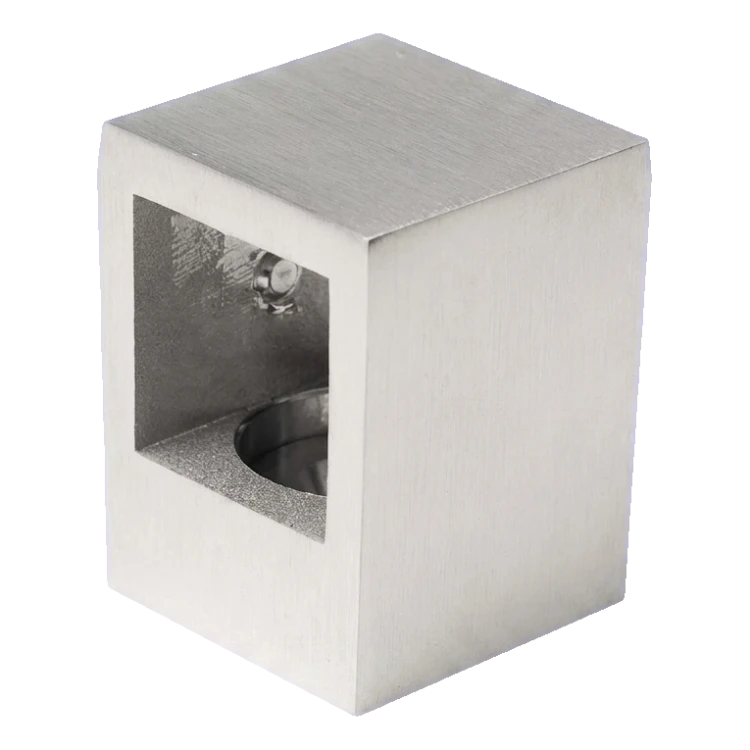

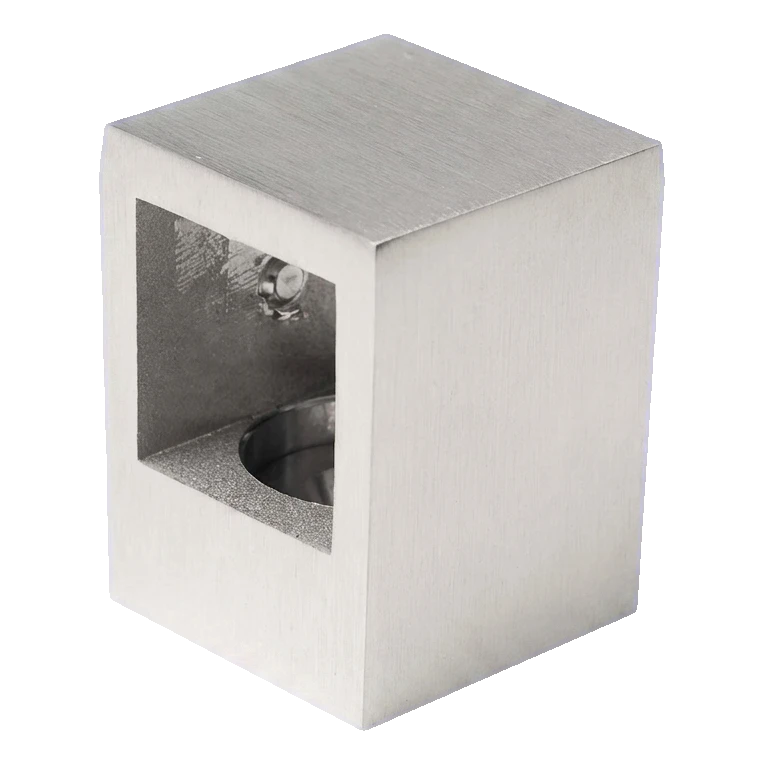

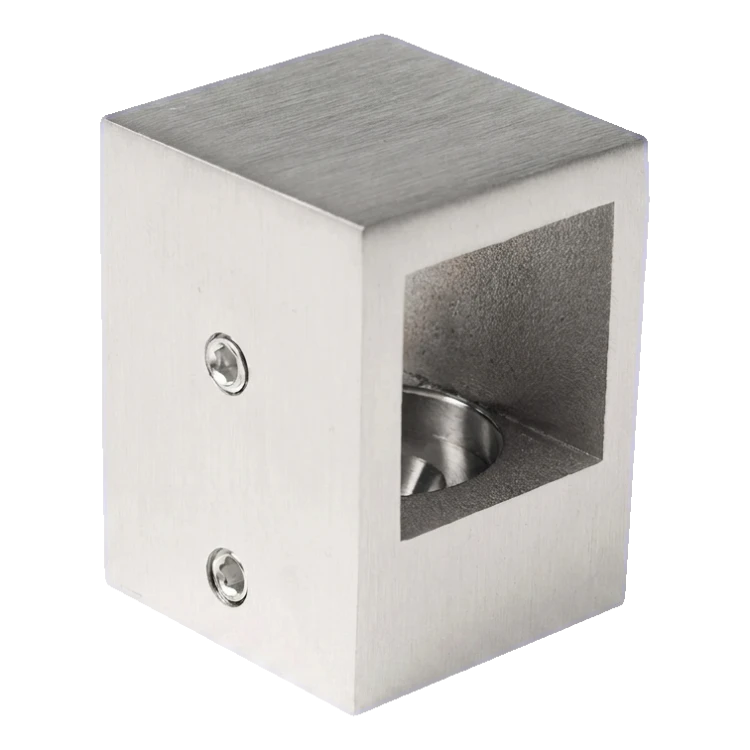

PSG – through-fixing balustrade bracket for 20×20 mm bar AISI 304 satin
Description
PSG – through-fixing balustrade bracket for 20×20 mm bar AISI 304 satin
Through-fixing bracket for 20×20 mm bar by PSG is a precision mounting element designed for stainless steel balustrade systems. It enables secure connection of bars or square profiles with 20×20 mm cross-section to a flat mounting surface — wall, post or other structural element. Thanks to its compact body with dimensions 30×30 mm and height 40 mm, the bracket maintains a discreet form whilst providing high rigidity and stability to the entire structure.
Construction from AISI 304 stainless steel with satin finish guarantees lasting corrosion resistance and an aesthetic, modern appearance — both inside the building and outdoors. This is a proven solution for installation companies undertaking balustrade projects in residential buildings, offices and public utility buildings.
Main product features
- Mounting system: flat — fixing directly to flat surface
- Application: bars and square profiles 20×20 mm
- Through hole diameter: 21.2 mm
- Fixing screw thread: M6
- Material: stainless steel AISI 304
- Finish: satin
- High resistance to corrosion and atmospheric factors
Technical parameters
- Bracket dimensions (external cross-section): 30×30 mm
- Bracket height: 40 mm
- Bar dimensions: 20×20 mm
- Through hole diameter: 21.2 mm
- Fixing screw thread: M6
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.098 kg
- EAN: 5903313208154
Assembly and application
The bracket is mounted in a flat system — directly to a flat surface using a screw with M6 thread. Simple assembly translates to shorter installation time, which is particularly important when undertaking larger balustrade projects. The bar or 20×20 mm profile passes through a through hole with diameter 21.2 mm, which ensures appropriate mounting clearance and ease of positioning elements.
The bracket performs well everywhere durability, resistance to atmospheric conditions and aesthetic finish are required: balustrades on balconies, staircases, terraces, as well as in commercial and public utility buildings. The satin surface of AISI 304 steel is easy to keep clean and requires no additional maintenance.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
