PSG

PSG through cable holder for Ø 6 mm cable – for 42.4 mm tube, AISI 304 satin

Go to Product feedback

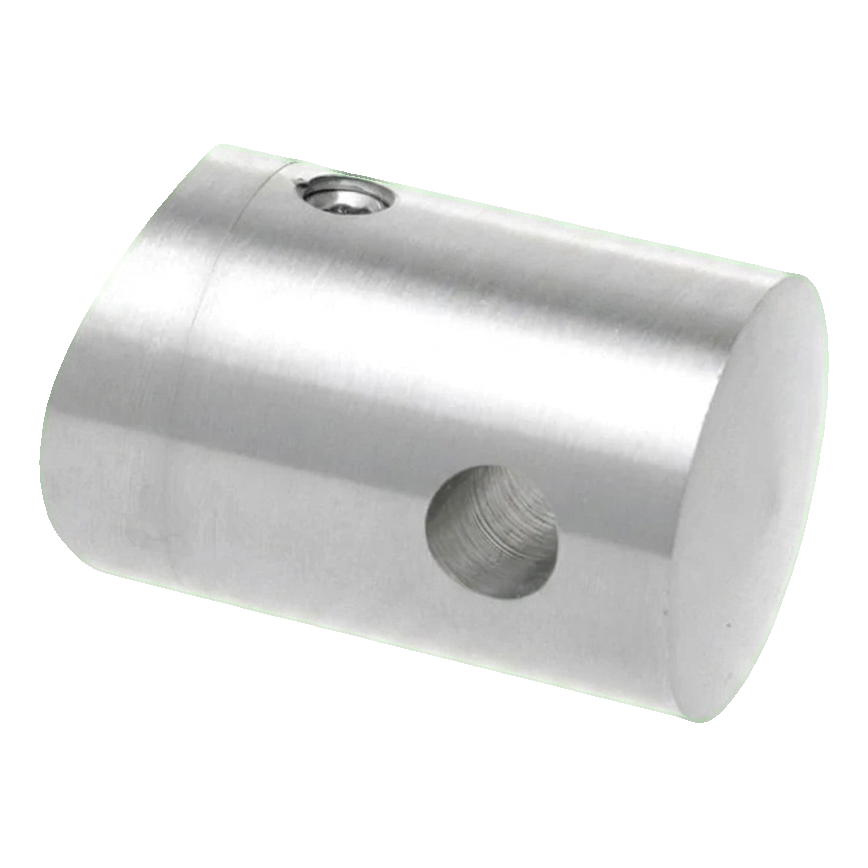

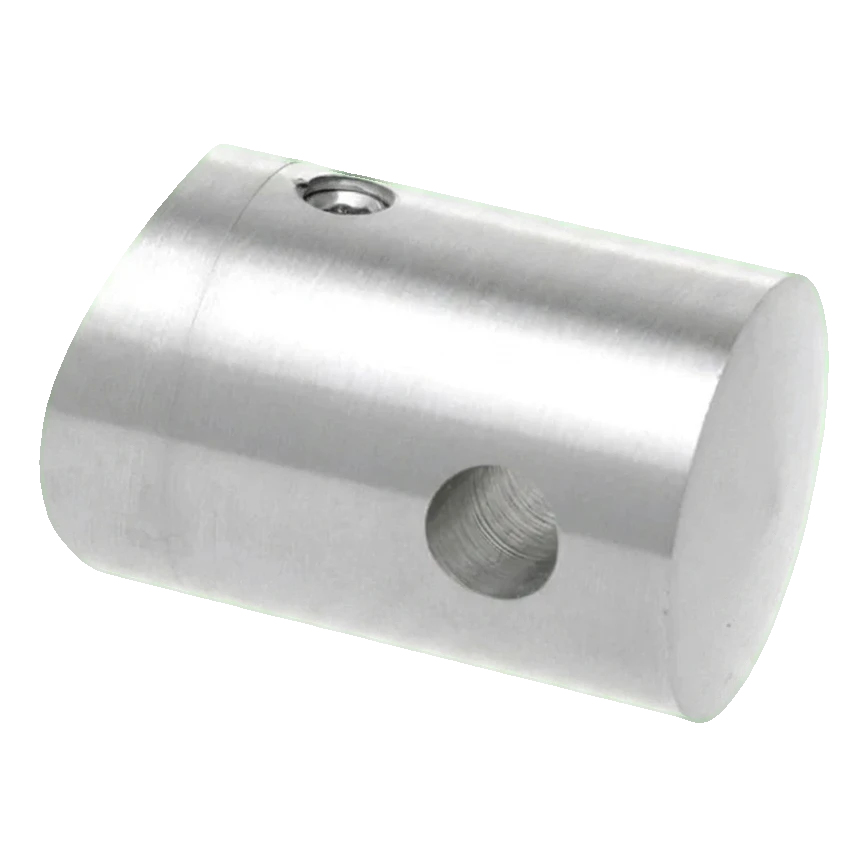

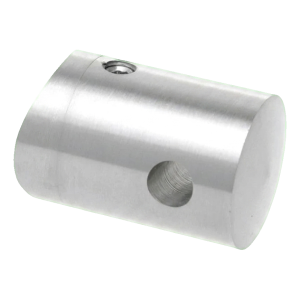

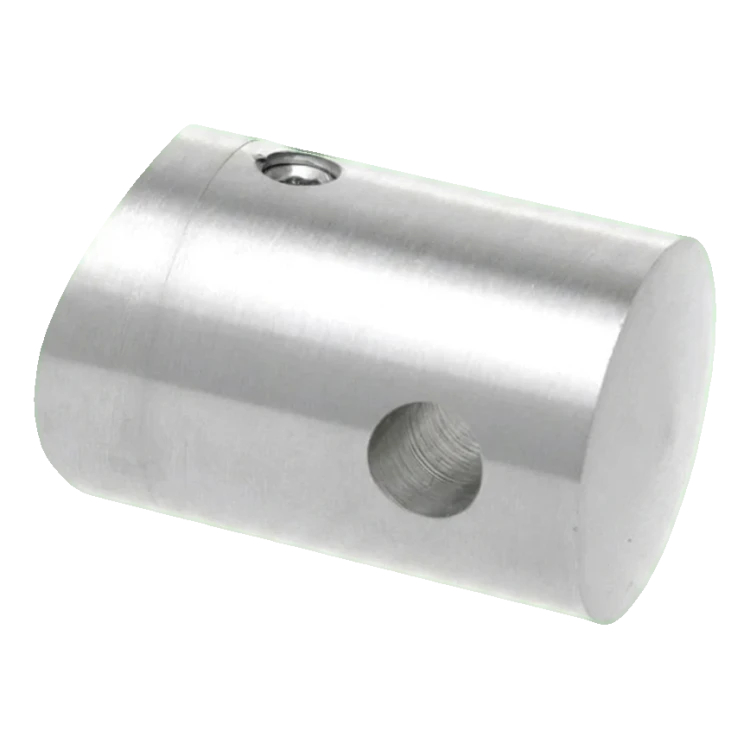

PSG through cable holder for Ø 6 mm cable made from AISI 304 stainless steel, satin finish. For 42.4 mm tube. External diameter 20 mm, length 22 mm, weight 0.055 kg. With grub screw for cable fixation.

Go to full description
with VAT without VAT
Price €2.16
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] uchwyty-do-wypelnien #131

  • Material AISI 304
  • Infill (rod / cable) Cable Ø 6 mm
  • Finish Satin
  • Holder type Pass-through
  • Mounting System 42.4 mm

Description

PSG through cable holder for Ø 6 mm cable – for 42.4 mm tube, AISI 304 satin

Through cable holder for Ø 6 mm cable made from AISI 304 stainless steel, satin finish
Through cable holder for Ø 6 mm cable made from AISI 304 stainless steel, satin finish

Through cable holder for Ø 6 mm cable designed for mounting on posts made from 42.4 mm diameter tube. Compact component used in stainless steel balustrades with steel cable infill — enables easy cable threading through the post and secure fixation using a grub screw.

Made from AISI 304 stainless steel with satin finish, which guarantees high corrosion resistance and an aesthetic, uniform appearance that complements other components of stainless steel balustrade systems.

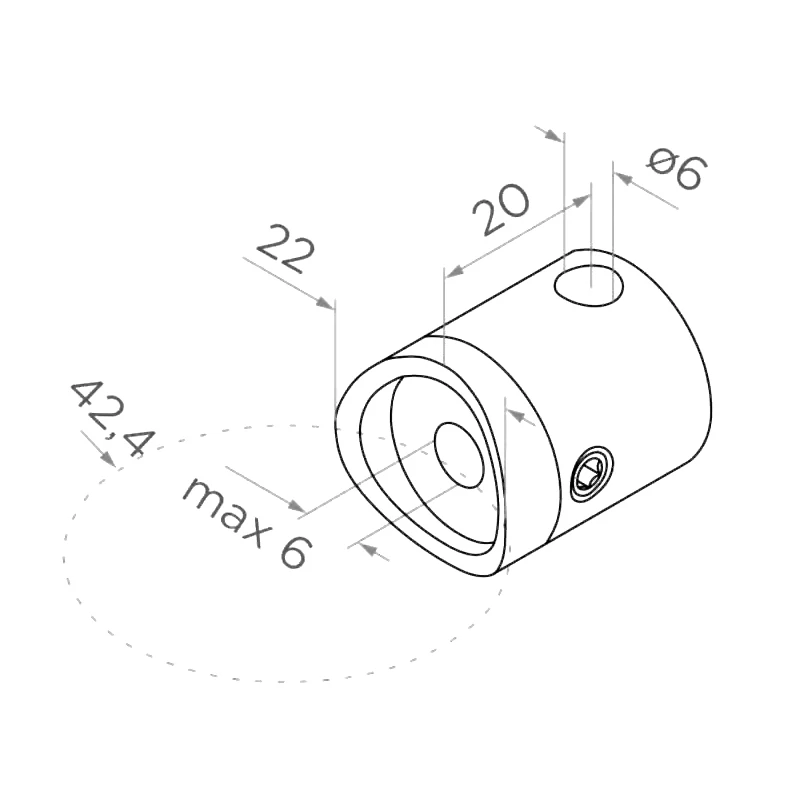

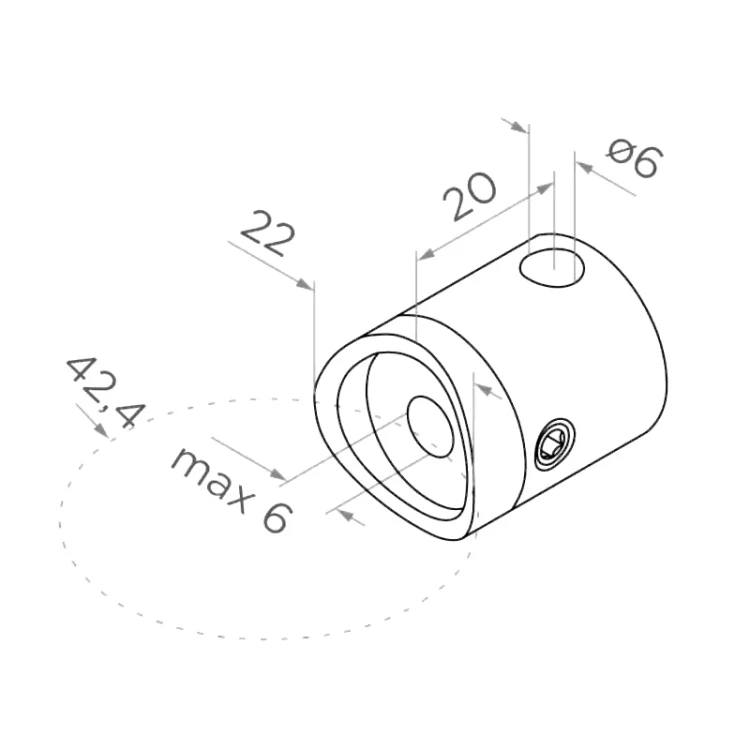

Technical drawing of through cable holder for Ø 6 mm cable with dimensions
Technical drawing of through cable holder for Ø 6 mm cable with dimensions

Dimensions and technical data

  • Through hole diameter for cable: ø6 mm
  • External diameter of body: 20 mm
  • Overall body length: 22 mm
  • Mounting tube diameter: 42.4 mm
  • Base profiling depth: max 6 mm
  • Material: AISI 304 stainless steel
  • Finish: satin
  • Weight: 0.055 kg
  • System: 42.4 mm
  • EAN: 5901289671507

Installation and application

The holder is mounted directly onto balustrade posts made from ø 42.4 mm tube. The profiled base is precisely matched to the tube curvature, ensuring stable contact and aesthetic final effect. Steel cable up to 6 mm diameter passes through the through hole, and the built-in grub screw allows for secure and quick fixation without requiring additional specialist tools. An ideal solution for installation teams working on stainless steel cable balustrades — simple installation and repeatable quality on every project.
