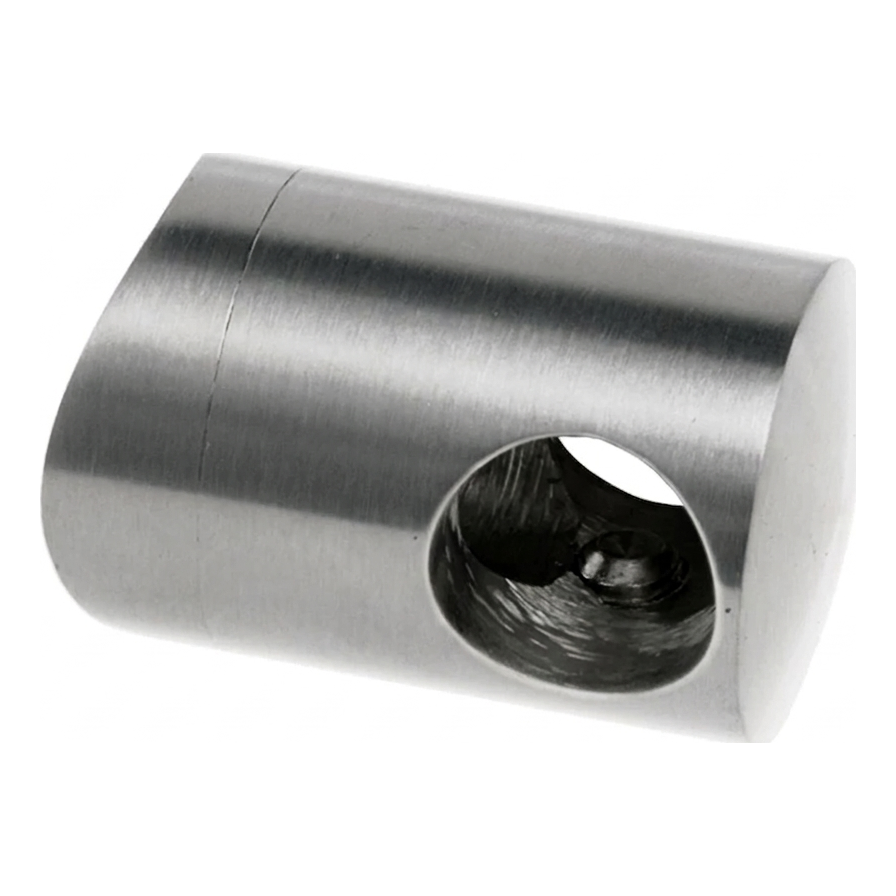

PSG through bracket for 12 mm dia rod – mounting to 42.4 mm tube, AISI 304 polished
Description
PSG through bracket for 12 mm dia rod – mounting to 42.4 mm tube, AISI 304 polished
PSG through bracket for 12 mm dia rod is a precision connecting element that links rod infill with the main post of stainless steel balustrades. Made from AISI 304 stainless steel with polished finish, it provides durable and aesthetic connection in 42.4 mm tube systems. Compact construction and high-quality surface finishing ensure the bracket perfectly complements other balustrade components – ready for installation immediately upon delivery.
The bracket is mounted on the balustrade post and serves to guide a 12 mm diameter rod through its interior. Thanks to its through construction, the rod passes completely through, enabling the creation of continuous, parallel infill lines along the entire span length. This solution significantly speeds up installation of multi-span balustrades – one rod suffices for several sections, without the need to cut and join short segments.

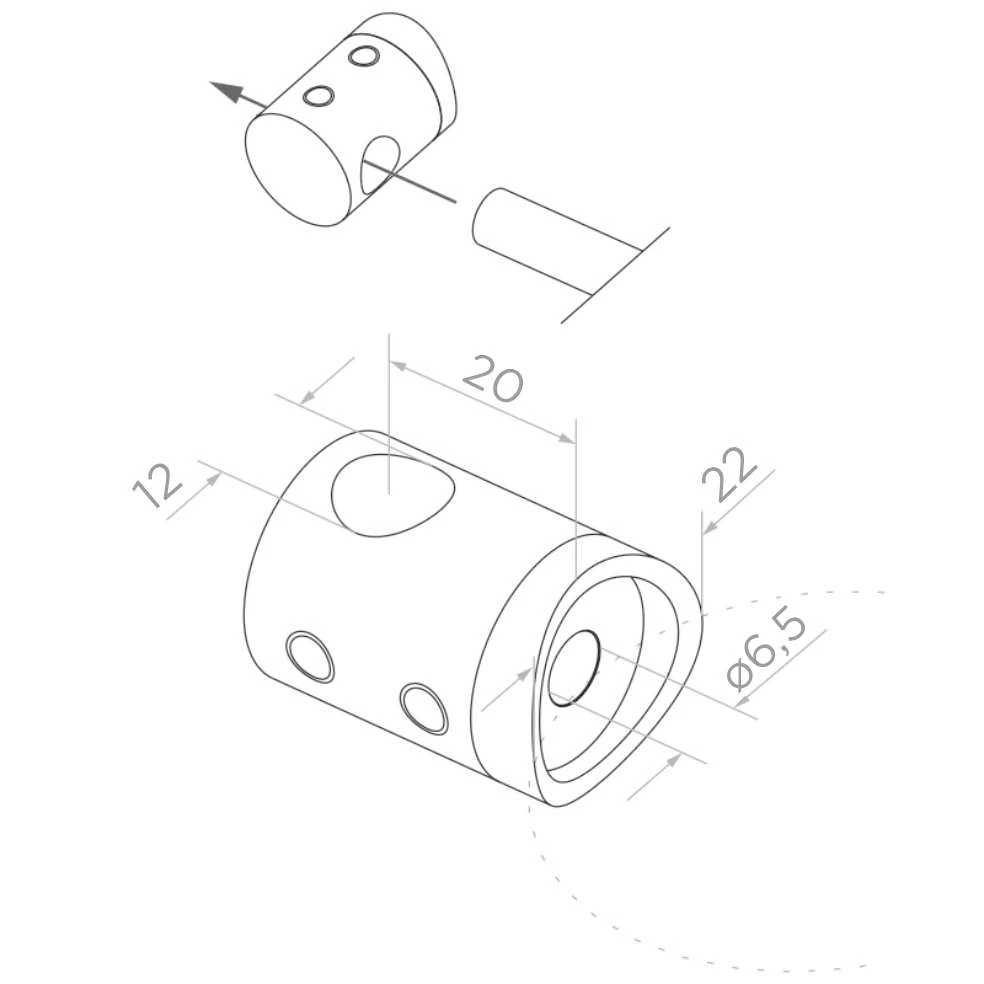

Technical specification
- Type: through bracket for rod/tube
- Rod diameter: 12 mm dia
- Mounting to tube: 42.4 mm dia
- System: 42.4 mm
- Material: AISI 304 stainless steel
- Surface finish: polished
- Weight: 0.042 kg
- EAN: 5901289671200
- Manufacturer: PSG
Application and installation
The through bracket is a key structural element of stainless steel balustrades – responsible for stable guidance and maintaining infill rods at proper spacing. Mounted directly on 42.4 mm dia balustrade posts, it creates rigid and durable connections that ensure safety and meet balustrade standards requirements. The polished AISI 304 steel surface guarantees high corrosion resistance, making this element suitable for both internal and external applications – on balconies, terraces, staircases or poolside areas.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
