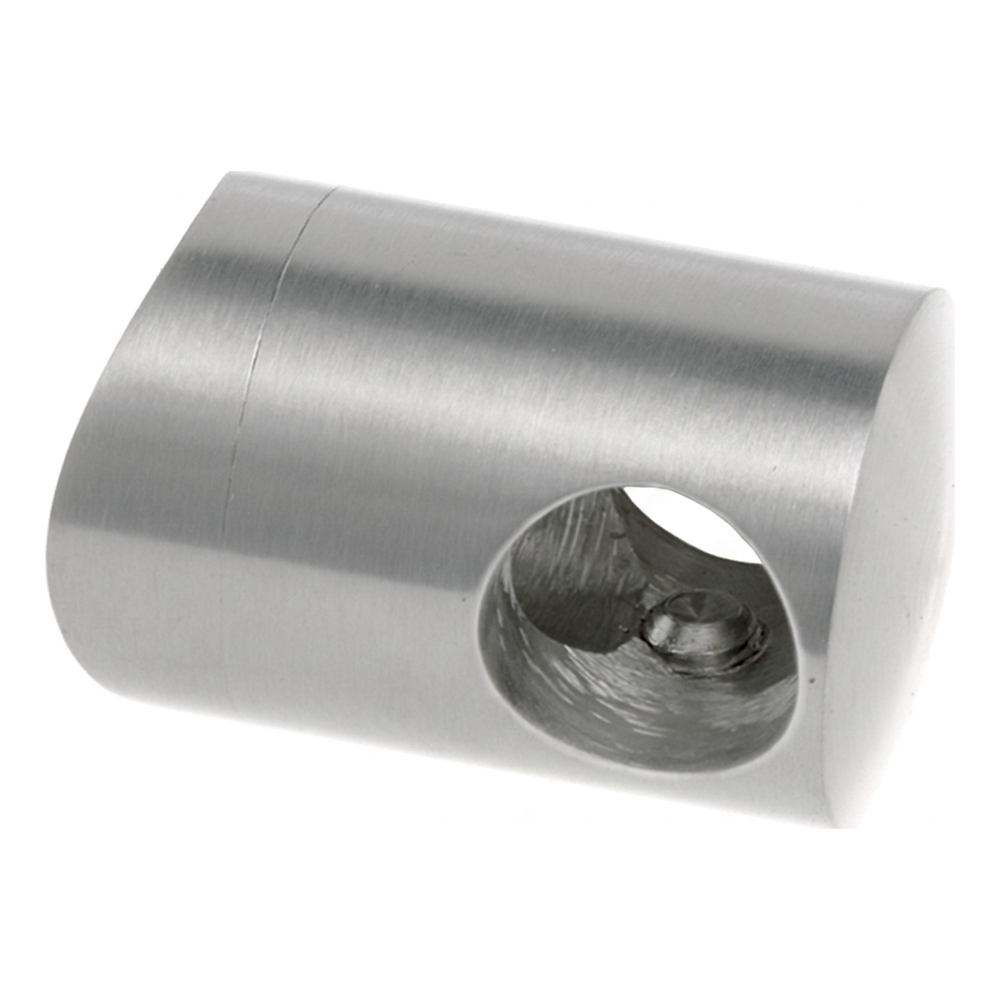

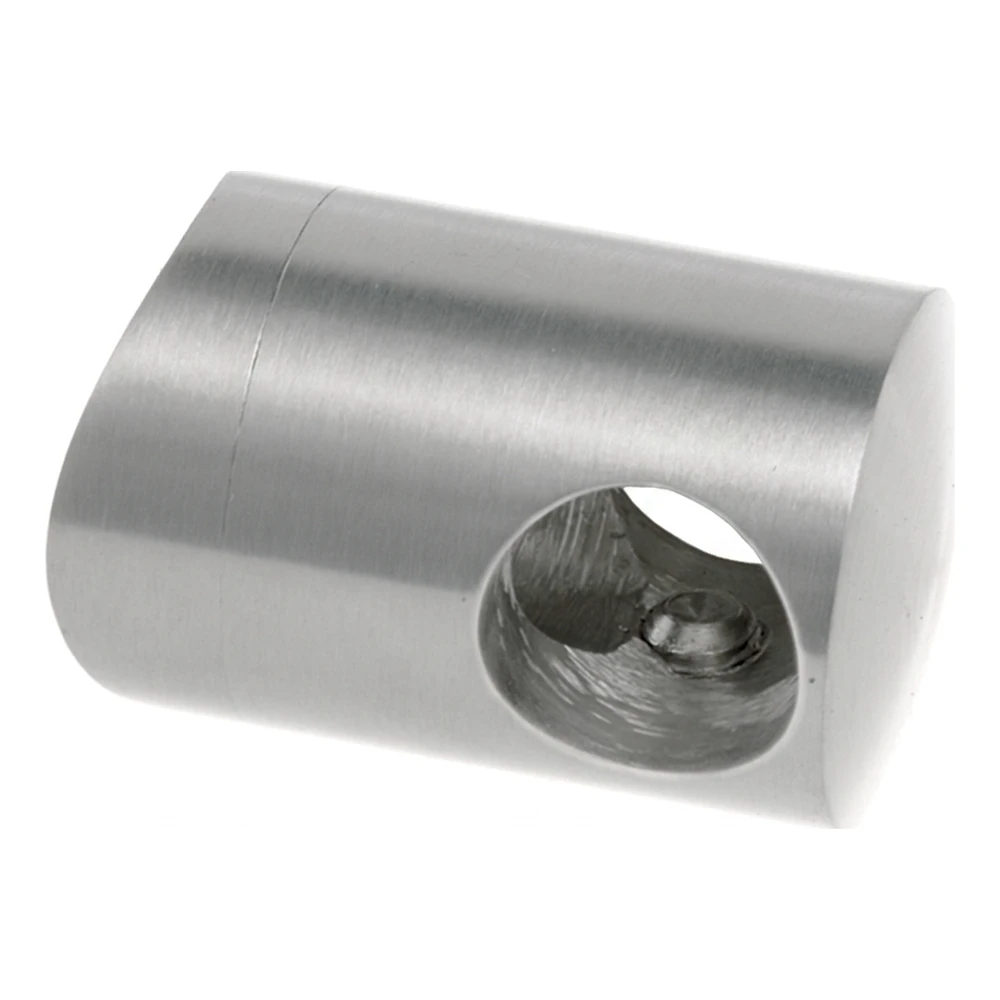

PSG through bracket for ø 10 mm rod – 42.4 mm tube system, stainless steel satin
Description
PSG through bracket for ø 10 mm rod – 42.4 mm tube system, stainless steel satin
Through bracket designed for mounting rods or tubes with diameter ø 10 mm in stainless steel balustrades. Mounted directly to ø 42.4 mm tube post — the profiled base perfectly matches the curvature of the structural tube, ensuring secure and aesthetic connection without additional machining.
Made from stainless steel AISI 304 with satin finish, the bracket perfectly complements other components of the 42.4 mm balustrade system. Two-part construction (body + collar) enables quick installation — simply insert the rod through the through hole and tighten the component using the central screw.

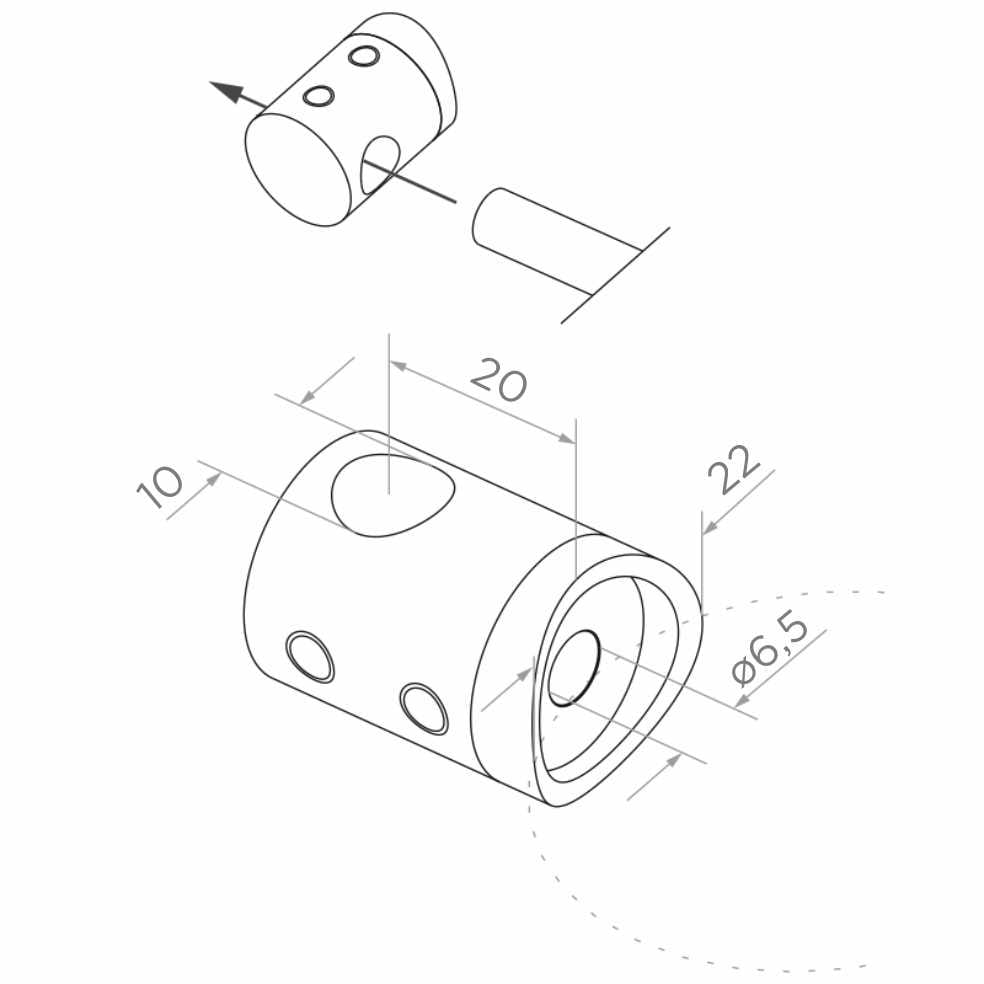

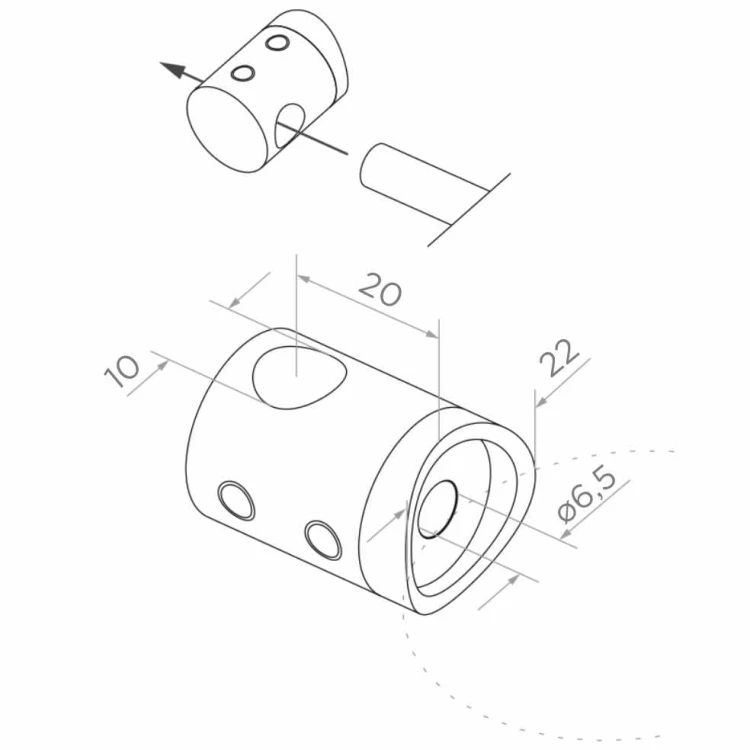

Dimensions and technical data
- Manufacturer: PSG
- Material: stainless steel AISI 304
- Finish: satin
- Through hole diameter (for rod/tube): ø 10 mm
- External body diameter: 22 mm
- Hole centre distance from face: 20 mm
- Mounting hole diameter (central): ø 6.5 mm
- Structural tube compatibility: ø 42.4 mm
- Weight: 0.055 kg
- EAN: 5901289671187
Application and installation
The bracket serves as a connector between the balustrade post and infill rods — it provides stability and rigidity to the entire infill structure. The profiled (saddle) base eliminates the need for precise milling and allows for quick positioning on the tube. The central hole ø 6.5 mm serves to fix the bracket to the structural tube using a screw, whilst the side through hole ø 10 mm guides the infill rod or tube.
Ideal for internal and external balustrades in the 42.4 mm tube system — for staircases, balconies, terraces and mezzanines. Satin finish provides resistance to fingerprints and harmoniously complements other stainless steel balustrade elements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
