PSG through balustrade holder for fi 16 mm rod – stainless steel AISI 304, satin
Description

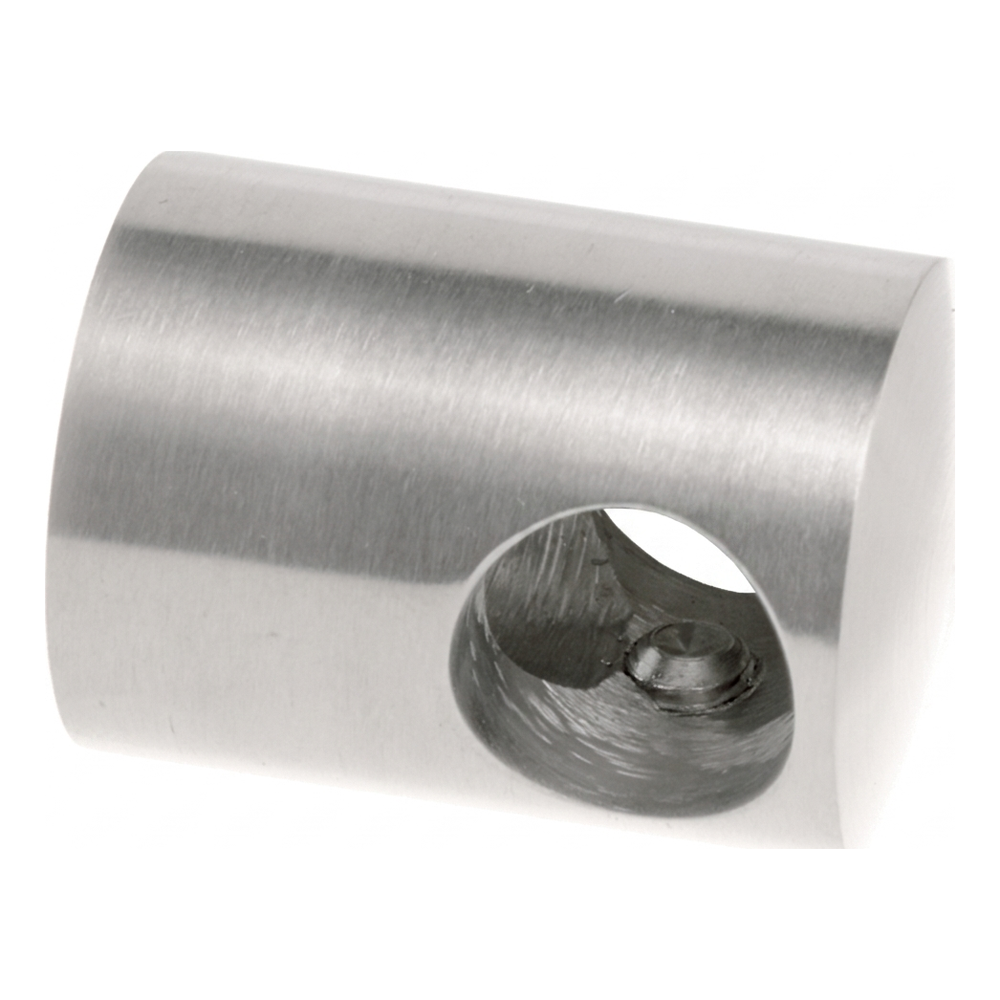

PSG through balustrade holder for fi 16 mm rod – stainless steel AISI 304, satin
Through holder for fi 16 mm rod/tube designed for mounting on flat surfaces. Used to connect horizontal or vertical balustrade infills with posts or other structural elements — provides rigidity to the entire structure and ensures an aesthetic, durable mounting point.
Made from durable stainless steel AISI 304 with satin finish, resistant to corrosion and atmospheric conditions. Cylindrical form with through hole for rod and mounting hole in base enables quick and secure mounting to the surface. Side grub screws allow immobilisation of the rod in the holder without the need for additional elements.

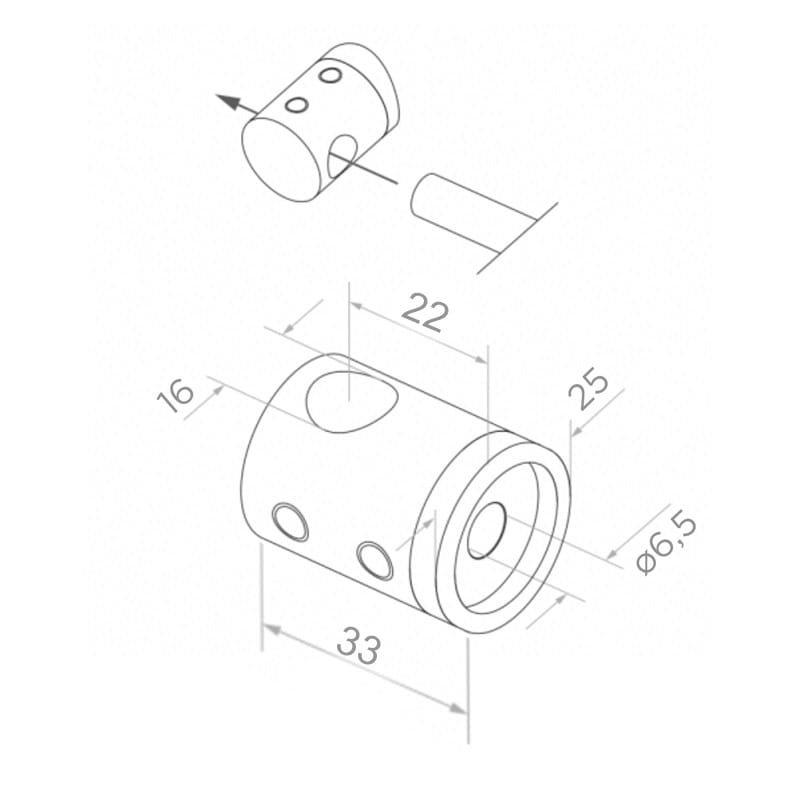

Dimensions and technical data
- Through hole diameter (for rod/tube): fi 16 mm
- External body diameter: 25 mm
- Total length (height): 33 mm
- Distance of hole axis from base: 22 mm
- Mounting hole diameter in base: fi 6.5 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Mounting type: to flat surfaces (flat system)
- Weight: 0.08 kg
- EAN: 5901289671316
Application
The holder is dedicated to balustrade systems with rods or tubes of 16 mm diameter. Suitable for both internal and external balustrades — wherever durable and aesthetic mounting of infills to flat structural elements is required. Thanks to compact dimensions and satin finish, it harmoniously complements modern stainless steel balustrade systems.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
