PSG steel mounting plate for sliding gate rollers 100×20 mm
Leave feedback on the product

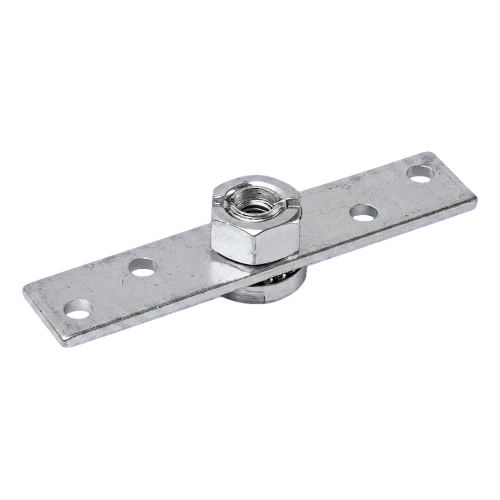

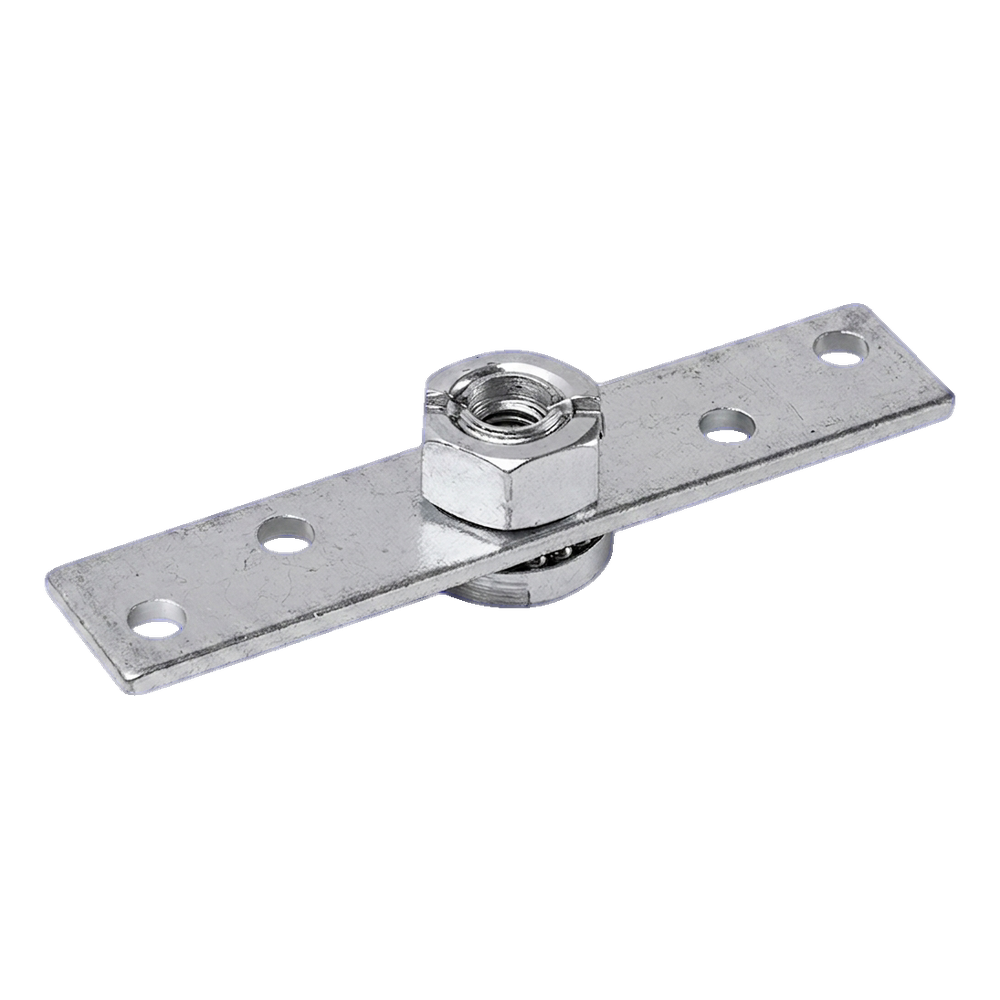

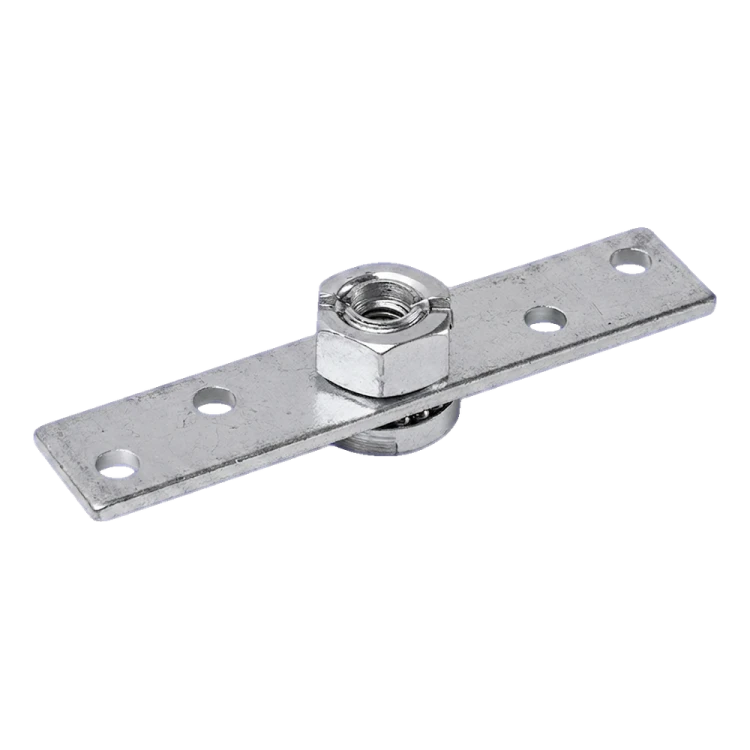

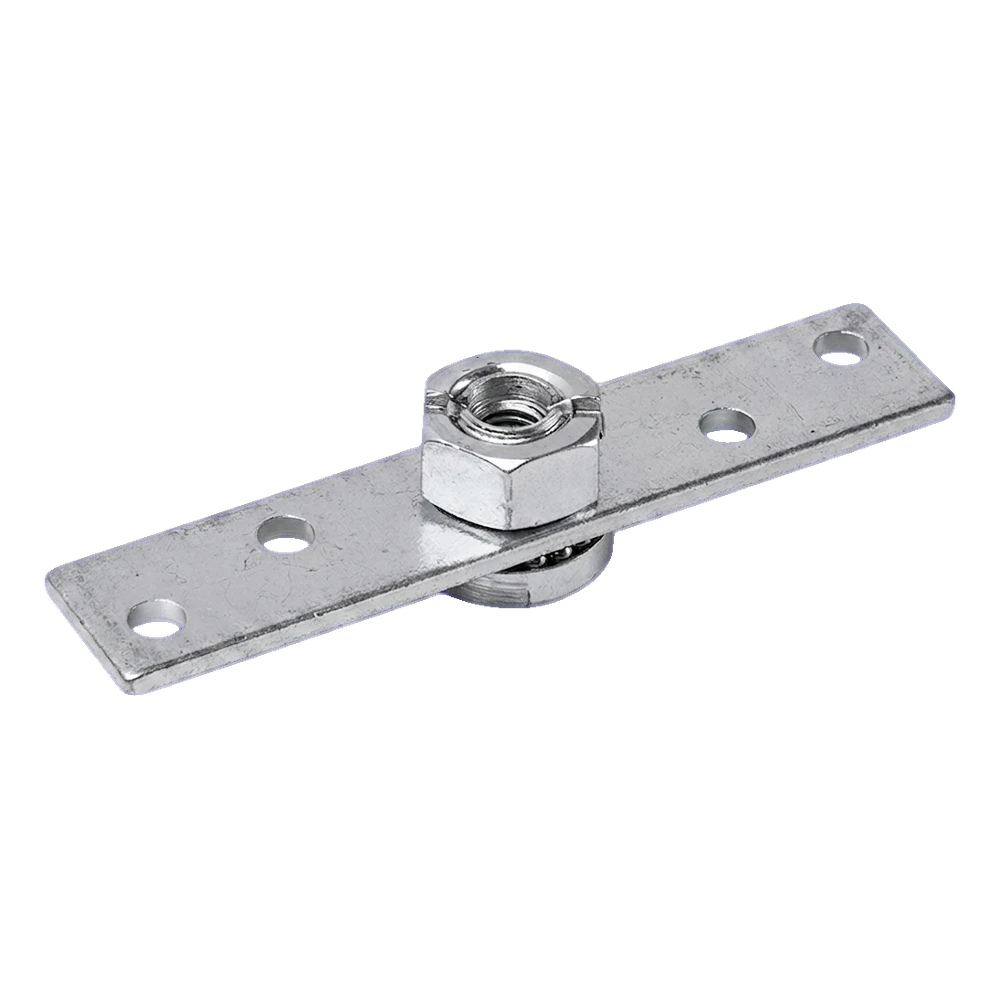

PSG steel mounting plate with rotating mount for sliding gate roller assembly. Dimensions 100×20 mm, 4 mounting holes, weight 0.08 kg. Central pivot axis with nut.
Product code: 001-319
Description
PSG steel mounting plate for sliding gate rollers 100×20 mm
PSG steel mounting plate is a key component of sliding gate guidance systems — it serves as a rotating mount for the roller assembly. Thanks to the central pivot axis with nut, rollers can freely adjust to the rail direction, ensuring smooth and quiet gate operation. Compact dimensions (100 × 20 mm) and four mounting holes provide stable and secure attachment to the load-bearing structure.
The plate is made from steel, guaranteeing high mechanical strength and resistance to dynamic loads occurring during daily sliding gate operation. Low weight (0.08 kg) facilitates logistics and installation — the component can be conveniently mounted with one hand whilst holding the roller assembly.

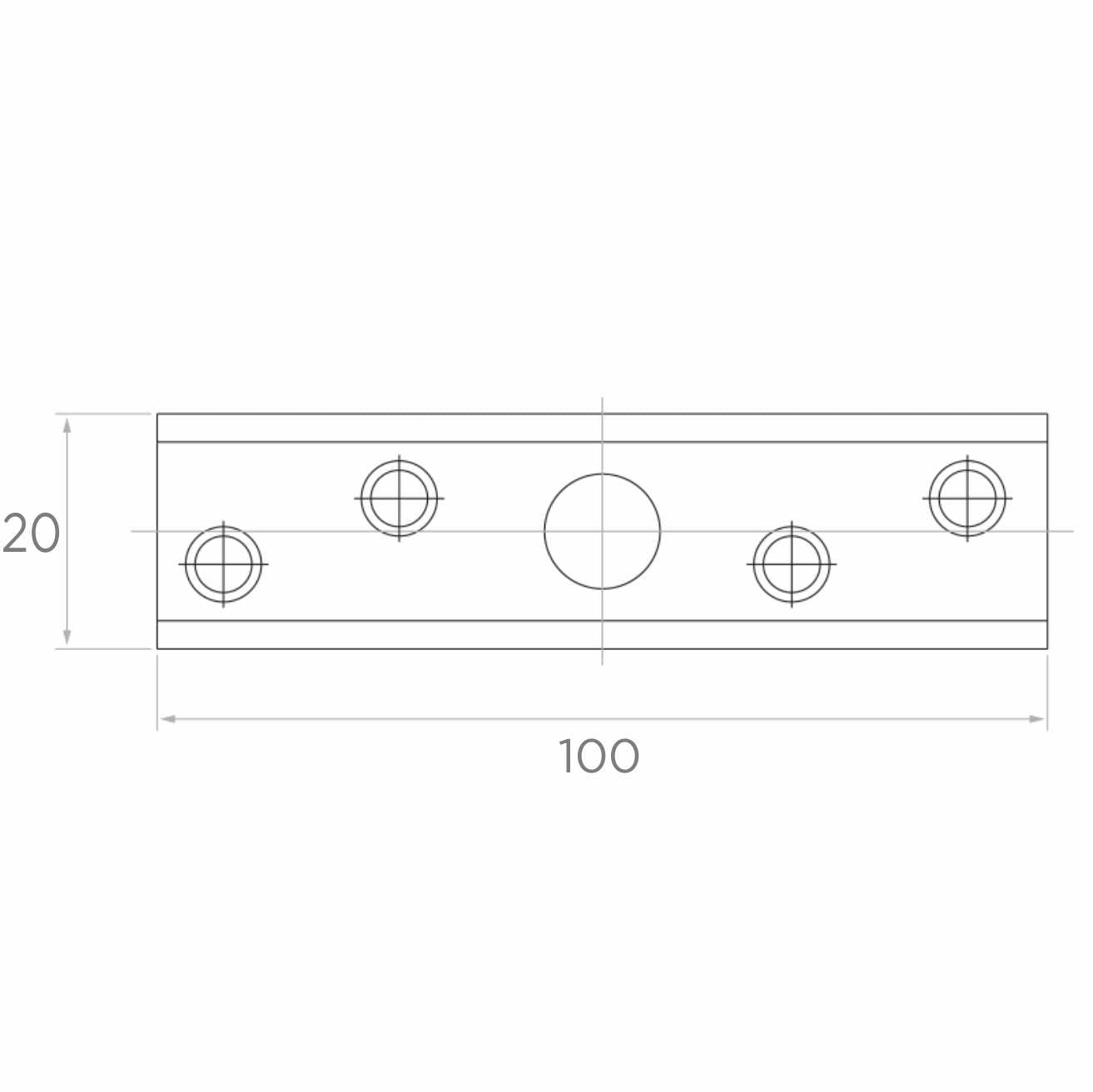

Dimensions and technical specification
- Manufacturer: PSG
- Material: steel
- Plate length: 100 mm
- Plate width: 20 mm
- Number of mounting holes: 4
- Central pivot axis: yes (rotating mount with nut)
- Weight: 0.08 kg
- EAN: 5901289675581
Application
The mounting plate is designed for sliding gate systems — it serves as a connecting element between the guide roller assembly and the gate or fence structure. The central rotating mount enables free adjustment of roller angle relative to the running rail, eliminating excessive friction and speeding up adjustment during installation. Product dedicated to professional fencing and gate systems by PSG brand.
