PSG steel mounting plate 38 for sliding gate trolley 150×25 mm
Description
PSG steel mounting plate 38 for sliding gate trolley 150×25 mm

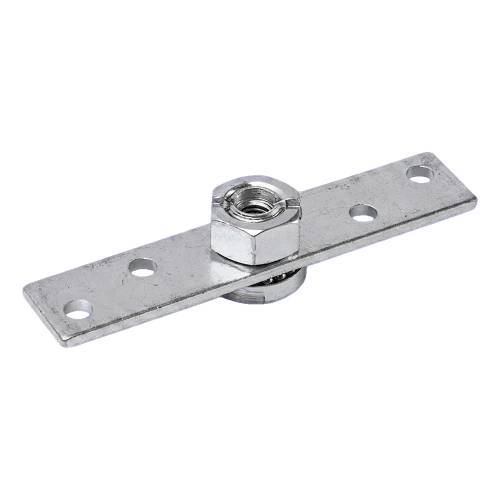

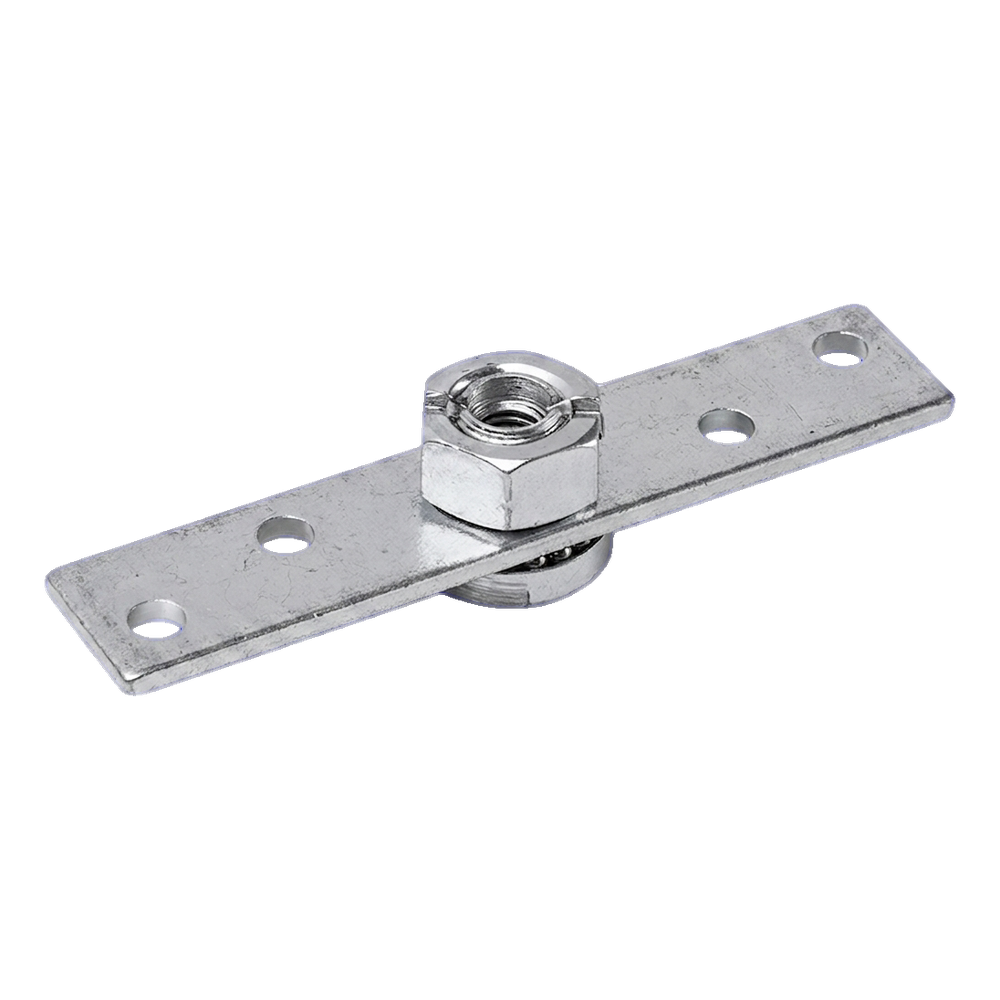

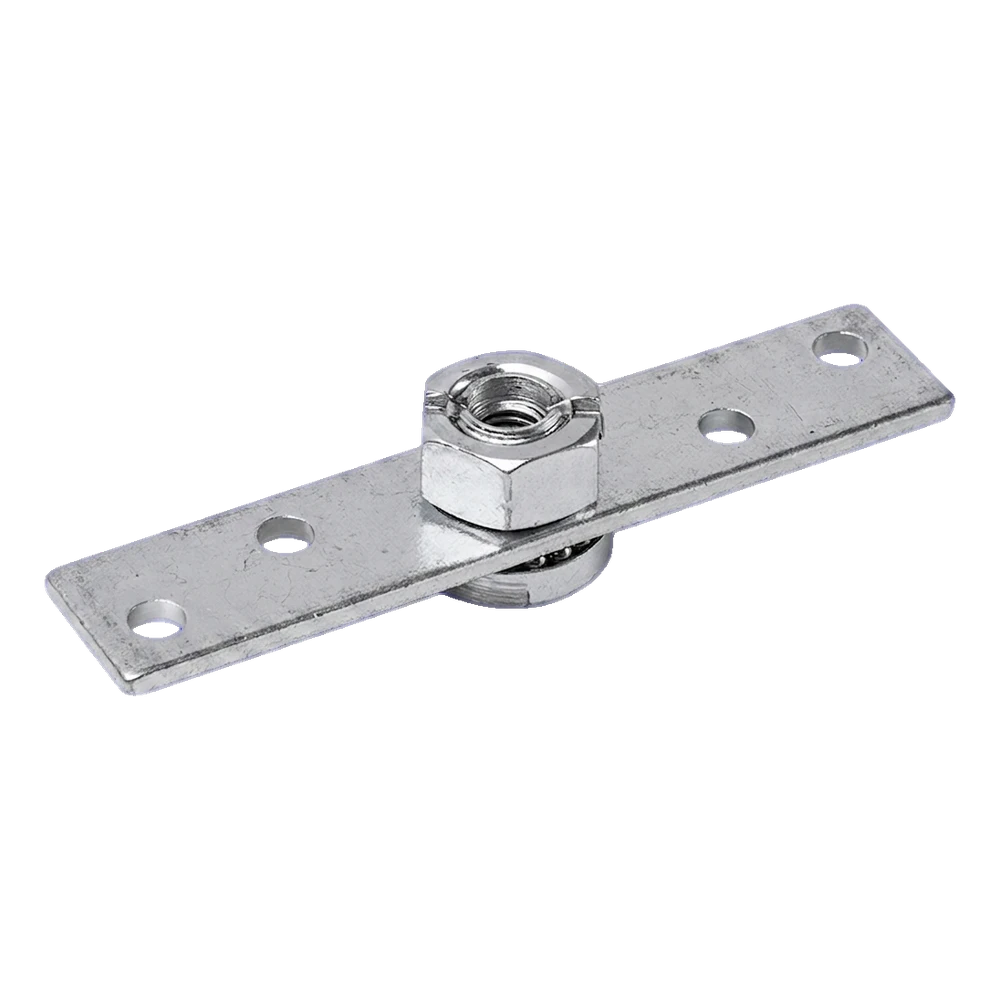

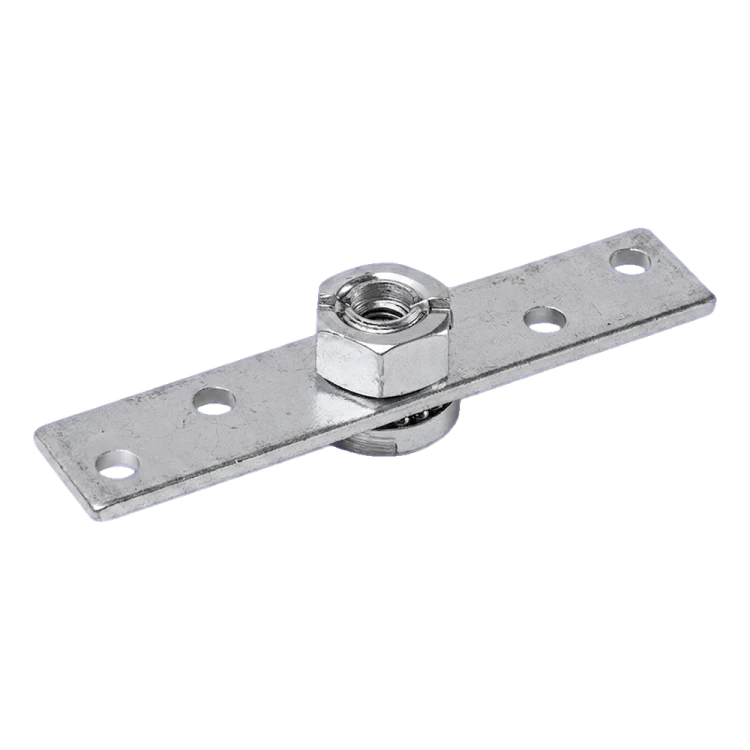

PSG 38 mounting plate is a steel element designed for rotating mounting of roller assembly in sliding gate systems. Thanks to the built-in rotating joint with nut, it ensures smooth operation of the running trolley, enabling compensation for rail irregularities and eliminating excessive stress on the rollers.
The plate is equipped with four mounting holes arranged symmetrically on both sides of the central joint and one central hole of larger diameter through which the rotating element passes. This design allows for secure and stable mounting to the gate frame whilst maintaining freedom of rotational movement of the roller assembly.

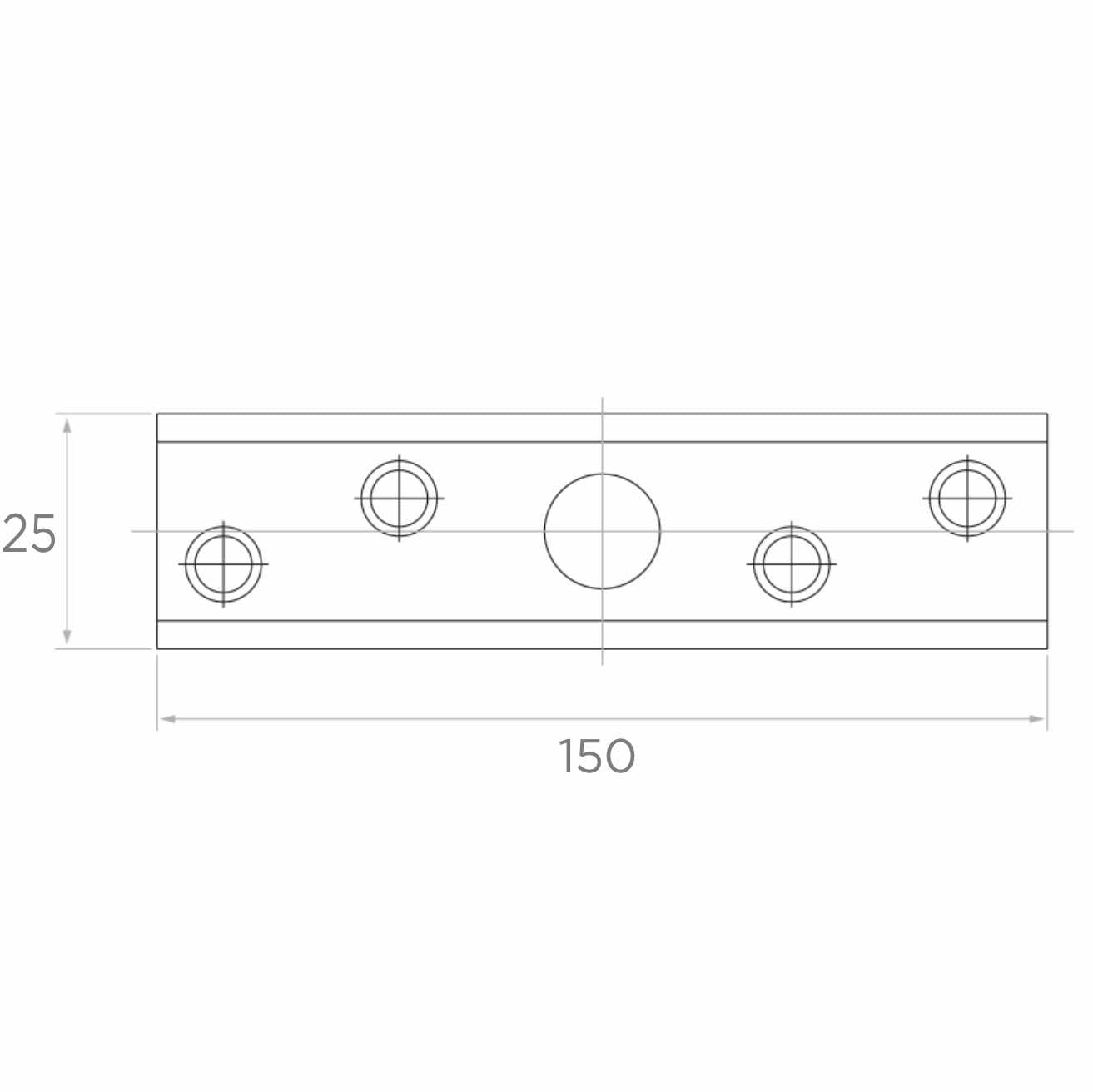

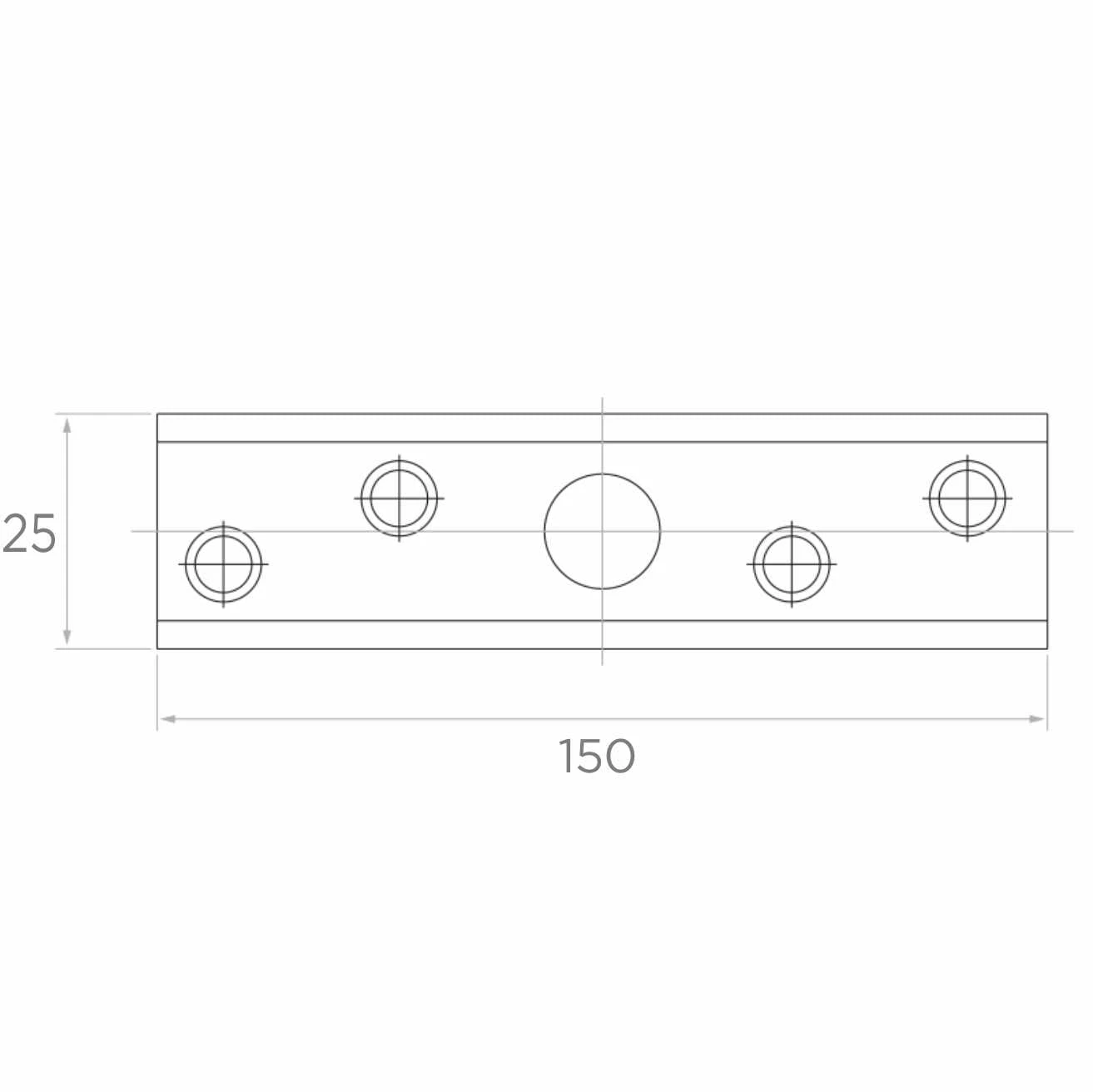

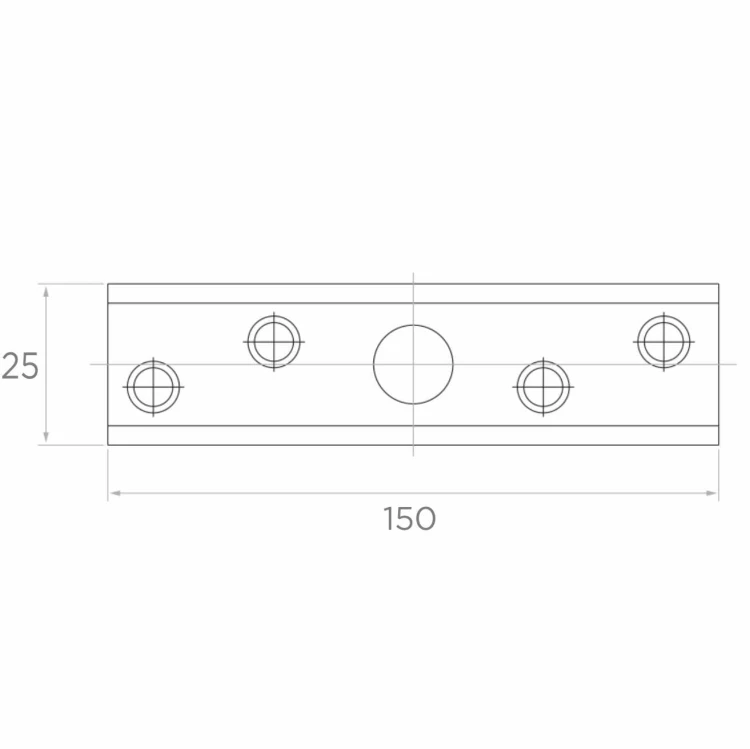

Dimensions and technical data
- Plate length: 150 mm
- Plate width: 25 mm
- Material: steel
- Finish: galvanised
- Mounting holes: 4 side holes + 1 central hole
- Rotating element: joint with hexagonal nut
- Weight: 0.18 kg
- Manufacturer: PSG
- EAN: 5901289675598
Application
The mounting plate is designed for sliding gate systems as an element connecting the gate frame with the running roller assembly. The rotating mounting ensures self-adjustment of rollers relative to the running rail, which translates to quieter and more uniform gate operation. It is an essential element for professional installation of sliding gate systems on ground-mounted rails.
