PSG steel gate ball bearing hinge ø 20×70 mm
Leave feedback on the product

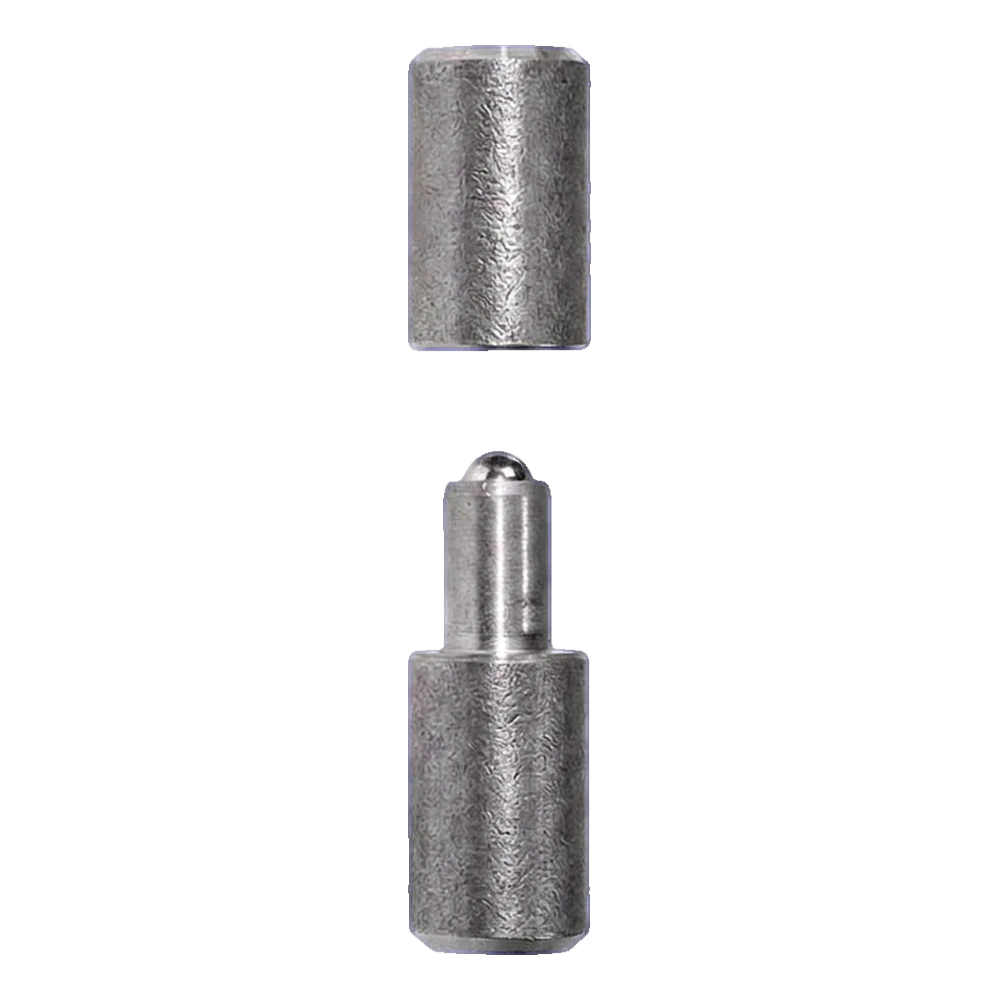

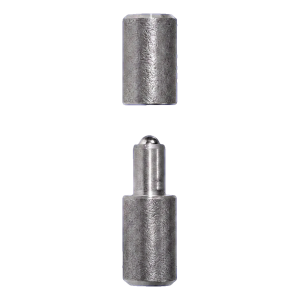

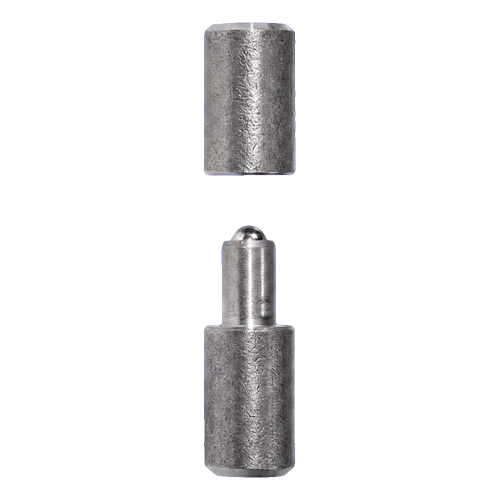

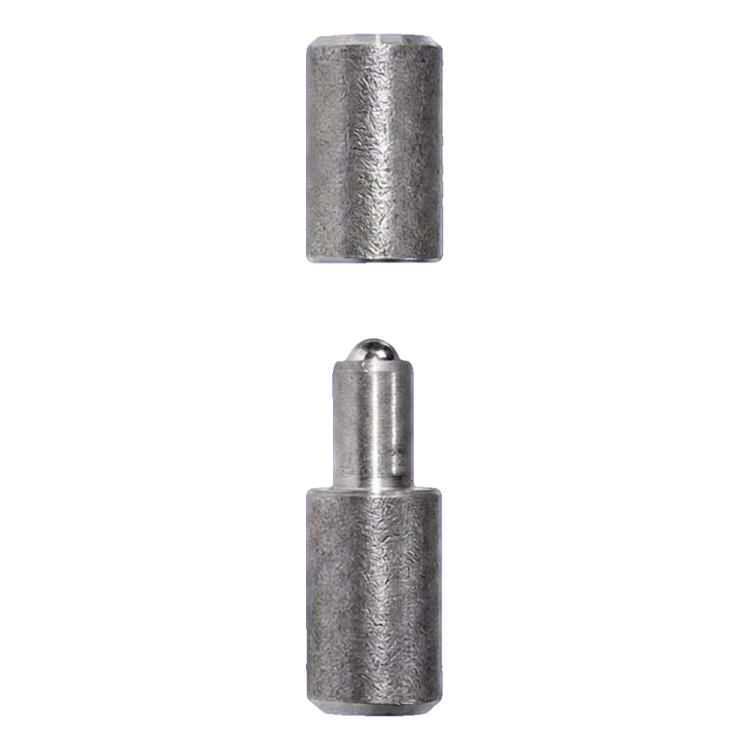

PSG gate ball bearing hinge ø 20×70 mm, steel. Two-piece construction: sleeve and pin with ball. Weight 0.16 kg. For swing gates and garden gates. Welded installation.
Product code: 001-467
Product features
[PIM] zawiasy #113
- Diameter 20
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG steel gate ball bearing hinge ø 20×70 mm
Ball bearing hinge from PSG brand is a durable gate hardware component designed for swing gates. Thanks to its precisely machined construction with ball bearing pin, it ensures smooth gate operation and long-lasting trouble-free service. The two-piece design (sleeve + pin with ball) enables quick welded installation and easy gate removal when servicing is required.
Compact dimensions (ø 20 mm × 70 mm) make this hinge suitable for garden gates and light to medium swing gates in residential fencing. The machined pin surface minimises friction and wear, resulting in quiet and smooth hinge operation for many seasons.
Technical specifications
- Manufacturer: PSG
- Type: ball bearing hinge (two-piece)
- Application: swing gates, garden gates

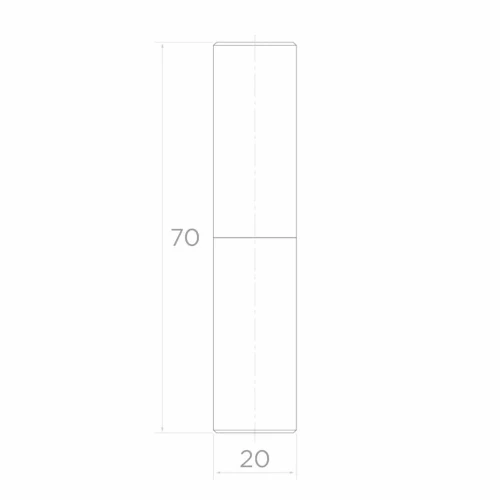

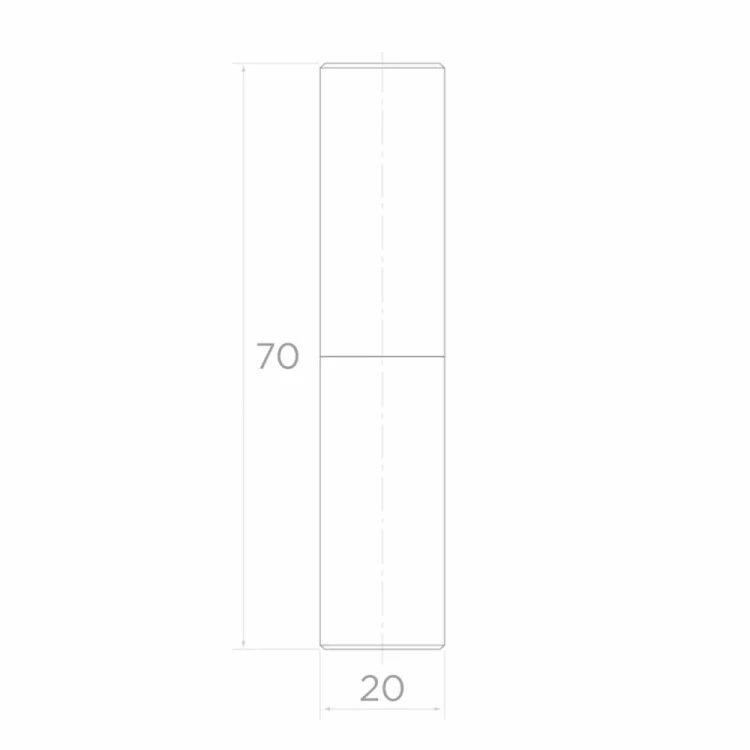

- Diameter (ø): 20 mm
- Total height: 70 mm
- Material: steel
- Weight: 0.16 kg
- Volume: 28 cm³
- EAN: 5901289676625
Installation and application
The hinge is installed by welding — bottom part (pin with ball) welded to the post, upper sleeve welded to the gate leaf. The ball end of the pin facilitates gate mounting and ensures self-centering during closing. For optimal load capacity and durability, it is recommended to use hinges in pairs — at least two hinges per gate leaf.
