PSG steel bottom guide for suspended gates M12
Description
PSG steel bottom guide for suspended gates M12
Steel PSG bottom guide designed for suspended gates (upper sliding gates). The element ensures stable guidance of the gate leaf's bottom edge, eliminating lateral deflections and improving operational smoothness. Solid, all-steel construction guarantees years of trouble-free operation even with intensive use.

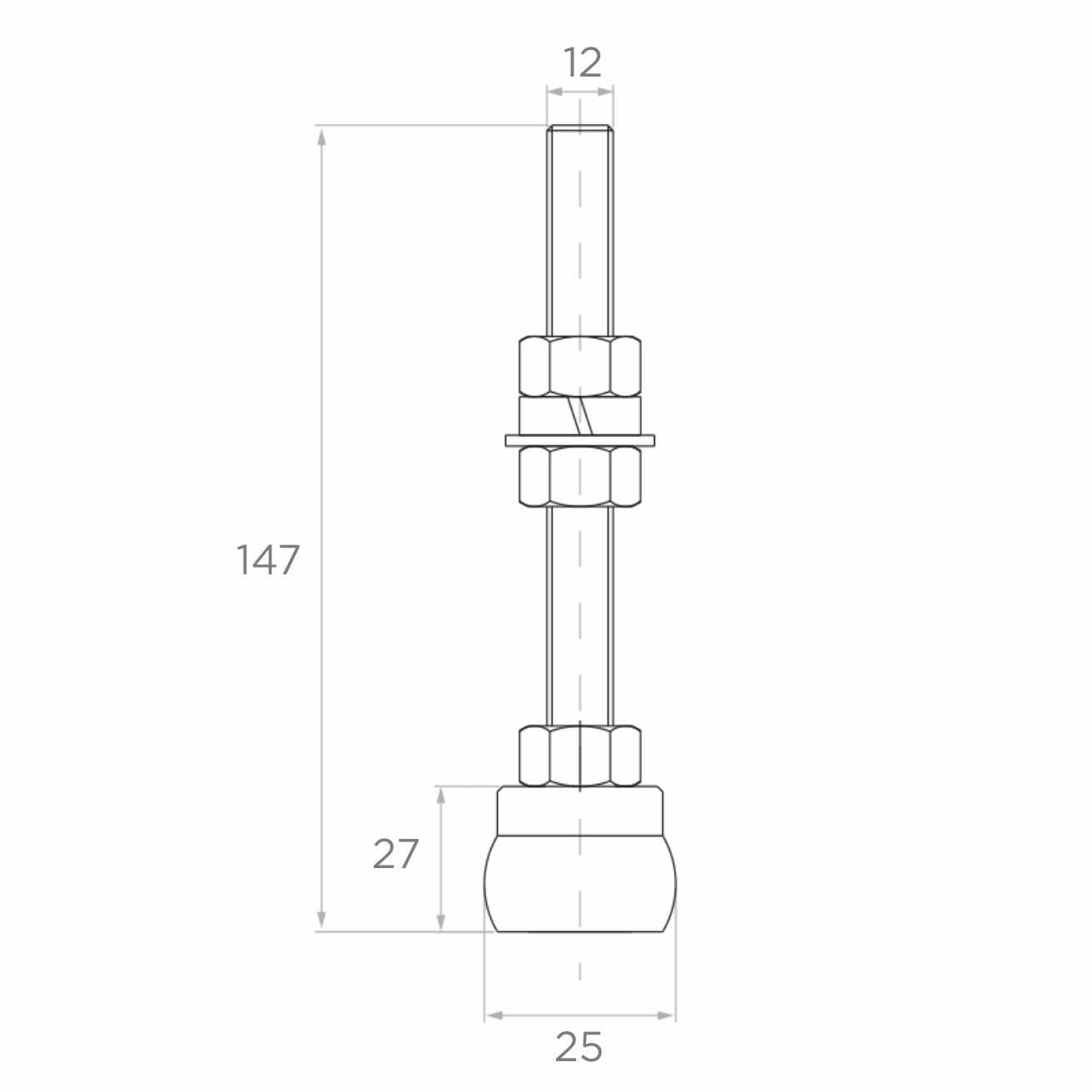

Dimensions and technical parameters
- Overall height (H): 147 mm
- Threaded rod diameter: M12
- Guide roller diameter: 25 mm
- Guide roller height: 27 mm
- Material: steel
- Weight: 0.2 kg
- Manufacturer: PSG
- EAN: 5901289675666
Construction and operating principle

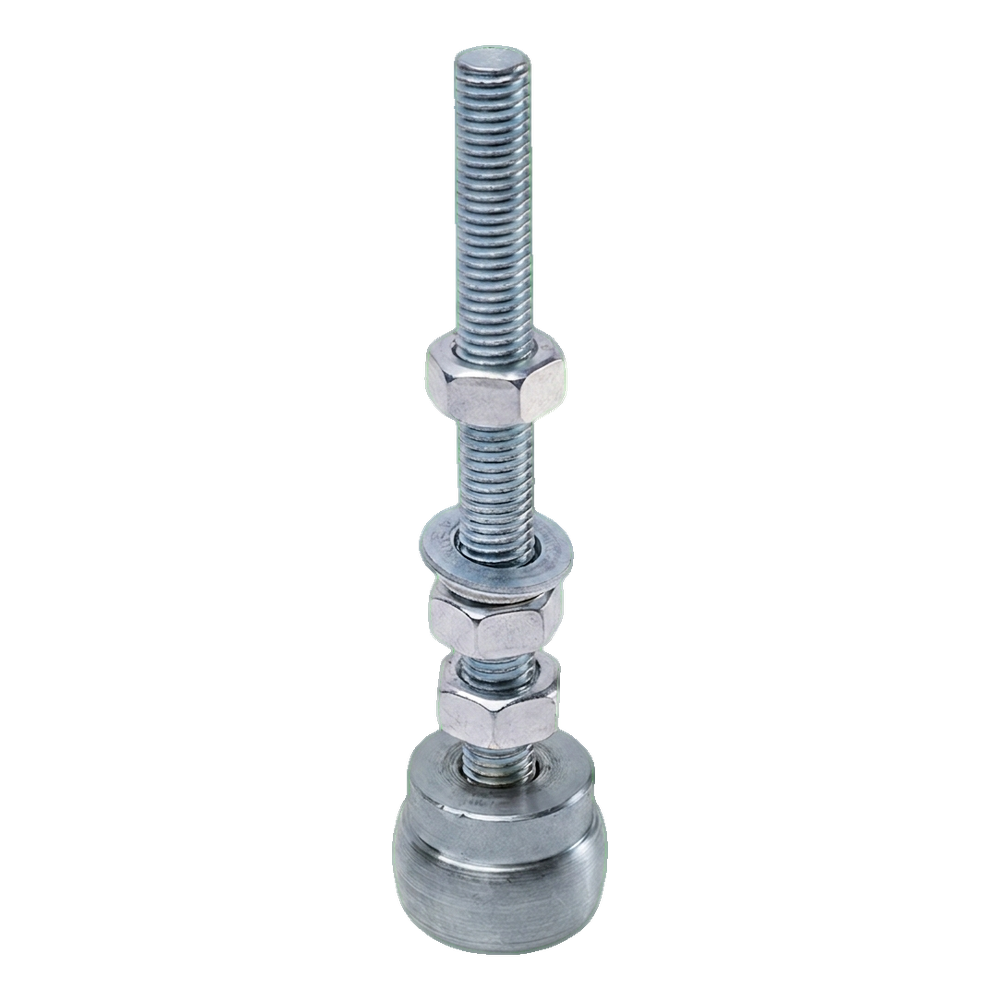

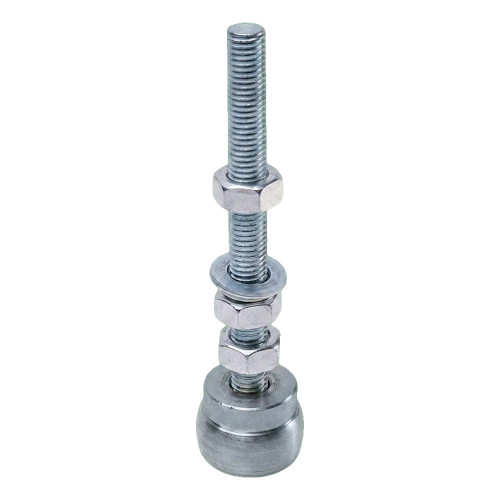

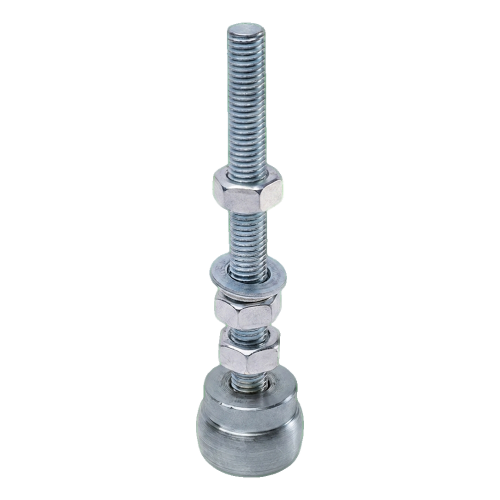

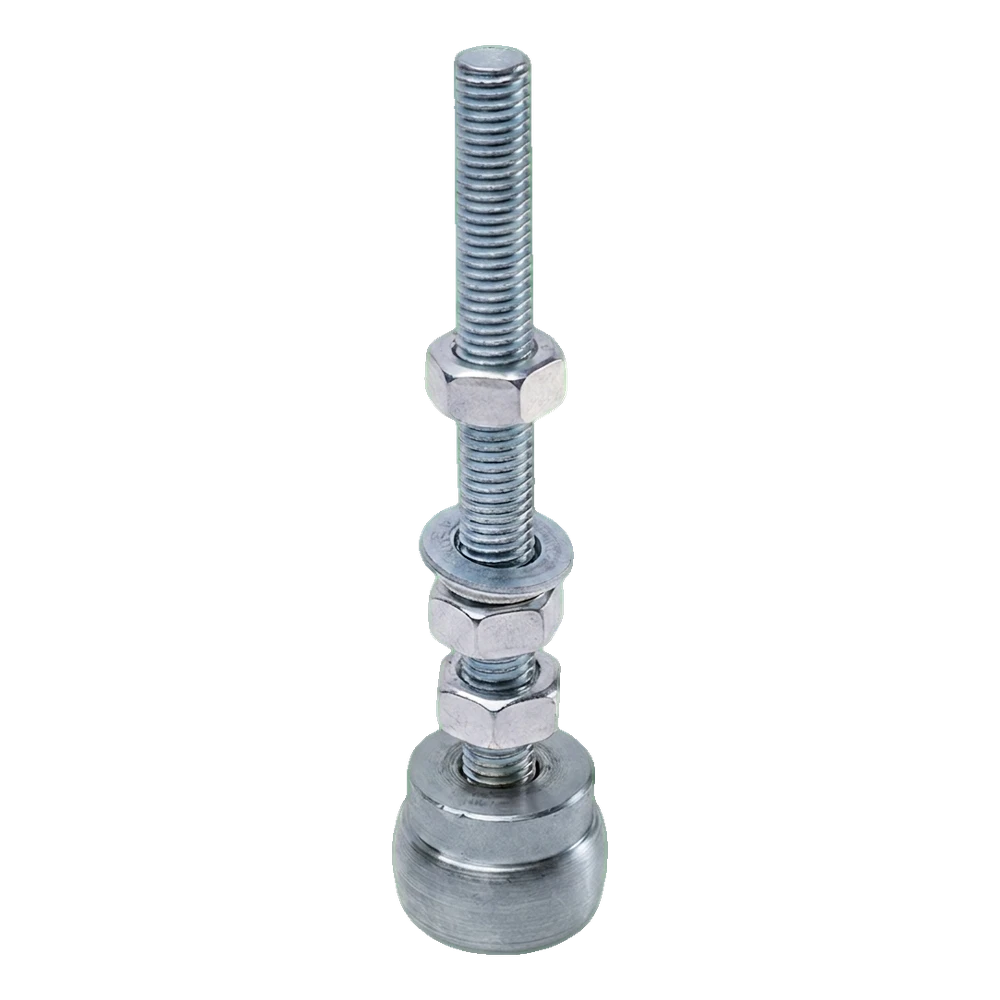

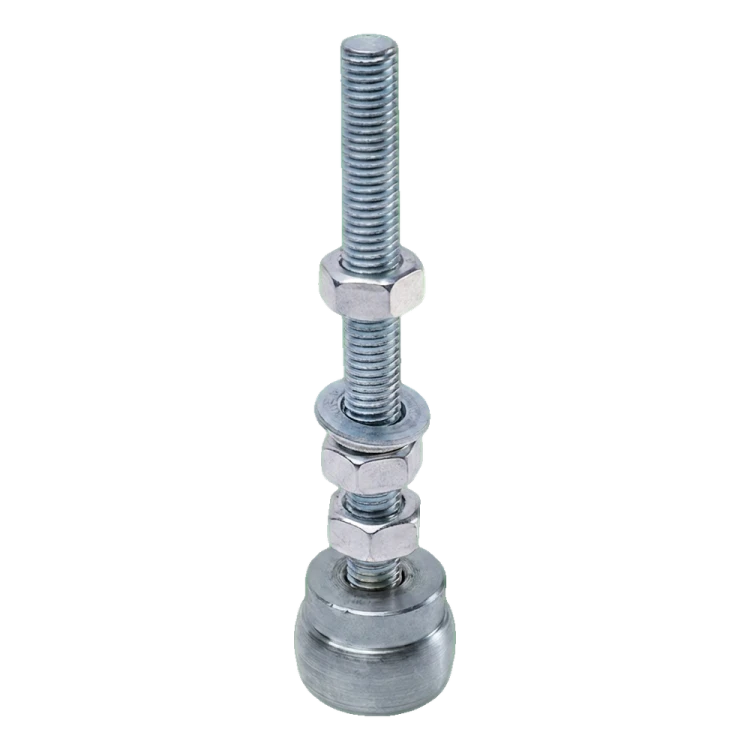

The guide consists of an M12 threaded rod with two nuts and washers, enabling height adjustment and secure mounting in the gate's bottom profile. The lower part is equipped with a steel guide roller with 25 mm diameter, which moves in the bottom rail and keeps the gate leaf on the proper track. Thanks to threaded adjustment, the installer can precisely set the clearance between the roller and rail — resulting in quiet and smooth gate operation.
Application
Element dedicated to suspended gates (upper sliding gates), where the gate leaf is guided along the upper rail, and the bottom guide prevents lateral deviations. Ideal solution for both industrial and perimeter gates. Compatible with PSG fencing systems.
