PSG steel adjustable gate hinge M16 with circlip – galvanised, 150 mm
Description

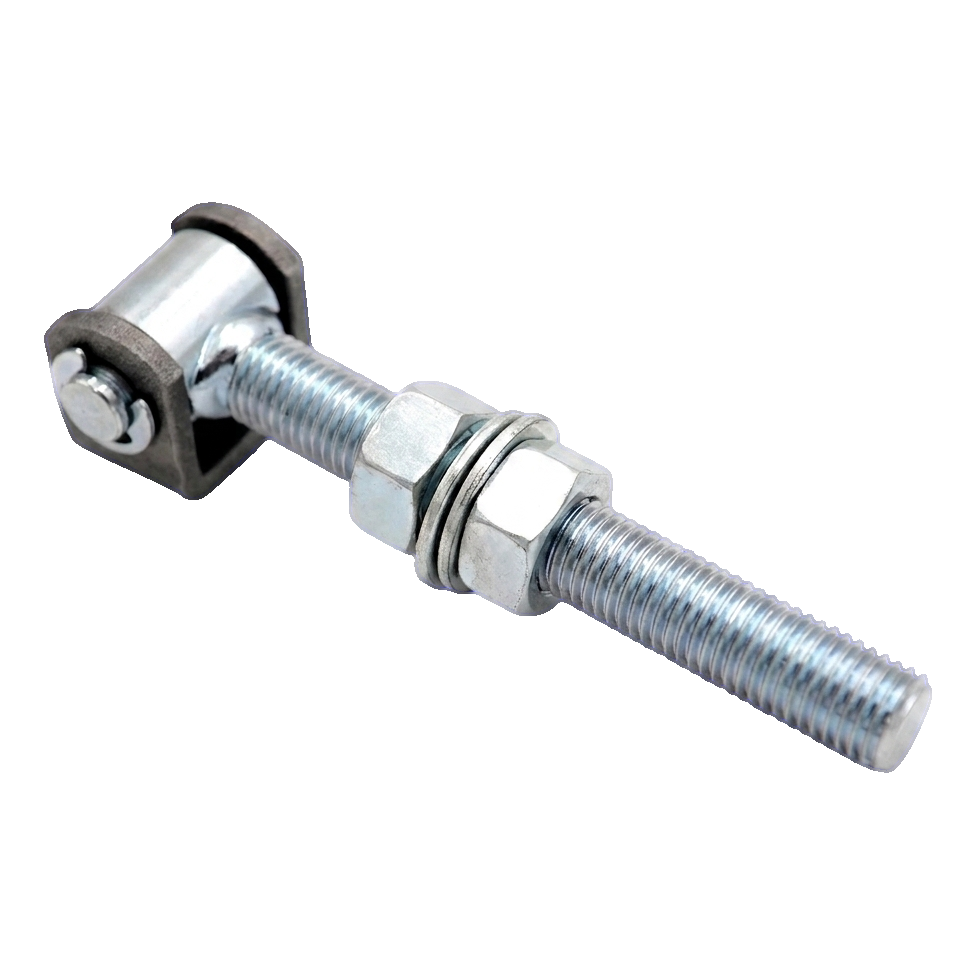

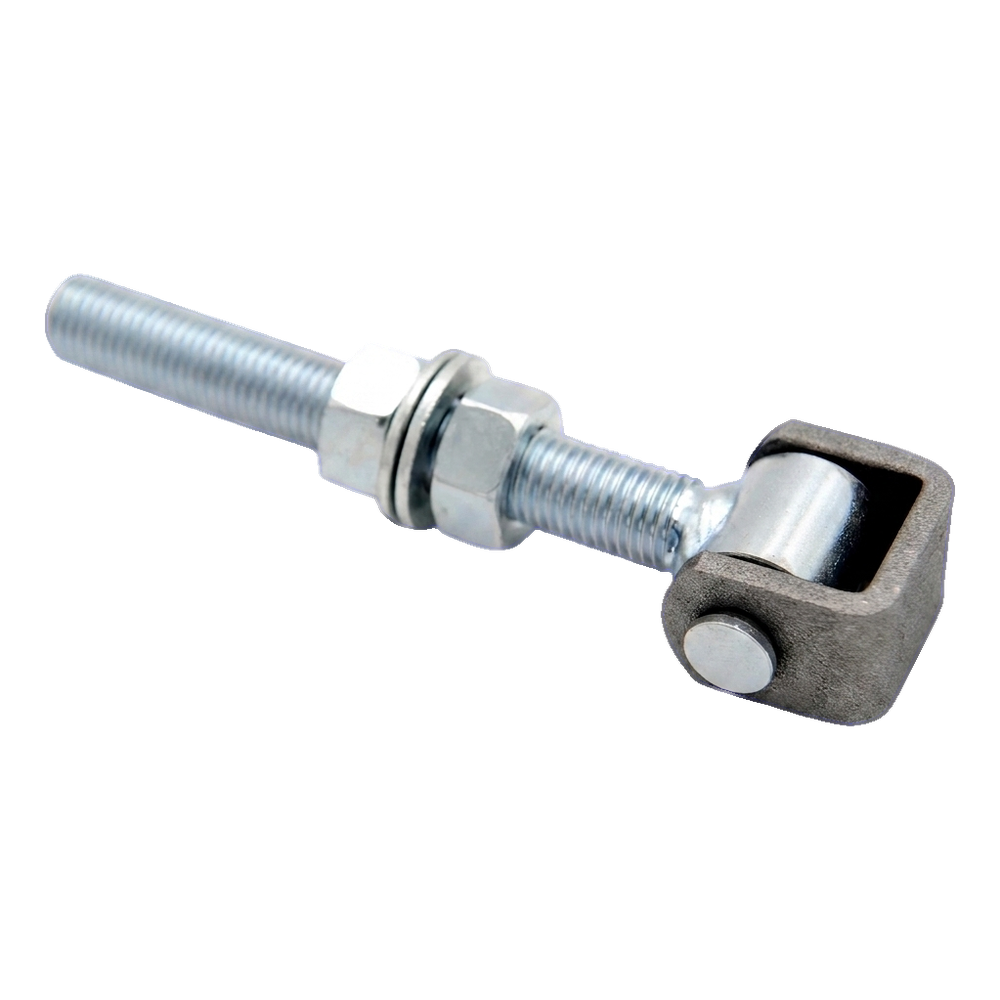

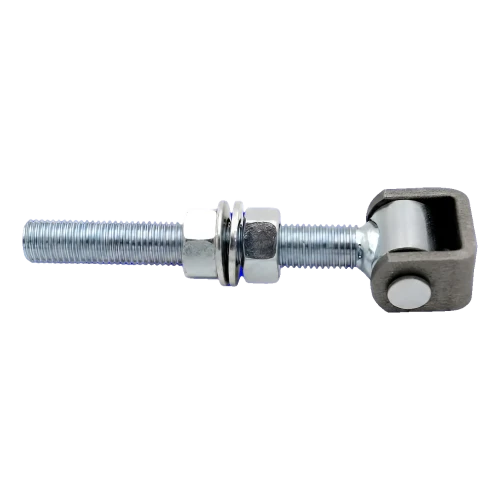

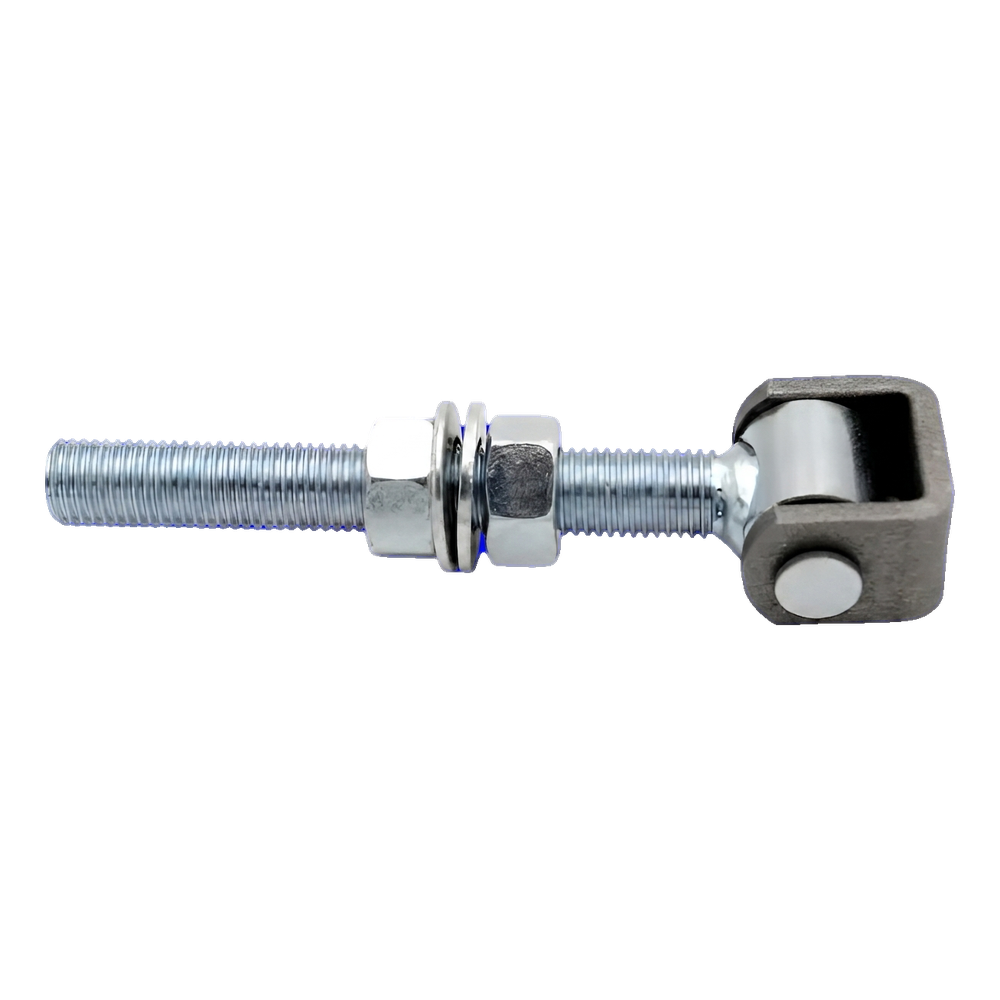

PSG steel adjustable gate hinge M16 with circlip – galvanised, 150 mm
Steel adjustable hinge M16 from PSG is a durable mounting element designed for swing gates. The circlip design with adjustment nut allows for precise adjustment of the gate wing position after completed installation — without the need to dismantle the hinge. This solution is particularly valued by installation companies that need to quickly and accurately adjust the gate in varying site conditions.
Solid construction made from galvanised steel ensures high corrosion resistance and long-term outdoor use. The zinc layer effectively isolates the metal from moisture and oxygen, minimising the risk of rust even with intensive exposure to atmospheric conditions. The hinge lug remains black in colour (without galvanising), giving the product a characteristic, aesthetic appearance.
Permissible load for a pair of hinges on a wing with length of 2 m is 65 kg, allowing their use in typical swing gates in residential and light industrial facilities. High wear resistance guarantees maintaining full functionality even with intensive, daily gate use.
Technical parameters
- Manufacturer: PSG
- Type: adjustable hinge with circlip
- Material: steel
- Anti-corrosion protection: galvanised (lug black — without zinc)
- Thread: M16
- Total length: 150 mm
- Pin (bolt) length: 110 mm
- Lug width: 36 mm
- Pin diameter: 16 mm
- Permissible load for pair of hinges (2 m wing): 65 kg
- Weight: 0.4 kg
- EAN: 5903313216531
Post-installation adjustment
The key advantage of this hinge is the ability to adjust the gate position after completed installation using the adjustment nut. In practice, this means that the installer can precisely correct the gate wing setting in case of structural sagging or metal dimension changes caused by extreme temperatures — without the need to dismantle the entire hinge. The adjustment process is simple and intuitive, significantly reducing service time and warranty handling.
Technical data
| Thread type | M16 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
