PSG stainless steel safety cable for swing gate 500 mm ø6
Description
PSG stainless steel safety cable for swing gate 500 mm ø6
PSG stainless steel safety cable is a reliable safety component that protects swing gates from uncontrolled gate leaf fall in the event of damage to one or two hinges. For installation companies, it is a key component that enhances safety of use of every installed gate and protects against liability for potential damage.
Application and operation
The cable is mounted between the gate leaf and the post or frame. Under normal operating conditions, it remains slightly loose and does not carry loads. In an emergency situation — e.g., when a hinge breaks — the cable takes the weight of the leaf and prevents its fall, protecting people and property in the vicinity. The set is complete and ready for installation — it includes a cable with thimbles, threaded rod M12×180 mm and two self-locking nuts.

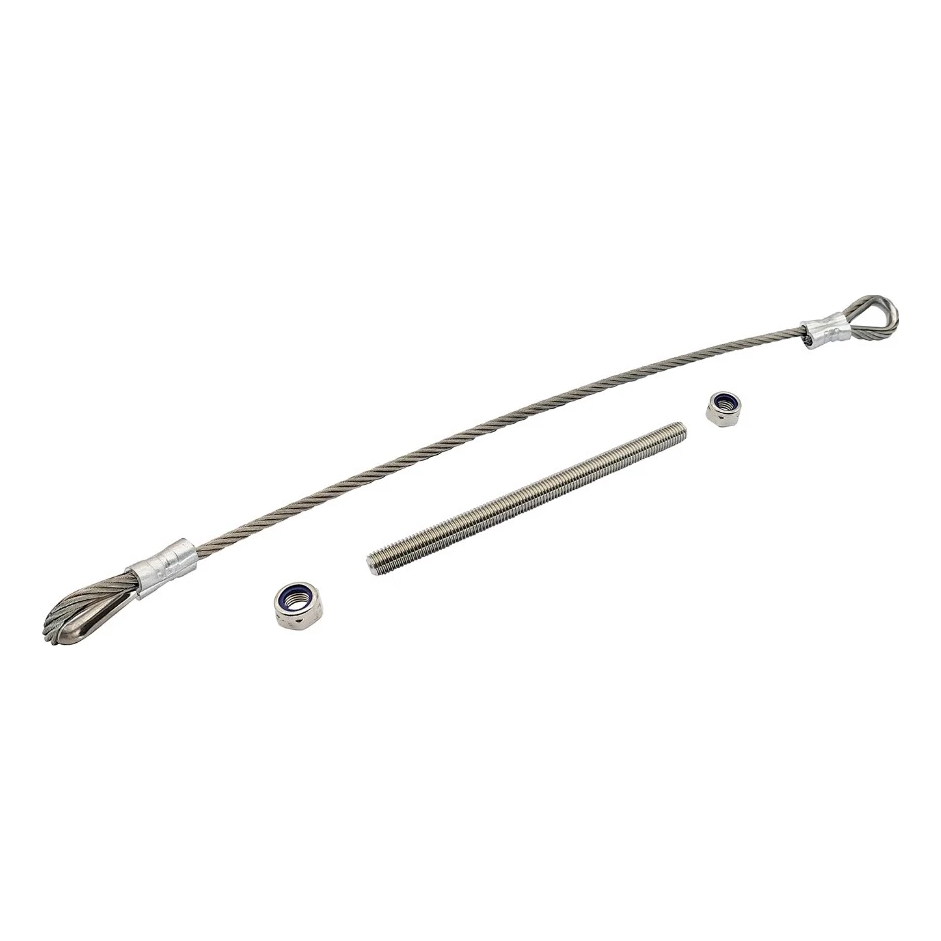

Set contents
- Stainless steel cable with thimbles and crimp sleeves on both ends — 1 pc.
- Threaded rod M12×180 mm — 1 pc.
- Self-locking nut M12 — 2 pcs.

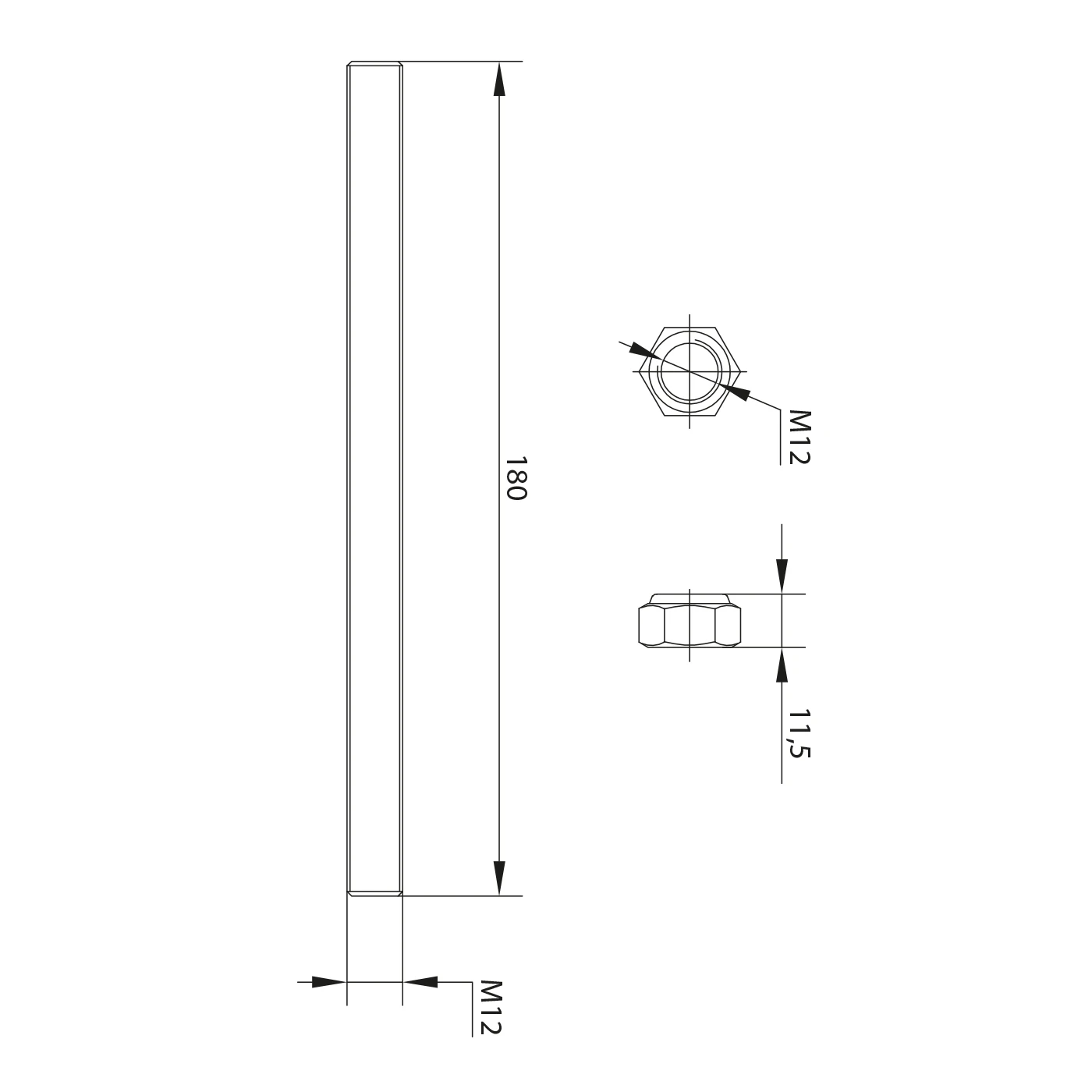

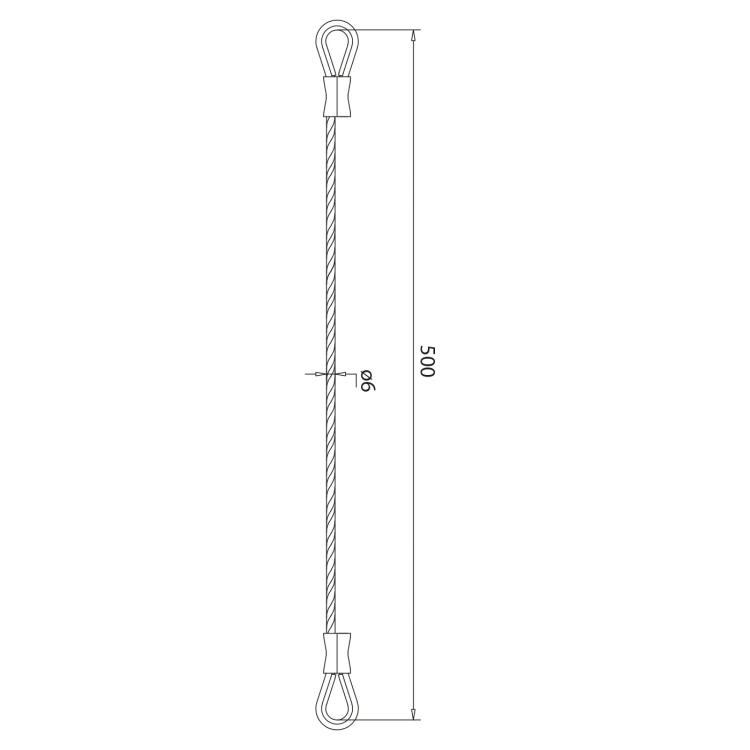

Dimensions and technical parameters
- Cable length: 500 mm
- Cable diameter: ø6 mm
- Rod thread: M12
- Threaded rod length: 180 mm
- Nut height: 11.5 mm
- Material: stainless steel
- Set weight: 0.28 kg
- EAN: 5903313206280
Why choose this product?
Stainless steel construction guarantees full corrosion resistance — the cable maintains its properties throughout the entire gate operating period, even in harsh weather conditions. Self-locking nuts ensure permanent connection that does not loosen under the influence of vibration and dynamic loads. Installation is quick and does not require specialist tools, which shortens order completion time.
