PSG stainless steel safety cable for hinged gate 400 mm
0
Description
PSG stainless steel safety cable for hinged gate 400 mm
PSG stainless steel safety cable is a crucial safety element that prevents the gate leaf from falling in case of failure of one or both hinges. The kit consists of a steel cable with thimbles at both ends, an M12 threaded rod and two self-locking nuts. Installation is quick and intuitive — simply thread the cable through the mounting eyes and secure with the threaded rod and nuts.
The product is made entirely from stainless steel, guaranteeing years of resistance to corrosion and weather conditions. By using a safety cable, the hinged gate installation meets safety requirements — even with complete hinge failure, the gate leaf remains supported, eliminating the risk of accident.

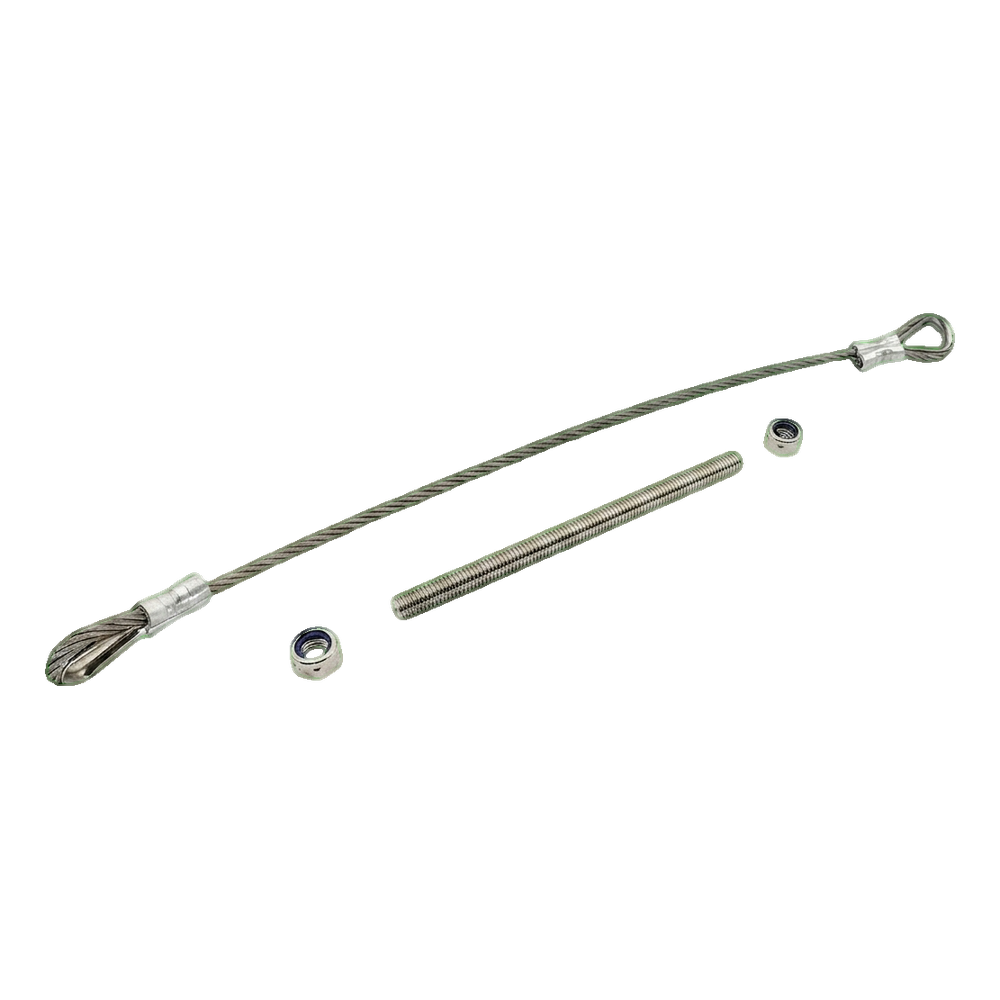

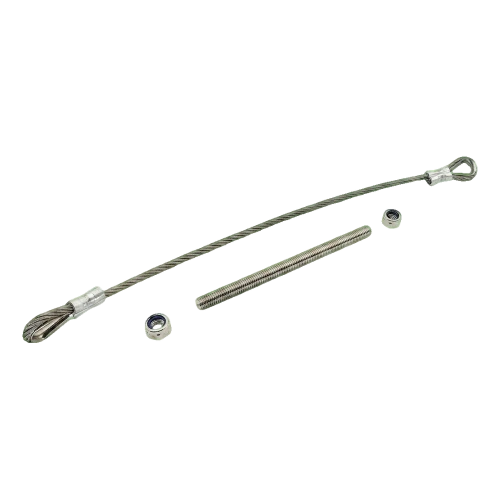

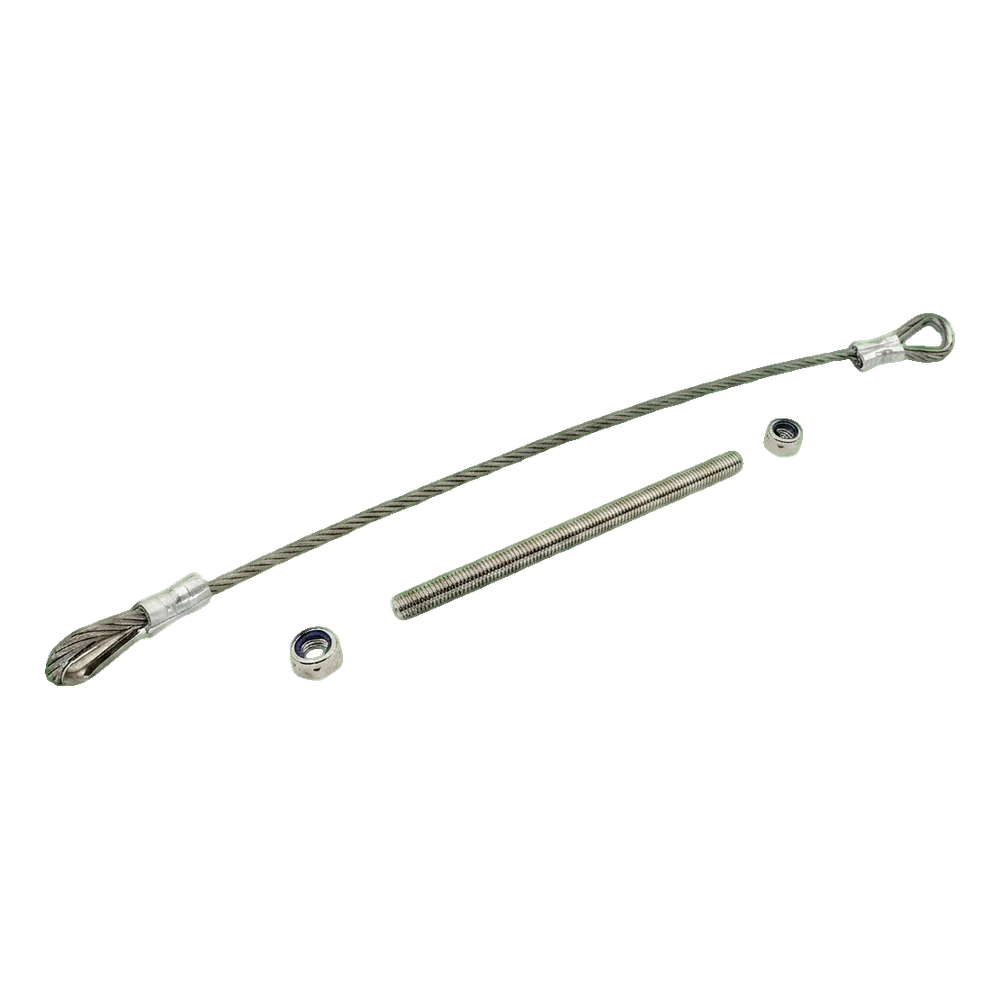

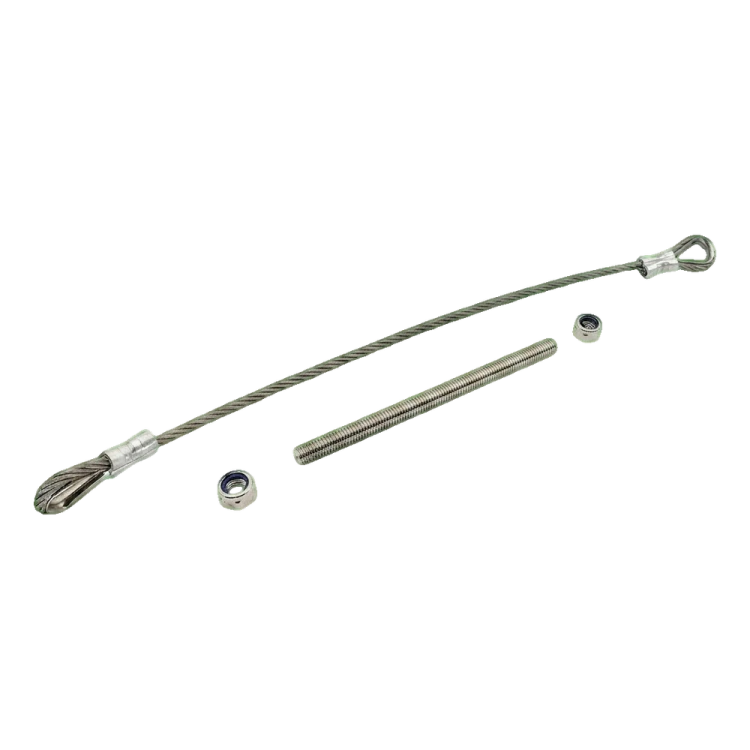

Kit contents
- Stainless steel cable with thimbles at both ends — 1 pc.
- Threaded rod M12 × 180 mm — 1 pc.
- Self-locking nut M12 — 2 pcs.
Dimensions and technical parameters

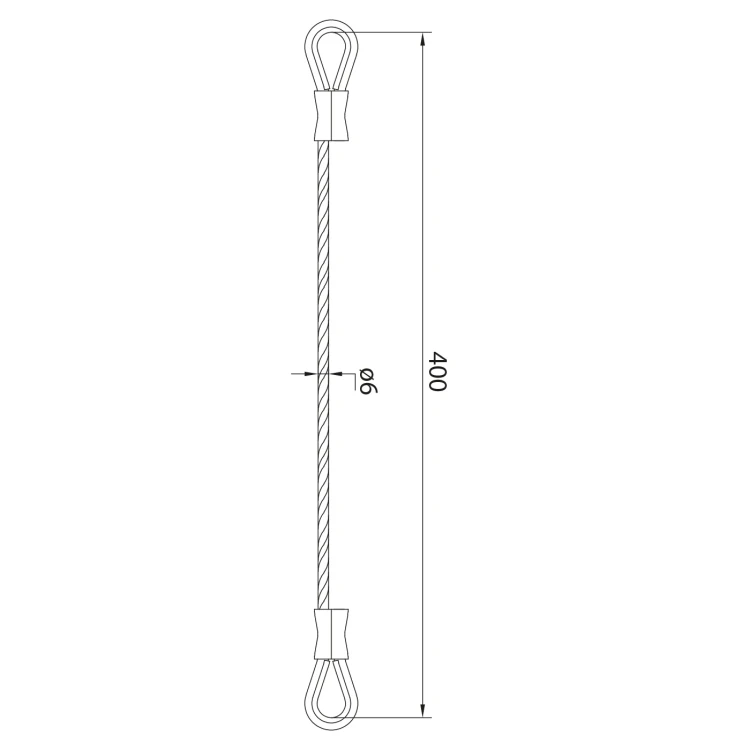

Steel cable
- Working length: 400 mm
- Cable diameter: ø6 mm
- Terminations: thimbles (eyes) at both ends
- Material: stainless steel

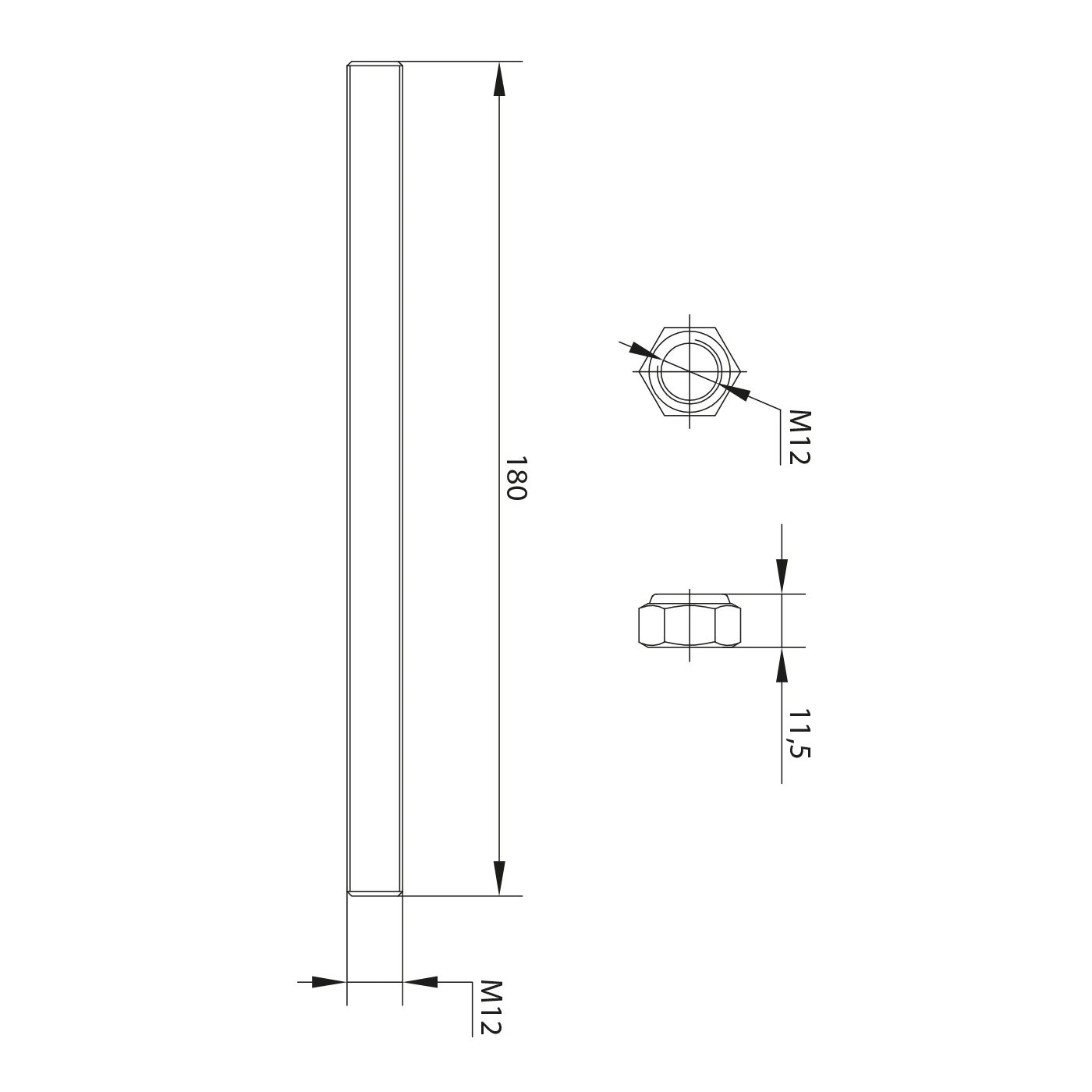

Threaded rod with nuts
- Thread: M12
- Rod length: 180 mm
- Nut height: 11.5 mm
- Material: stainless steel
General data
- Brand: PSG
- Kit weight: 0.28 kg
- EAN: 5903313206273
- Application: hinged gates — protection against gate leaf falling
