PSG stainless steel safety cable for hinged gate 200 mm
Description
PSG stainless steel safety cable for hinged gate 200 mm
PSG stainless steel safety cable is an essential safety element for every hinged gate. It prevents the gate leaf from falling in case of damage or breakage of hinges, protecting users' health and property. The set includes a steel cable with crimped loops at both ends, M12 threaded rod and two self-locking nuts with nylon insert — everything ready for immediate installation.
Made entirely from stainless steel, the cable is resistant to corrosion and atmospheric conditions, guaranteeing years of trouble-free operation. The use of pressed clamps at the cable ends ensures a durable and secure loop connection, while self-locking nuts eliminate the risk of self-loosening due to vibration.

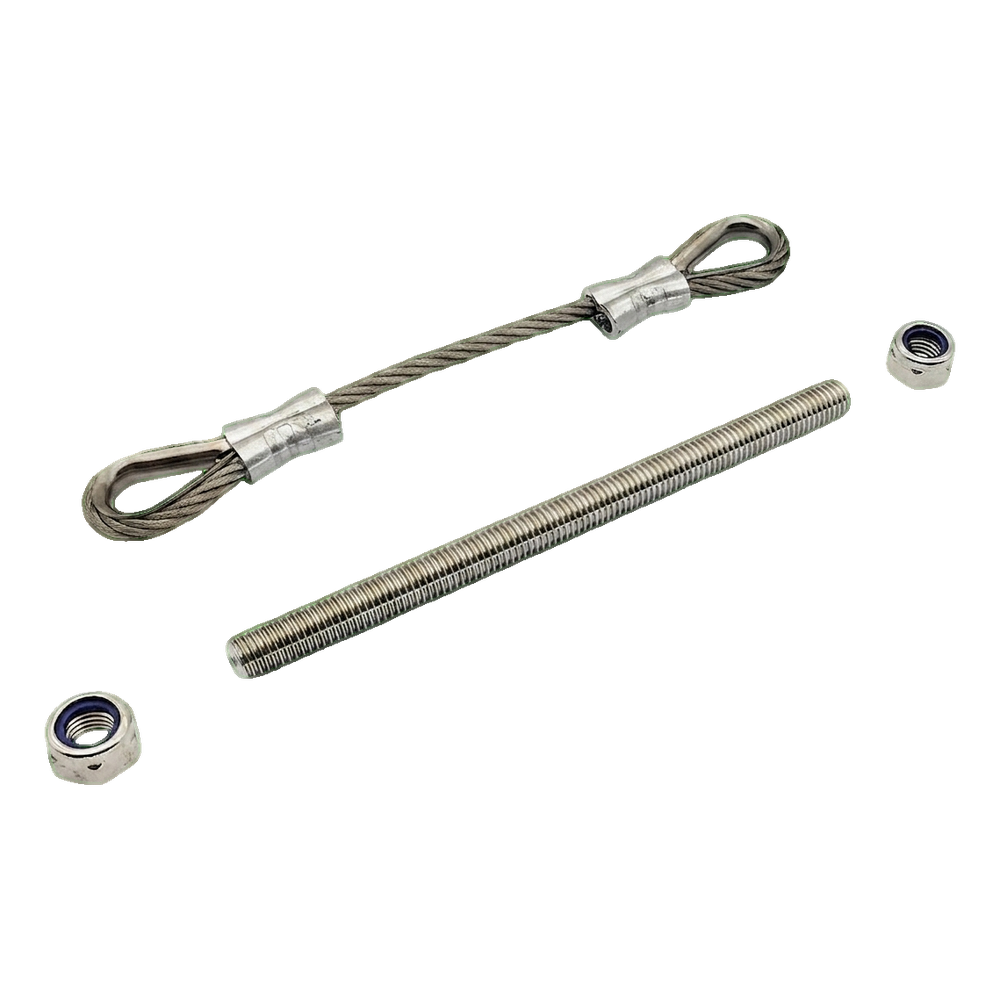

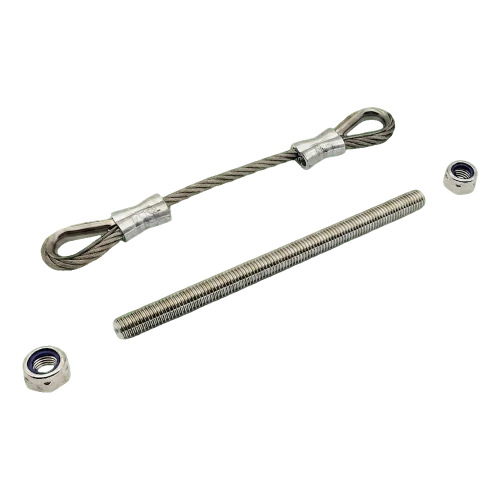

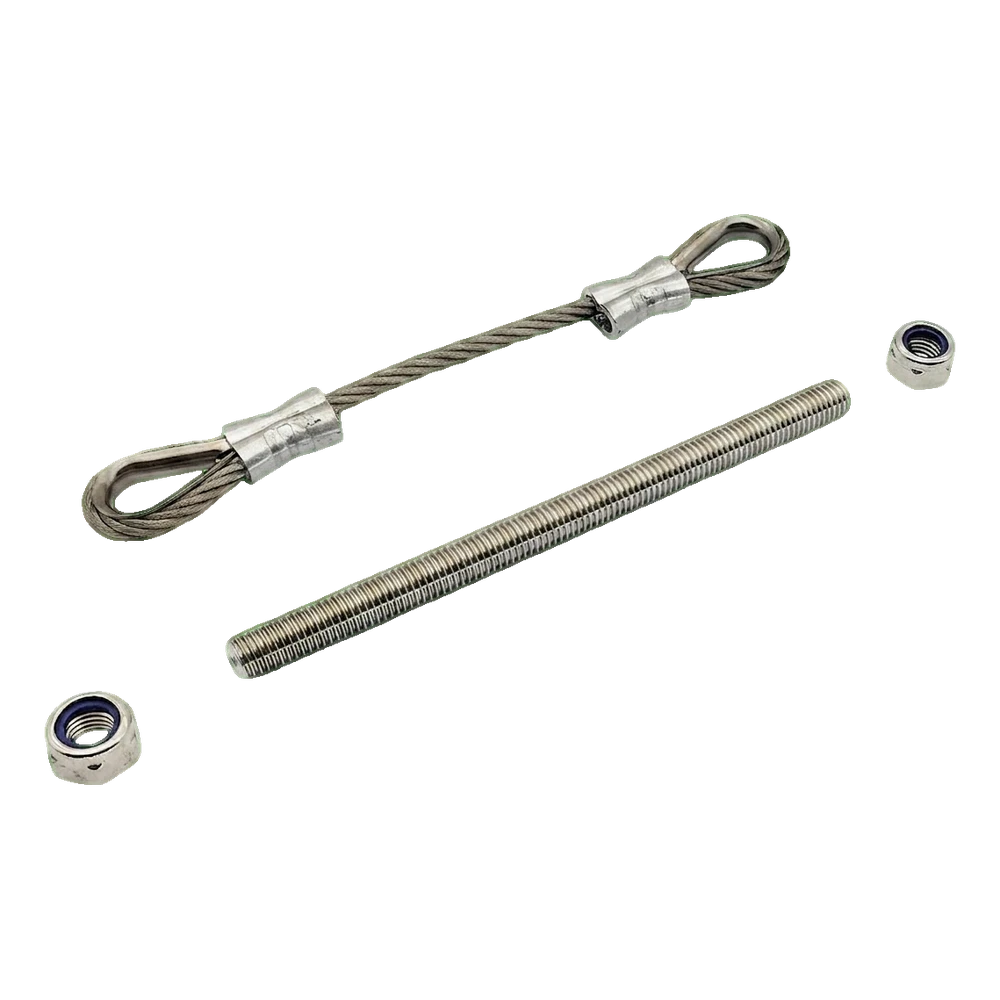

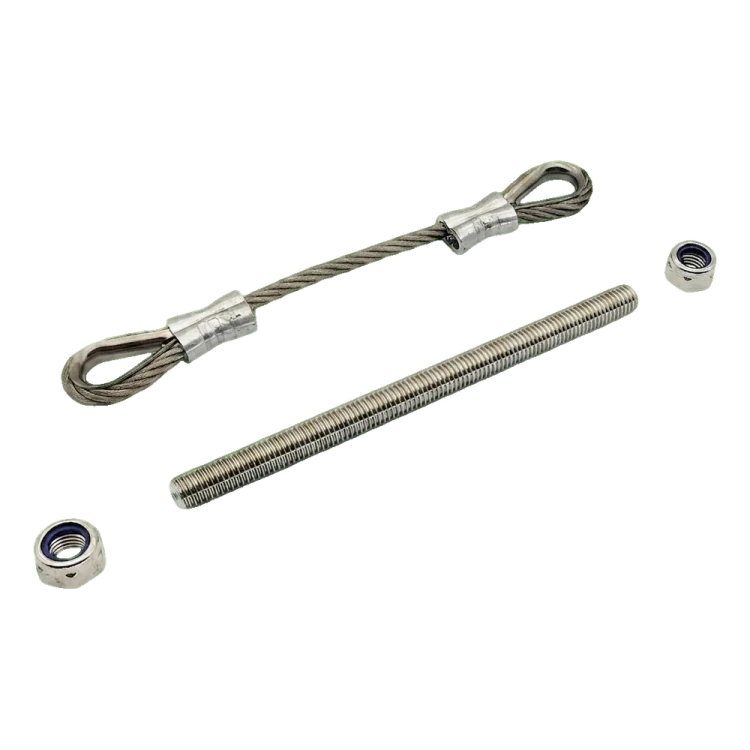

Set contents
- Steel cable with crimped loops — 1 pc.
- M12×180 mm threaded rod — 1 pc.
- M12 self-locking nut — 2 pcs.

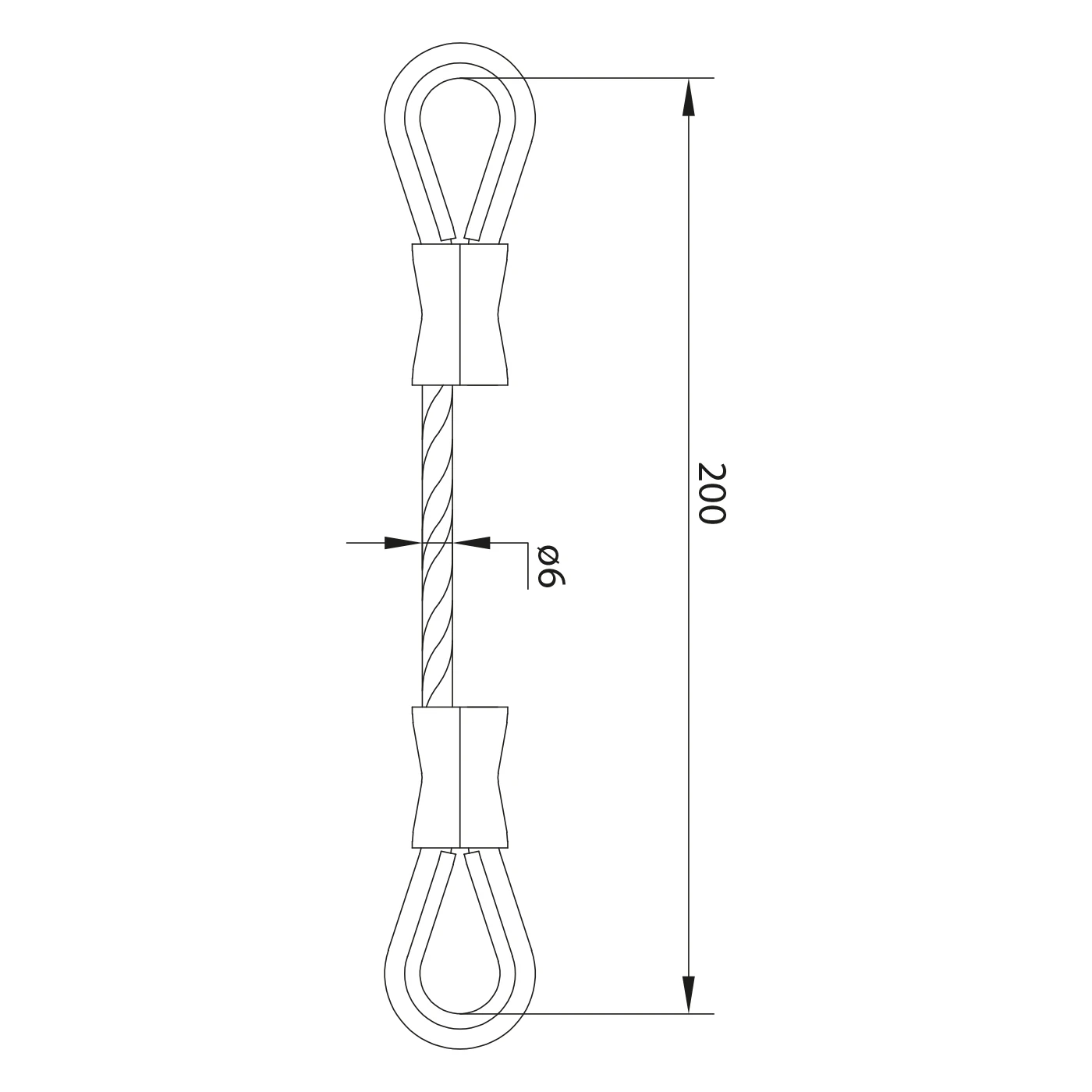

Cable technical parameters
- Cable working length: 200 mm
- Cable diameter: ø6 mm
- Material: stainless steel
- Ends: loops with pressed clamps

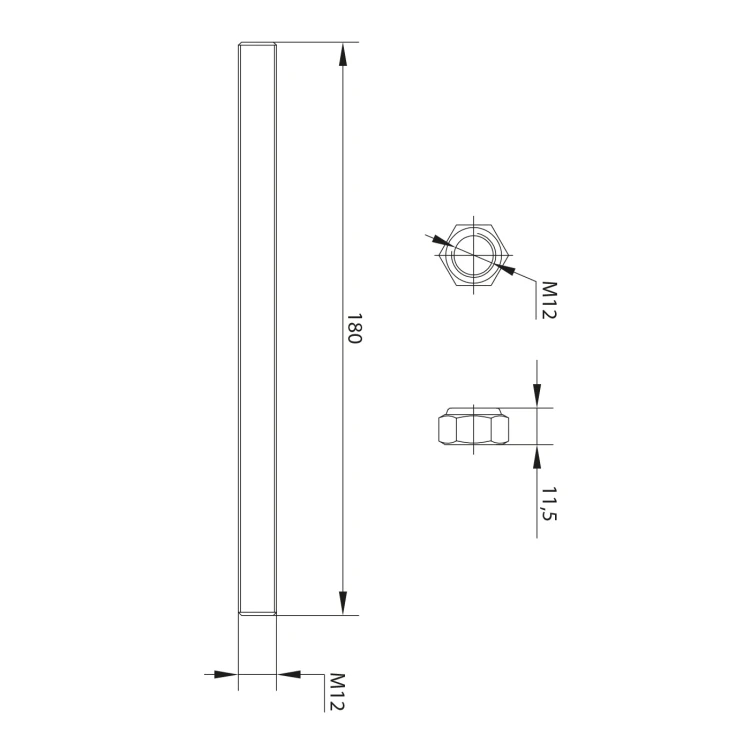

Rod and nuts technical parameters
- Rod thread: M12
- Rod length: 180 mm
- Nut thread: M12
- Nut height: 11.5 mm
- Nut type: self-locking with nylon insert
General data
- Manufacturer: PSG
- Set weight: 0.24 kg
- EAN: 5903313206266
- Application: hinged gates — protection against leaf falling
Technical data
| Material | Steel |
