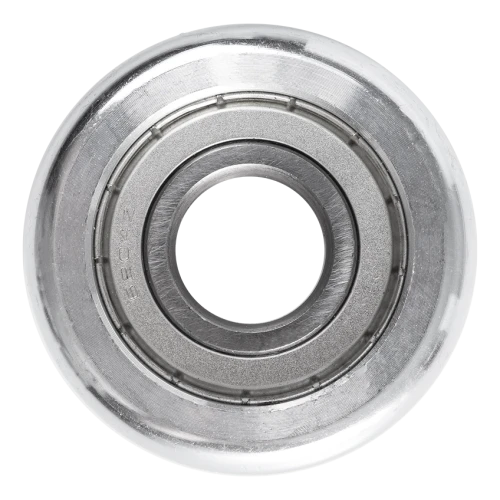

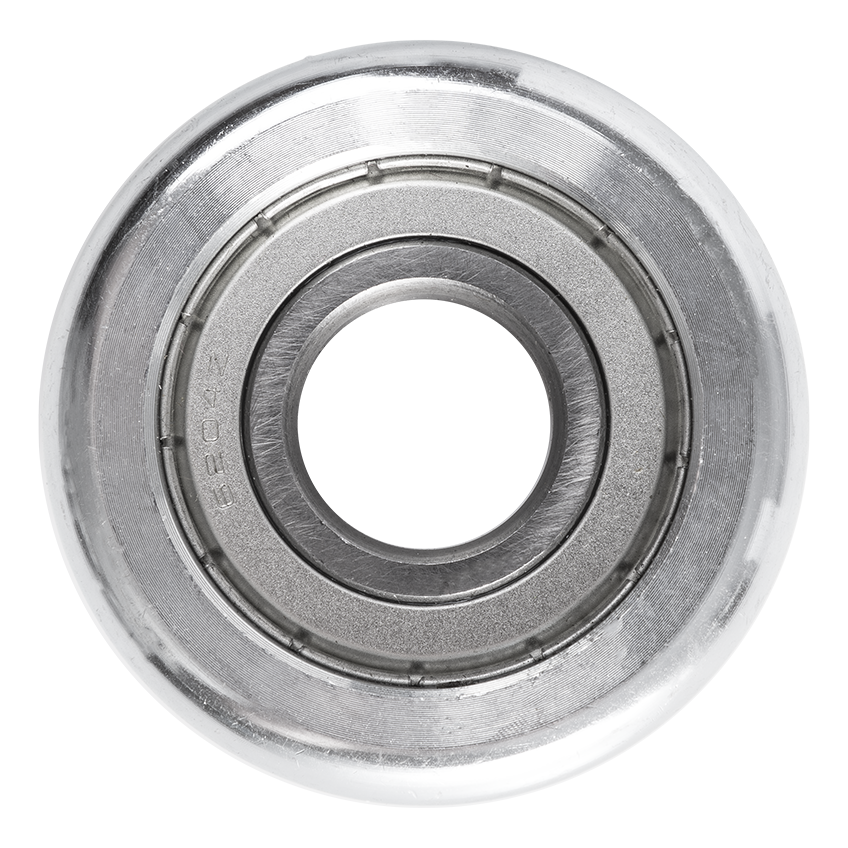

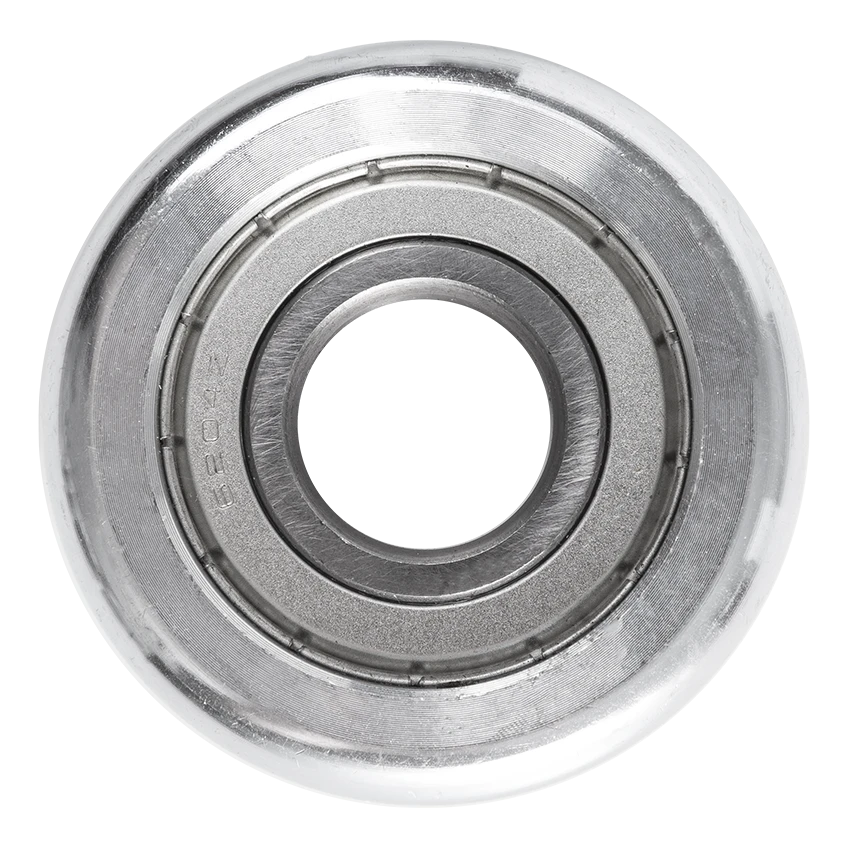

PSG spare steel wheel ø 68 mm for gate carriage – rail 80x80x5
Leave feedback on the product
PSG spare steel wheel with 68 mm diameter for gate carriage. Bore diameter 20 mm, width 17 mm, weight 0.34 kg. Built-in ball bearing. For 80×80×5 mm rail. Steel.
Product code: 001-233
Description
PSG spare steel wheel ø 68 mm for gate carriage – rail 80x80x5
Spare steel wheel ø 68 mm from PSG is a replacement component designed for sliding gate carriages running on 80×80×5 mm rail. Thanks to the built-in ball bearing, it ensures smooth and quiet gate operation, whilst the steel construction guarantees high durability even under intensive use.
Replacing worn wheels is one of the most common sliding gate services. Thanks to standard mounting dimensions, the wheel can be quickly installed without the need to modify the carriage, which significantly reduces repair time and minimises gate downtime for the customer.

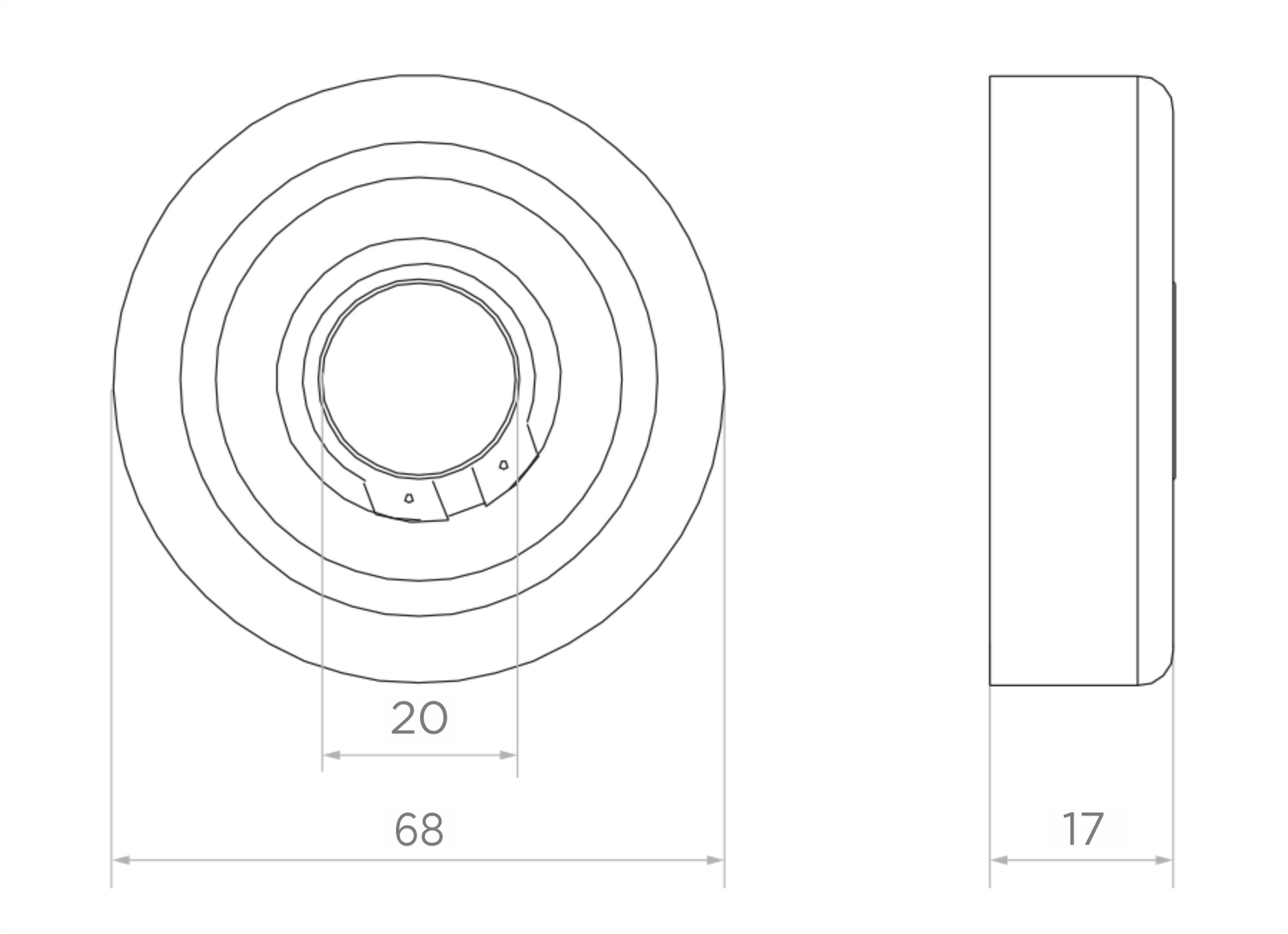

Technical parameters
- Outer diameter: 68 mm
- Bore diameter: 20 mm
- Wheel width: 17 mm
- Material: steel
- Compatible rail: 80×80×5 mm
- Bearing: ball bearing, built-in
- Weight: 0.34 kg
- Manufacturer: PSG
- EAN: 5901289674676
Application
The wheel is intended as a spare part for carriages used in sliding gates based on ground rail with 80×80×5 mm profile. It is ideal for servicing and maintaining existing gate installations — it allows full carriage functionality to be restored without replacing the entire running mechanism.
