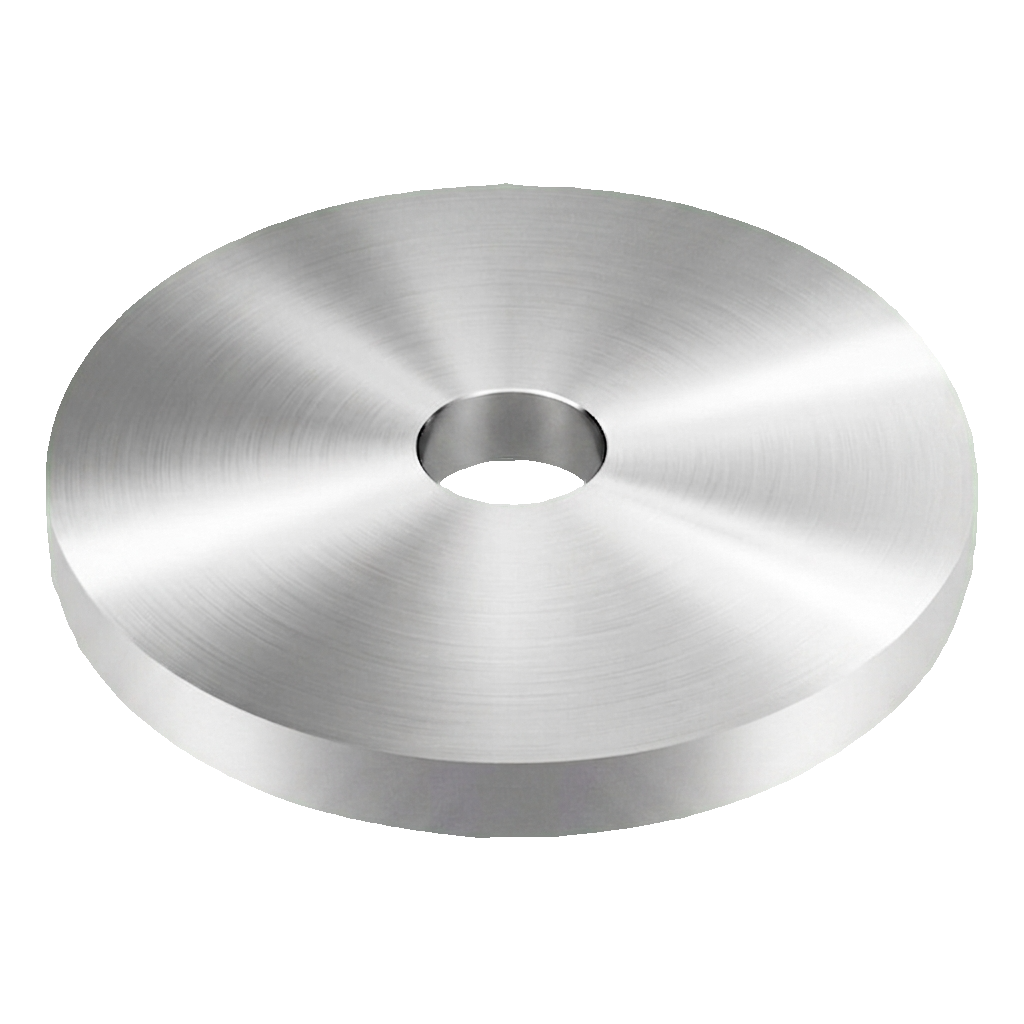

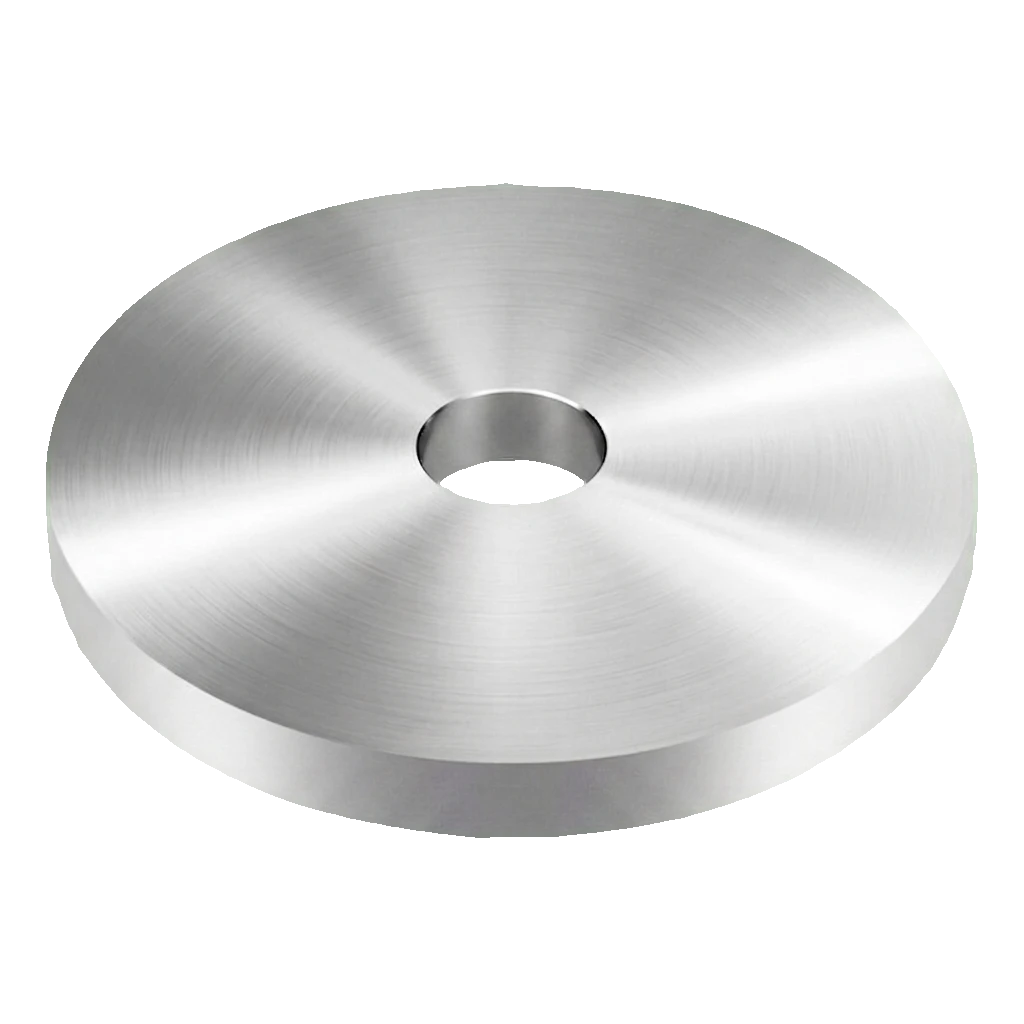

PSG spacer for point fixings fi 50 mm – stainless steel washer AISI 304 satin
Description
PSG spacer for point fittings Ø 50 mm – AISI 304 stainless steel washer satin finish
Spacer for point fittings (spider fittings) with diameter Ø 50 mm is an element that enables precise adjustment of glass mounting distance from the wall. Used wherever mounting surface irregularities occur, it allows achieving a perfectly level spider fitting installation plane without the need for filling or wall levelling.
The spacer is non-threaded — mounted directly on the M10 bolt of the spider fitting as a washer between the wall and point fitting. Thanks to construction from AISI 304 stainless steel with satin finish, it perfectly complements spider fittings and other glass balustrade elements in the same colour scheme. The possibility of combining several spacers allows for arbitrary increase of wall distance in 5 mm increments.

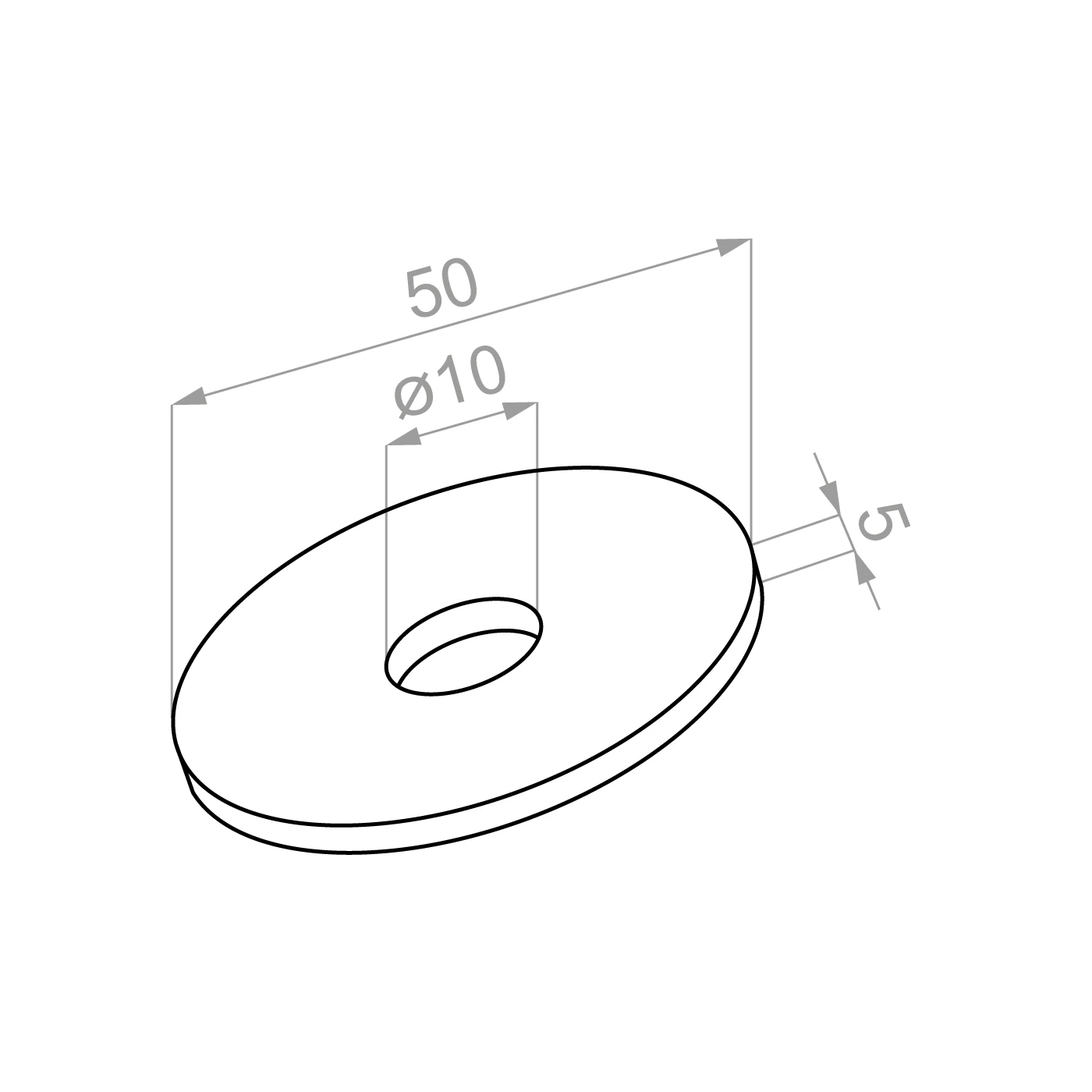

Dimensions and technical parameters
- External diameter: 50 mm
- Mounting hole diameter: Ø 10 mm (for M10 bolt)
- Thickness: 5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Type: non-threaded — universal
- Weight: 0.08 kg
- Application: spider fittings (point fittings) with M10 bolt
- EAN: 5903313203487
Application
The spacer is designed for use with point fittings (spider fittings) used in mounting glass balustrades, glass enclosures and tempered glass panels. It performs well in both internal and external installations — AISI 304 steel ensures high corrosion resistance. The universal design allows use with any spider fittings equipped with M10 bolts, regardless of manufacturer.
Technical data
| Material | AISI 304 |
| Finish | Satin |
