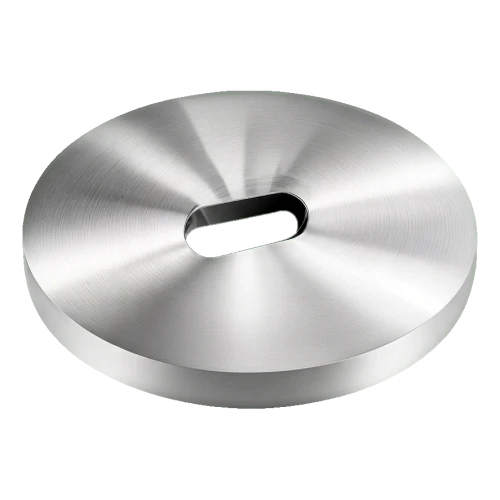

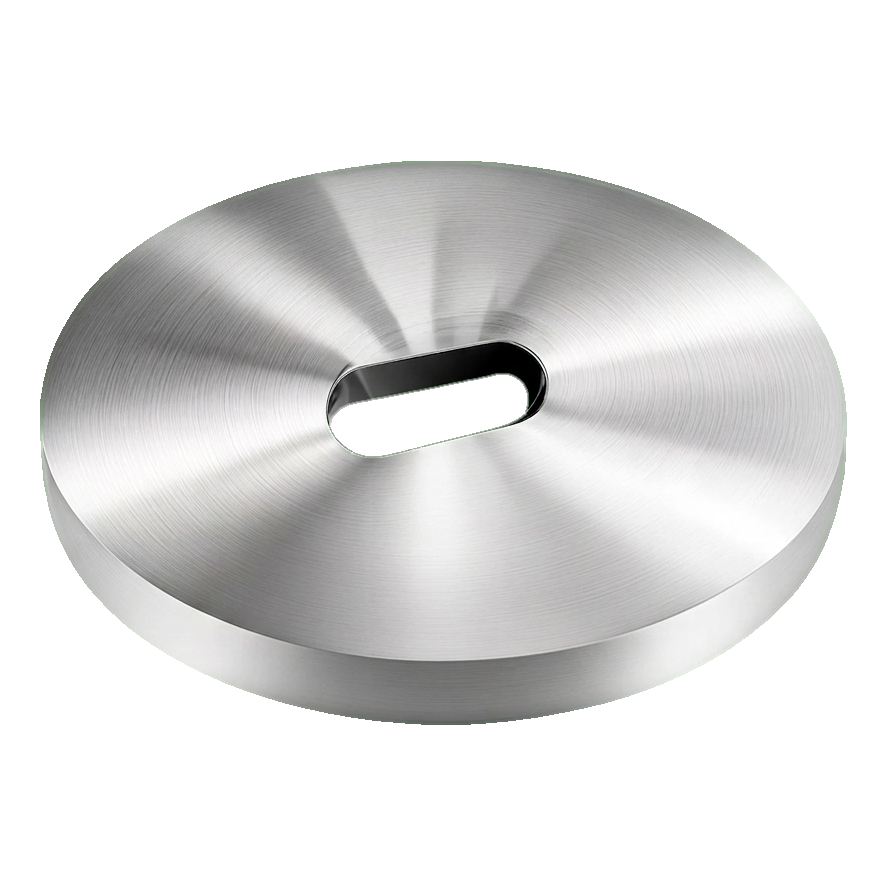

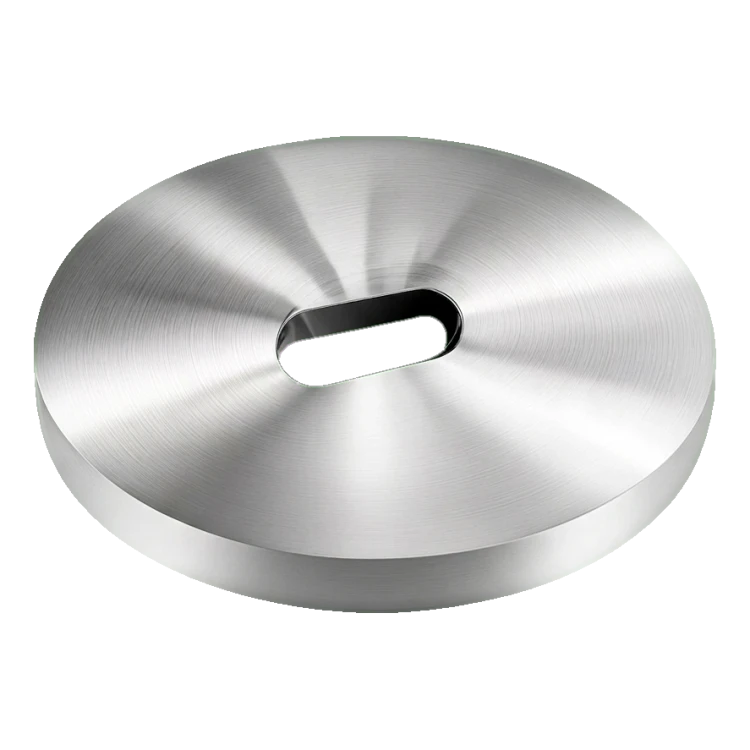

PSG spacer for point fixing brackets ø 50 mm / 5 mm – slotted hole, AISI 304 satin
Description
PSG spacer for point fixings ø 50 mm / 5 mm – slotted hole, AISI 304 satin
Spacer ø 50 mm for point fixings (spider fittings) made of AISI 304 stainless steel with satin finish. The spacer washer enables precise adjustment of the spider fitting mounting distance from the wall, compensating for substrate irregularities. The slotted mounting hole provides increased adjustment range during installation — eliminating the need for perfectly precise drilling, which speeds up the installation team's work.
The spacer is unthreaded and intended for use with spider fittings equipped with an M10 screw. Thanks to its compact thickness of 5 mm, it allows for subtle distance correction without significantly increasing the overall mounting projection. High-quality surface finish (Ra 1.6) guarantees an aesthetic appearance when combined with other balustrade system elements.

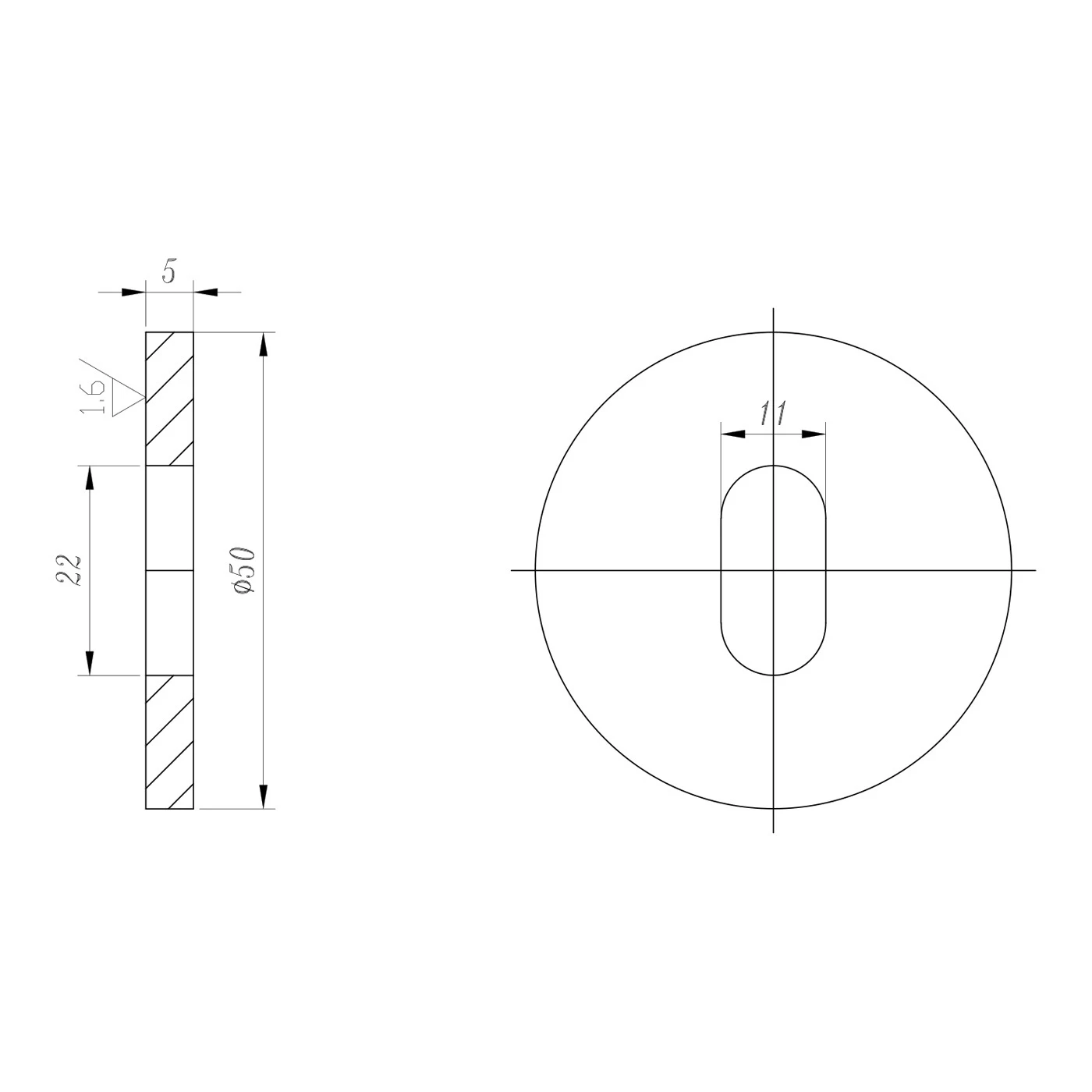

Dimensions and technical specification
- External diameter: ø 50 mm
- Spacer thickness: 5 mm
- Mounting hole (slot): 22 × 11 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Surface roughness: Ra 1.6
- Thread: none (unthreaded spacer)
- Intended for: spider fittings with M10 screw
- Weight: 0.08 kg
- EAN: 5903313207706
Application
The spacer is used wherever it is necessary to offset the point fixing from the wall or post surface — primarily when installing glass balustrades, glass installations and mounting systems for toughened glass panels. The elongated slotted mounting hole provides a greater adjustment range of position, which is particularly important when working with uneven concrete or masonry surfaces.
AISI 304 stainless steel provides high corrosion resistance, making the spacer suitable for both internal and external building applications. The satin finish harmoniously matches other mounting system elements, maintaining a uniform, professional appearance of the entire structure.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
