PSG sliding rail end cap for sliding gate – 140×140 mm steel rail
Description
PSG sliding rail end cap for sliding gate – 140×140 mm steel rail

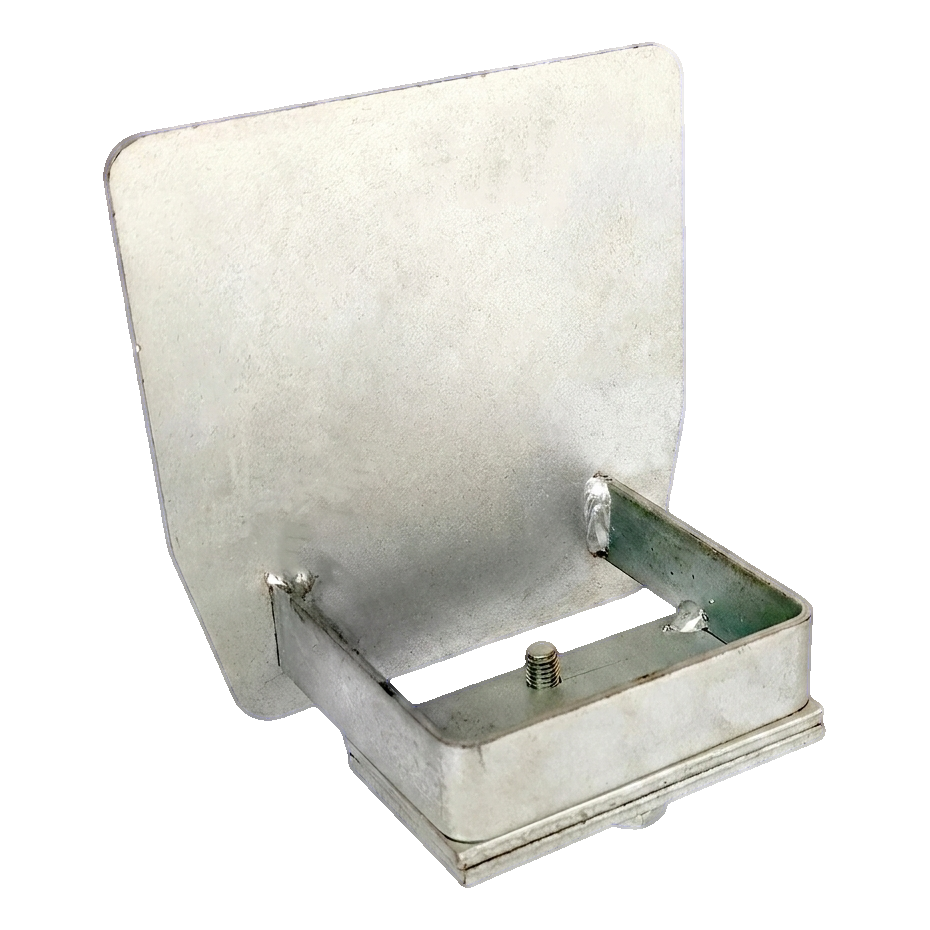

Sliding gate rail end cap is a steel mounting element designed for 140 × 140 mm rail. It closes and secures the open end of the running track, protecting the profile interior from contamination — sand, small stones and precipitation. Thanks to its solid steel construction, the element maintains full functionality even during intensive operation of heavier sliding gates, minimising the risk of deformation and premature wear.
Installation is quick and requires no specialist tools — the insert element goes into the profile interior, and the screw clamping mechanism ensures secure and durable mounting without the need for welding. This is a practical solution that enhances the aesthetics of the installation and stabilises the operation of the entire sliding system.

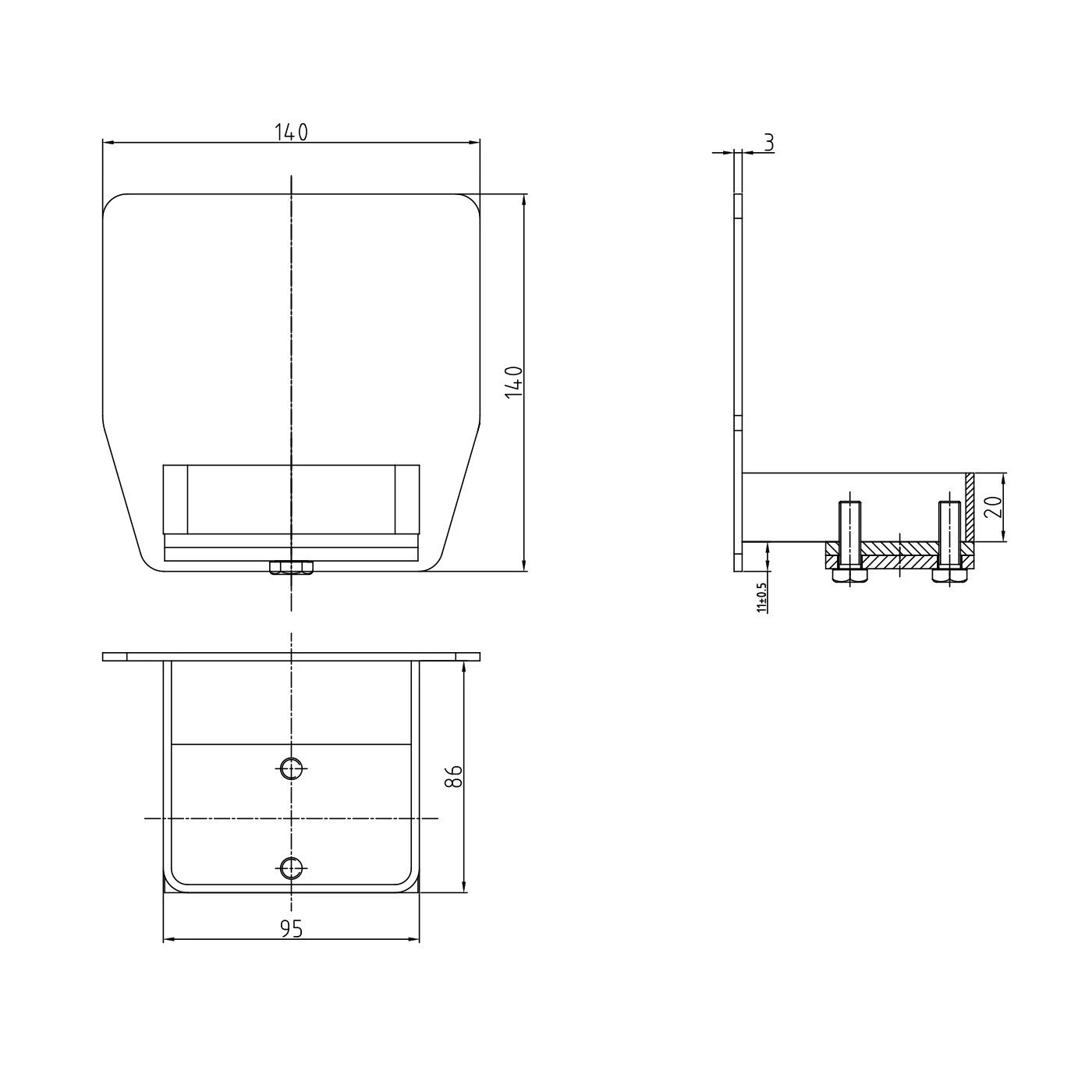

Dimensions and technical parameters
- Application: for 140 × 140 mm running rail
- Front plate width: 140 mm
- Front plate height: 140 mm
- Front plate thickness: 3 mm
- Insert element width: 95 mm
- Insert element depth: 86 mm
- Clamping block height: 20 mm
- Vertical offset of insert element: 11 mm (±0.5 mm)
- Material: steel
- Colour: silver
- Weight: 0.961 kg
- EAN: 5903313208468
Why choose this end cap?
- Running track protection — blocks penetration of sand, stones and contamination into the profile interior, reducing failures and service costs
- Durable steel construction — withstands impacts, vibrations and intensive operation of the sliding mechanism for many seasons
- Quick installation without welding — insert element with clamping mechanism allows the end cap to be fitted in minutes
- Aesthetic finish — cleanly closed profile looks professional and enhances the quality of the entire gate installation
