PSG sliding gate track profile end cap 80x80 mm galvanised
Leave feedback on the product
PSG profile end cap made from galvanised steel for sliding gate track 80x80 mm. Front plate 80x80 mm, insertion part 57 mm length, wall thickness 3 mm. Weight 0.28 kg. Includes mounting screws.
Product code: 001-248
Description
PSG sliding gate track profile end cap 80x80 mm galvanised

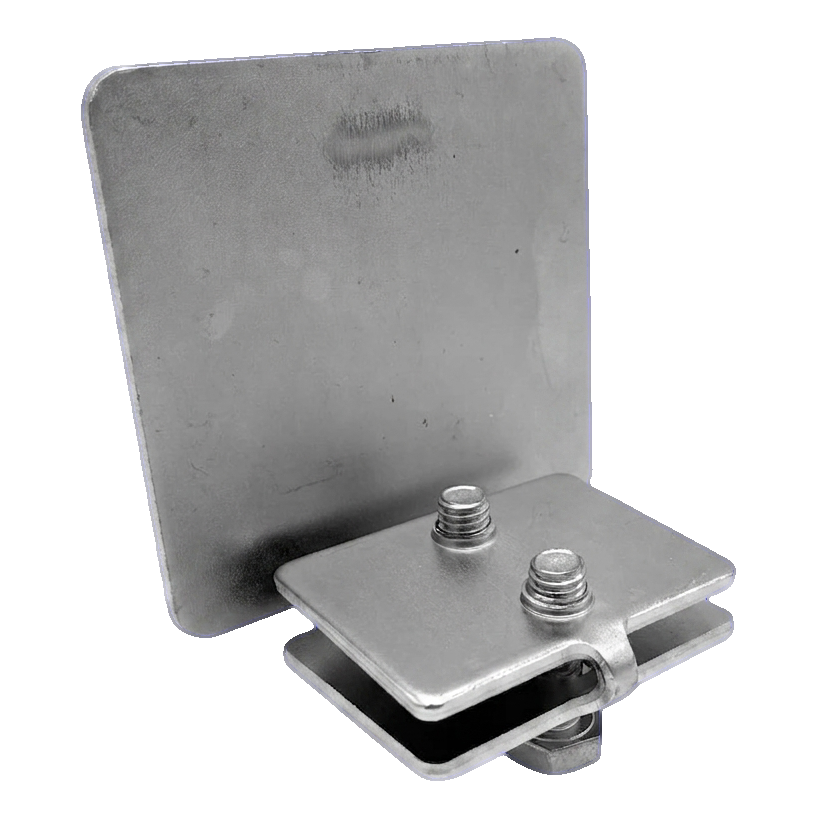

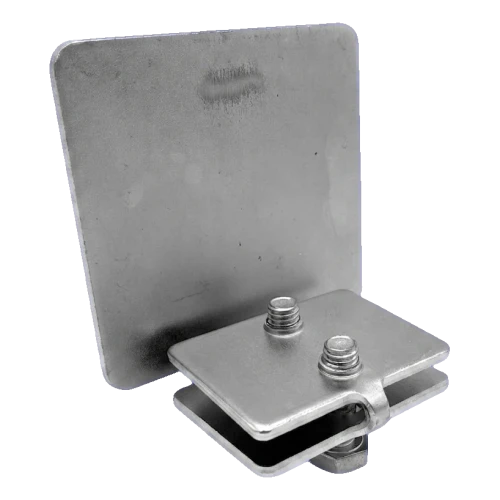

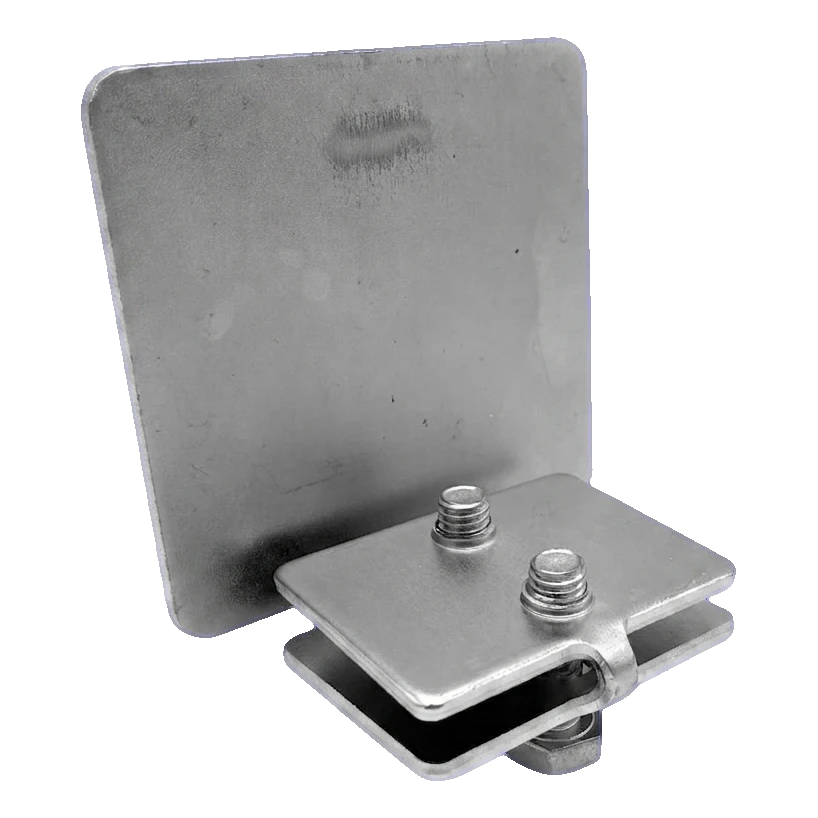

80x80 mm profile end cap by PSG is a steel element for closing the track of a cantilever sliding gate. It serves an aesthetic finishing function and protects the end of the load-bearing profile, preventing contamination from entering the track interior whilst acting as an end stop.
The element consists of an 80×80 mm front plate and an insertion part with a length of 57 mm, which goes directly into the track opening. The construction is simple and functional — installation involves inserting the end cap into the profile and tightening with the included mounting screws. Two clamping screws ensure secure and permanent fixing without the need for welding.
The product is galvanised, providing effective corrosion protection and long-lasting durability in outdoor conditions. Designed for track profiles with 80×80×5 mm cross-section — a standard solution in cantilever sliding gates.

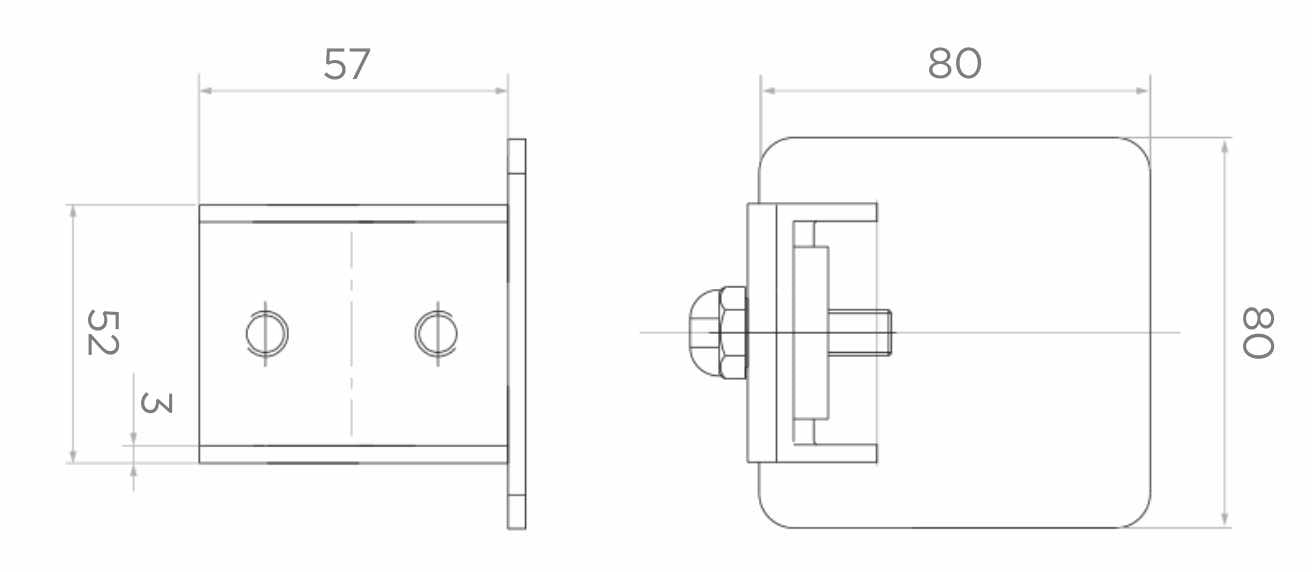

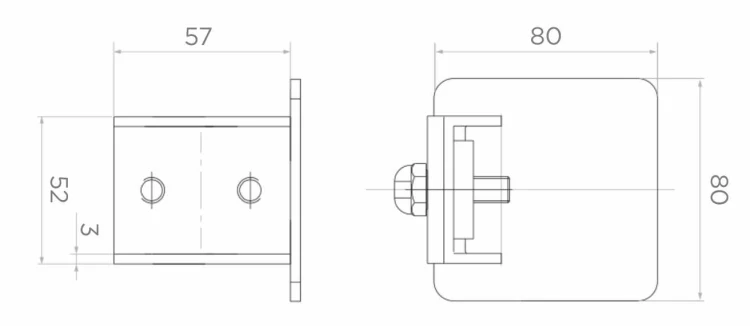

Dimensions and technical data
- Manufacturer: PSG
- Application: track profile 80×80×5 mm
- Front plate width: 80 mm
- Front plate height: 80 mm
- Insertion part length: 57 mm
- Insertion part height: 52 mm
- Insertion part wall thickness: 3 mm
- Material: galvanised steel
- Weight: 0.28 kg
- Included: mounting screws
- EAN: 5901289674836
