PSG sliding gate running profile end cap 68x68 galvanised
Description
PSG sliding gate running profile end cap 68x68 galvanised

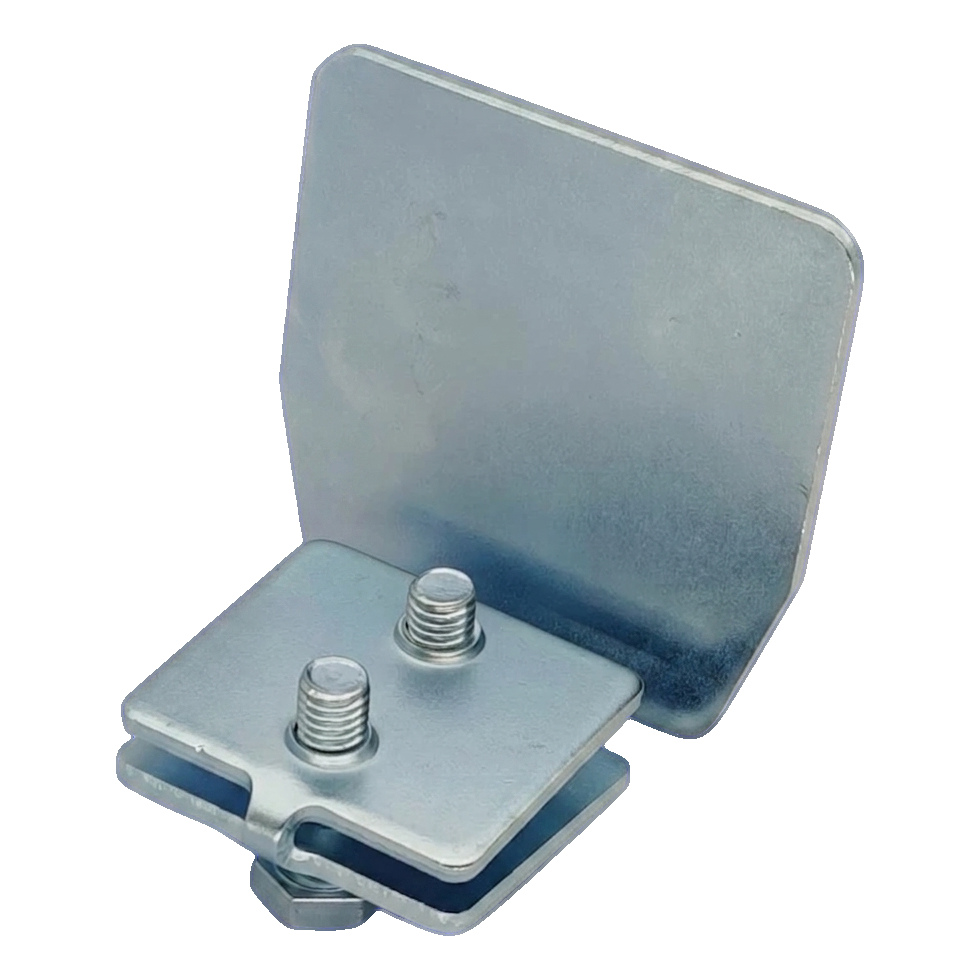

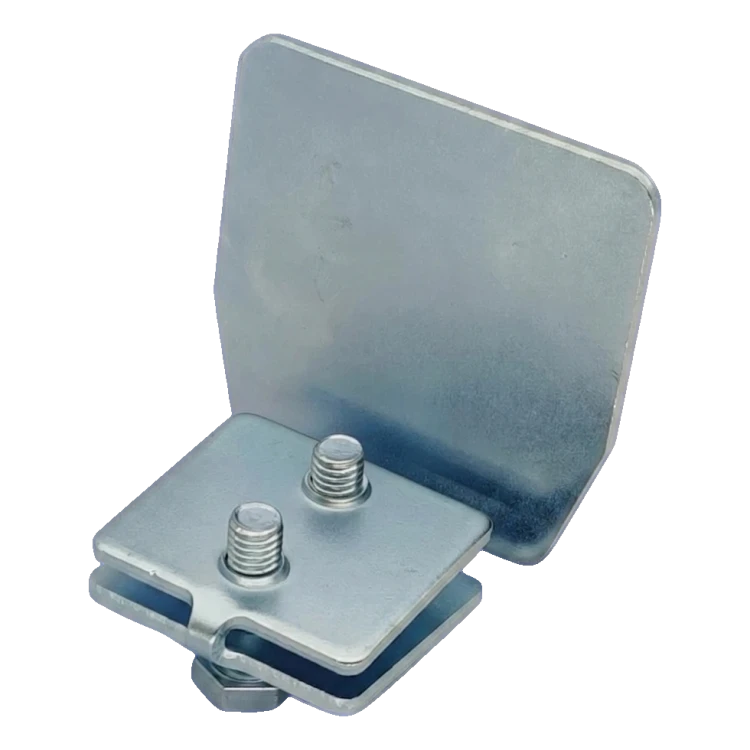

Running profile end cap 68×68 by PSG is a solid, galvanised closing element for sliding gate running rails. It protects the profile interior from contamination, moisture and foreign objects that could disrupt the running mechanism's operation. Precisely matched to profiles with dimensions 68 × 68 × 3.5 mm, it provides aesthetic and durable rail finishing — without the need for cutting or additional machining.
Mounting screws are included in the set, making installation quick and eliminating the need to source separate fasteners. The insert element fits directly into the profile interior and is screwed in place — the entire operation takes just moments, resulting in shorter assembly time for the entire gate.

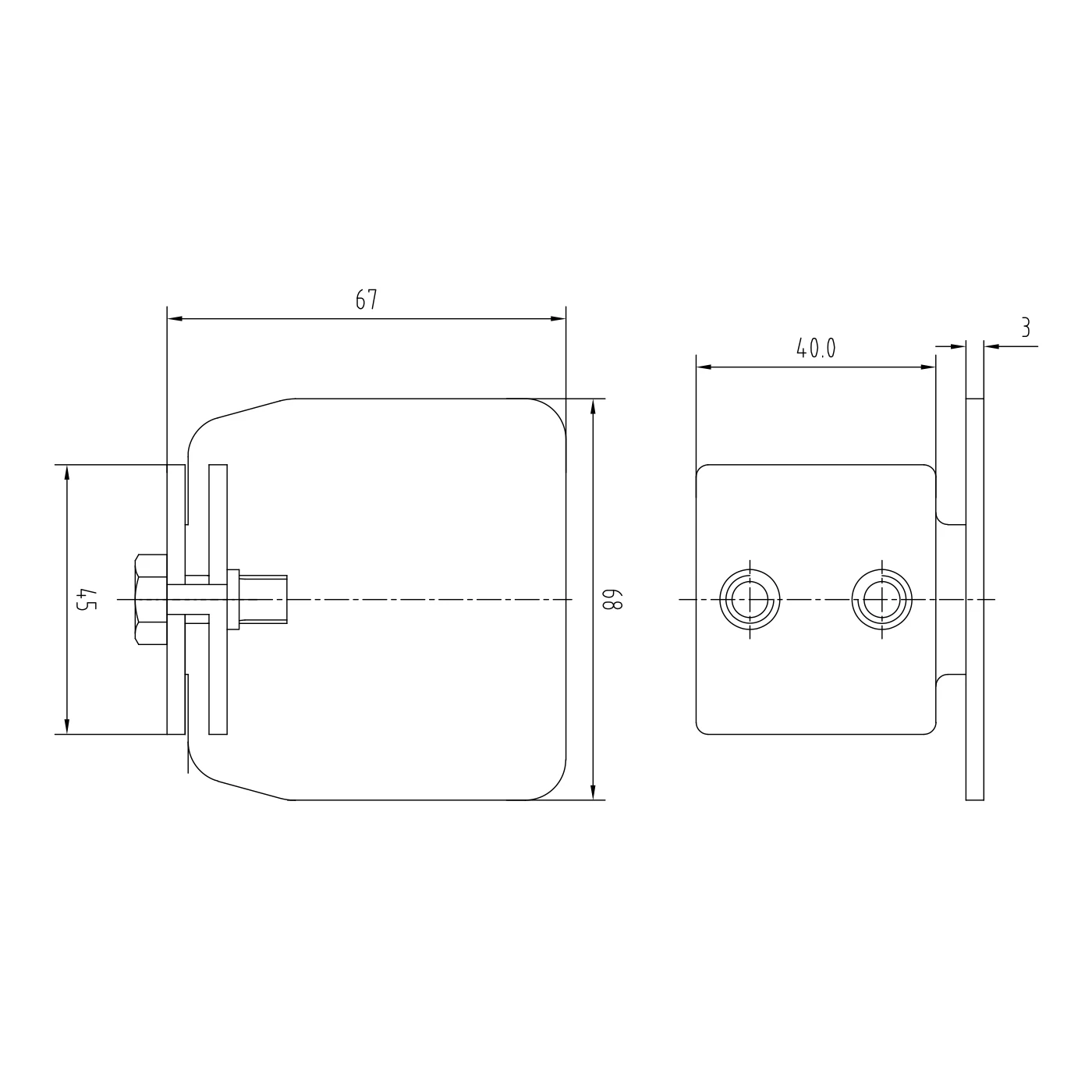

Dimensions and technical data
- Manufacturer: PSG
- Application: running profile 68 × 68 × 3.5 mm
- Front plate height: 68 mm
- Front plate width: 67 mm
- Front plate thickness: 3 mm
- Insert element length: 40 mm
- Insert element height: 45 mm
- Overall dimensions: L 94 × H 140 mm
- Weight: 0.22 kg
- Coating: galvanising — anti-corrosion protection
- Included: mounting screws
- EAN: 5903313204842
Anti-corrosion protection
The end cap has undergone galvanising process, providing effective protection against corrosion caused by atmospheric factors. The zinc coating significantly extends the element's lifespan even in demanding outdoor conditions — rain, snow, and temperature variations pose no threat to the product's durability.
Protective function
Proper closure of the running profile prevents leaves, sand, stones and other contaminants from entering the rail, which could block or slow down the movement of running trolleys. It's a simple way to maintain smooth and trouble-free gate operation for years, without the need for frequent cleaning of the rail interior.
