PSG sliding gate rail profile end cap 60×60 mm – galvanised
Leave feedback on the product

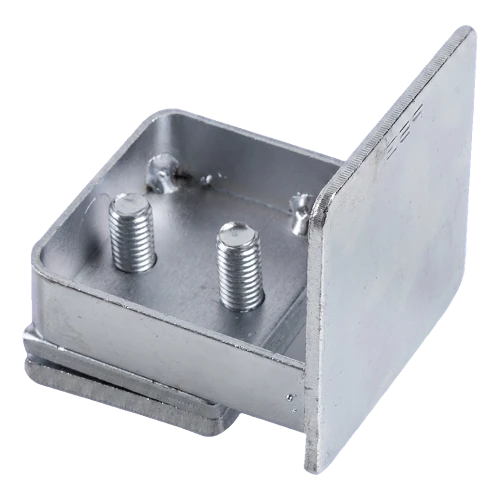

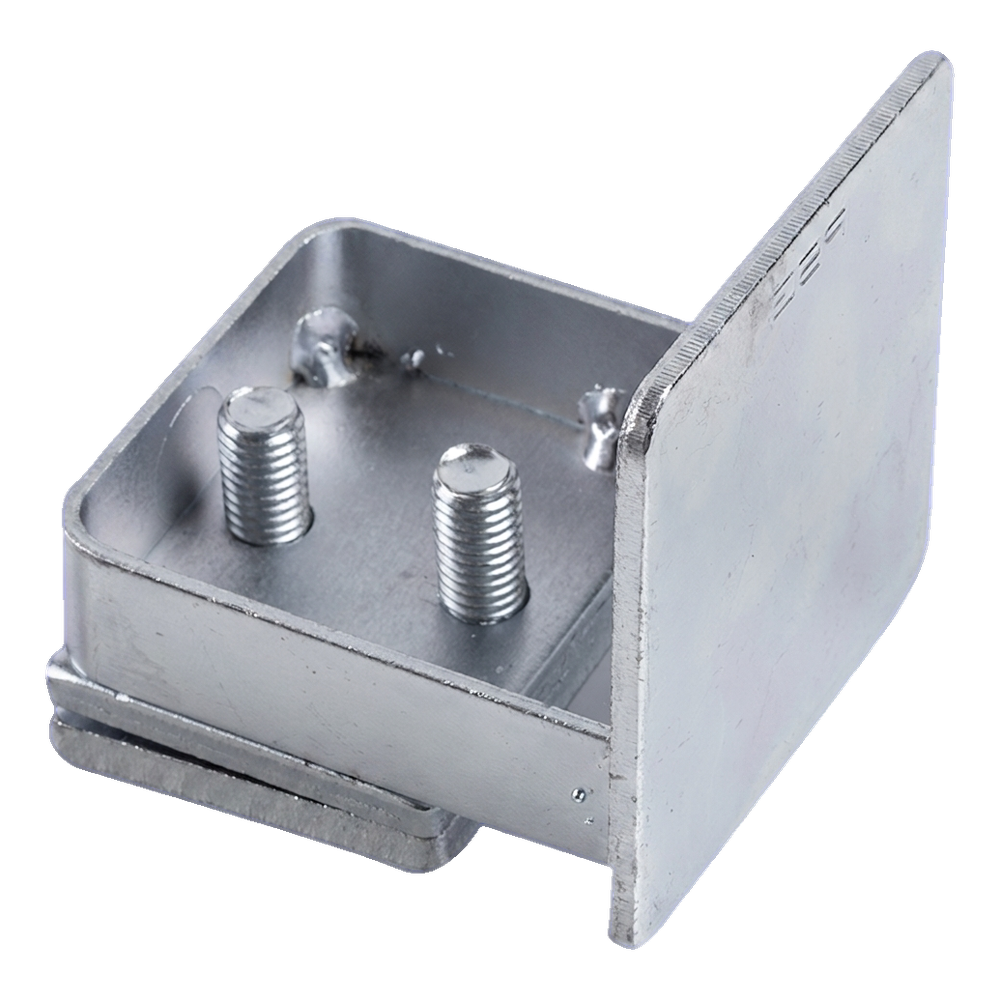

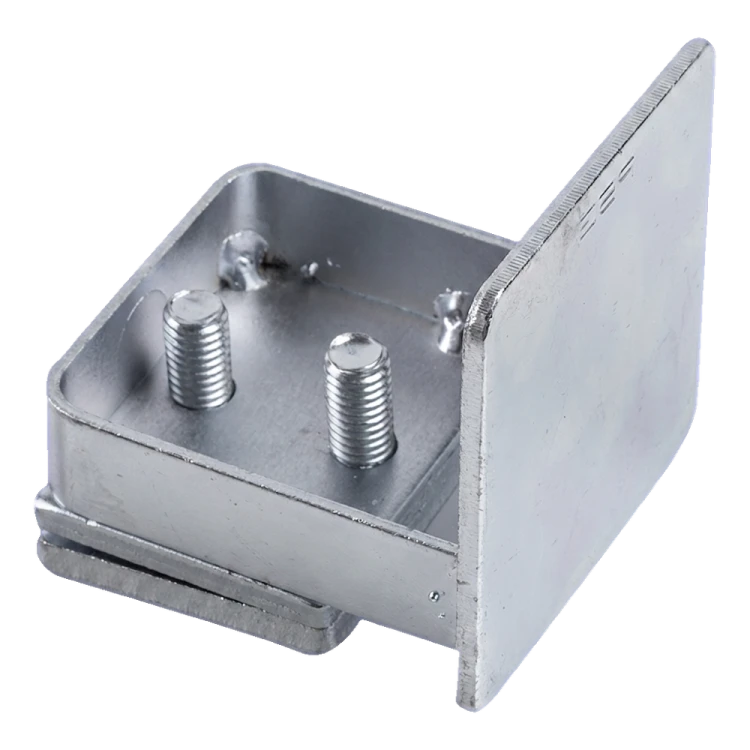

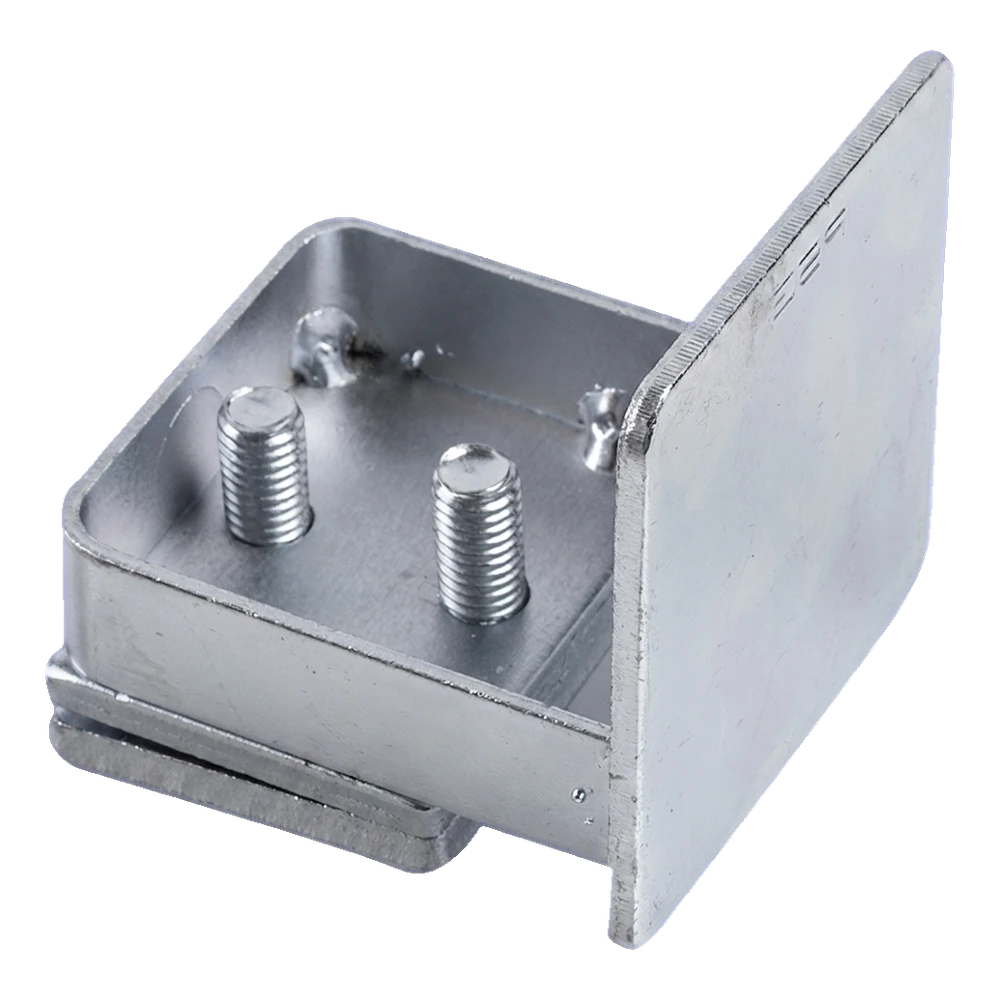

PSG rail profile end cap made from galvanised steel. For 60×60×4 mm profile. Front plate dimensions 60×60 mm, insertion depth 57 mm, thickness 3 mm. Weight 0.3 kg. For self-supporting sliding gates.
Product code: 001-245
Description
PSG sliding gate rail profile end cap 60×60 mm – galvanised
Profile end cap 60 by PSG is a steel mounting element designed for aesthetic and durable closure of self-supporting sliding gate rails. Designed for profiles with cross-section 60×60×4 mm, it provides essential finishing for any self-supporting gate installation — protecting the interior of the running rail from dirt, water and corrosion, whilst giving the structure a professional, finished appearance.
The element is made from galvanised steel, which guarantees high resistance to atmospheric conditions and years of operation without the need for additional anti-corrosion protection. The kit includes mounting screws, so installation requires no additional hardware assembly — simply insert the end cap into the rail profile and tighten the screws.

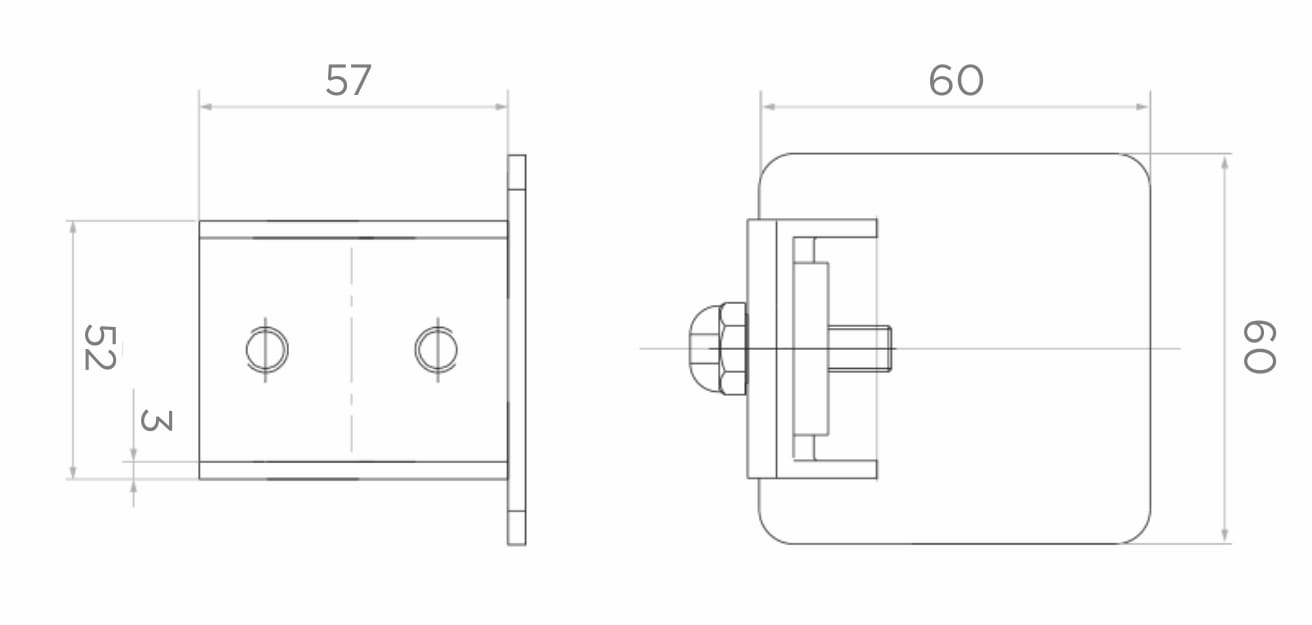

Dimensions and technical specification
- Compatibility: rail profile 60×60×4 mm
- Front plate (cover): 60×60 mm
- Rail insertion depth (L): 57 mm
- Height of inserted part: 52 mm
- Material thickness: 3 mm
- Material: galvanised steel
- Weight: 0.3 kg
- Included: mounting screws
- EAN: 5901289674812
Application
The profile end cap is designed for self-supporting sliding gate systems based on running rails with 60×60 mm cross-section. Mounted at both ends of the rail, it closes the profile and protects its interior from rain, snow, leaves and other contaminants that could affect the smooth operation of the gate. For installation teams, it's a quick and reliable way to professionally finish any project.
