PSG sliding gate profile end stop 50×46 mm galvanised
Description
PSG sliding gate profile end stop 50×46 mm galvanised

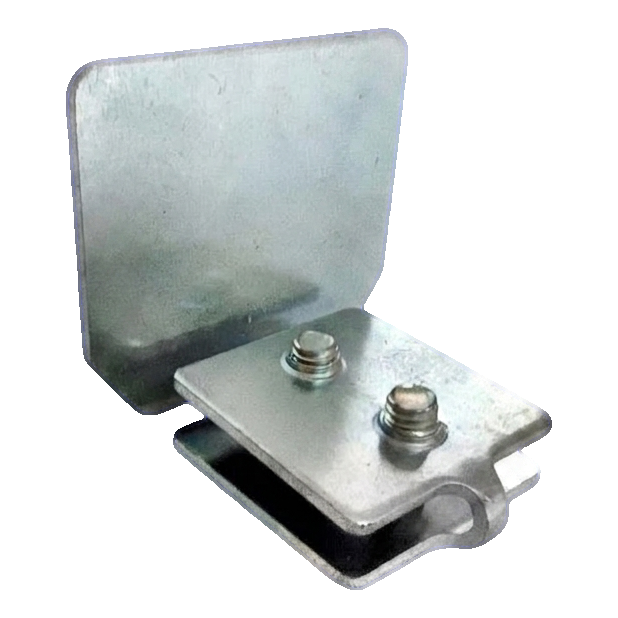

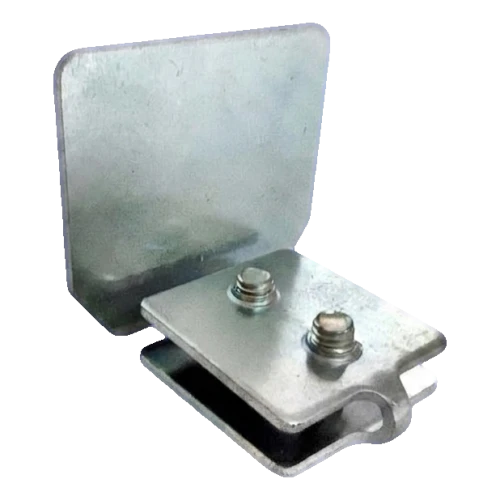

Sliding profile end stop for sliding gates by PSG — a steel, galvanised mounting element securing the end of the sliding rail with cross-section 50 × 46 × 2 mm. Blocks the gate sliding trolley from falling out of the rail, ensuring safe and reliable system operation. Complete with mounting screws — ready for immediate installation without the need to select additional hardware.
Durable construction and anti-corrosion protection
The element made of galvanised steel shows high resistance to moisture and adverse atmospheric conditions. The zinc coating effectively protects against corrosion, guaranteeing years of trouble-free operation — both in external gates exposed to rain and frost, and in industrial halls with increased humidity.
The end stop construction consists of a front plate (stop plate) and a clamping mechanism in a U-shape with two screws, which securely grips the lower wall of the rail profile. Installation involves sliding the element onto the end of the rail and tightening the screws — quickly, simply and without welding.

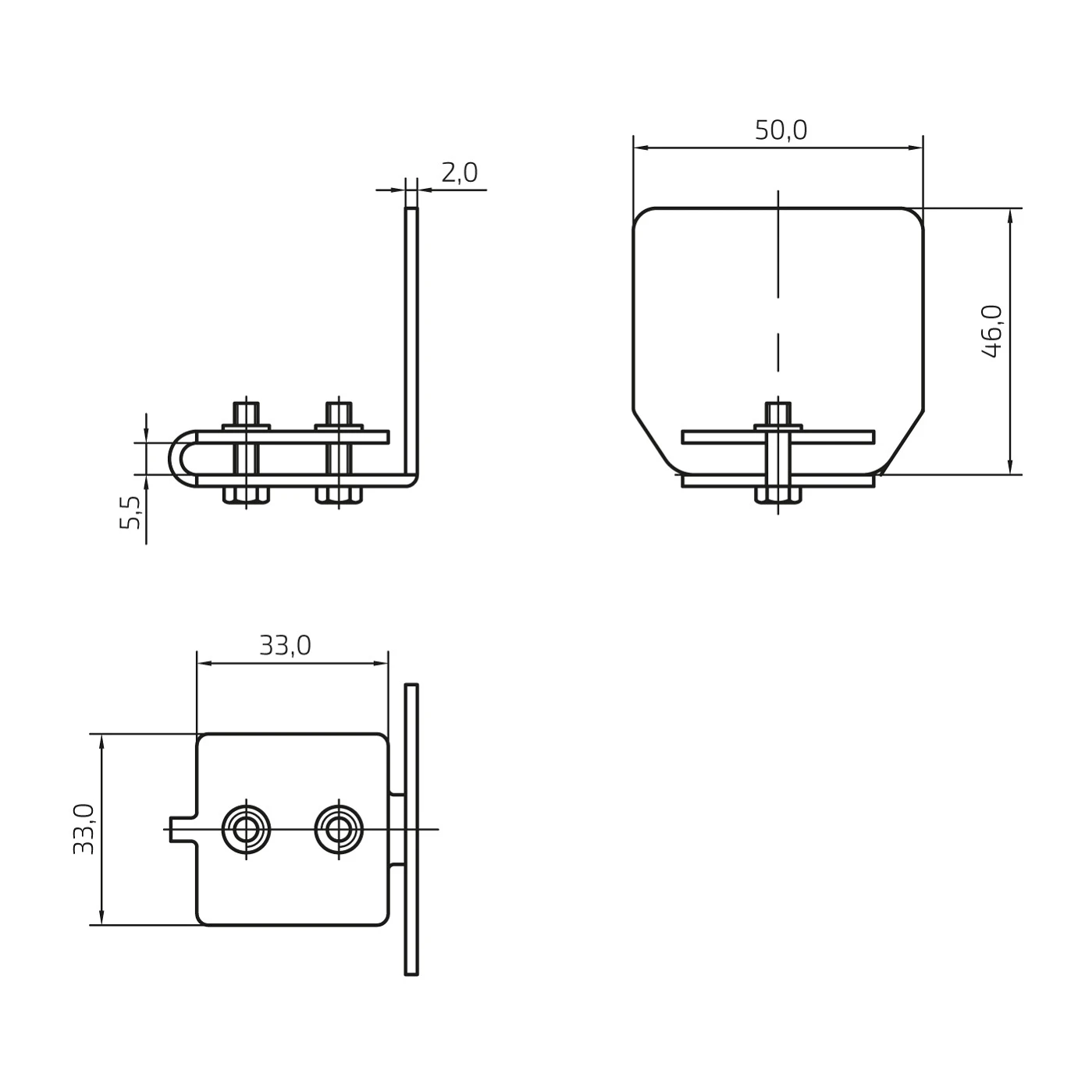

Dimensions and technical data
- Compatibility: sliding rail with profile 50 × 46 × 2 mm
- Front plate width: 50 mm
- Front plate height: 46 mm
- Stop plate thickness: 2 mm
- Clamping element dimensions: 33 × 33 mm
- Clamp gap: 5.5 mm
- Material: galvanised steel
- Weight: 0.08 kg
- Complete with: mounting screws
- EAN: 5903313203647
The PSG profile end stop is an essential element of every sliding gate installation — it ensures safe operation and protects the sliding mechanism from damage. Compact dimensions and low weight (80 g) facilitate storage and transport, whilst the complete set with screws reduces installation time on site.
