PSG sliding gate guide stop bracket for 68×68 system galvanised steel
Description

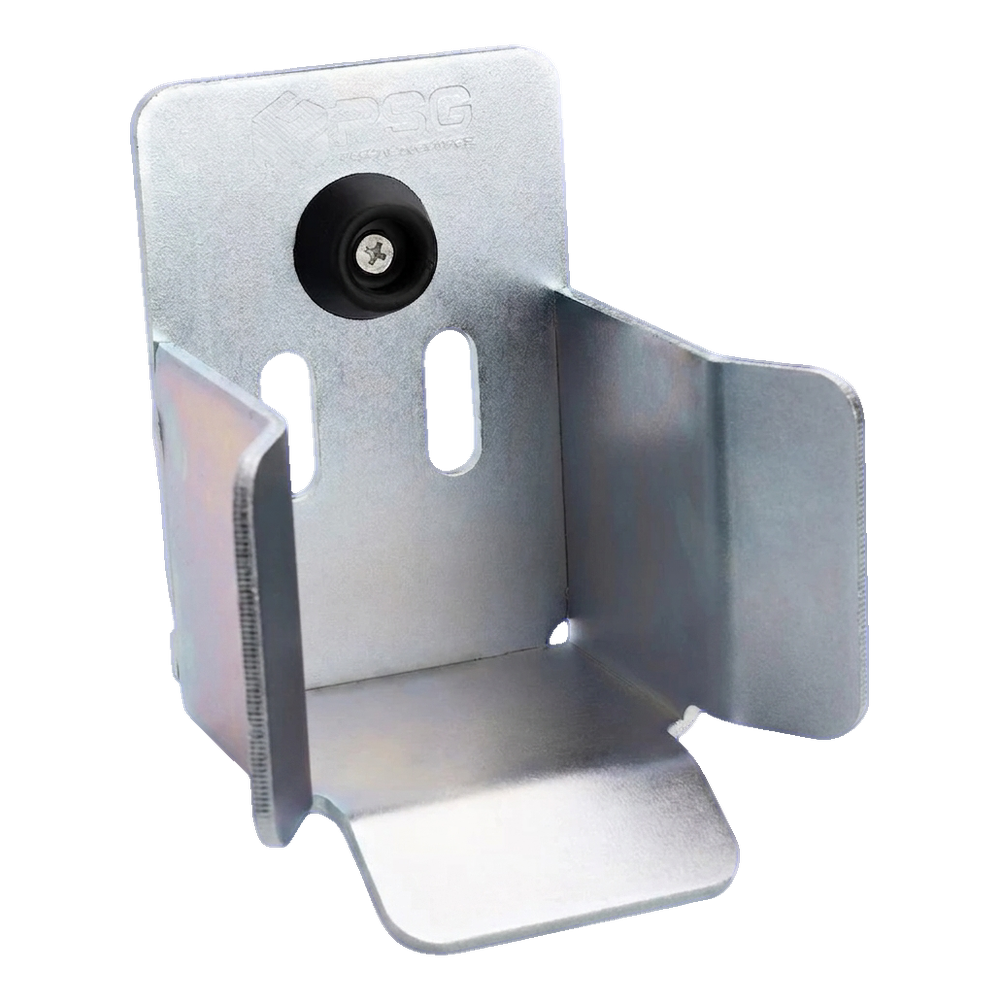

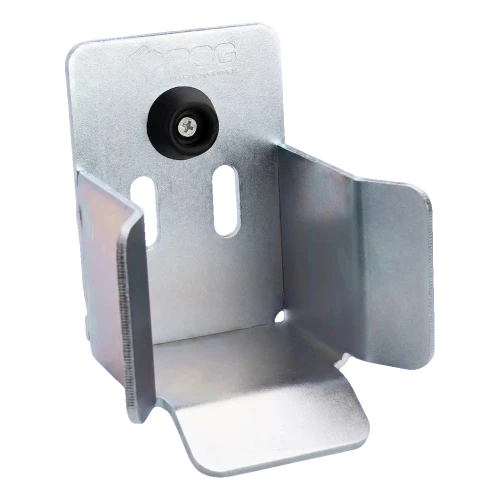

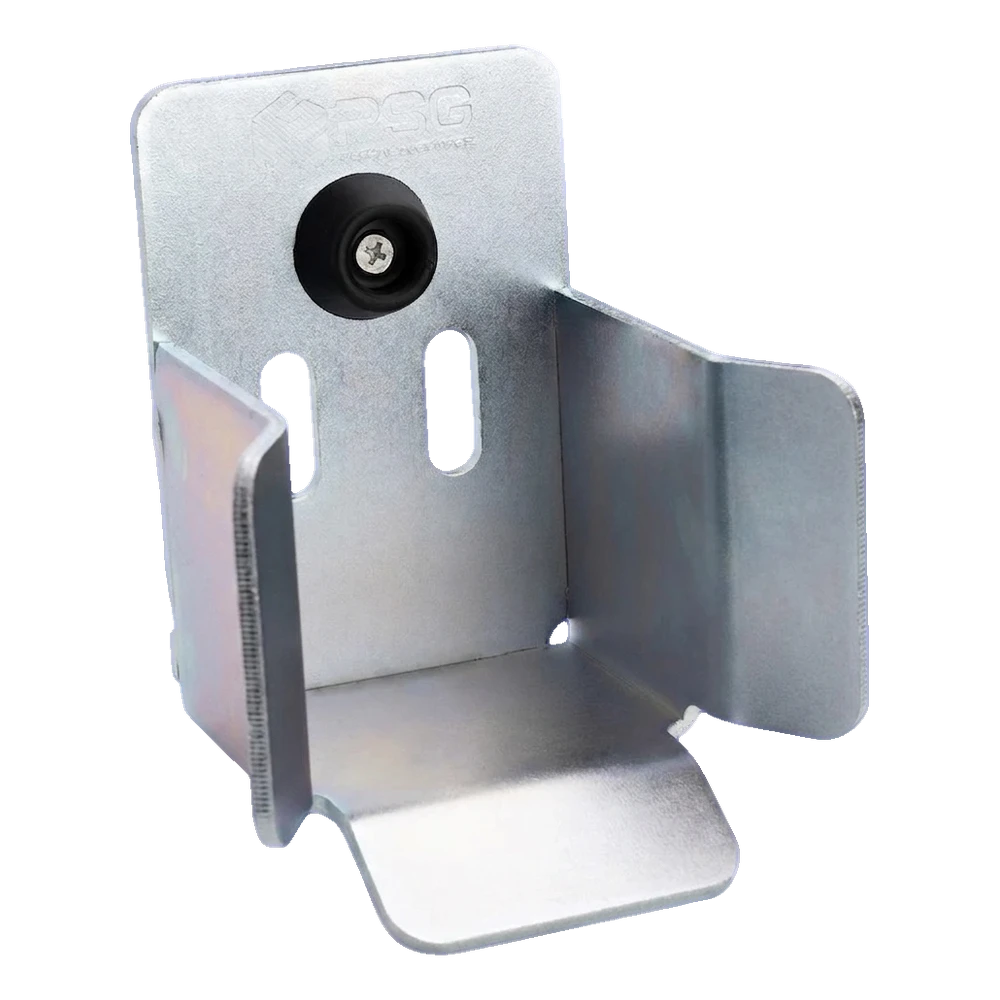

PSG sliding gate guide stop bracket for 68×68 system galvanised steel
PSG guide stop bracket is a key component of the 68×68 running system designed for self-supporting sliding gates. Its function is to work with the guide roller — together they create an optimal configuration for smooth gate approach to the post and its stabilisation in closed position.
By distributing the gate weight between the running carriages and the guide stop bracket, the lifespan of gate carriages is significantly extended — this is particularly important for gates intensively used in commercial and industrial facilities. The built-in rubber buffer effectively dampens gate impacts, minimising the risk of mechanical damage and reducing operational noise with each closing cycle.
The bracket is made from galvanised steel, which guarantees high corrosion resistance and long-term durability even in demanding weather conditions. Elongated mounting holes (slotted type) allow for precise adjustment of bracket position on the post, facilitating gate alignment in the guide axis.

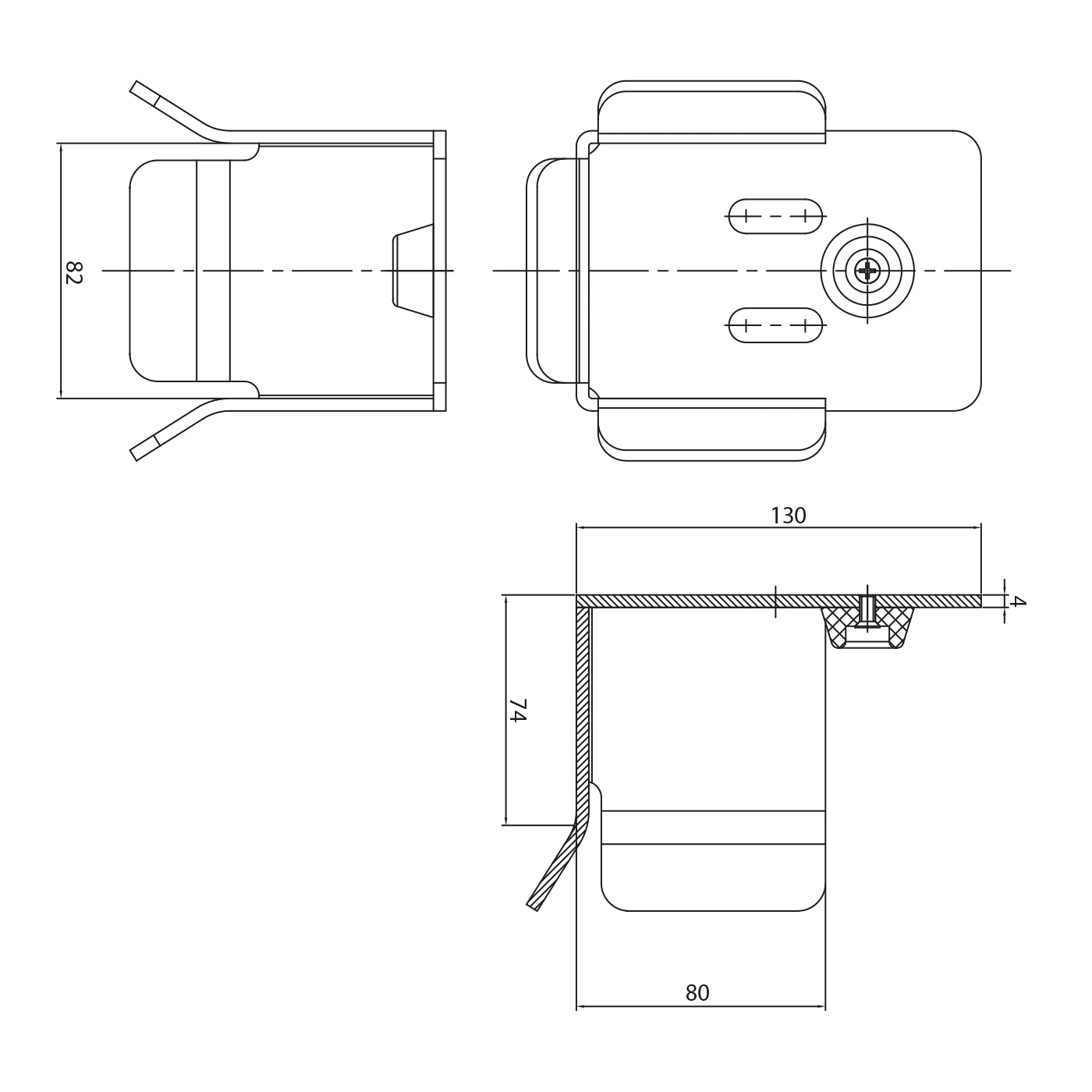

Dimensions and technical data
- Overall length (mounting plate): 130 mm
- Internal width (profile guide): 82 mm
- Height: 74 mm
- Side guide length: 80 mm
- Sheet thickness: 4 mm
- Material: galvanised steel
- Buffer: rubber, screw-mounted
- Weight: 1.06 kg
- Compatibility: 68×68 running system
- EAN: 5901289670043
Compatibility and application
The guide stop bracket is dedicated for use in the PSG 68×68 mm sliding gate guidance system. It provides a universal solution for various self-supporting gate models — mounted on the gate post, it serves as a guide point for the roller, ensuring even load distribution and smooth gate closing.
