PSG single-sided round door handle black 32×1200 mm AISI 304 – 45° mounting
Description
PSG single-sided round door handle black 32×1200 mm AISI 304 – 45° mounting

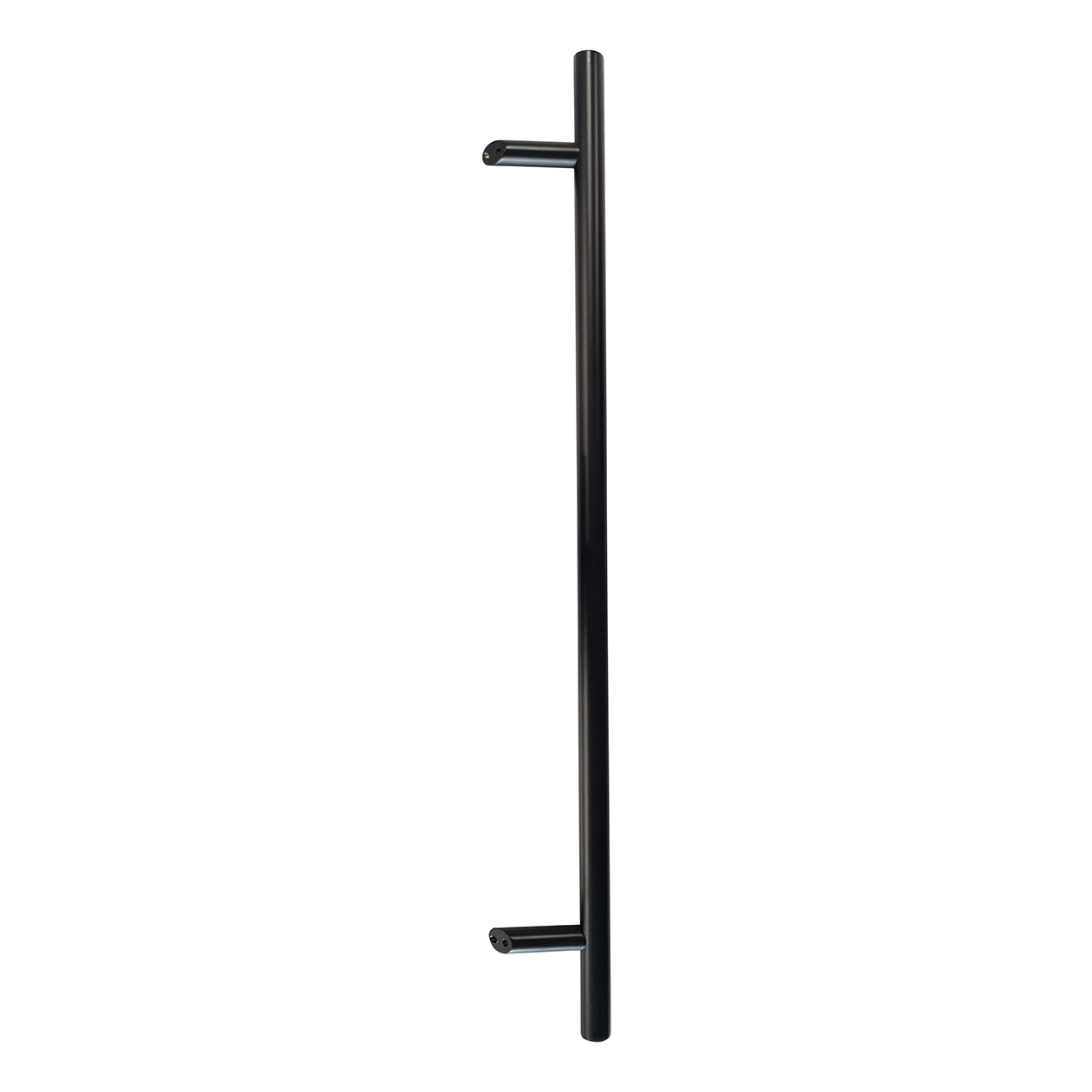

Single-sided PSG pull handle is an elegant, round door handle with 1200 mm length and 32 mm diameter, made from AISI 304 stainless steel and powder coated in black. Thanks to universal through-bolt mounting at 45° angle, it works well on glass, metal, wooden, PVC doors, as well as a handle for sliding doors. The set includes all necessary mounting elements, allowing for quick and complete installation without the need to order additional accessories.
Universal application and durability
The handle has been made from scratch-resistant material, which guarantees long-lasting, aesthetic appearance even with intensive use in commercial and public utility buildings. The elegant, minimalist design in black colour fits perfectly into modern interior and facade arrangements — both in residential and commercial construction.
Technical specification
- Type: single-sided pull handle, round
- Total handle length: 1200 mm
- Handle diameter: Ø 32 mm
- Distance between mounting holes: 1000 mm
- Mounting hole angle: 45°
- Mounting type: through-bolt
- Material: AISI 304 stainless steel
- Colour: black (powder coating)
- Overall dimensions: L 1230 × W 280 × H 60 mm
- Weight: 1.64 kg
- Mounting elements: included
- EAN: 5903313203227
Through-bolt mounting system

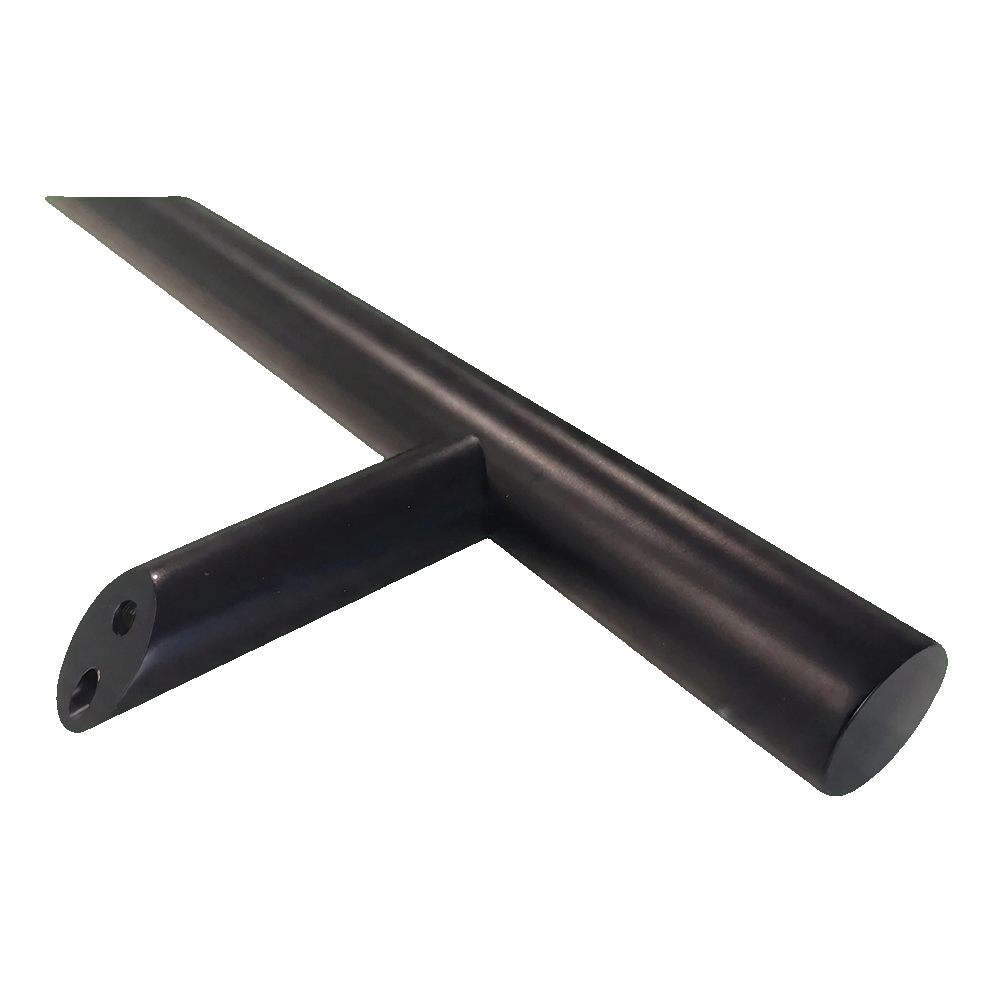

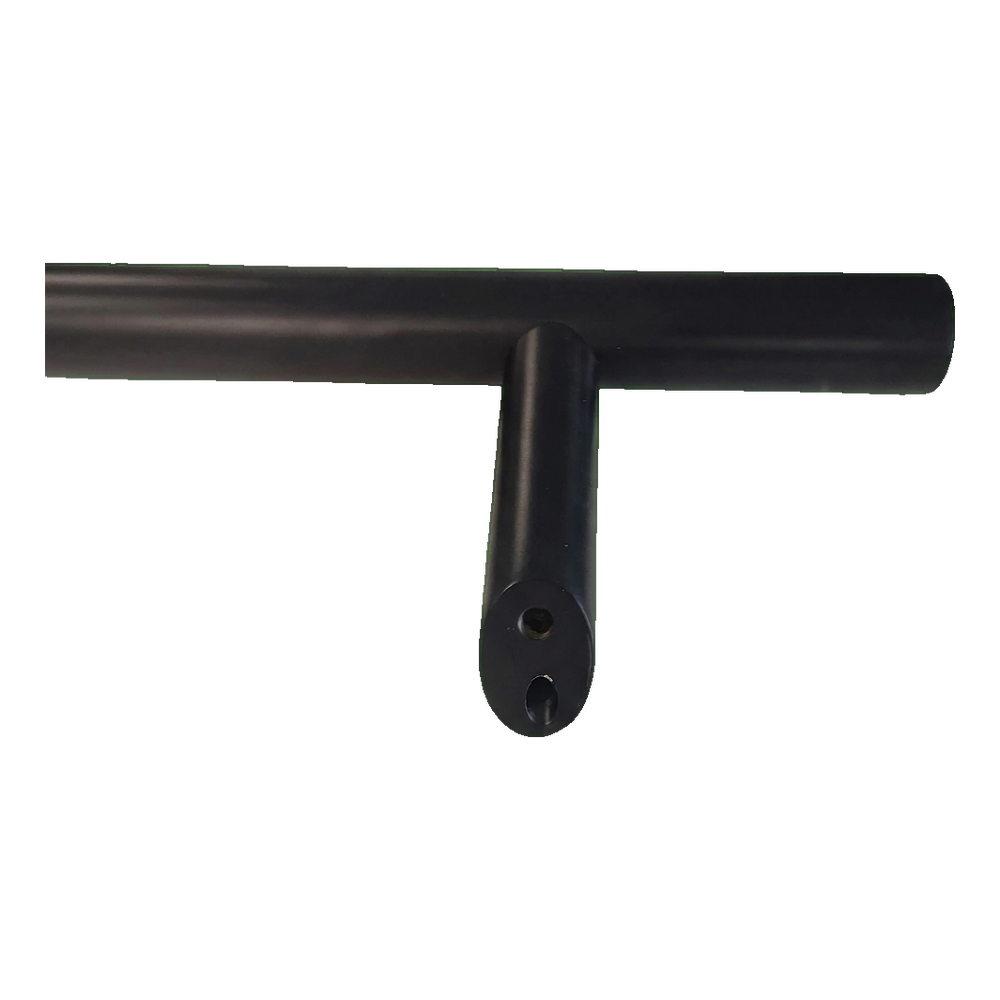

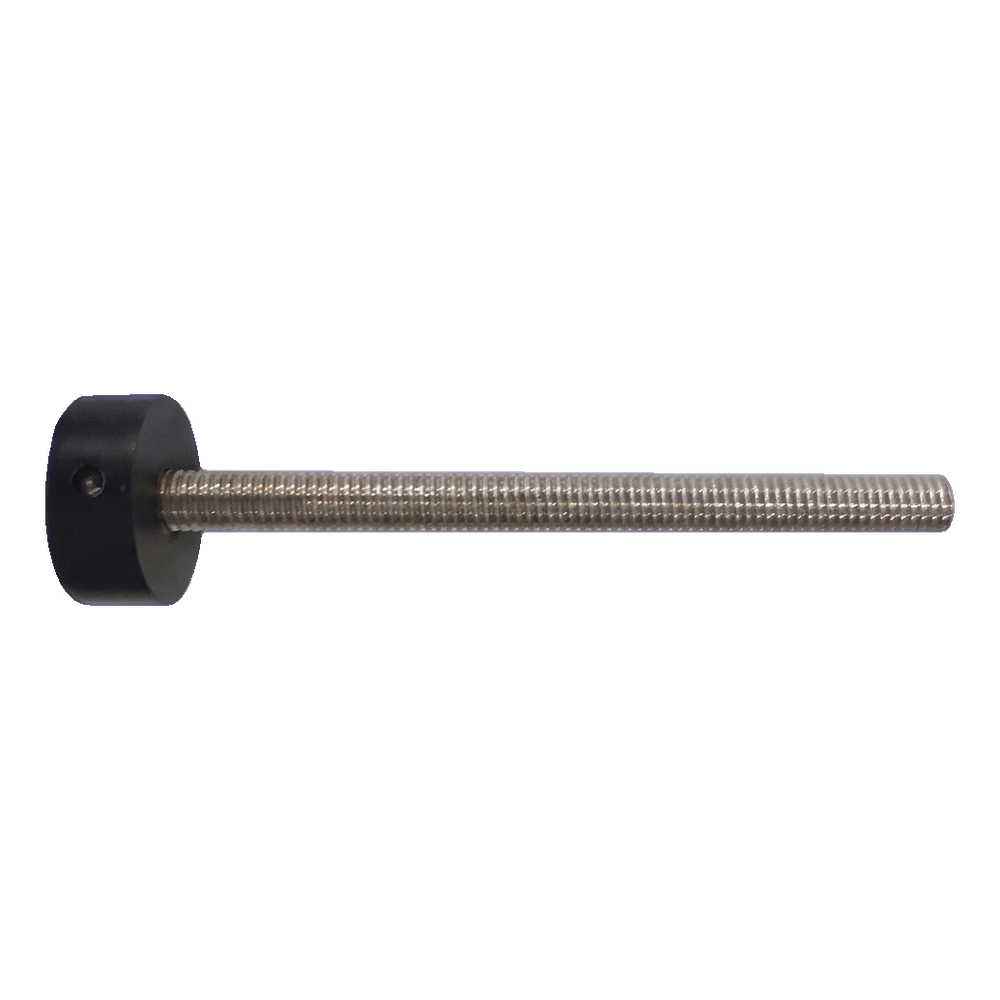

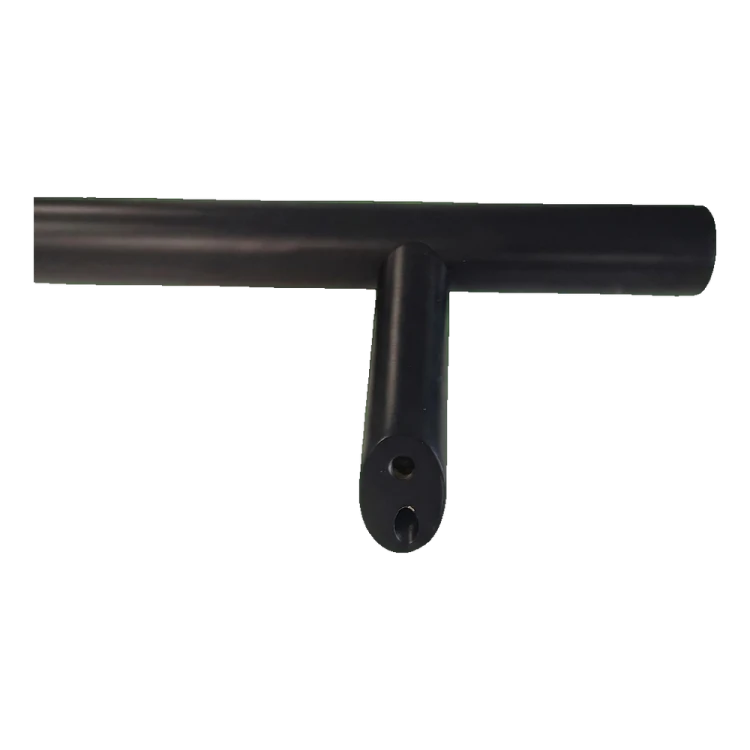

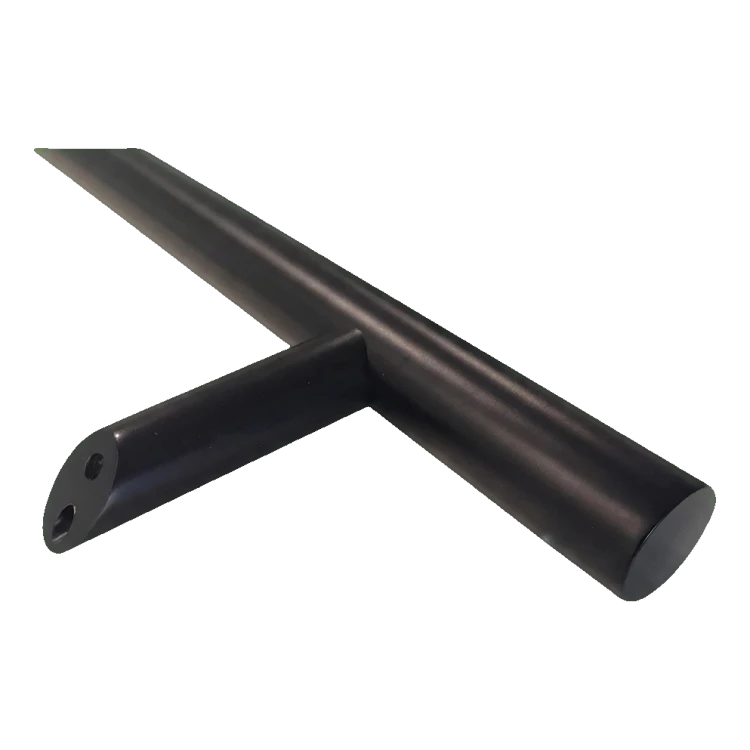

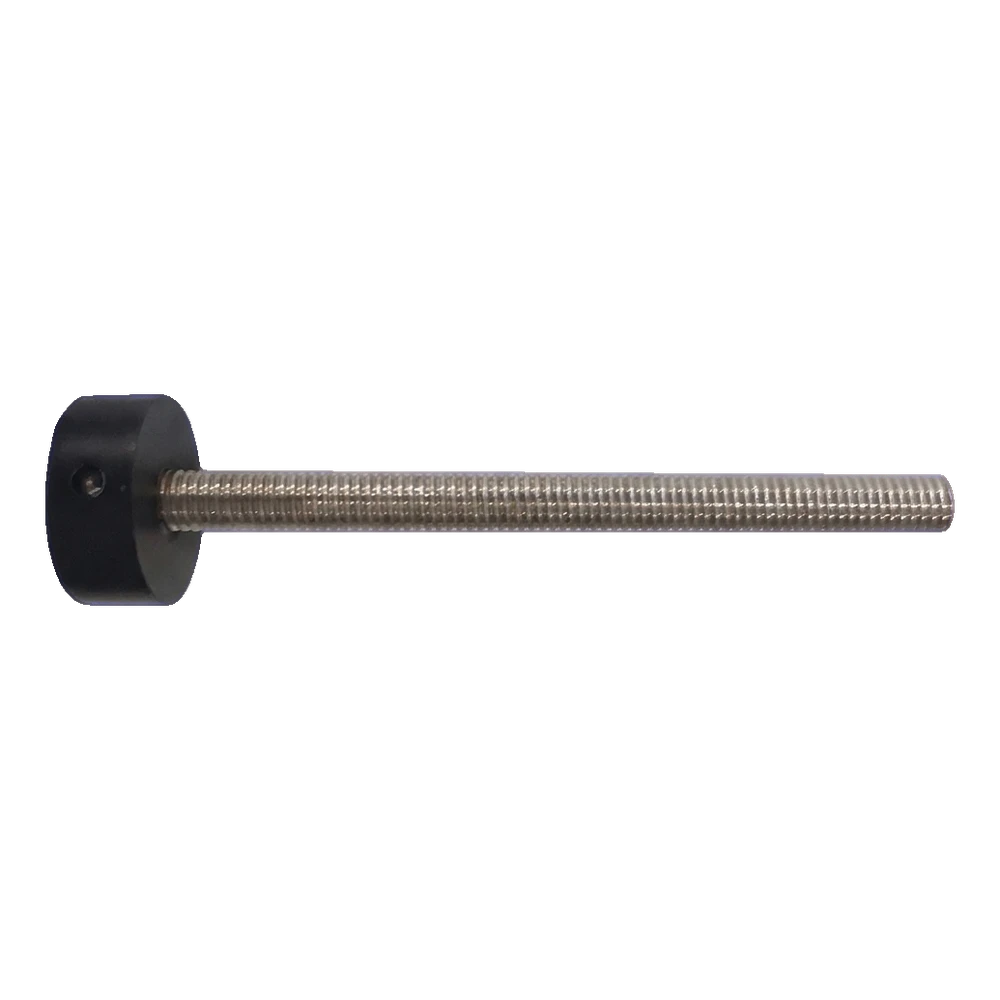

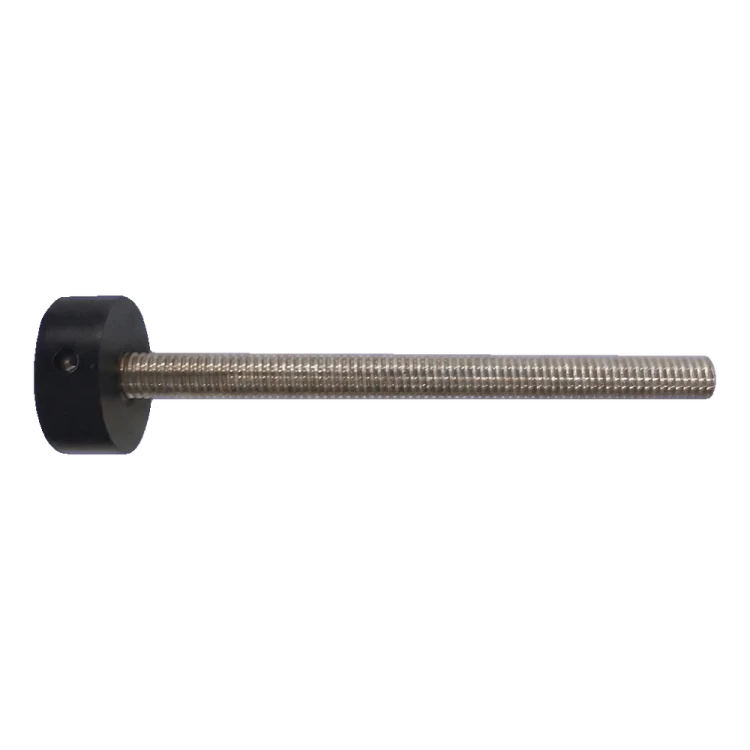

The handle is equipped with threaded mounting studs set in black handle end caps. Through-bolt mounting ensures secure and stable fixing through the entire thickness of the door leaf. Mounting holes spaced at 1000 mm centres and positioned at 45° angle guarantee solid handle adhesion to the door surface. This system is particularly convenient for installation teams — it only requires drilling through holes and tightening elements from the other side of the leaf.
Compatibility and application

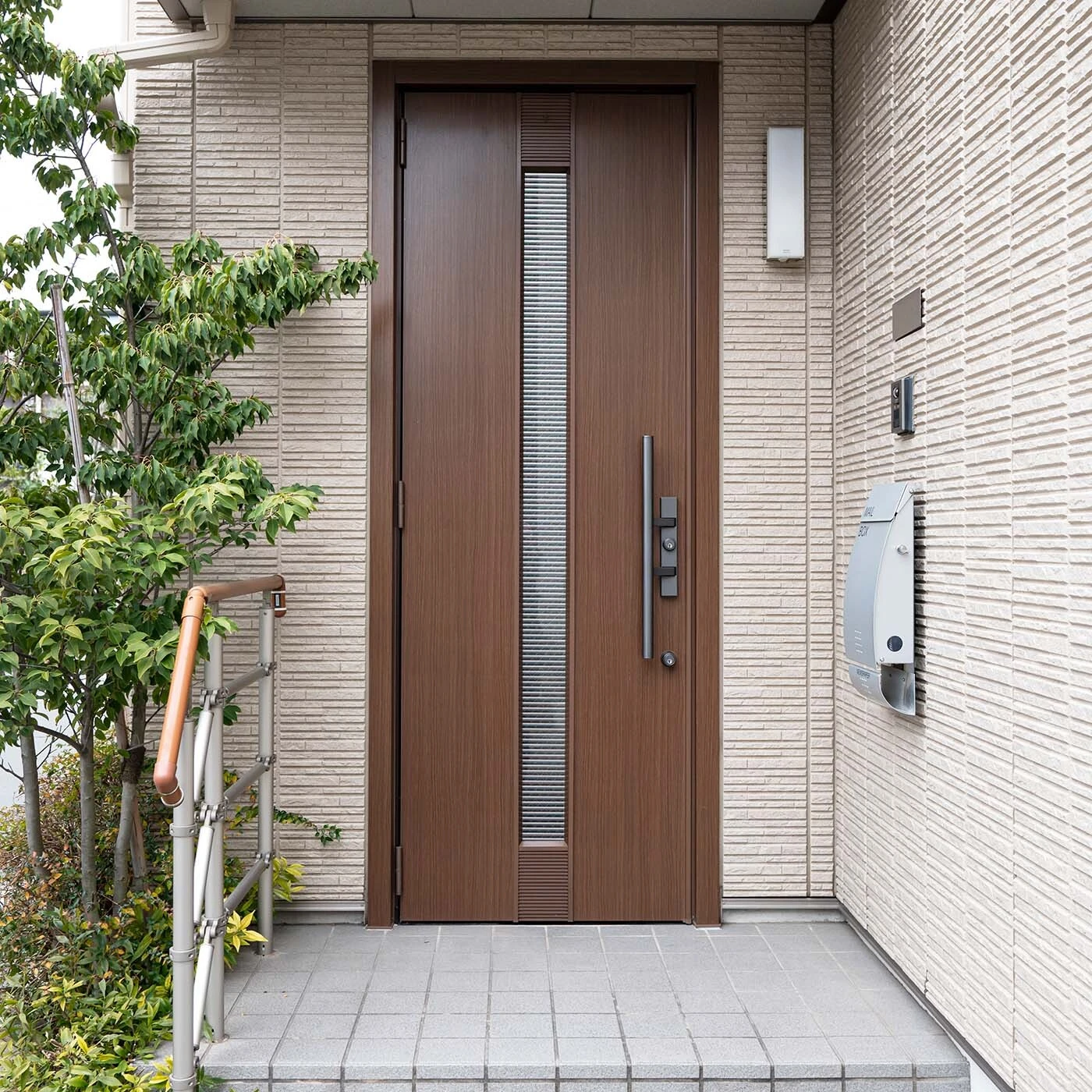

The pull handle works excellently as a handle for entrance doors, shop doors, office doors and sliding doors. Universal construction enables mounting on doors made from glass, metal, wood and PVC. This is a practical solution for installation companies implementing projects with high aesthetic and functional requirements.
Technical data
| Material | AISI 304 |
| Finish | Painted black |
| Brand | PSG |
