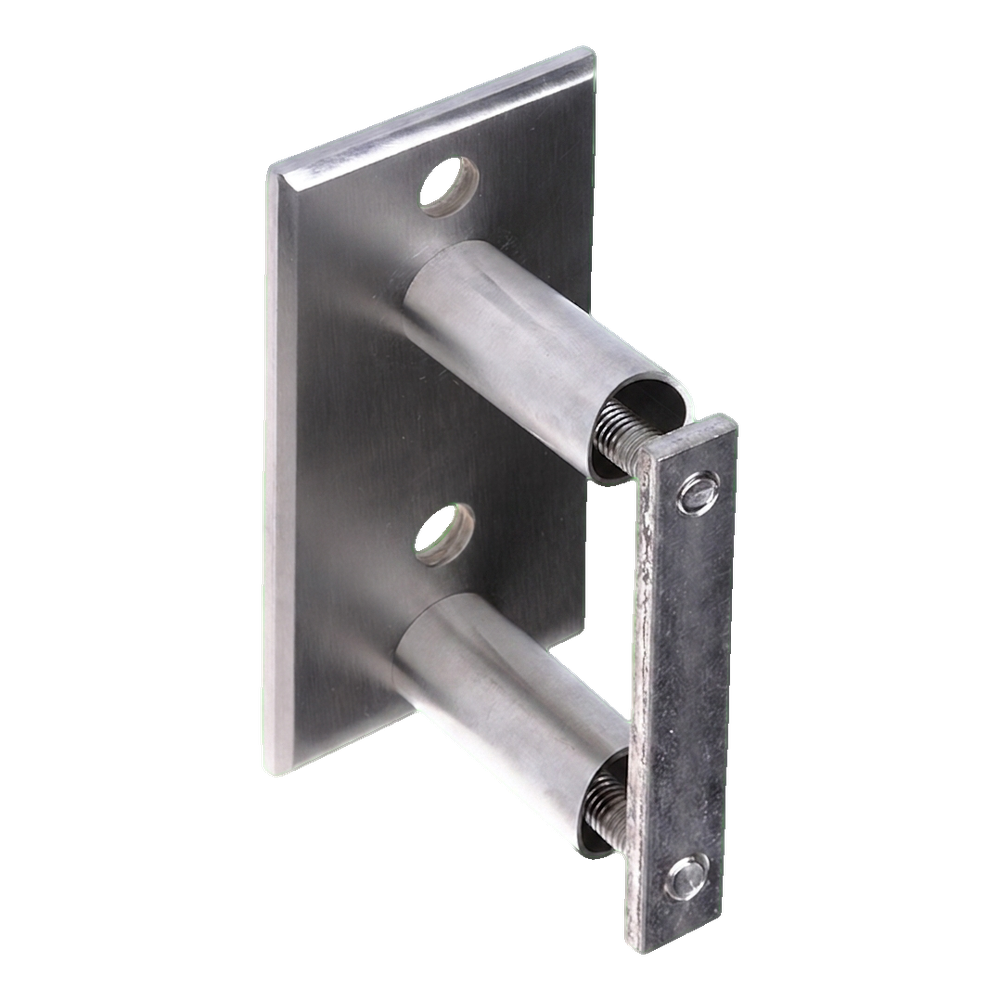

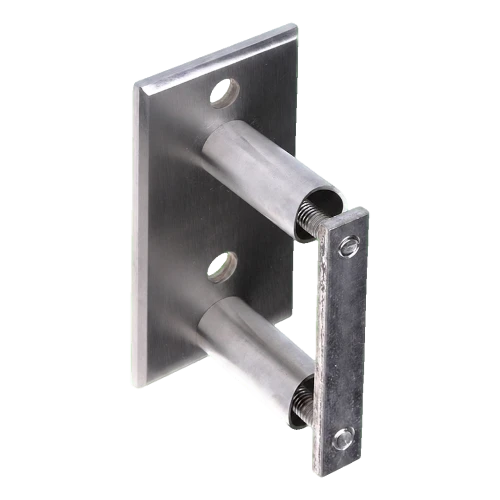

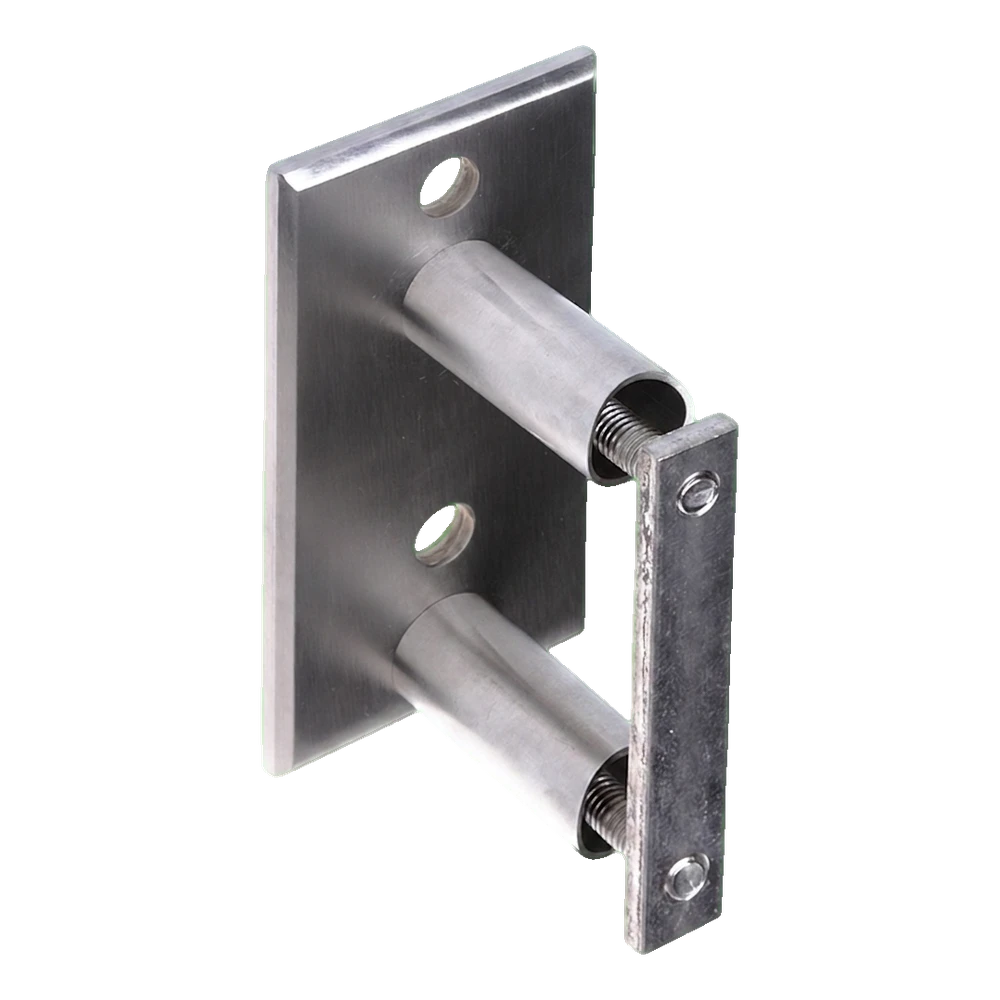

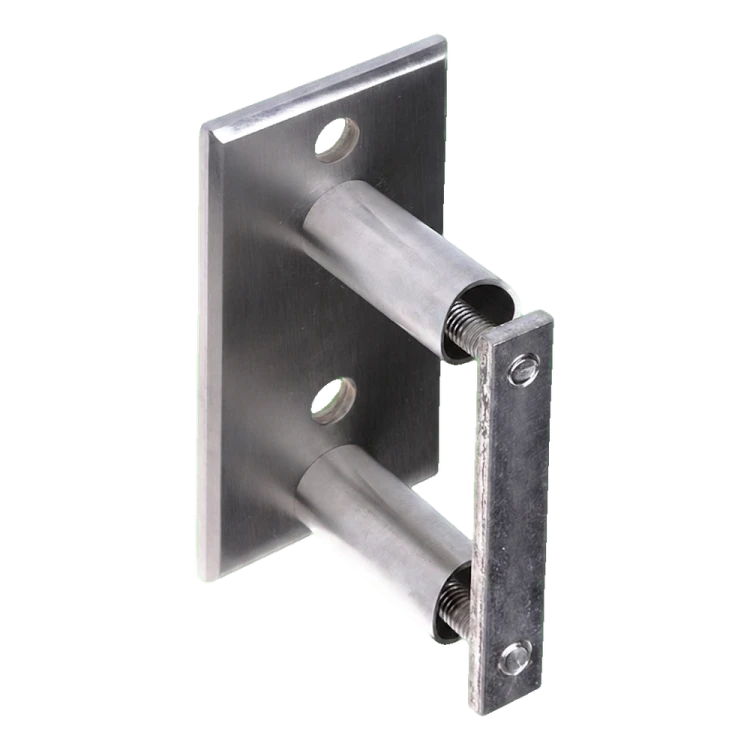

PSG side mounting for balustrade post fi 42.4 mm – stainless steel AISI 304 satin
Description
PSG side mounting for balustrade post fi 42.4 mm – stainless steel AISI 304 satin
Side mounting for balustrade post from manufacturer PSG enables solid and aesthetic attachment of a post with diameter fi 42.4 mm to the wall. This is a key element in the construction of staircase and balcony balustrades made of stainless steel — it ensures stable mounting of the lower part of the post whilst maintaining a specified distance from the mounting surface.
The element is made entirely from stainless steel AISI 304 with a satin finish, which guarantees high corrosion resistance and an elegant, matt appearance that perfectly complements modern balustrade systems. The satin surface reduces the visibility of fingerprints and minor scratches, allowing balustrades to maintain an aesthetic appearance for years.

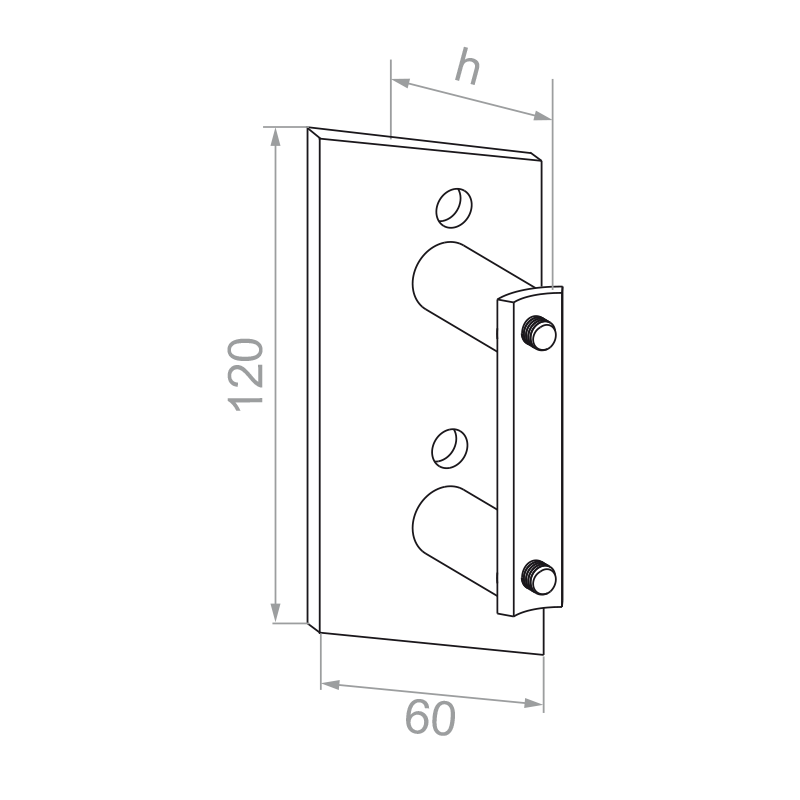

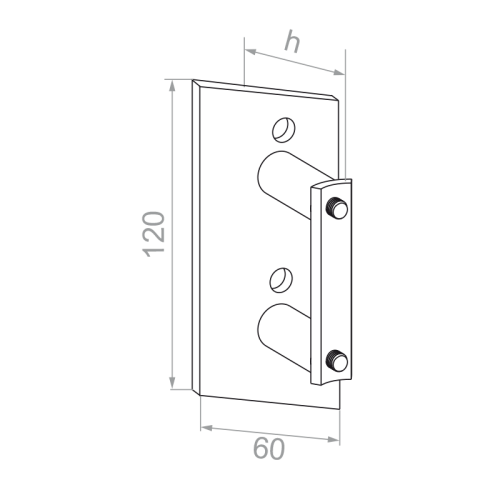

Dimensions and technical data
- Post diameter: fi 42.4 mm (42.4 system)
- Mounting plate dimensions: 120 × 60 mm
- Distance from wall: 50 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.45 kg
- EAN: 5901289673624
Application and installation
The mounting is intended for wall installation — the rectangular plate with mounting holes is screwed directly to the wall, whilst two cylindrical spacers provide a 50 mm offset of the post from the surface. The construction enables quick and secure installation on both masonry and concrete walls. The package contains 1 piece of mounting.
The product is dedicated to installation companies implementing stainless steel balustrade systems in residential, office and public buildings. Compatibility with the popular 42.4 mm tube system ensures full interchangeability with other balustrade elements of this standard.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
