PSG side hanger for sliding gate rail 35×32 galvanised
Description
PSG side hanger for sliding gate rail 35×32 galvanised
Galvanised side hanger designed for mounting running rail 35×32 mm in suspended sliding gates. The PSG brand product is supplied complete with mounting screws, allowing for immediate installation without the need to source additional fastening elements. Side mounting enables stable suspension of the rail on a wall, post or lintel — a solution particularly valued by installation teams for its speed and reliability of installation.

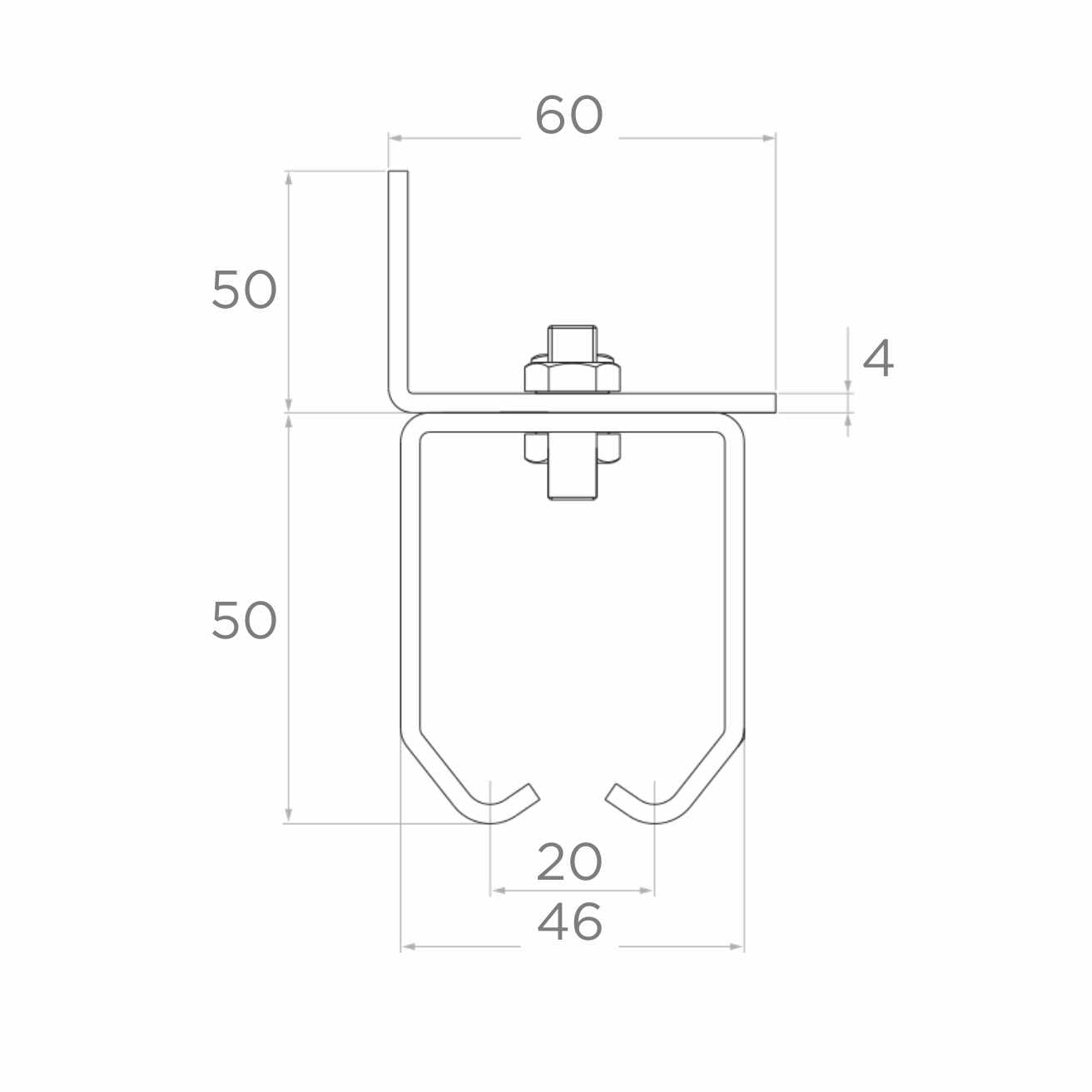

Dimensions and technical parameters
- Mounting type: side
- Compatible rail: 35×32 mm
- Horizontal arm length (L): 60 mm
- Vertical arm height (H): 50 mm
- Rail height: 50 mm
- External rail width: 46 mm
- Bottom rail slot width: 20 mm
- Angle bracket sheet thickness: 4 mm
- Material: galvanised steel
- Weight: 0.47 kg
- Supplied with: mounting screws
- EAN: 5901289675628
Application and installation

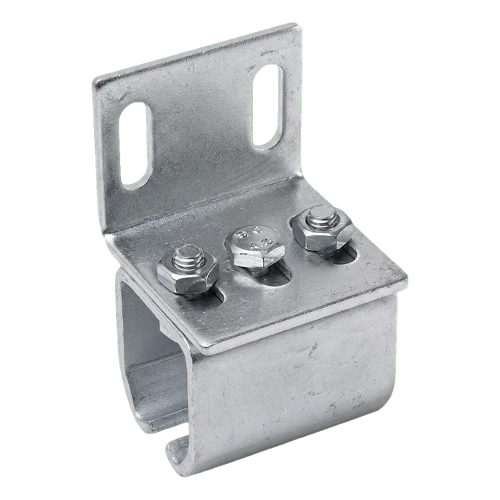

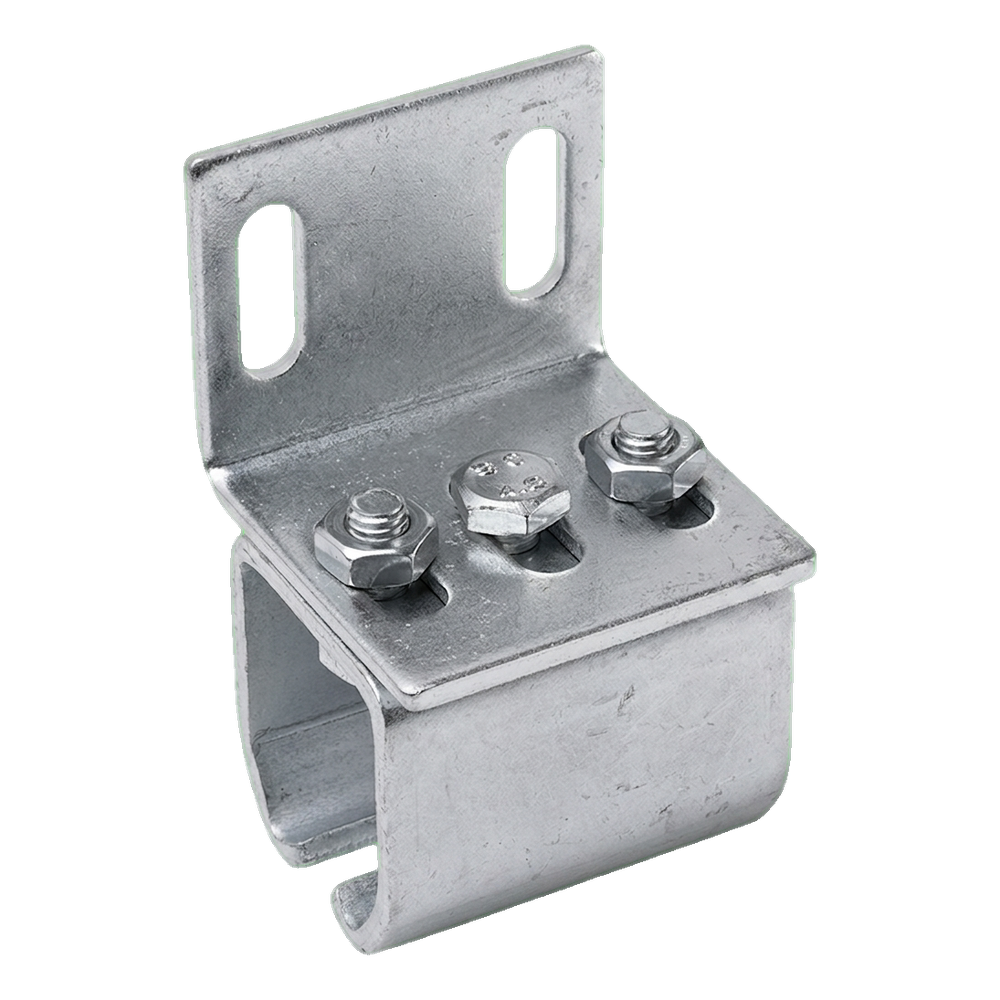

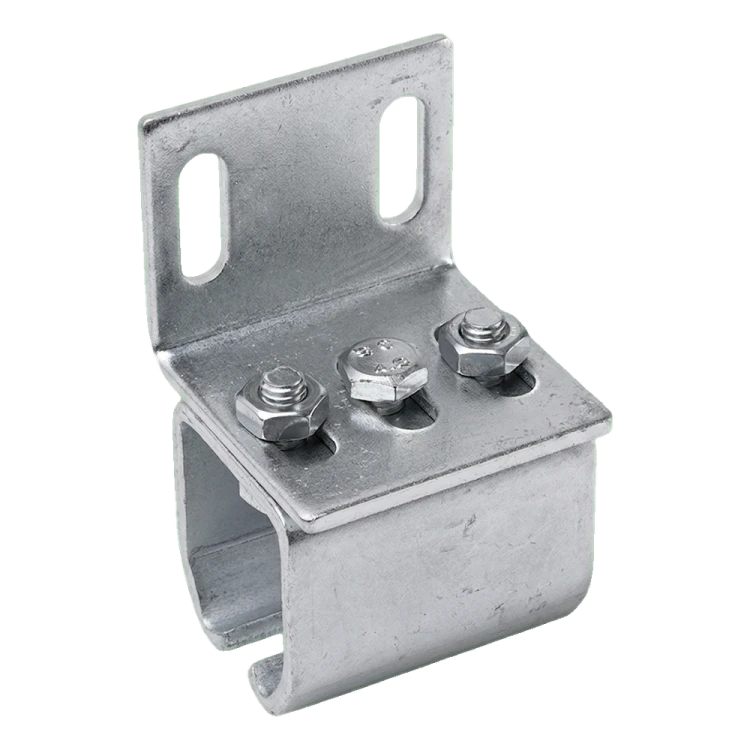

The hanger is used for suspending the running rail of a sliding gate in gate systems with top guidance. The mounting angle bracket has two elongated holes in the vertical arm, which enable precise height adjustment of the rail suspension and compensation for unevenness in the mounting surface. The connection between the angle bracket and rail is achieved using the included screws — the construction ensures stable and rigid mounting even under intensive gate operation.
The galvanised coating effectively protects the hanger against corrosion, making it suitable for both internal mounting and external building applications. This is a robust element of the gate system that professional installers can rely on for every installation.
