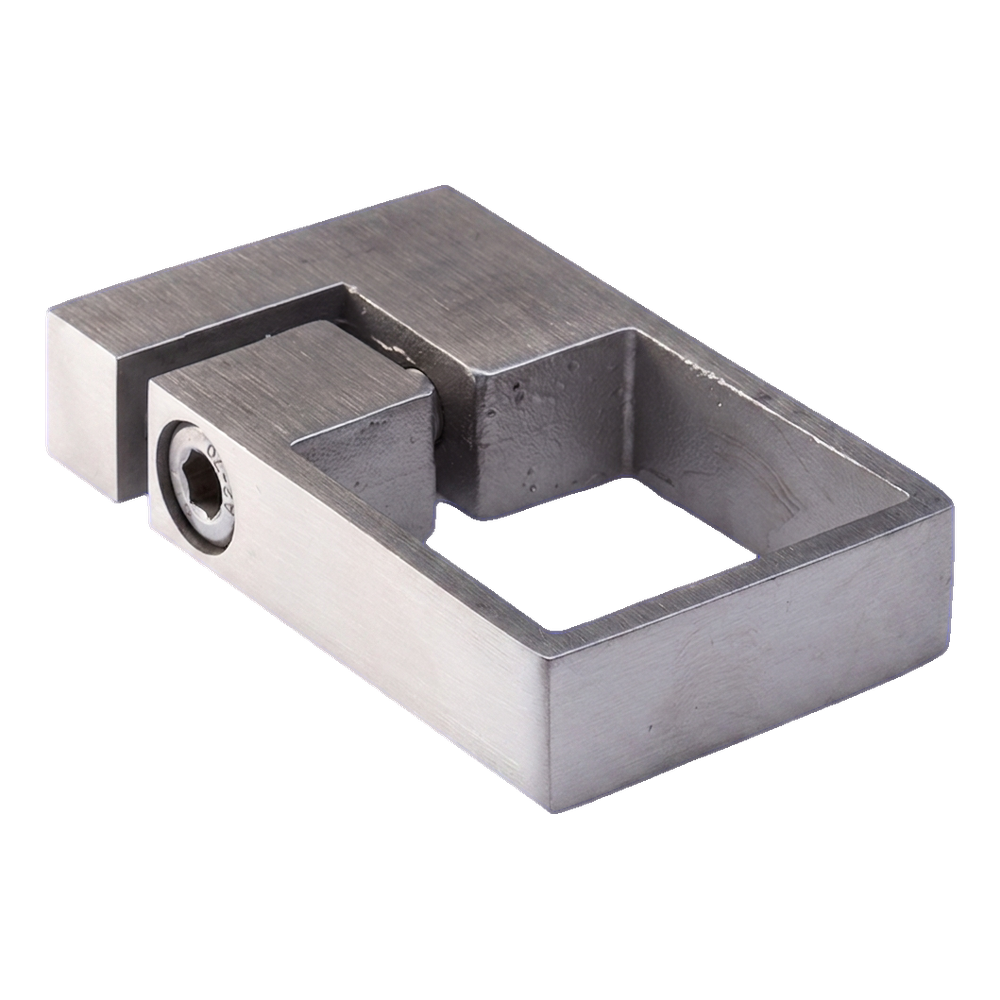

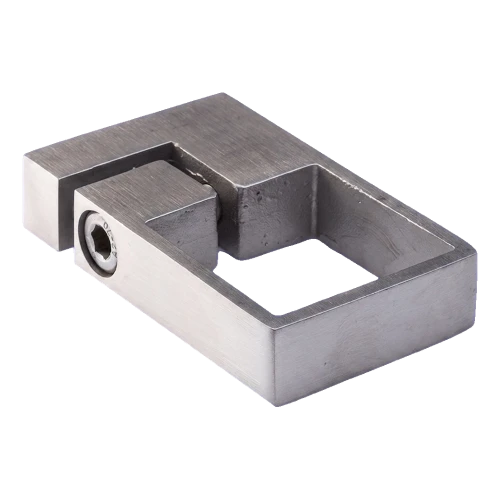

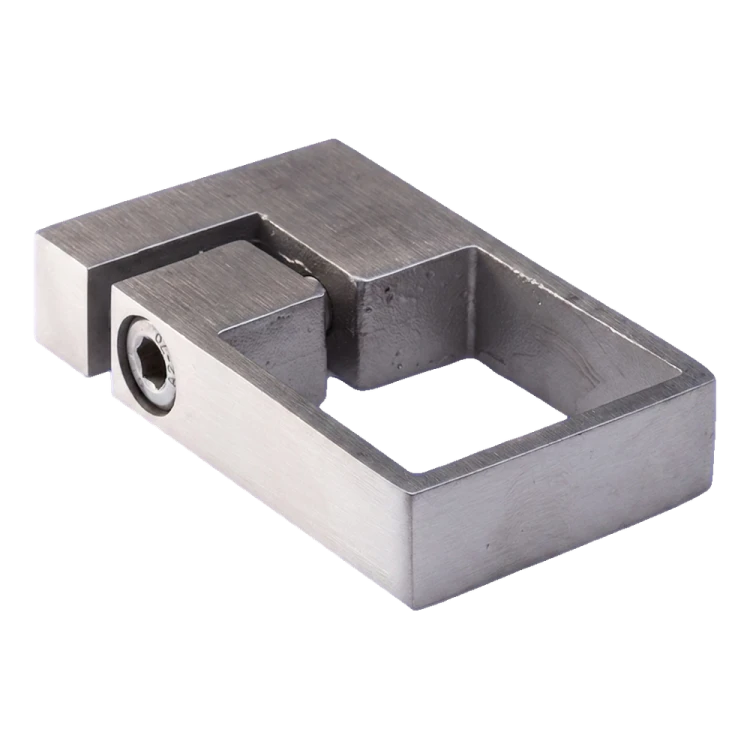

PSG side clamp bracket for 40x40 mm profile – stainless steel AISI 304 satin
Description
PSG side clamp bracket for 40x40 mm profile – stainless steel AISI 304 satin
Clamp bracket for side mounting of balustrade post with 40×40 mm profile. Component designed for wall mounting, stair stringer or other vertical surface — provides stable support for balcony, terrace or stair balustrade posts. Made from AISI 304 stainless steel with satin finish, guaranteeing high corrosion resistance and aesthetic, modern appearance.
Construction with clamp bracket enables secure profile attachment and precise adjustment using two M8 mounting holes. This allows installers to position the post quickly and accurately, whilst the connection maintains rigidity throughout the service life. The bracket belongs to the flat system — compatible with other stainless steel balustrade components available in our range.
Product features
- Type: side mounting for balustrade post
- Post profile: 40×40 mm
- Material: AISI 304 stainless steel
- Finish: satin
- System: flat
- Mounting holes: 2× M8
- Weight: 0.24 kg
- EAN: 5901289673648

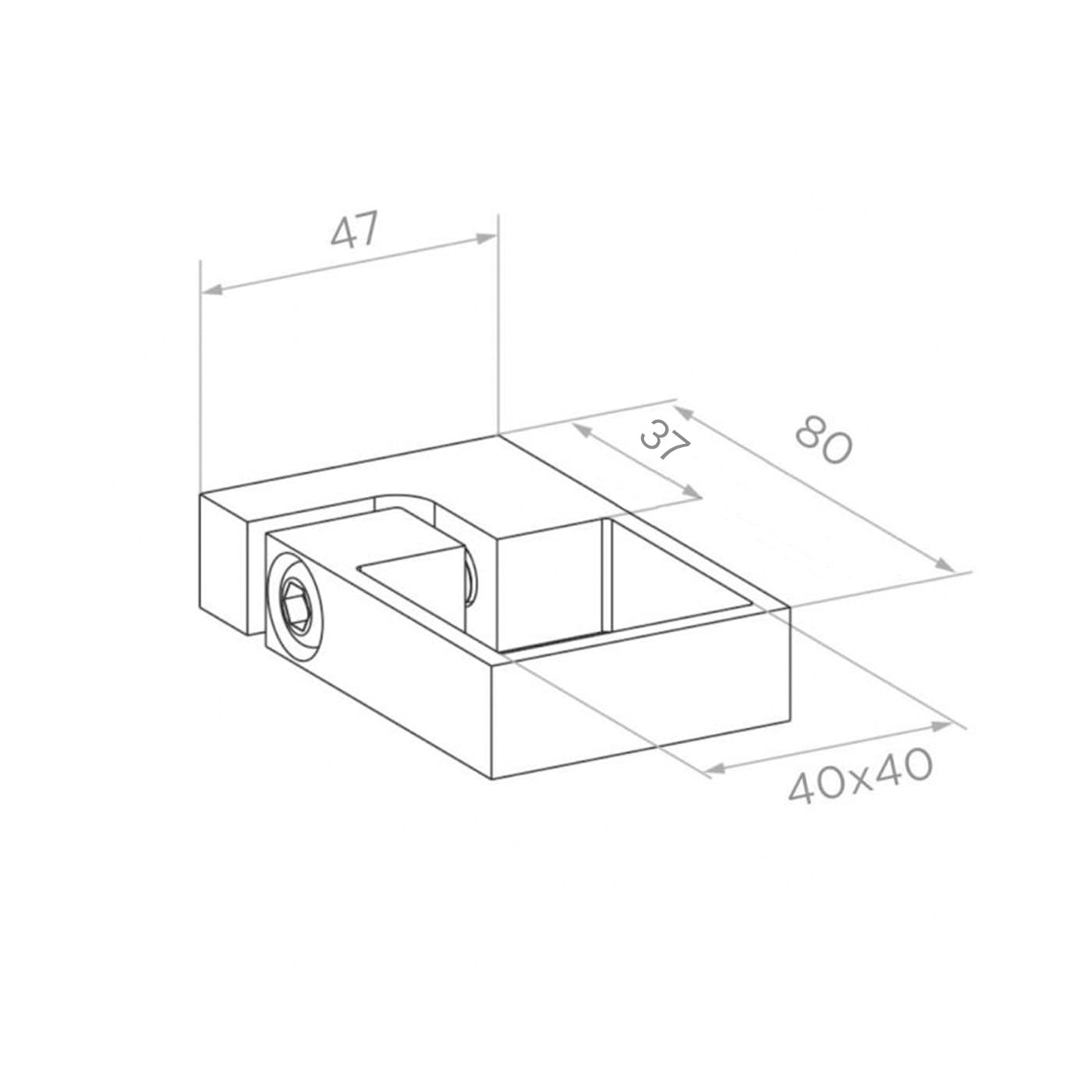

Dimensions
- Overall length (depth): 80 mm
- Mounting base width: 47 mm
- Distance from wall to profile: 37 mm
- Profile opening dimension: 40×40 mm
The clamp bracket is a key component of stainless steel balustrade systems. Ideal when combined with glass infills, horizontal rods or timber panels — enables creation of modern balustrades combining INOX with glass or INOX with timber. Solid side mounting facilitates installation where top anchoring is not possible, e.g. on finished balcony floors or completed stair stringers.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
