PSG – set of movable door knobs made of AISI 304 stainless steel with square escutcheons
Leave feedback on the product
PSG door knob set made of AISI 304 stainless steel. Movable knobs 50x50 mm, square escutcheons 52x52 mm for PZ cylinder. Satin finish, silver colour. Weight 0.6 kg. For interior and exterior doors.
Product code: 000-702
Product features
[PIM] klamki-galki-szyldy #118
- Material AISI 304
- Fitting Type Knob Set
- Finish Satin
- Brand PSG
Description
PSG – set of movable door knobs made of AISI 304 stainless steel with square escutcheons

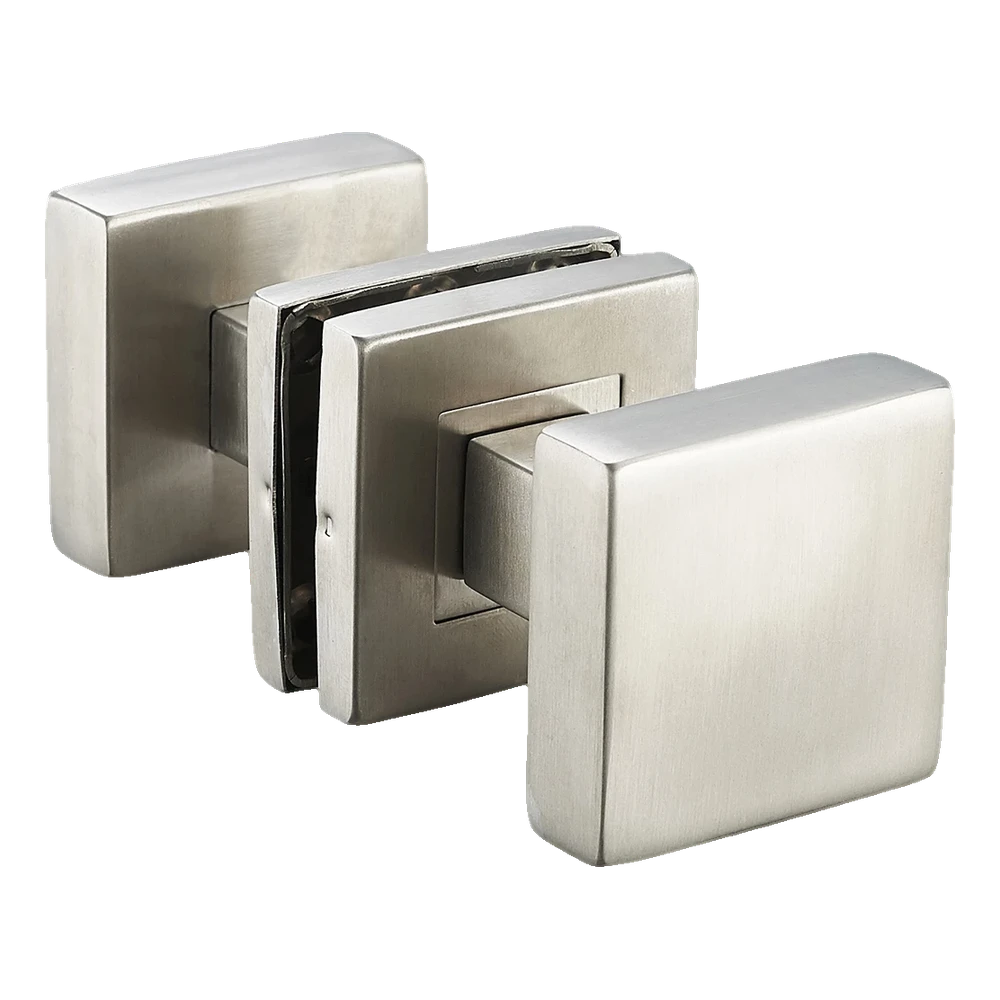

Knob-to-knob set made of AISI 304 stainless steel with square escutcheons for Euro cylinder (PZ) — a ready solution for professional installation of interior and exterior doors. Movable knobs with satin finish ensure comfortable operation, whilst the complete mounting set allows for quick and trouble-free installation.
Complete mounting set

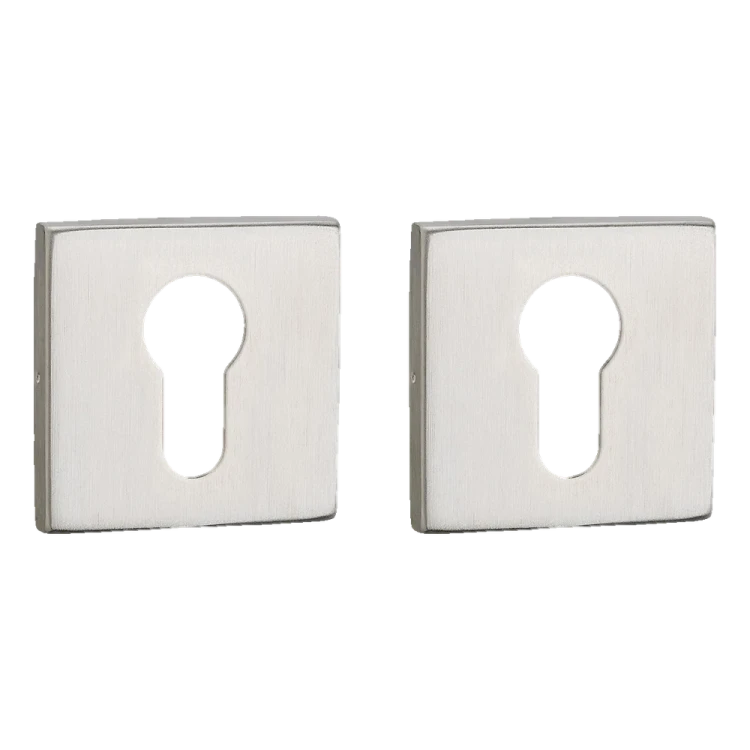

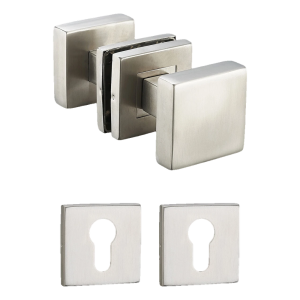

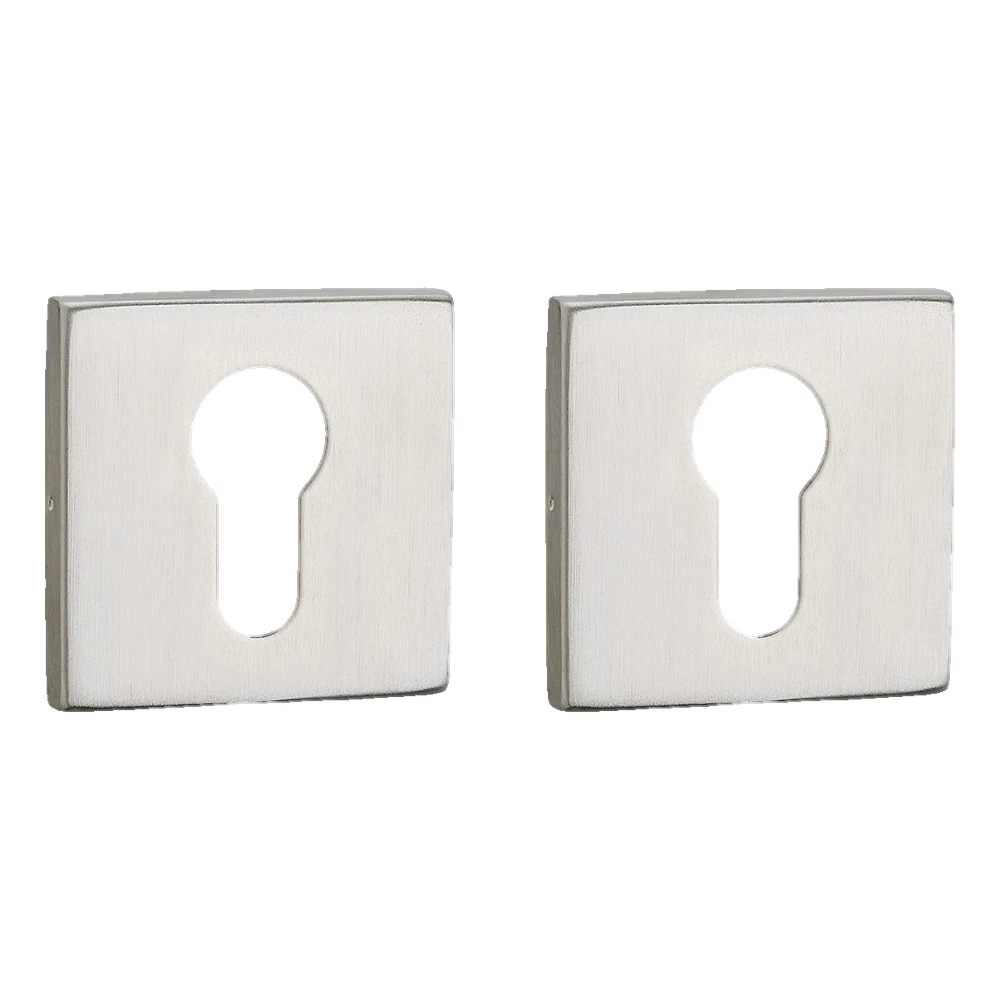

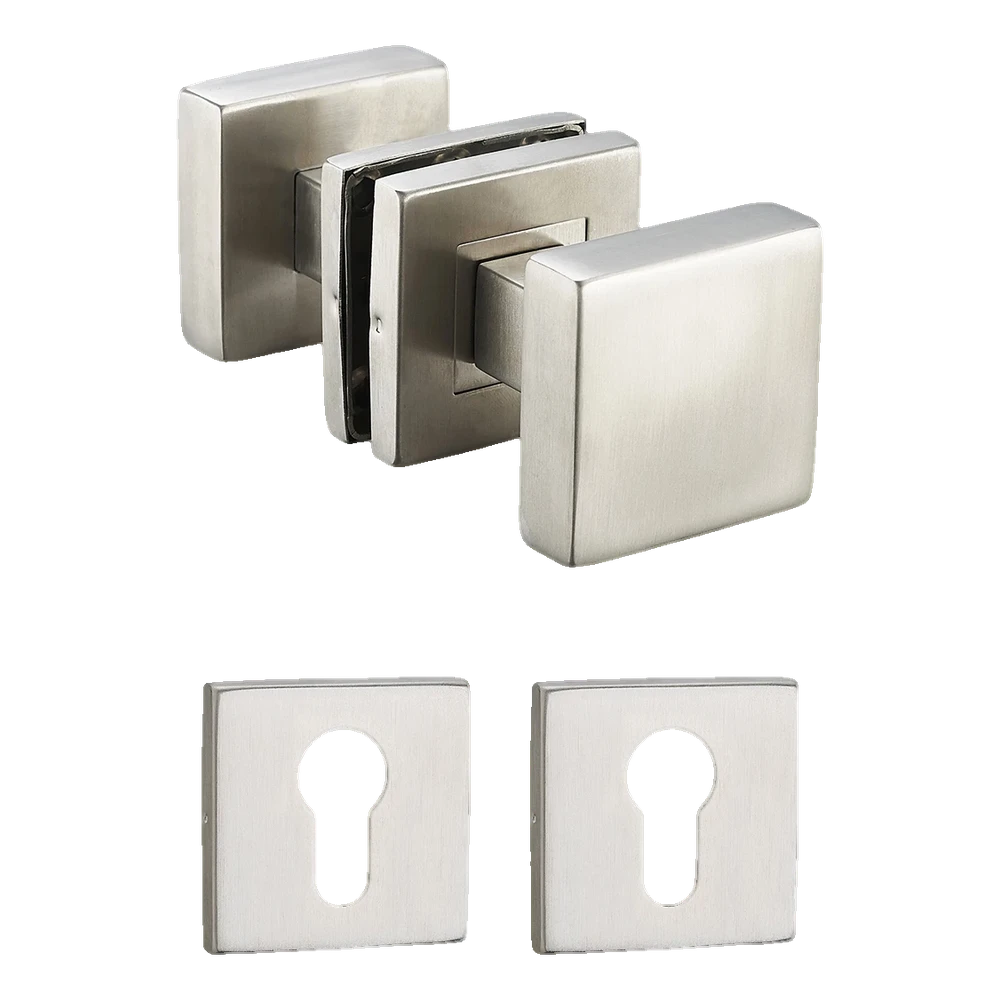

The set includes two movable knobs and a pair of square escutcheons with an opening for PZ Euro cylinder. The escutcheons not only aesthetically conceal mounting elements, but also give doors a modern, minimalist character. All necessary mounting accessories are included in the set — simply unpack and install.
AISI 304 stainless steel — durability for years
The knobs and escutcheons are made of high-grade AISI 304 stainless steel, ensuring corrosion resistance, protection against mechanical damage and intensive use. This is a proven material in office buildings, public facilities and residential buildings — everywhere door furniture must maintain aesthetics and functionality for many years. The satin finish additionally facilitates cleaning and masks fingerprint traces.
Set parameters
- Material: AISI 304 stainless steel
- Knob type: movable
- Finish: satin (matt)
- Colour: silver
- Knob (grip) dimensions: 50 × 50 mm
- Knob rose dimensions: 52 × 52 mm
- Total knob depth: 52 mm (rose 8 mm + spindle 34 mm + grip 16 mm)
- Escutcheon: square, 52 × 52 mm, thickness 8 mm
- Euro cylinder opening (PZ): 17.3 × 33.3 mm (upper part), 10.3 mm (lower width)
- Package dimensions: 175 × 50 × 60 mm (L × W × H)
- Set weight: 0.6 kg
- EAN: 5903313205221

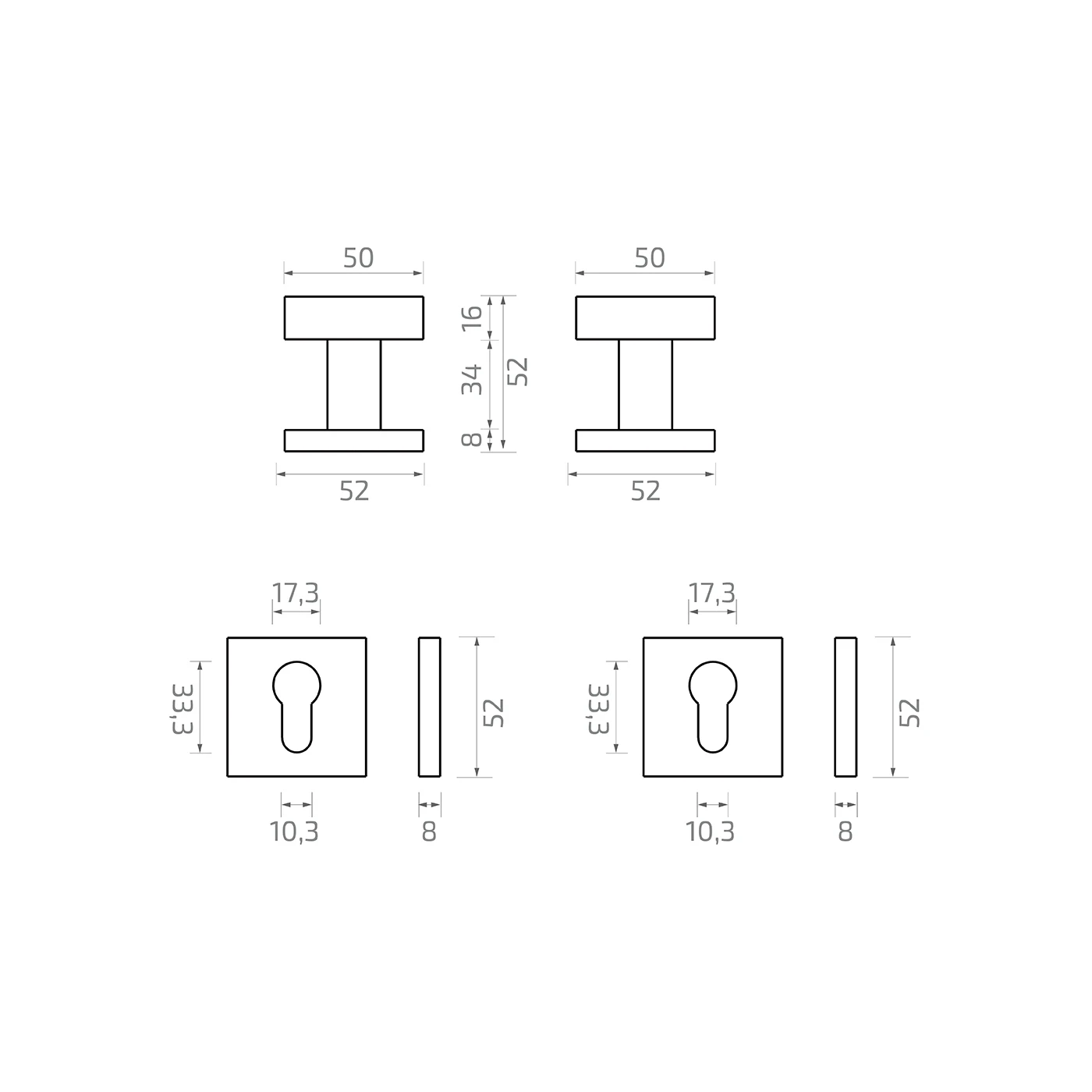

Detailed dimensions (technical drawing)
- Knob grip width: 50 mm
- Knob rose width: 52 mm
- Rose thickness: 8 mm
- Spindle length: 34 mm
- Knob grip thickness: 16 mm
- PZ escutcheon dimensions: 52 × 52 mm, thickness 8 mm
- Cylinder opening: upper width 17.3 mm, lower 10.3 mm, height 33.3 mm
The PSG knob-to-knob set is a proven choice for installation teams carrying out both development projects and individual renovations. Complete contents and thoughtful construction guarantee quick installation and long-lasting, trouble-free operation.
