PSG safety cable for swing gate stainless steel 800 mm
Description
PSG safety cable for swing gate stainless steel 800 mm
PSG safety cable is a reliable protection for gate leaf against uncontrolled falling in case of damage to one or both hinges. Made entirely of stainless steel, it guarantees years of corrosion resistance and trouble-free operation even in harsh weather conditions.
The set is ready for installation — it includes a steel cable with swaged loops at both ends, M12 threaded rod and two securing nuts. This means installation companies do not need to source additional fastening elements, which reduces order completion time and simplifies logistics.

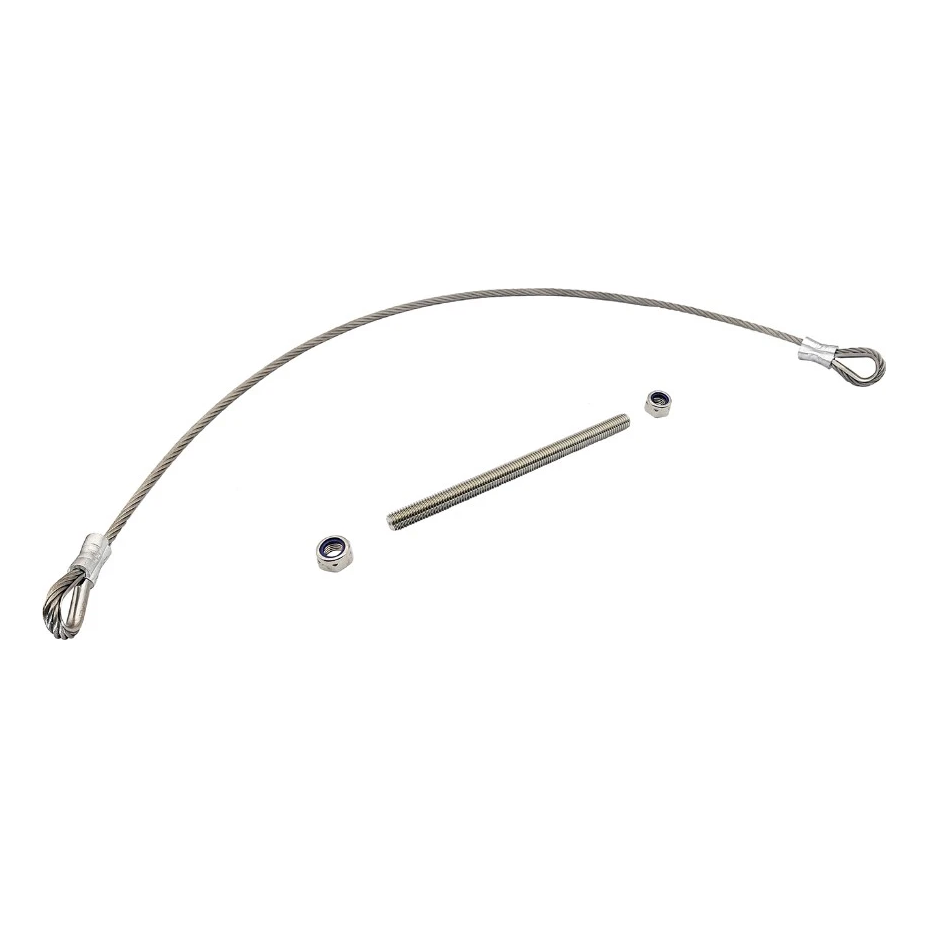

Set contents
- Stainless steel cable with swaged loops (thimbles) at both ends
- Threaded rod M12 × 180 mm
- Hexagonal nuts M12 – 2 pcs.
Technical parameters

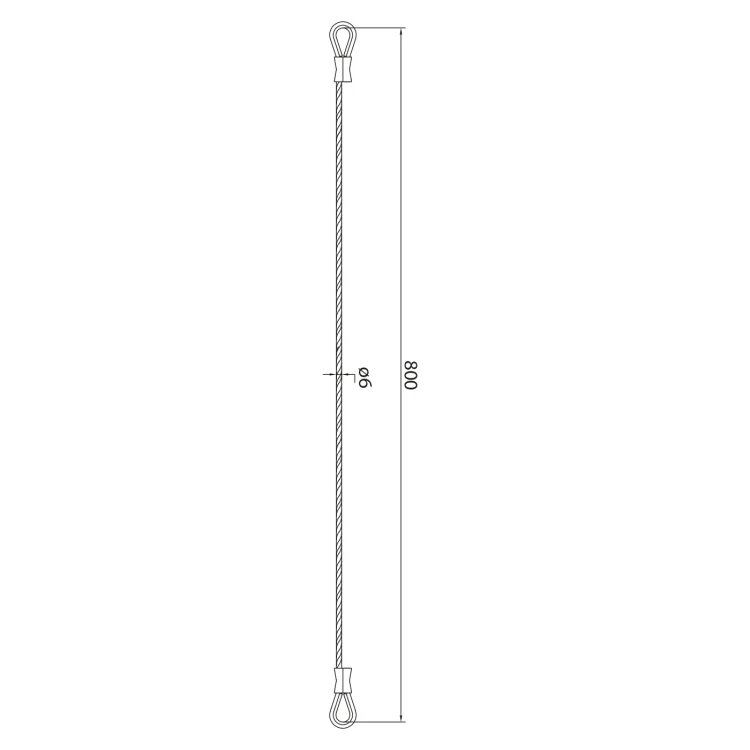

- Working length of cable: 800 mm
- Cable diameter: Ø6 mm

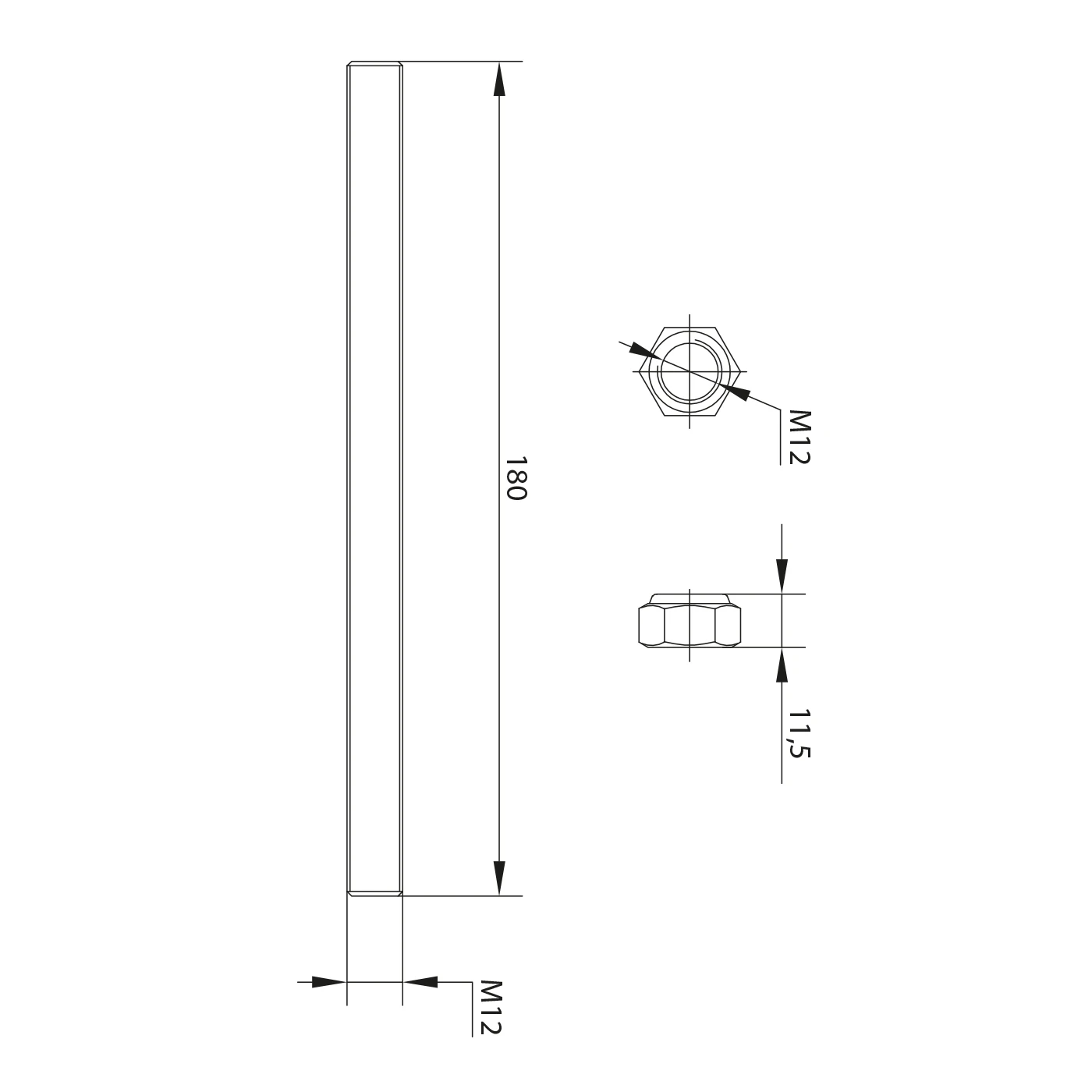

- Thread of rod and nuts: M12
- Threaded rod length: 180 mm
- Nut height: 11.5 mm
- Material: stainless steel
- Set weight: 0.32 kg
- Application: swing gates
- EAN: 5903313206310
Application and installation
The cable is installed between the gate leaf and fence post. The loops at both ends of the cable enable quick mounting using the included threaded rod and nuts. In case of hinge failure, the cable takes the weight of the leaf and prevents it from falling — protecting against damage to the gate, fence and vehicles parked nearby.
The use of stainless steel eliminates the need for periodic maintenance and anti-corrosion protection, which is a significant advantage for outdoor installations exposed to rain, snow and moisture.
