PSG running rail for sliding gates – steel C-channel 70×70 mm, L=6000 mm
Description
PSG running rail for sliding gates – steel C-channel 70×70 mm, L=6000 mm

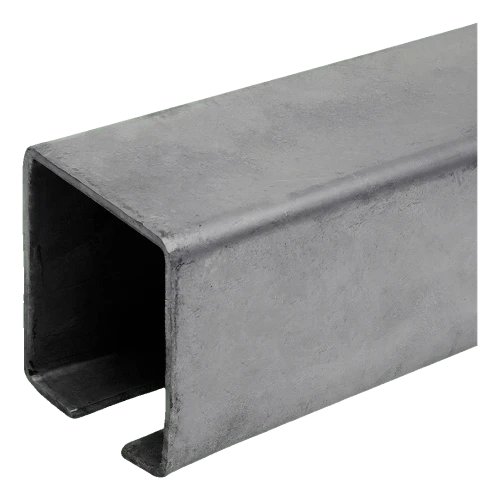

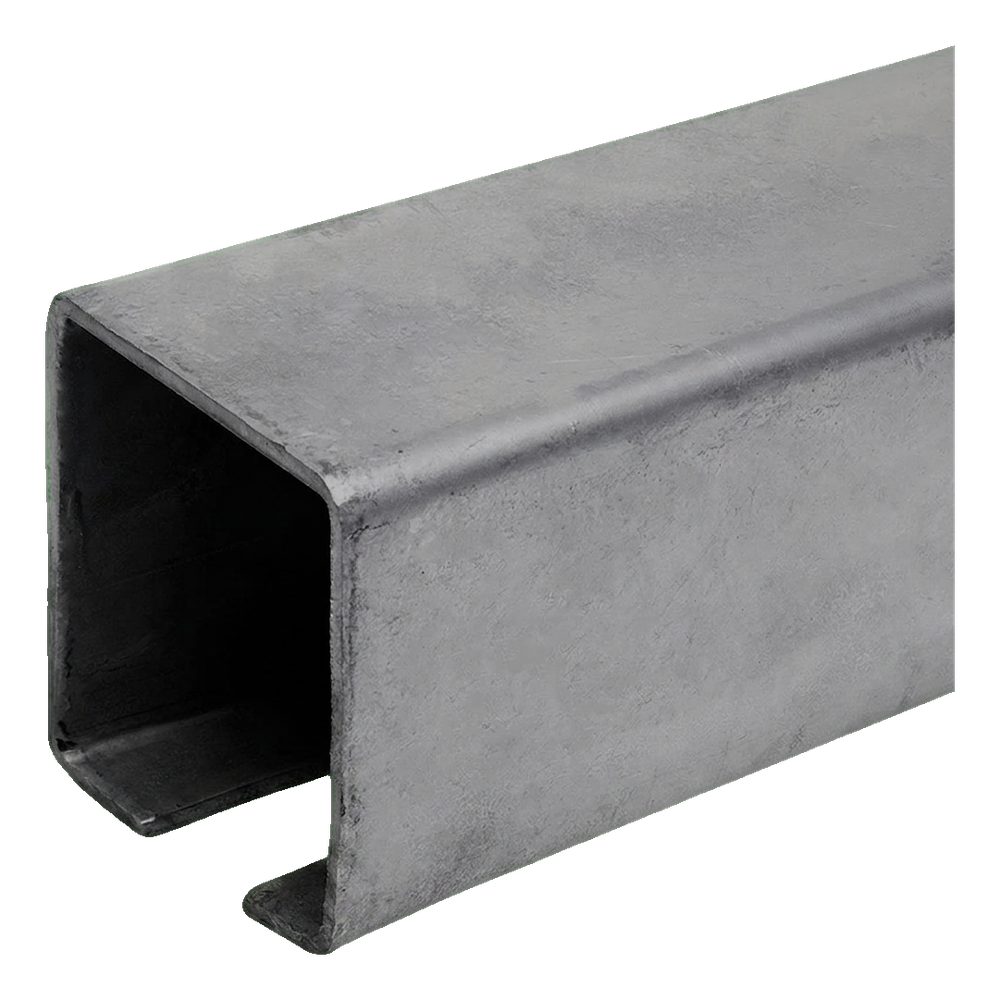

Steel running rail (C-channel) manufactured by PSG with a length of 6000 mm, designed for cantilever sliding gates. The profile serves as the main structural element on which the gate is suspended — the trolley wheels move inside the C-channel, ensuring smooth and quiet sliding of the gate leaf. Solid steel construction with wall thickness of 4 mm guarantees high load capacity and durability under daily operating conditions.
The profile is unglvanised, allowing for the application of custom anti-corrosion protection tailored to individual project requirements — powder coating, hot-dip galvanising or other protective coating chosen by the installer.

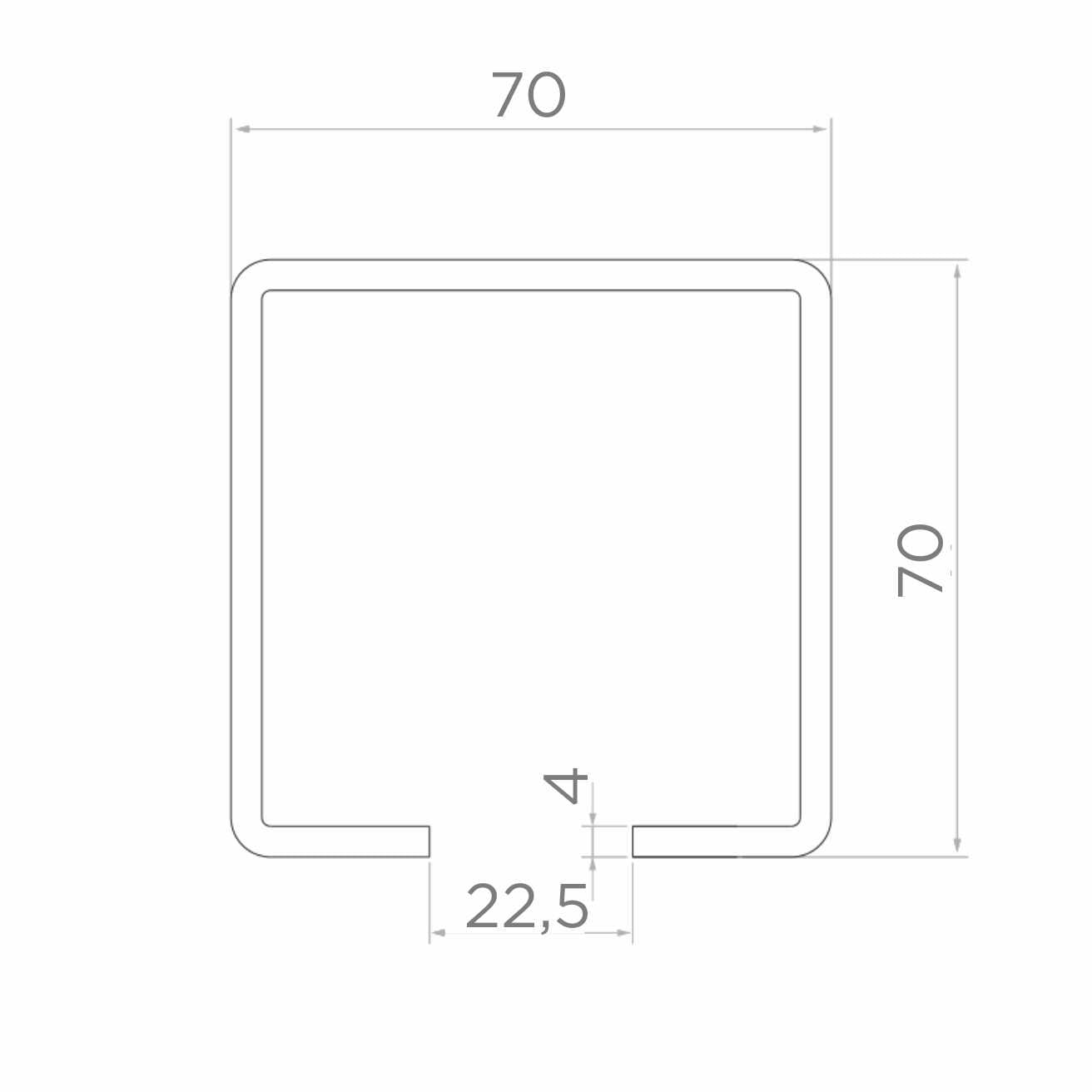

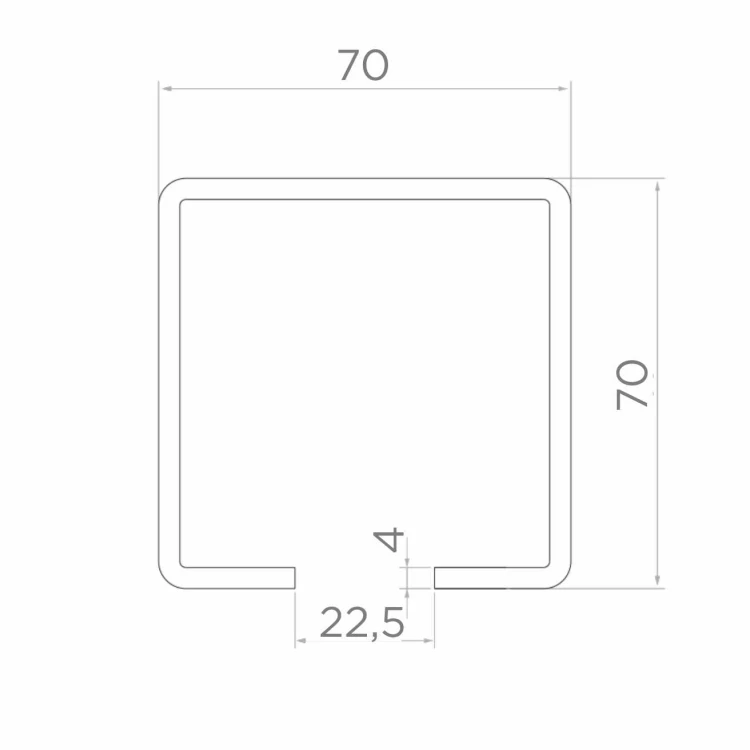

Dimensions and technical parameters
- Manufacturer: PSG
- Profile type: semi-enclosed C-channel (running rail)
- Length: 6000 mm
- External width: 70 mm
- External height: 70 mm
- Running groove width: 22.5 mm
- Wall thickness: 4 mm
- Material: steel (unglvanised)
- Weight: 40.2 kg
- EAN: 5901289675208
Application
The C-channel is a key component of cantilever sliding gate systems. Mounted horizontally, it forms the running track along which the trolleys supporting the gate leaf move. The groove with a width of 22.5 mm in the lower part of the profile allows free guidance of the running trolleys. Thanks to the cross-section dimensions of 70×70 mm, the rail performs well in gates with high self-weight, ensuring stability and rigidity of the entire structure.
