PSG running rail for sliding gate – C-channel 140×140×6 mm, length 6 m, hot-dip galvanised
Description

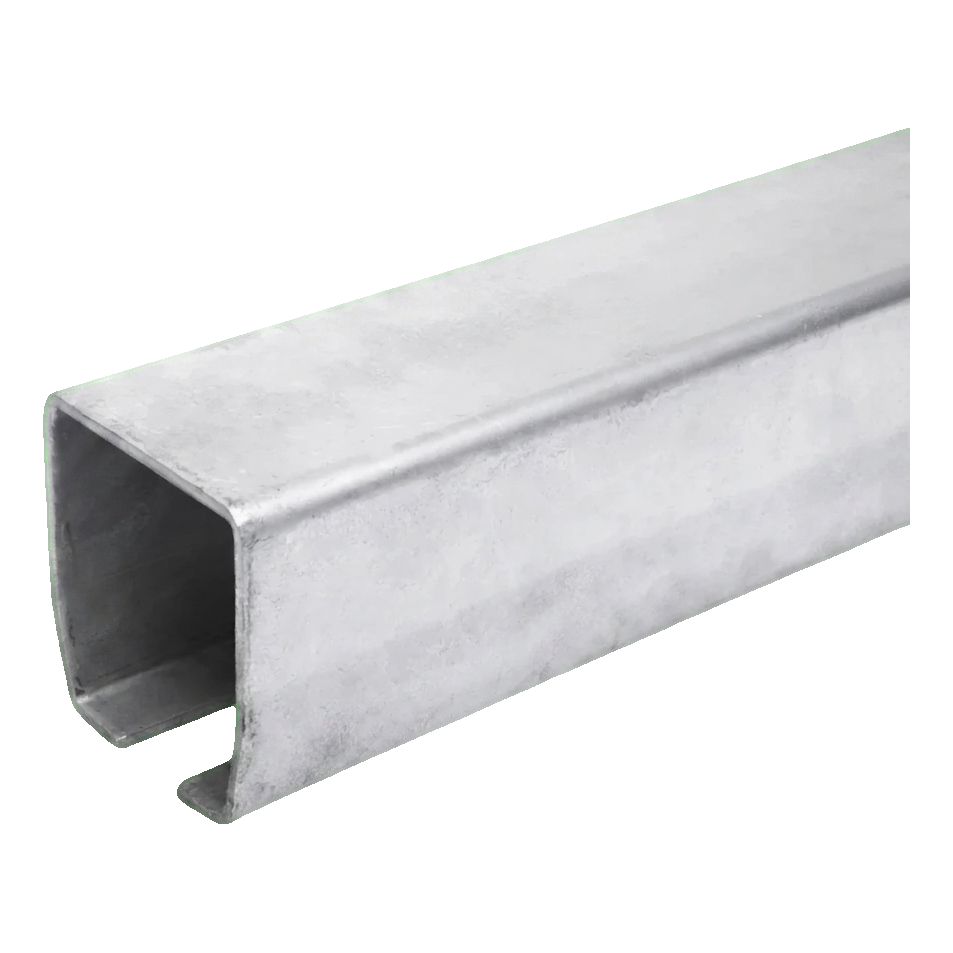

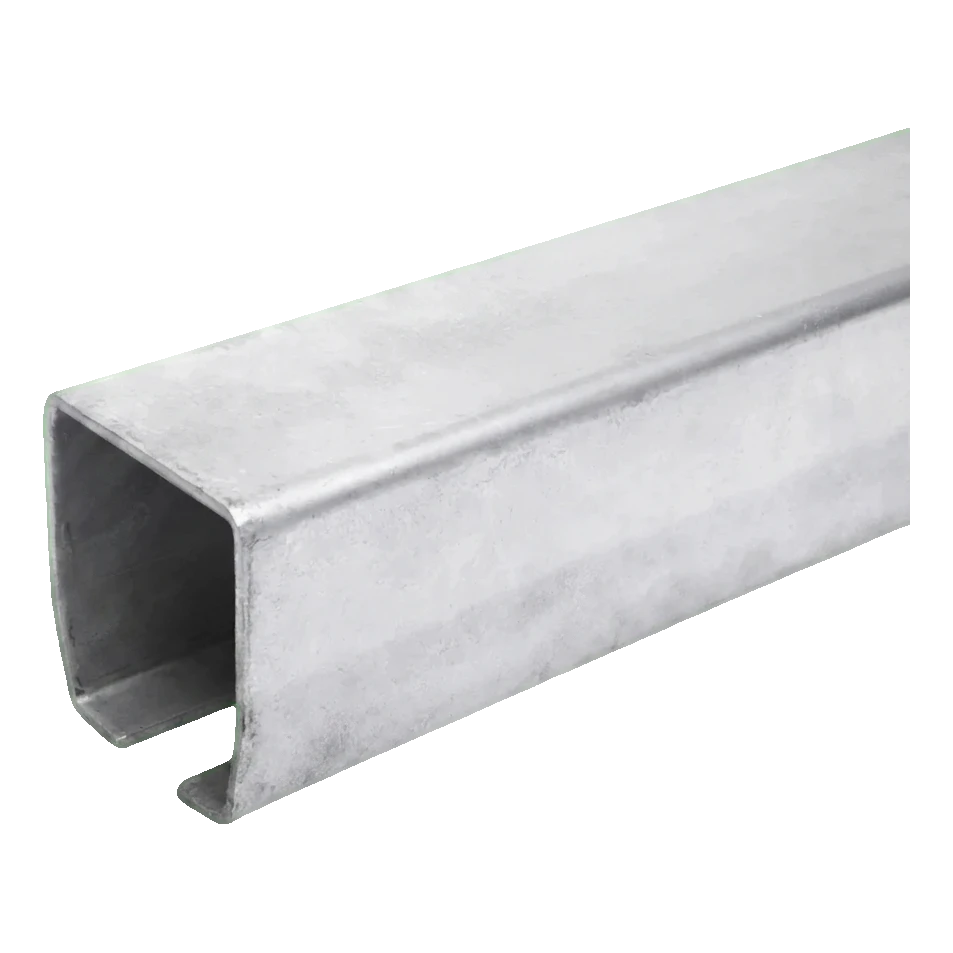

PSG running rail for sliding gate – C-channel 140×140×6 mm, length 6 m, hot-dip galvanised
PSG running rail in the form of a C-channel 140 × 140 × 6 mm with a length of 6000 mm is a key component of the running track for sliding gates. The massive profile made of structural steel protected with hot-dip galvanising ensures high load capacity and long-term durability in outdoor installation conditions — both for residential gates and heavy industrial applications.
The six-metre rail section allows for creating a stable sliding track without unnecessary joints, which translates into smooth and quiet gate operation. The appropriate profile geometry minimises rolling resistance and reduces wear on trolley wheels, extending the lifespan of the entire gate system.
PSG running rail features
- Solid cross-section 140 × 140 mm with wall thickness 6 mm — high rigidity and resistance to deformation with heavy gate weight
- Length 6000 mm — long section allows reducing the number of joints and achieving precise sliding track
- Hot-dip galvanising — effective, long-lasting anti-corrosion protection for year-round outdoor operation
- High load capacity — compatibility with heavy running trolleys and industrial-class gate systems
- Smooth gate operation — C-channel geometry minimises rolling resistance and wheel wear
- Universal application — residential gates, industrial gates, entrances to halls, warehouses and commercial facilities
Hot-dip galvanising — long-term corrosion protection
The zinc layer applied by the hot-dip method effectively protects steel against corrosion, moisture and the effects of changing atmospheric conditions. The protection increases resistance to surface damage and minimises the need for additional maintenance — these are real savings for installation companies and fewer complaints from investors.

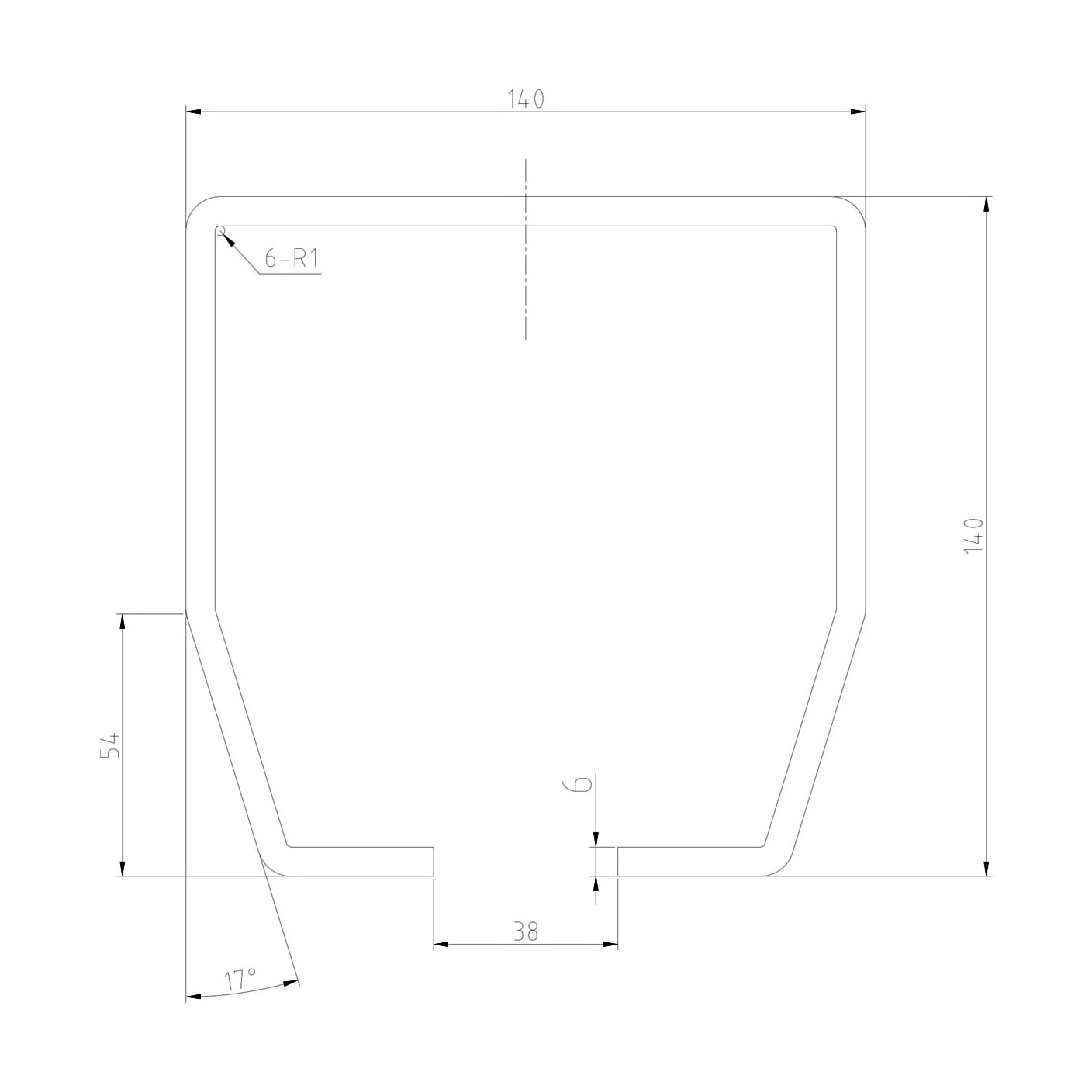

Profile cross-section dimensions
- External width: 140 mm
- External height: 140 mm
- Wall thickness: 6 mm
- Bottom gap width (trolley opening): 38 mm
- Side slope height: 54 mm
- Side wall inclination angle: 17°
- Internal rounding radius: R1 mm
Technical specification
- Brand: PSG
- Product type: sliding gate rail
- Profile: semi-closed C-channel
- Profile dimensions: 140 × 140 mm
- Wall thickness: 6 mm
- Length: 6000 mm
- Material: structural steel
- Anti-corrosion protection: hot-dip galvanising
- Colour: silver (zinc)
- Weight: 130.56 kg
- EAN: 5903313208437
