PSG running rail for sliding gate 100×90×5 mm black – steel C-channel 6 m
Leave feedback on the product
PSG running rail steel C-channel 100×90×5 mm, black. Length 6000 mm, wall thickness 5 mm, weight 70 kg. For guiding sliding entrance gates, foundation mounting.
Product code: 001-318
Description
PSG running rail for sliding gate 100×90×5 mm black – steel C-channel 6 m

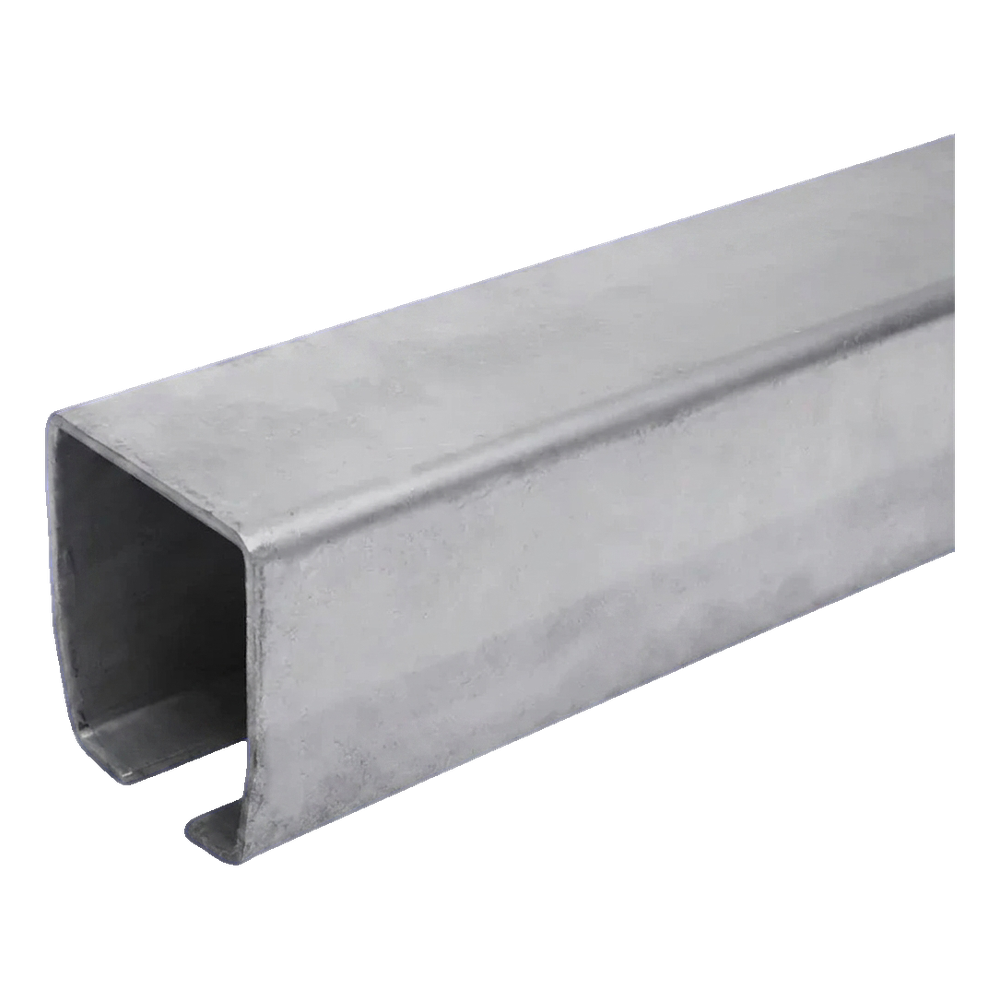

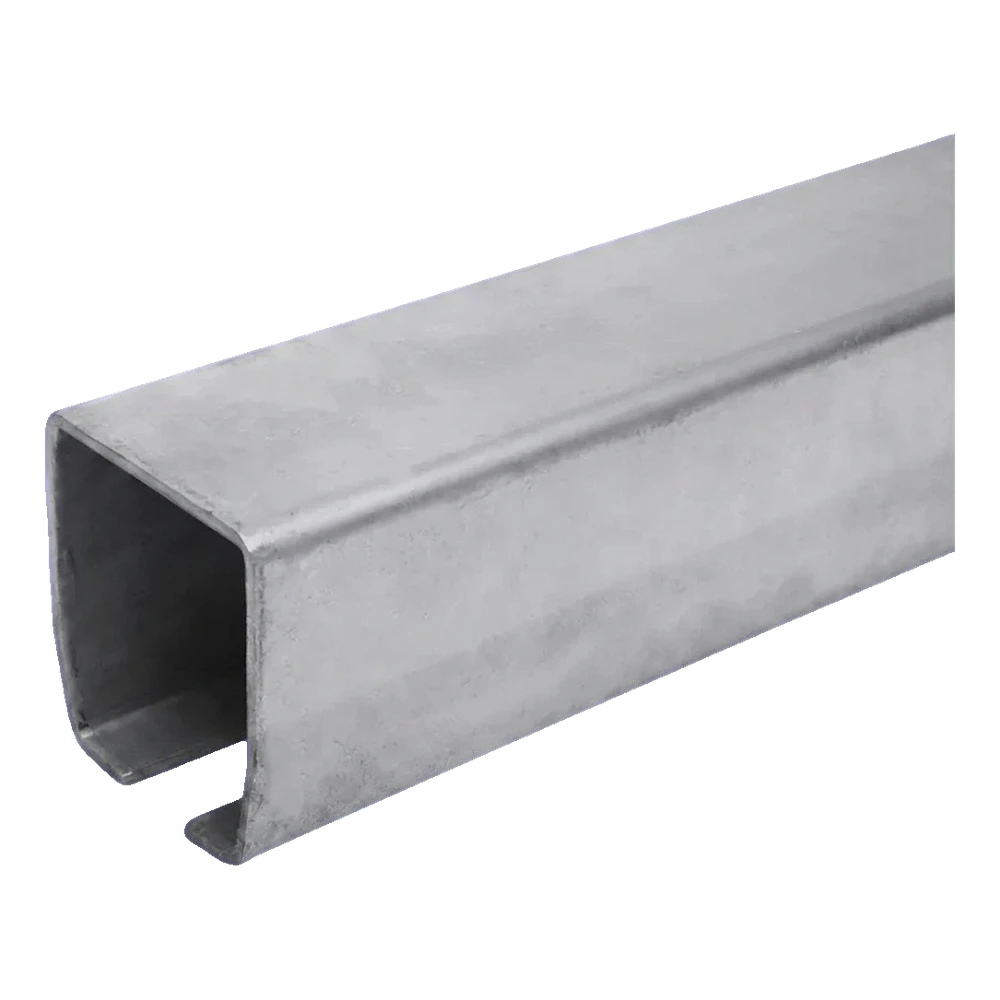

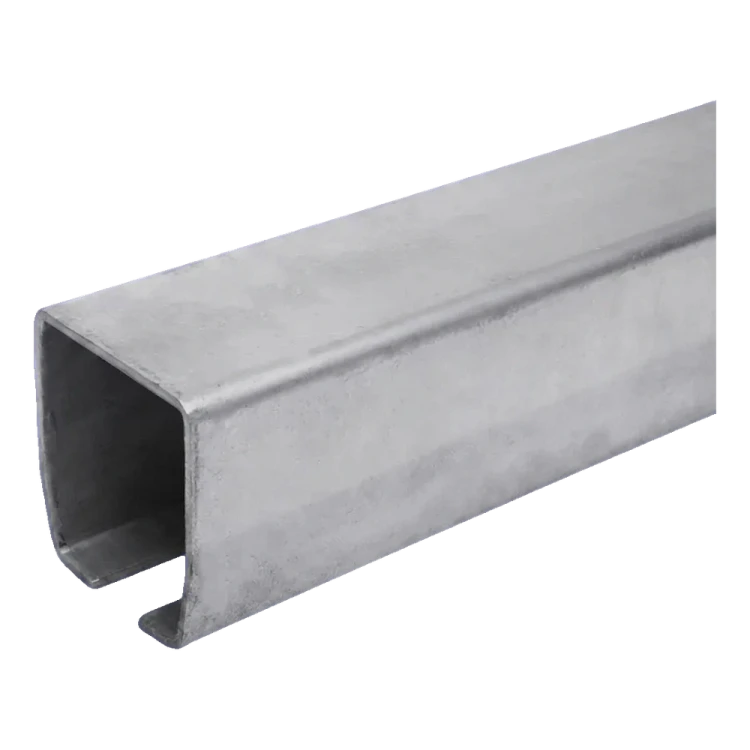

PSG running rail 100×90×5 mm is a robust steel C-channel with a length of 6 metres, designed for guiding sliding entrance gates. It forms a key element of the sliding system — mounted in the foundation, it creates a running track along which the gate moves on dedicated rollers matched to the rail profile.
The massive construction with a cross-section of 100×90 mm and wall thickness of 5 mm guarantees years of trouble-free operation even under intensive use. The rail is made from durable steel, ensuring high resistance to mechanical loads, deformation and weather conditions. The black surface aesthetically complements modern fencing and gate systems.
Application and installation
The rail is designed to be embedded in the sliding gate foundation. Thanks to the precisely shaped C-channel profile, it ensures stable and smooth gate guidance on running rollers. The 6-metre section allows handling of gates with large passage widths, minimising the number of joints and reducing installation time.
Technical specification
- Profile type: running C-channel (sliding gate rail)
- Cross-section dimensions: 100 × 90 mm
- Wall thickness: 5 mm
- Length: 6000 mm (6 m)
- Material: steel
- Colour: black
- Weight: 70 kg
- Manufacturer: PSG
- EAN: 5903313216487
Benefits for the installer
- Large length 6 m — fewer joints, faster installation
- Wall thickness 5 mm — high load capacity and structural durability
- Precise C-channel profile — compatible with popular running rollers for sliding gates
- Solid steel construction — resistance to intensive use and external conditions
