PSG running rail C-section steel for sliding gates 80×80 mm – 7000 mm
Description
PSG running rail C-section steel for sliding gates 80×80 mm – 7000 mm

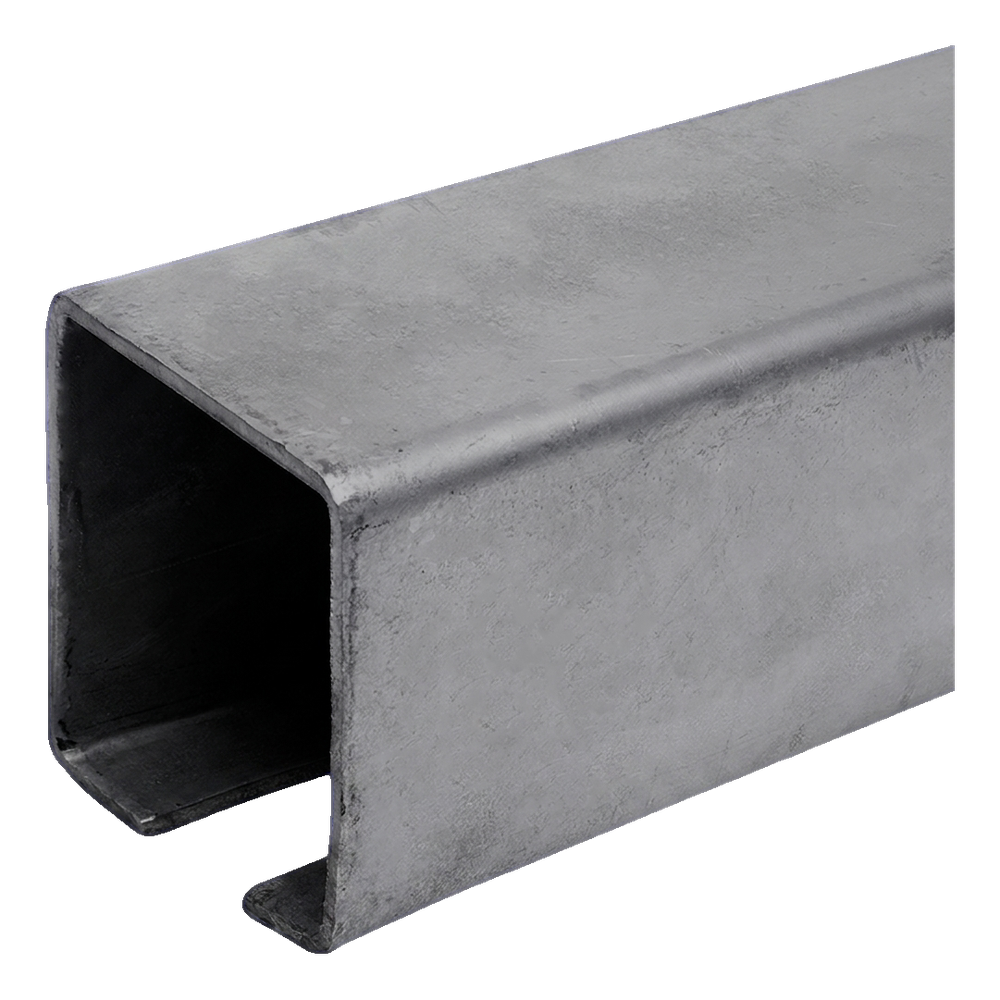

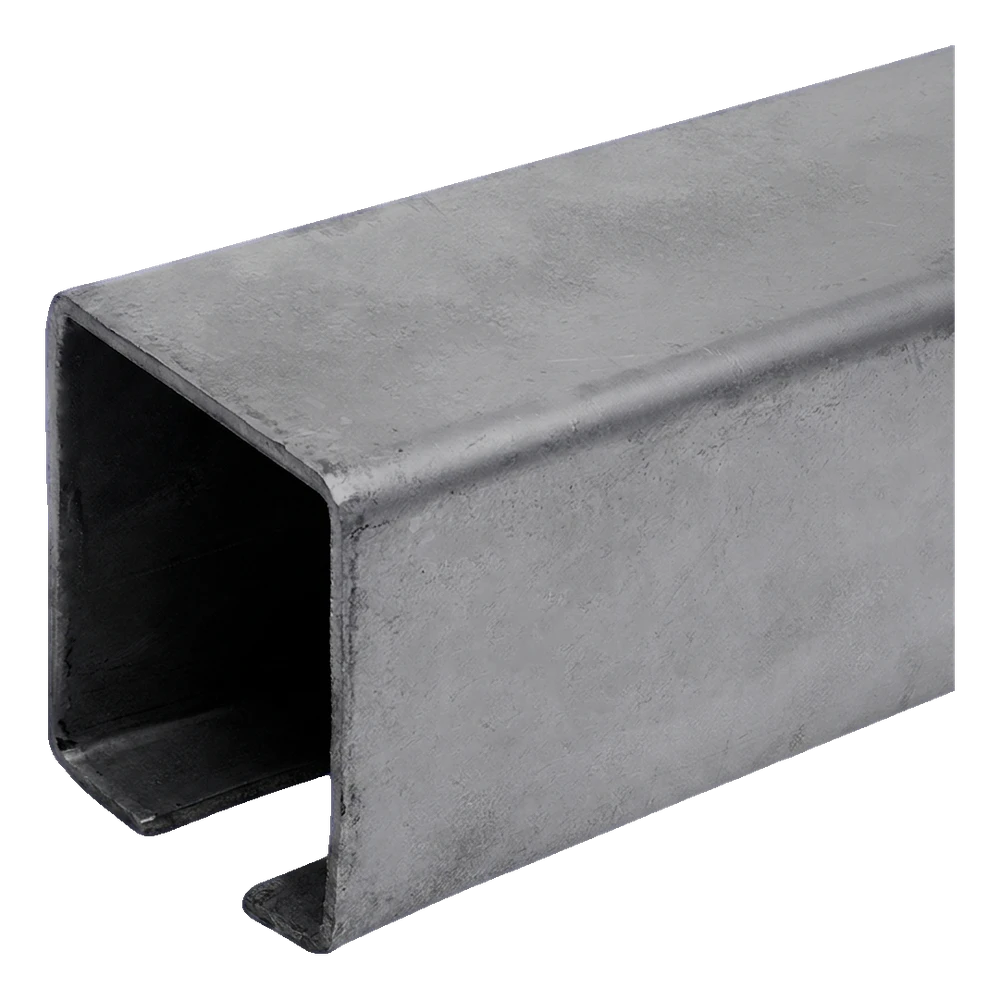

Steel running rail (C-section) with a length of 7000 mm designed for cantilever sliding gates. The semi-closed profile with external cross-section 80×80 mm forms a key structural element of the gate — the rollers of running trolleys move along it, supporting the entire gate leaf structure. The robust construction with walls 5 mm thick ensures durability and stability even with large, heavy gates.
The C-section is mounted in the lower part of the gate leaf with the gap facing downwards — the rollers of running trolleys enter the gap with a width of 27.5 mm and roll along the internal surface of the profile. This allows the gate leaf to move smoothly, quietly and without contact with the ground.

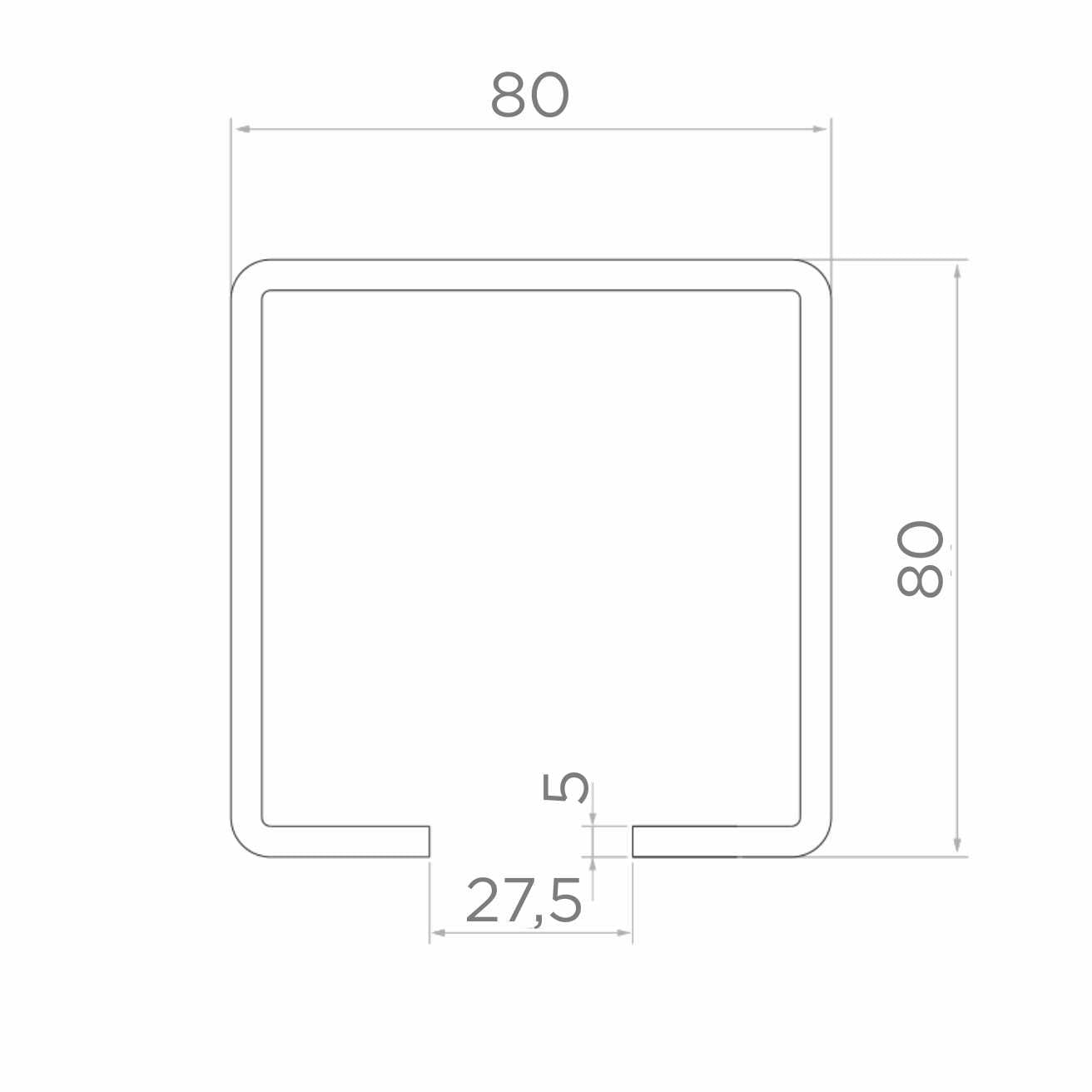

Technical parameters
- Manufacturer: PSG
- Profile type: semi-closed C-section (running rail)
- Length: 7000 mm
- External width: 80 mm
- External height: 80 mm
- Lower gap width: 27.5 mm
- Wall thickness: 5 mm
- Material: steel
- Weight: 67.42 kg
- EAN: 5901289675222
Application
The running rail is designed for constructing cantilever sliding gates in fencing systems. The C-section serves as a guide along which running trolleys mounted on the foundation roll. The length of 7000 mm allows for the implementation of gates with large leaf spans. The profile works with standard running trolleys matched to the 80×80 mm cross-section — before ordering, it is worth verifying compatibility with other components of the gate system.
