PSG rubber guide roller ø 31 mm for sliding gates with M10 threaded rod
Description

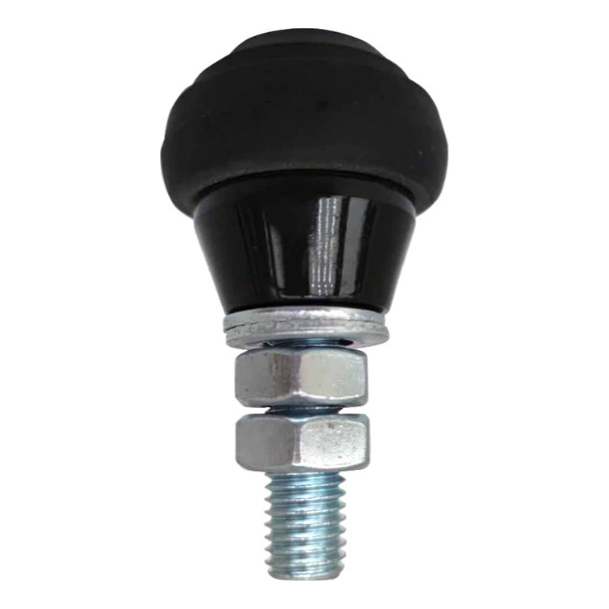

PSG rubber guide roller ø 31 mm for sliding gates with M10 threaded rod
Rubber guide roller ø 31 mm by PSG designed for sliding gates. Provides stable vertical guidance of the rail (channel) during gate opening and closing. The working part of the roller is covered with a rubber layer, which effectively dampens vibrations and guarantees quiet, comfortable operation — an important advantage particularly in residential and office buildings.

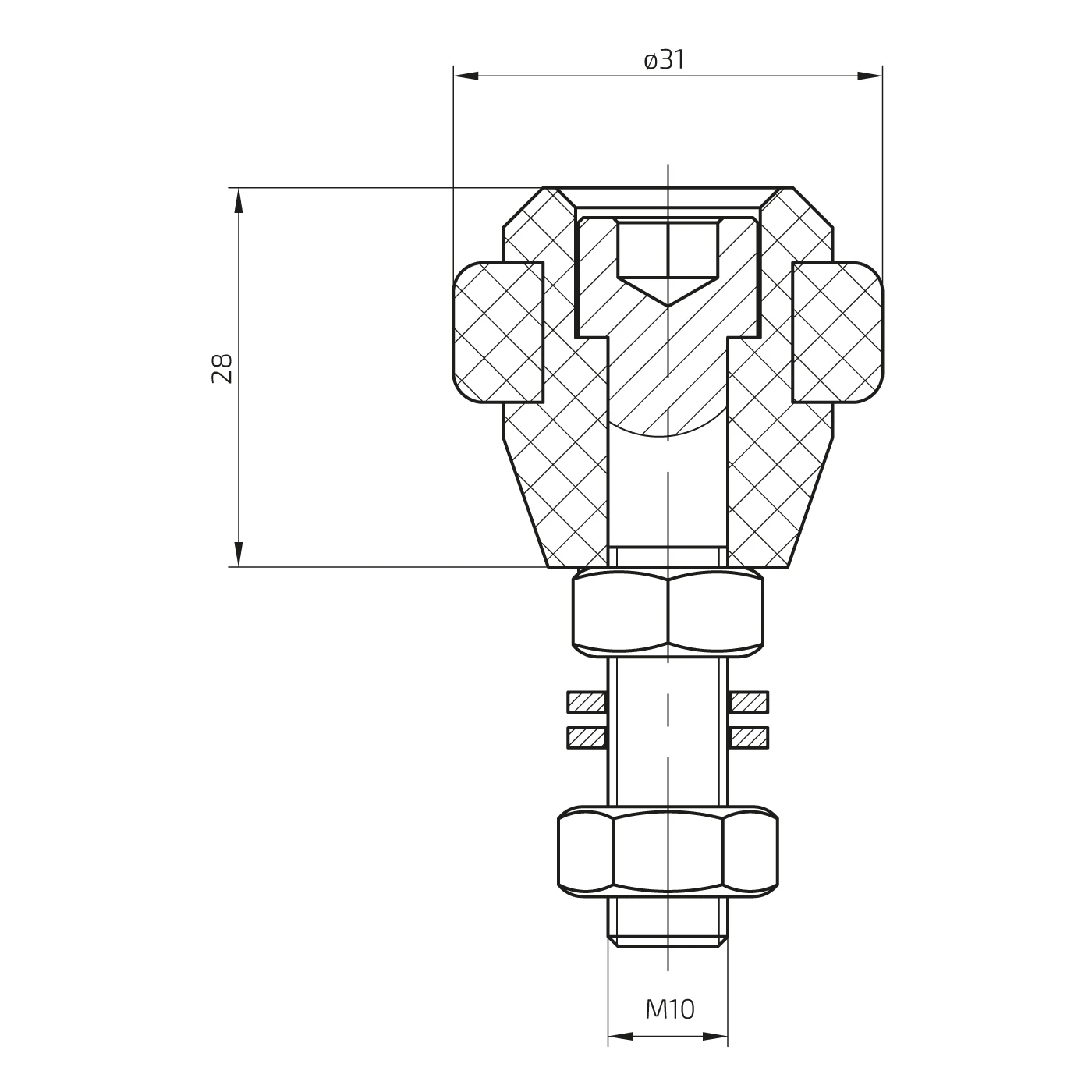

Dimensions and technical data
- Roller diameter: ø 31 mm
- Working part height (roller): 28 mm
- Total height (H): 61 mm
- Width (L): 31 mm
- Mounting rod thread: M10
- Roller surface: rubber — quiet operation
- Weight: 0.08 kg
- EAN: 5903313203531
Application and mounting
The roller is mounted using a threaded rod M10 with two nuts and washers, enabling precise position adjustment. It serves for upper guidance of sliding gates — maintains the running rail (channel) vertically, preventing lateral deflection of the gate leaf. The rubber surface eliminates direct metal-to-metal contact, which extends the service life of the guide and reduces noise during gate operation.
Product by PSG — a proven manufacturer of accessories for sliding gate systems. Compact dimensions and low weight (80 g) facilitate storage and transport, whilst simple mounting saves time on every installation.
