PSG rubber gasket for glass clamp fitting 8–11 mm, 24×24 mm / 5 m
Leave feedback on the product

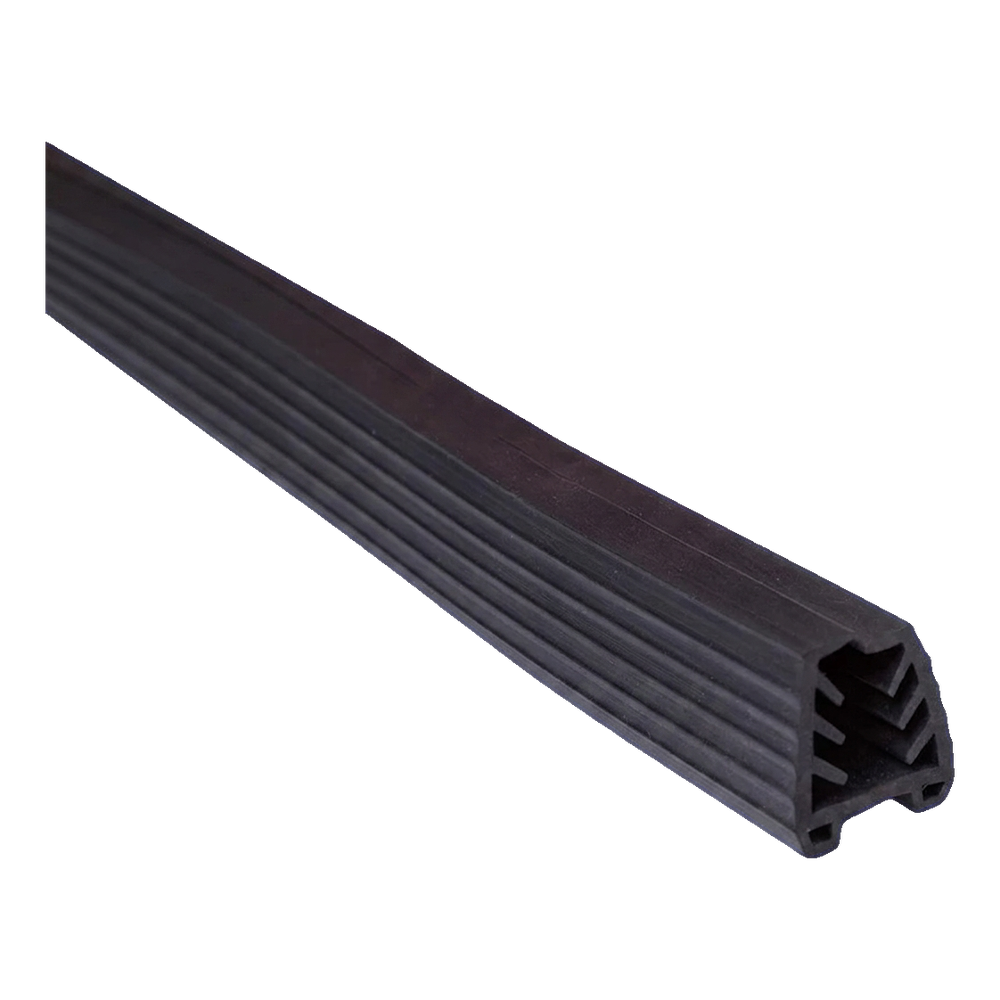

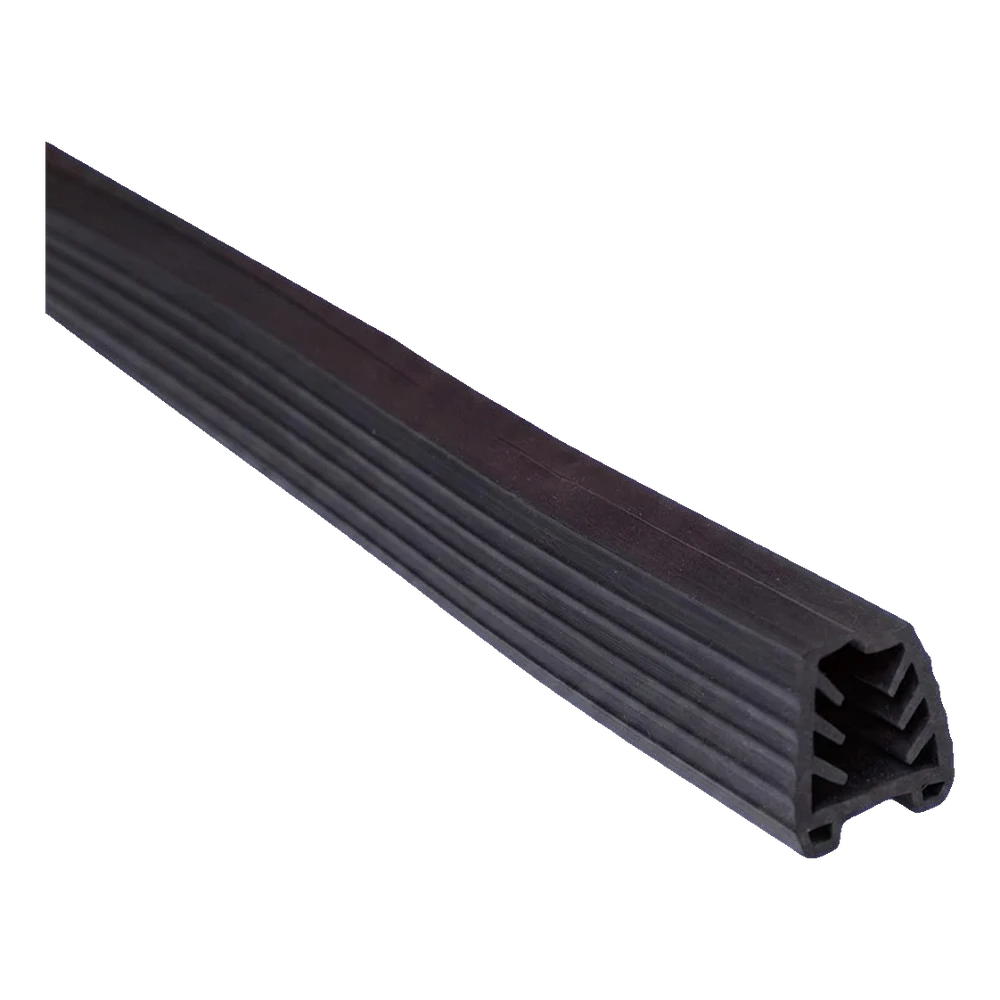

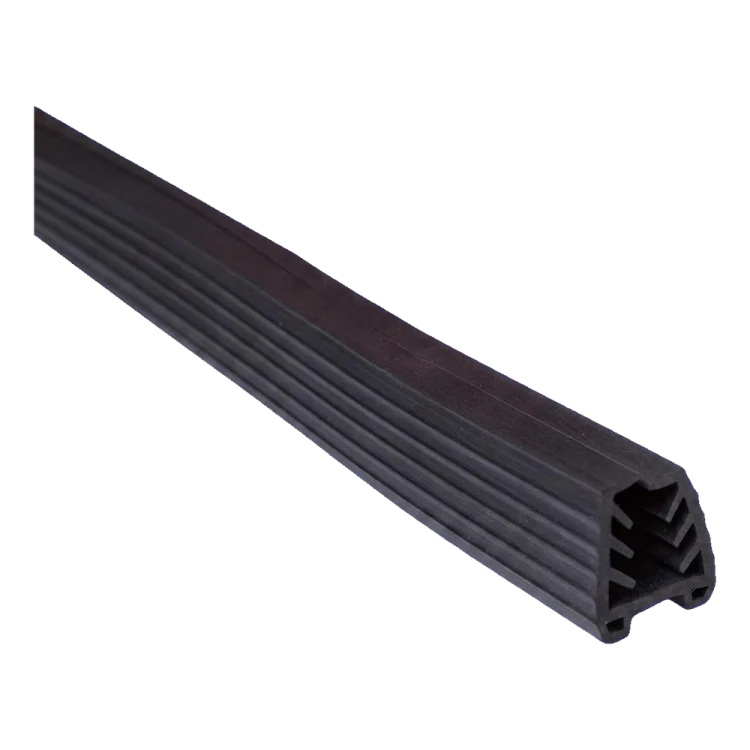

PSG rubber gasket for glass clamp fitting, black. Chambered profile 24×24 mm, length 5 m. For glass thickness 8-11 mm. Weight 1.4 kg. Rubber material for glass balustrades.
Product code: 001-078
Product features
[PIM] podkladki-gumowe-i-silikonowe #130
- Material Plastic
Description
PSG rubber gasket for glass clamp fitting 8–11 mm, 24×24 mm / 5 m
PSG compression rubber designed for clamp fittings used in glass balustrades. The gasket ensures secure immobilisation and protection of glass panels with thickness 8–11 mm inside the fitting, eliminating vibrations and play. Thanks to the dedicated profile with internal chambers, the element maintains elasticity throughout its service life, and installation using anaerobic adhesive guarantees durable and aesthetic balustrade finishing.
A section length of 5 metres allows for economical cutting to size directly on site — minimising waste and speeding up project completion.
Installation
The gasket is bonded using anaerobic adhesive inside the glass clamp fitting. Once the adhesive has cured, the rubber permanently compresses and stabilises the glass panel, preventing panel movement and dampening vibrations.
Technical parameters
- Manufacturer: PSG
- Application: glass clamp fitting in glass balustrades
- Glass thickness range: 8–11 mm
- Profile cross-section: 24 × 24 mm
- Section length: 5000 mm (5 m)
- Material: rubber (chambered profile)
- Colour: black
- Weight: 1.4 kg
- Installation method: bonding with anaerobic adhesive inside fitting
