PSG right-hand end fitting for handrail with 12 mm diameter rod on 42.4 mm tube – stainless steel AISI 304 polished
Leave feedback on the product

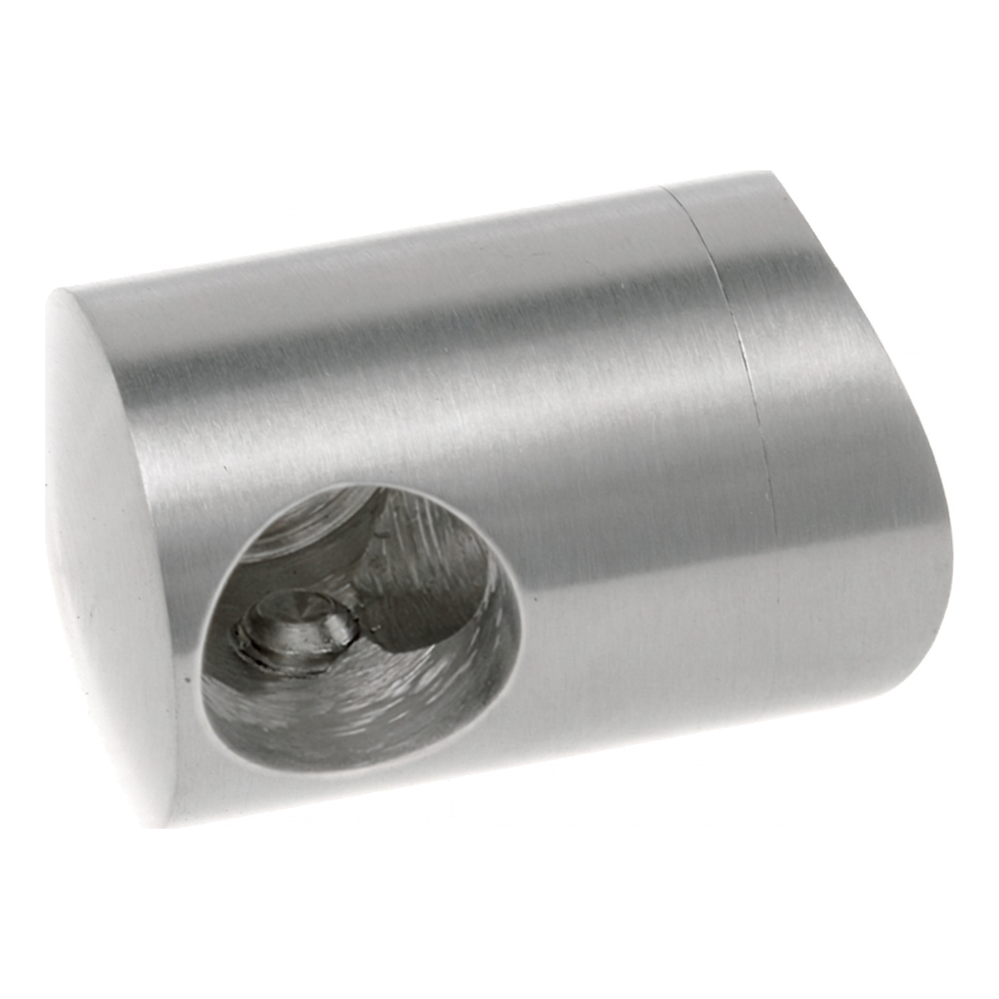

Right-hand PSG end fitting made from stainless steel AISI 304, polished finish. For 12 mm diameter rod on 42.4 mm tube. Body diameter 22 mm, mounting hole diameter 6.5 mm. Centre distance 20 mm. Weight 0.055 kg. For steel balustrades.
Product code: 000-984
Product features
[PIM] uchwyty-do-wypelnien #131
- Material AISI 304
- Infill (rod / cable) Round rod Ø 12 mm
- Finish High Gloss
- Holder type End – right
- Mounting System 42.4 mm
Description
PSG right-hand end fitting for handrail with 12 mm diameter rod on 42.4 mm tube – stainless steel AISI 304 polished
Right-hand end fitting for 12 mm diameter rod, designed for mounting on tubes with a diameter of 42.4 mm. Component made from stainless steel AISI 304 with a polished finish — ideal for aesthetic stainless steel balustrades in residential and commercial construction.
The start/end rod fitting is used for mounting the infill of steel construction in stainless steel balustrades. Start and end fittings are divided into left and right-hand, designed for planar mounting. In combination with through fittings, they provide rigidity and solidity to the construction whilst serving as its aesthetic finish. The profiled front of the fitting perfectly matches the curvature of the 42.4 mm mounting tube, ensuring a tight and stable fit without the need for additional machining.
Dimensions and technical parameters
- Type: right-hand end fitting
- Rod hole diameter: ø 12 mm
- Body external diameter: 22 mm
- Centre distance of hole from front: 20 mm
- Mounting tube diameter: ø 42.4 mm
- Mounting hole diameter (for screw): ø 6.5 mm
- System: 42.4 mm
- Material: stainless steel AISI 304
- Surface finish: polished
- Weight: 0.055 kg
- EAN: 5901289671385
Installation and application
The fitting is mounted to the balustrade support tube with a diameter of 42.4 mm using a screw passing through the central hole ø 6.5 mm. The infill rod with a diameter of 12 mm is inserted into the side hole and secured with side grub screws (hex key), ensuring a secure and permanent connection. The product is designed for professional stainless steel balustrade systems — suitable for installation of stair, balcony and terrace balustrades.
