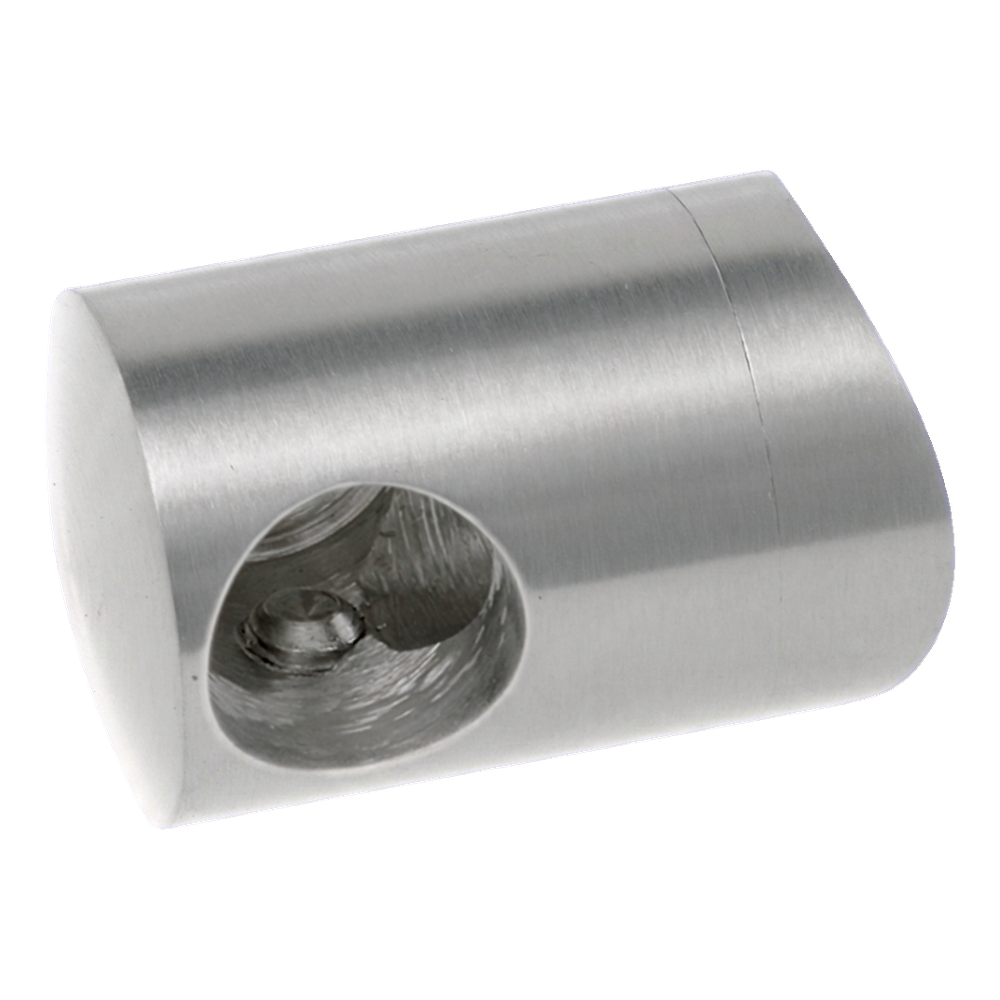

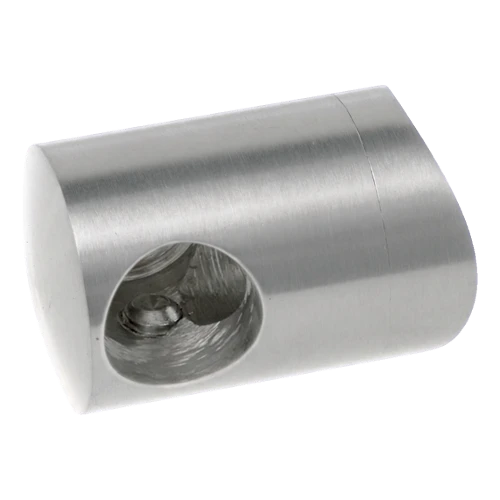

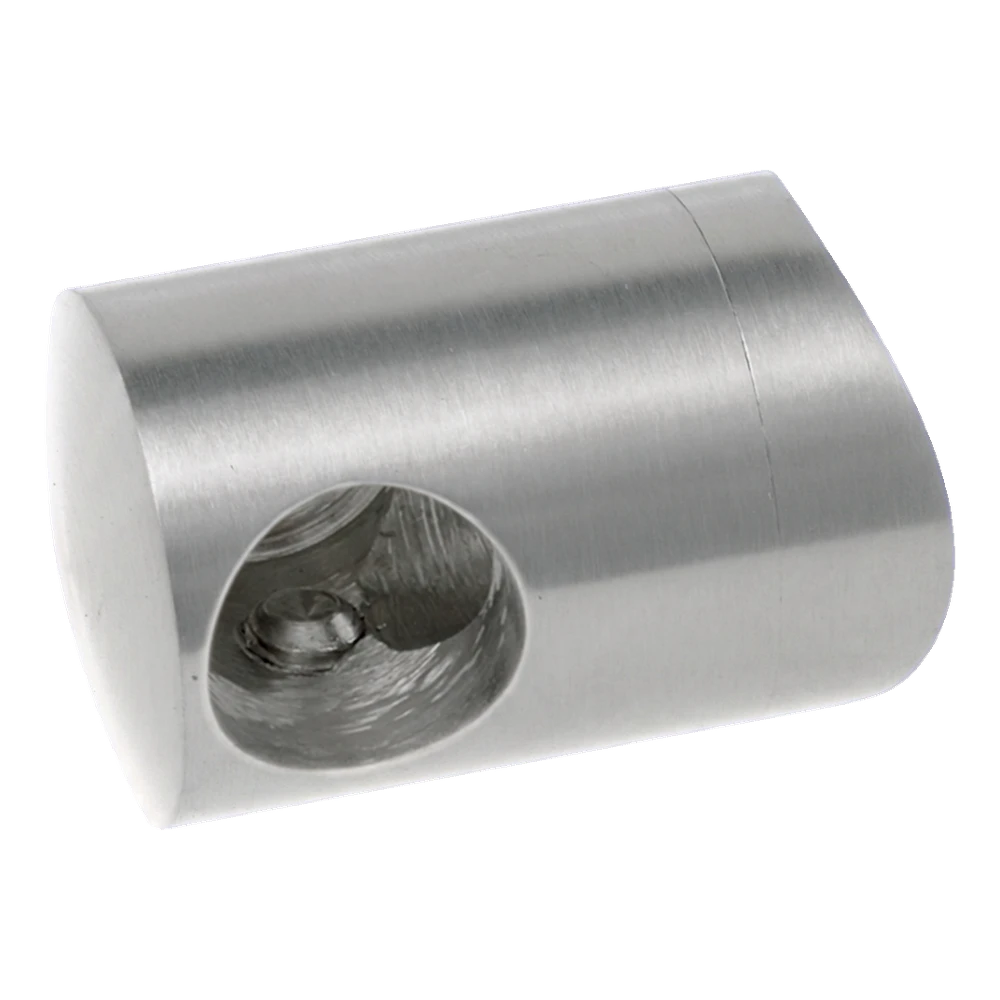

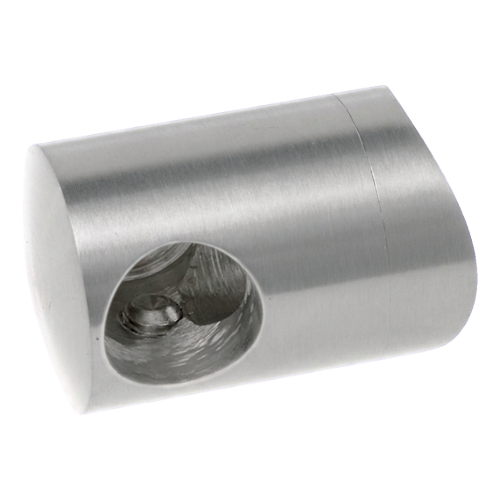

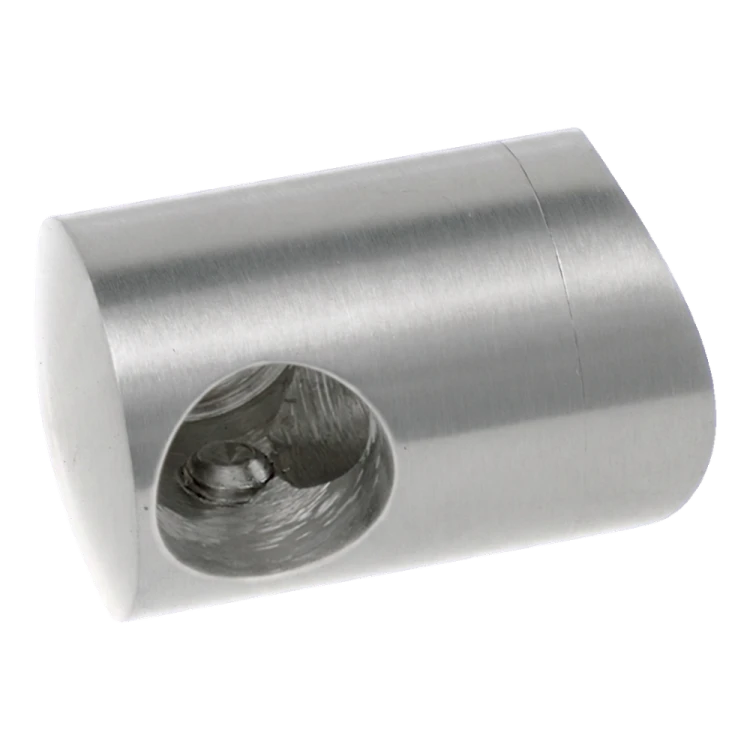

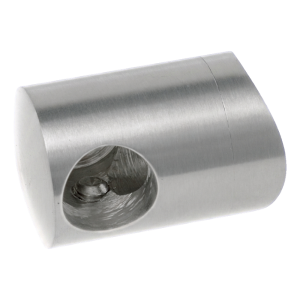

PSG right-hand end bracket for handrail rod fi 12 mm to pipe fi 42.4 mm – AISI 304 stainless steel satin finish
Description
PSG right-hand end bracket for handrail rod fi 12 mm to pipe fi 42.4 mm – AISI 304 stainless steel satin finish
Right-hand end bracket (starting) for rod diameter fi 12 mm, designed for mounting on support tube fi 42.4 mm. Component used for connecting balustrade infill to posts — ensures required structural rigidity and aesthetic finishing of rod ends. Made from AISI 304 stainless steel with satin finish, guaranteeing high corrosion resistance and elegant, matt appearance suited to popular balustrade systems.
Cylindrical body features through hole for fi 12 mm rod, two holes for grub screws enabling secure rod locking and central mounting hole fi 6.5 mm for attachment to post. Curved profiled base perfectly matches the curvature of fi 42.4 mm tube, ensuring stable and tight fit without need for additional machining.

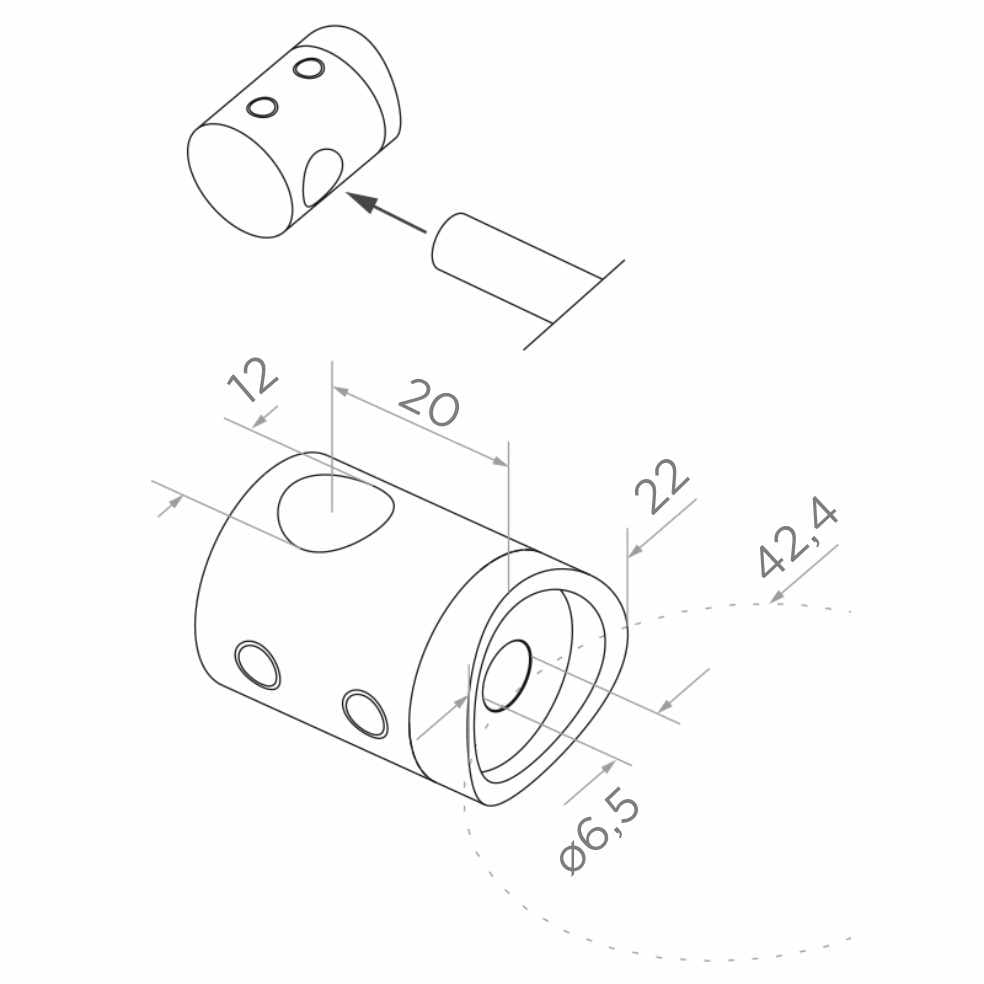

Dimensions and technical data
- Manufacturer: PSG
- Material: AISI 304 stainless steel
- Surface finish: satin
- Balustrade system: fi 42.4 mm
- Rod hole diameter: fi 12 mm
- External body diameter: 22 mm
- Distance from hole axis to base: 20 mm
- Mounting hole diameter: fi 6.5 mm
- Support tube diameter (curved cutout): fi 42.4 mm
- Version: right-hand (end / starting)
- Weight: 0.048 kg
- EAN: 5901289671392
Application and installation
Bracket mounts directly to fi 42.4 mm post tube using screw through central fi 6.5 mm hole. Fi 12 mm infill rod is inserted into side hole and locked with grub screws. Thanks to compact design and precisely profiled base, installation is quick and requires no welding — ideal solution for installation teams working on stainless steel balustrades in 42.4 mm system.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
