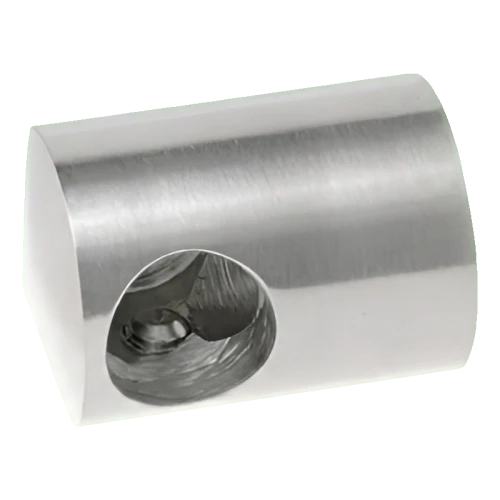

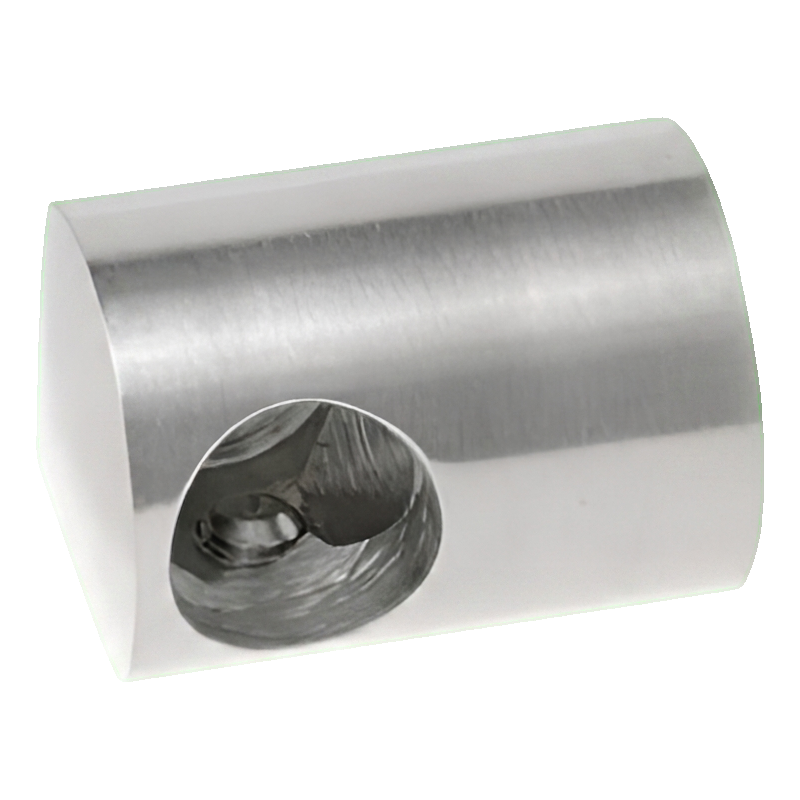

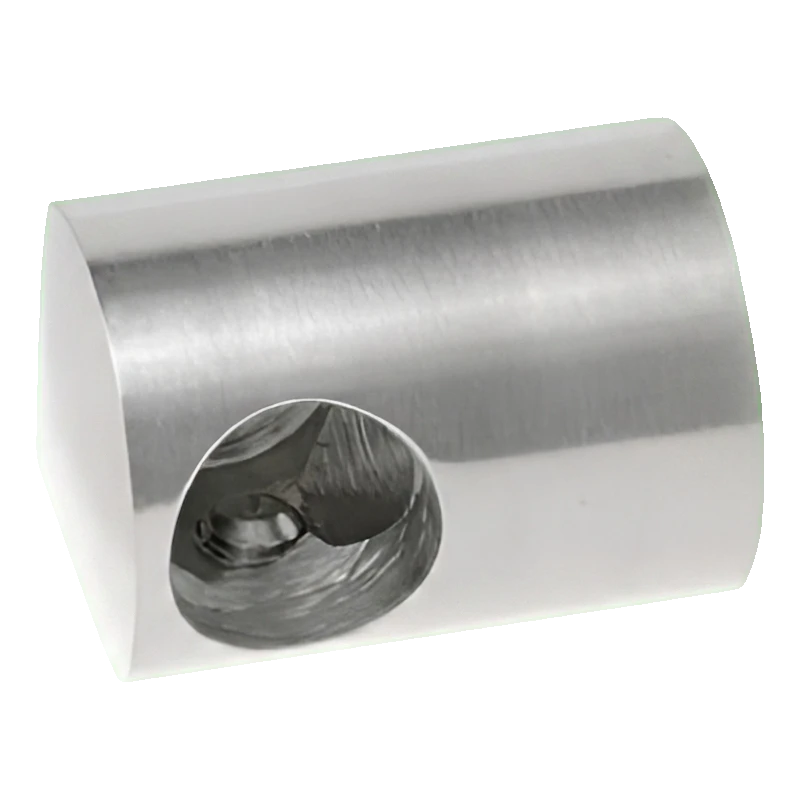

PSG right end holder for balustrade rod fi 12 mm – surface mounting, AISI 304 satin
Description
PSG right end holder for balustrade rod fi 12 mm – surface mounting, AISI 304 satin
Right end holder (starter) for rod or tube with diameter fi 12 mm, designed for direct surface mounting. The component serves to connect balustrade infills with the post, providing the structure with required rigidity and stability. Thanks to its compact, cylindrical construction, the holder looks modern and does not disturb the balustrade's aesthetics.
Made from AISI 304 stainless steel with satin finish — a corrosion-resistant material, ideal for indoor and outdoor applications. The satin surface effectively masks minor scratches and fingerprints, reducing maintenance work.
Installation is quick and intuitive — the rod slides into the side opening of the holder, and the holder itself is fixed to the post surface using the mounting hole in the base. The flat system design ensures trouble-free matching to popular balustrade solutions.

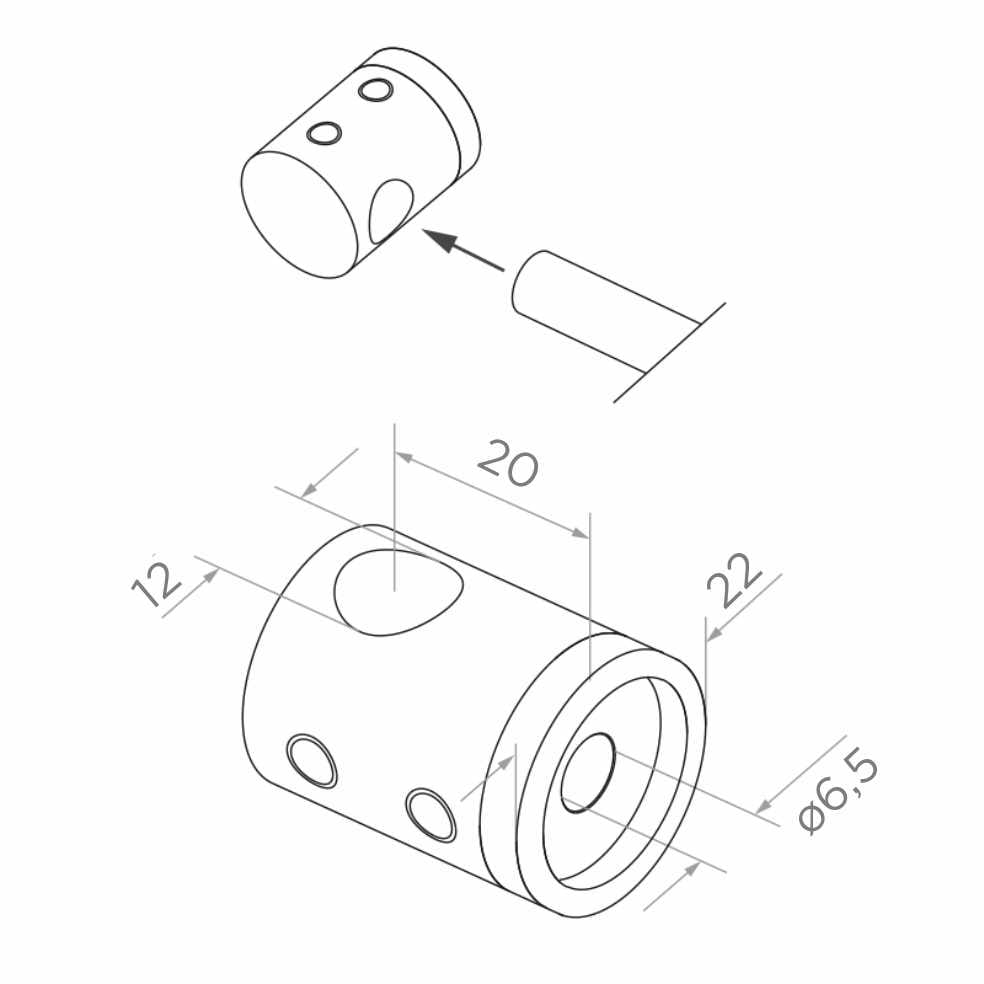

Dimensions and technical data
- Rod/tube hole diameter: fi 12 mm
- External body diameter: 22 mm
- Distance of hole axis from base: 20 mm
- Base mounting hole diameter: fi 6.5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting system: flat (surface mounting)
- Type: right end
- Weight: 0.049 kg
- EAN: 5901289671415
Manufacturer: PSG
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
