PSG right end bracket for rod 16 mm diameter – surface mounting, AISI 304 satin
Description

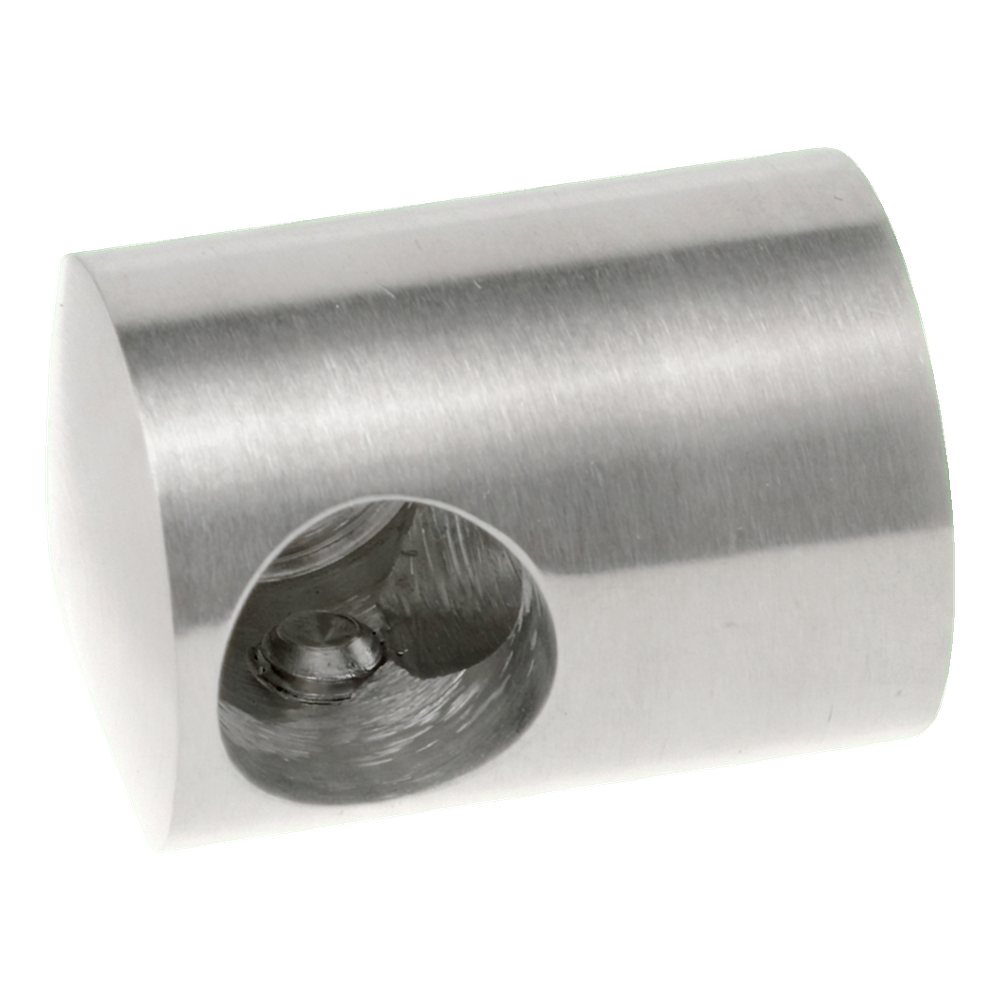

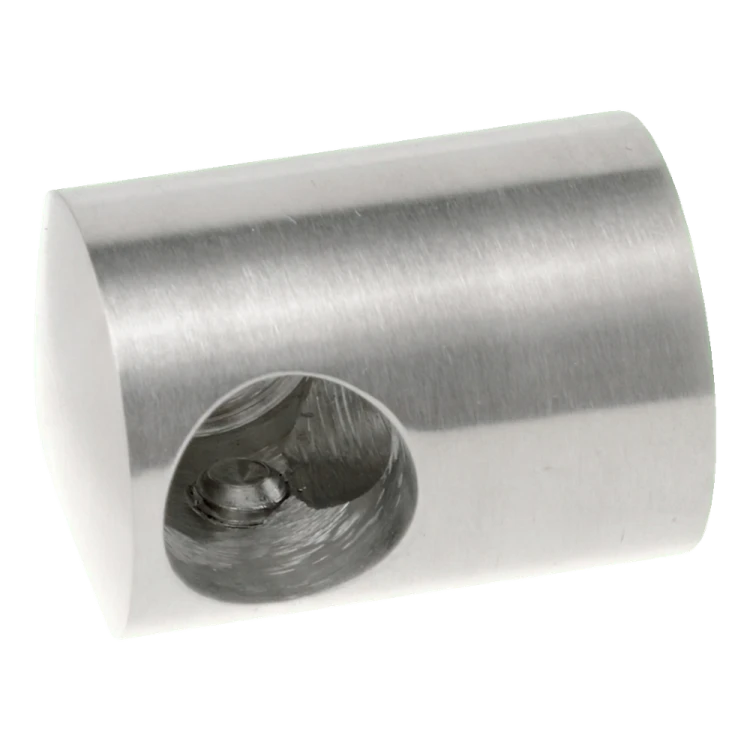

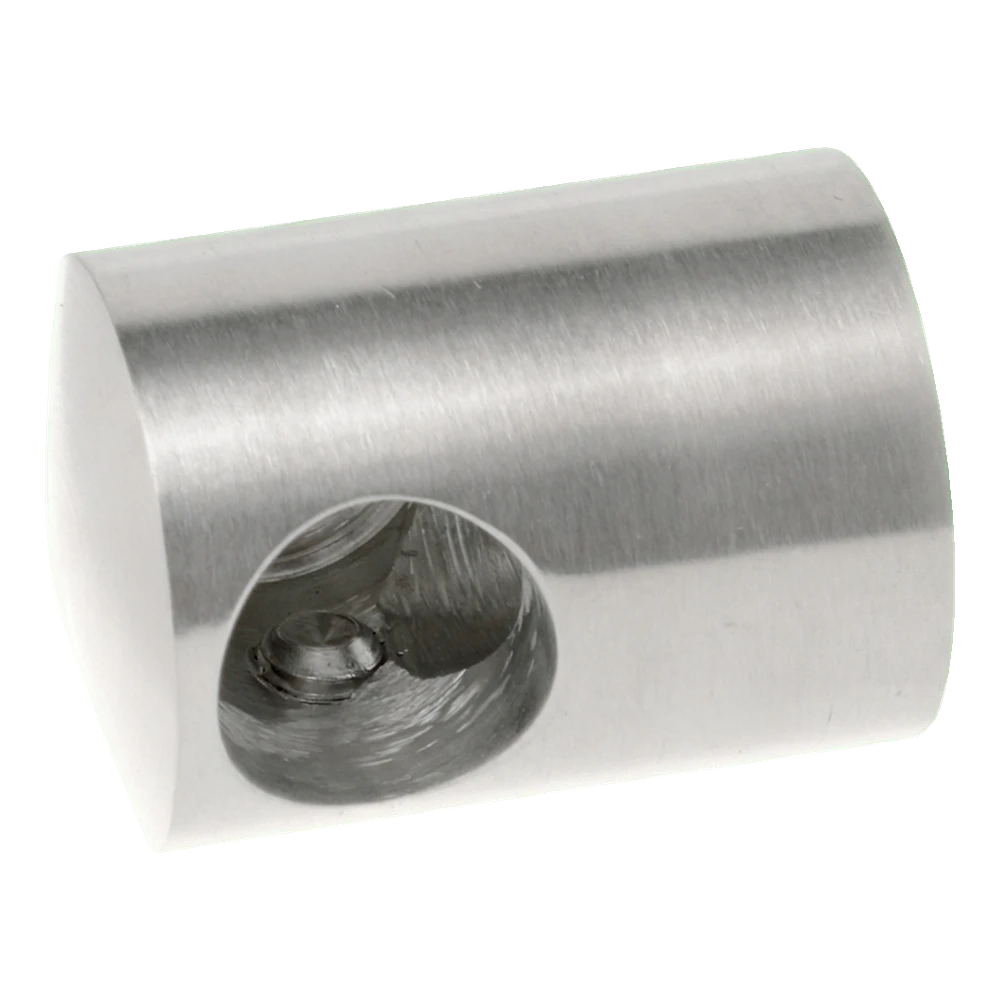

PSG right end bracket for rod 16 mm diameter – surface mounting, AISI 304 satin
Right end bracket for rod with 16 mm diameter, designed for mounting rod infills in stainless steel balustrades. Element mounted directly to surface (post, wall), providing aesthetic and durable termination of rod arrangement in balustrade construction.
Bracket made from AISI 304 stainless steel with satin finish — resistant to corrosion, UV radiation and atmospheric conditions. Perfectly complements other elements of stainless balustrade systems in flat style (flat system). Compact, cylindrical form ensures discrete appearance and does not disturb the balustrade lines.

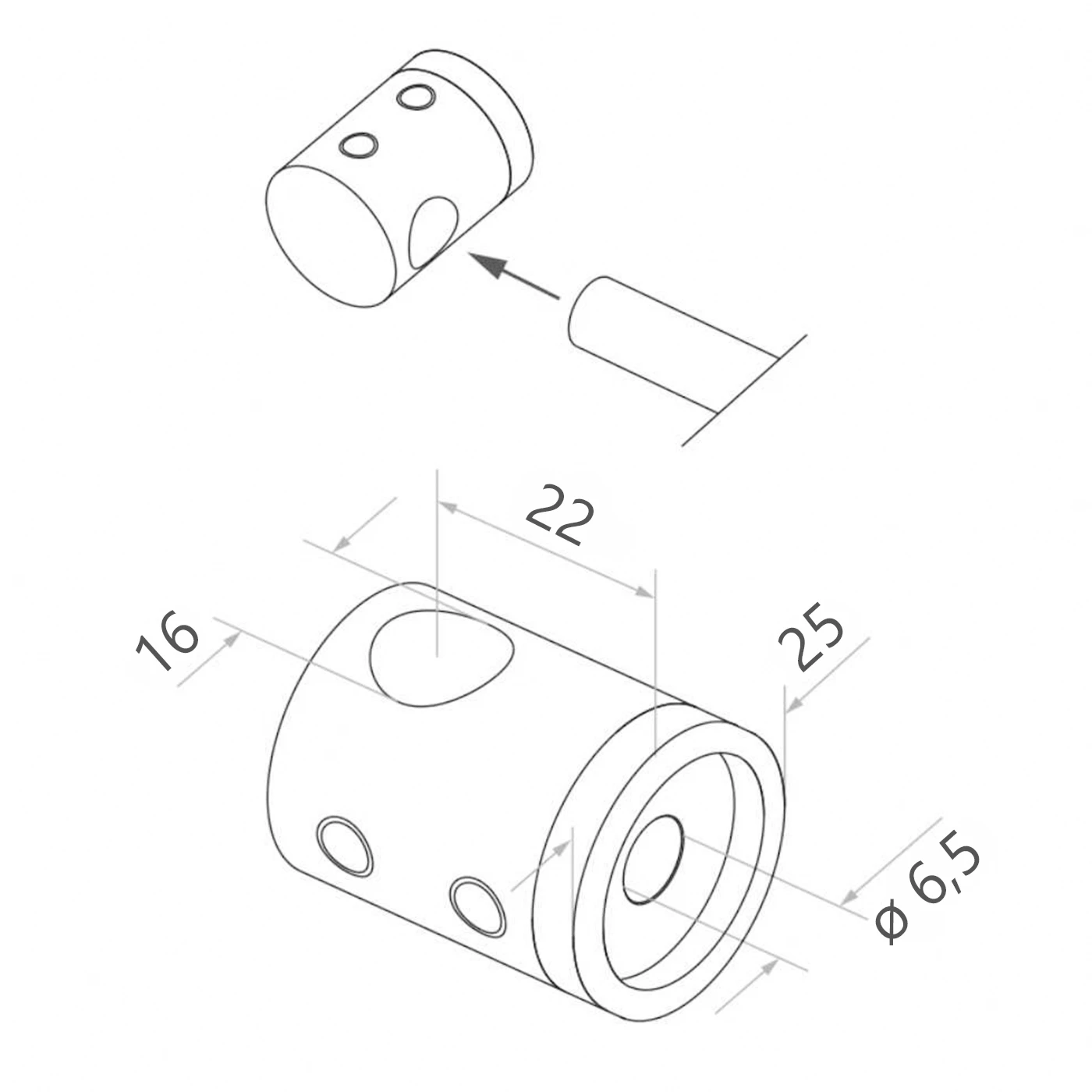

Dimensions and technical data
- Type: right end bracket (starting)
- Rod hole diameter: 16 mm diameter
- External body diameter: 25 mm
- Rod hole axis distance from base: 22 mm
- Mounting hole diameter in base: 6.5 mm diameter
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting system: flat — surface mounting
- Weight: 0.06 kg
- EAN: 5901289671439
Application and installation
Bracket is designed for mounting rod infills of stainless steel balustrades. Mounted to flat surface of post or wall using screw passed through mounting hole 6.5 mm diameter in base. Rod is inserted laterally into hole with 16 mm diameter. Two lateral threaded holes enable tightening of grub screws which stably secure the rod inside the bracket.
End brackets are divided into left and right — used in pairs at both ends of rod. Combined with through brackets they form complete, rigid and aesthetic balustrade infill system. Thanks to standardised dimensions, element is fully compatible with popular 16 mm diameter rods used in stainless steel balustrade systems.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
