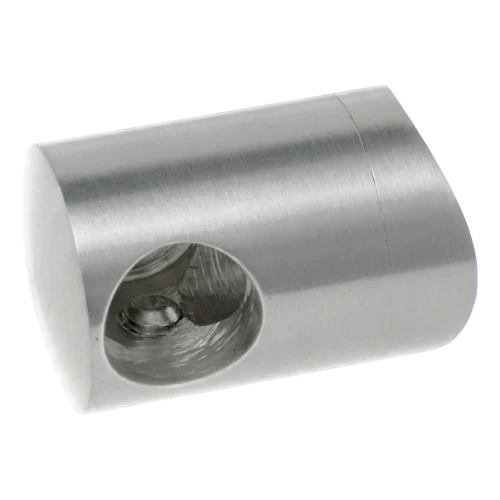

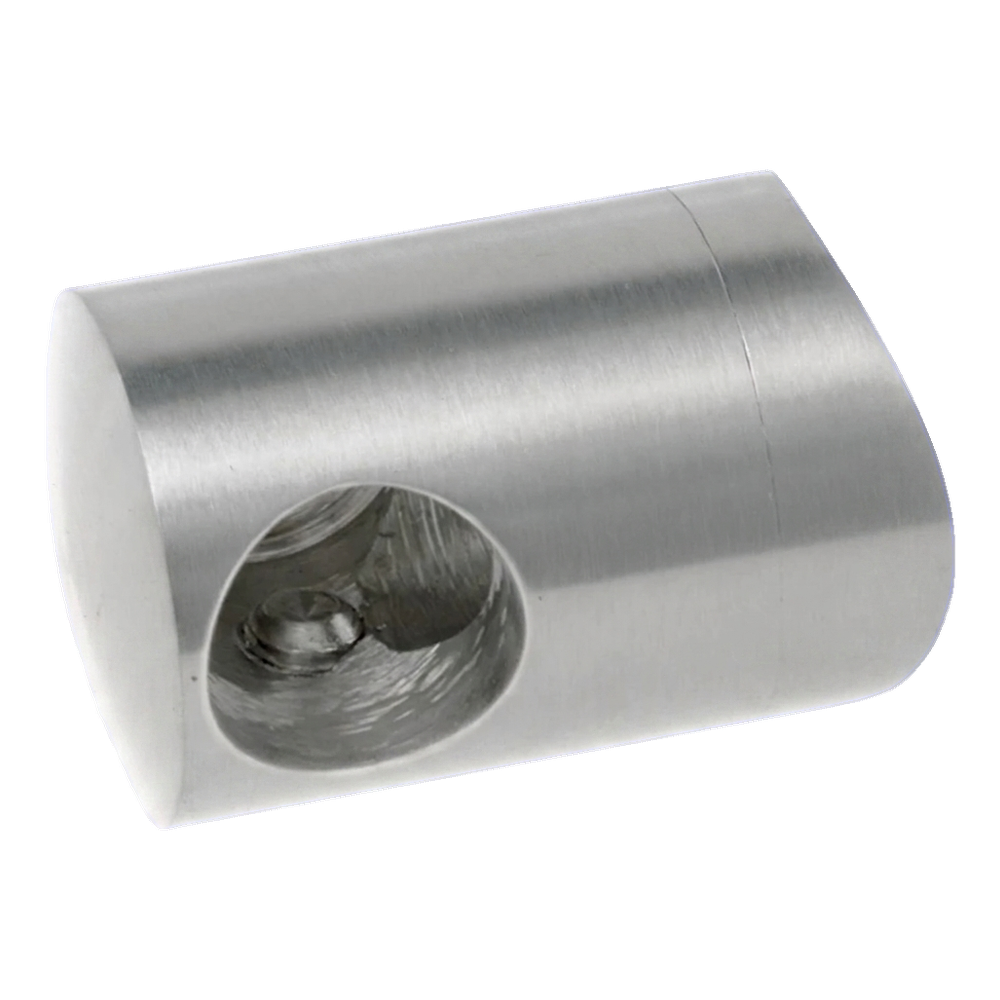

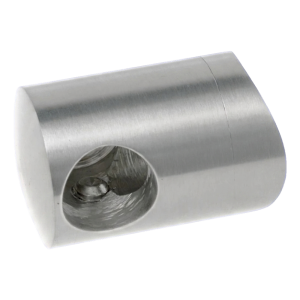

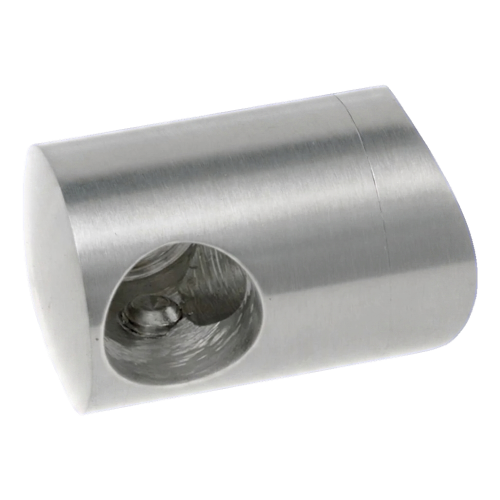

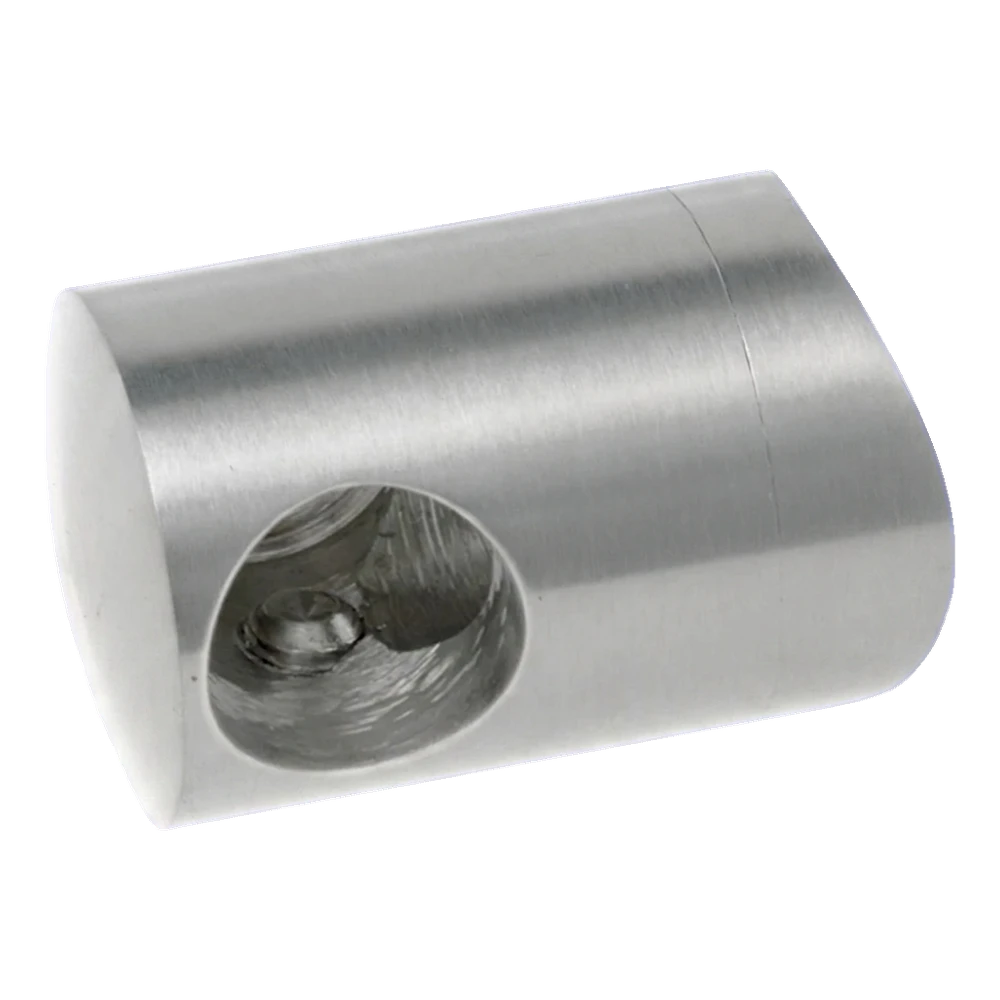

PSG right end bracket for ø16 mm rod – mounting on ø42.4 mm tube, AISI 304 satin
Description
PSG right end bracket for ø16 mm rod – mounting on ø42.4 mm tube, AISI 304 satin
Right end bracket for ø16 mm rod designed for mounting on ø42.4 mm supporting tube. The element serves as start or end mounting for rod infill in stainless steel balustrades. Thanks to precise base profiling, it fits perfectly to the tube surface, ensuring a rigid and aesthetic connection without the need for additional machining.
Start and end brackets are available in left and right versions, enabling symmetrical mounting of infills in the balustrade plane. Combined with intermediate brackets, they form a complete rod mounting system, giving the structure solidity and elegant appearance.

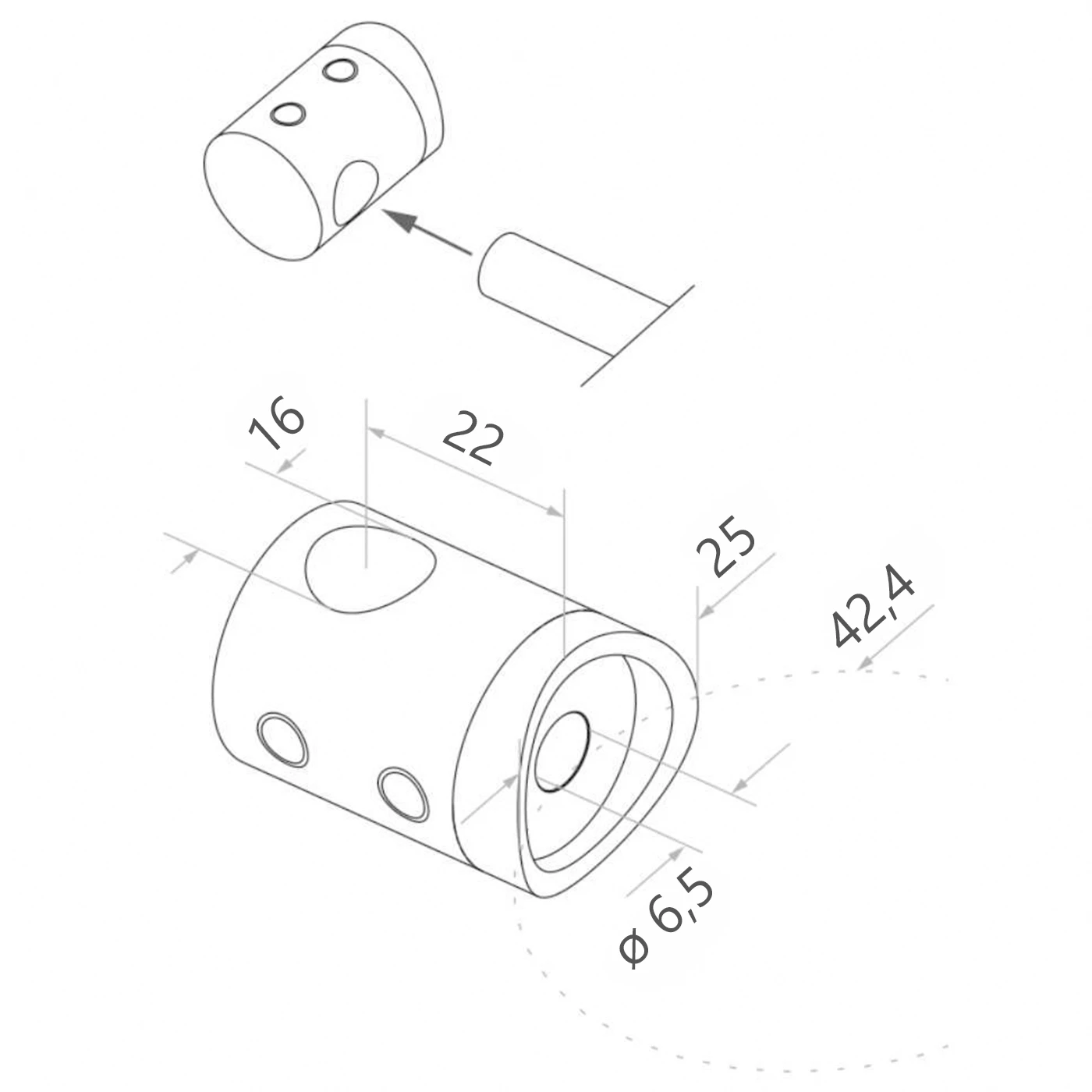

Dimensions and technical data
- Rod hole diameter: ø16 mm
- External body diameter: 25 mm
- Hole axis distance from base: 22 mm
- Mounting tube diameter: ø42.4 mm
- Mounting hole diameter (through): ø6.5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Version: right
- Weight: 0.05 kg
- System: 42.4 mm
Application and mounting
The bracket is mounted on ø42.4 mm supporting tube using a clamping screw – the profiled base ensures full contact with the tube without gaps. Side holes in the body are used for tightening screws that lock the infill rod inside the bracket. The entire assembly made from AISI 304 stainless steel guarantees corrosion resistance and long-term durability in both internal and external applications.
The satin surface finish harmoniously complements other elements of stainless steel balustrade systems, ensuring a cohesive and professional visual effect of the finished installation.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
