PSG right end bracket for 12 mm diameter rod – surface mounting, AISI 304 stainless steel
Description

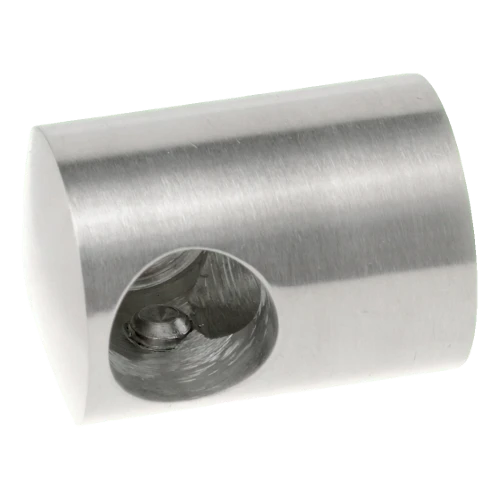

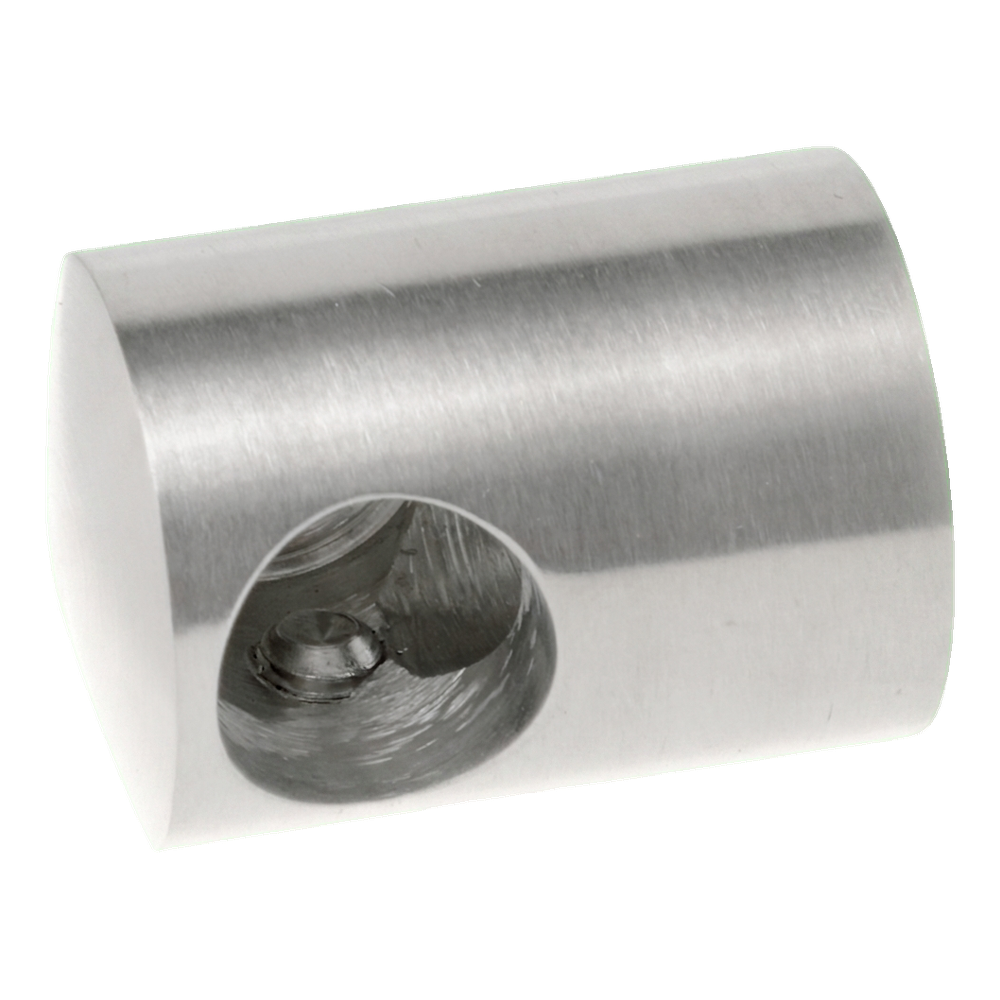

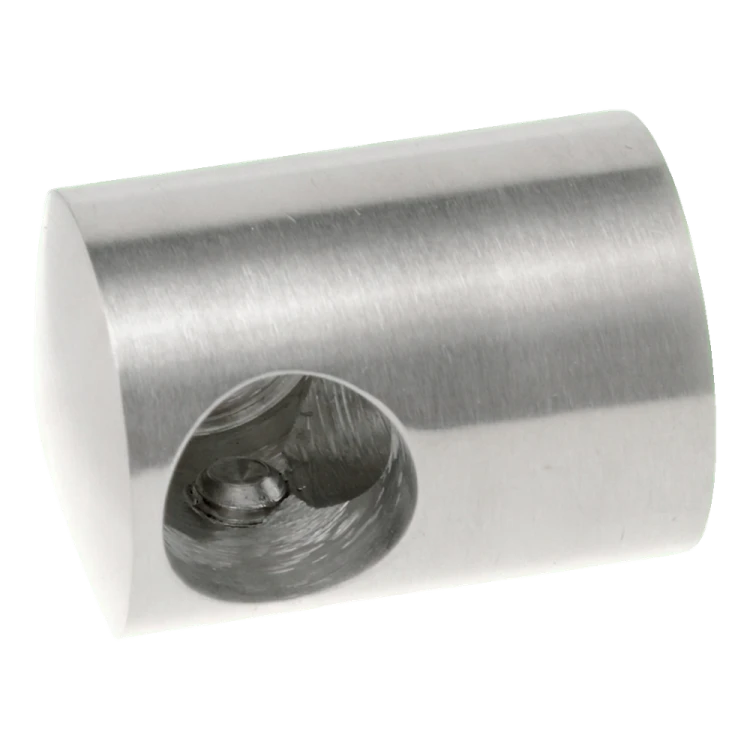

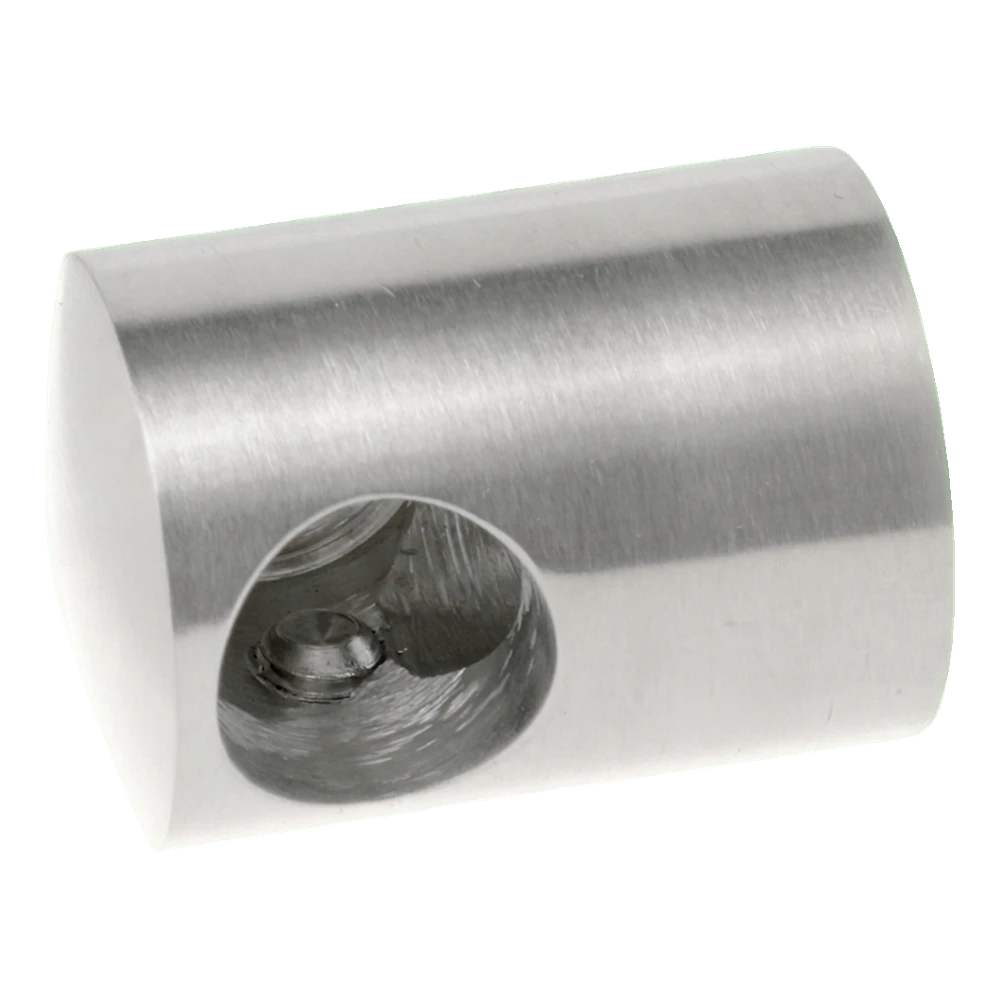

PSG right end bracket for 12 mm diameter rod – surface mounting, AISI 304 stainless steel
Right end bracket for 12 mm diameter rod designed for mounting infill in stainless steel balustrade constructions. Element mounted directly to surface — ideal solution for flat systems, providing aesthetic and durable rod termination in balustrades.
The start/end bracket is an integral part of balustrade infill systems. End brackets are divided into left and right, allowing for symmetrical rod mounting on both sides of the construction. Thanks to precision manufacturing from AISI 304 stainless steel with polished (bright) finish, the product maintains high corrosion resistance and attractive appearance for years of operation.

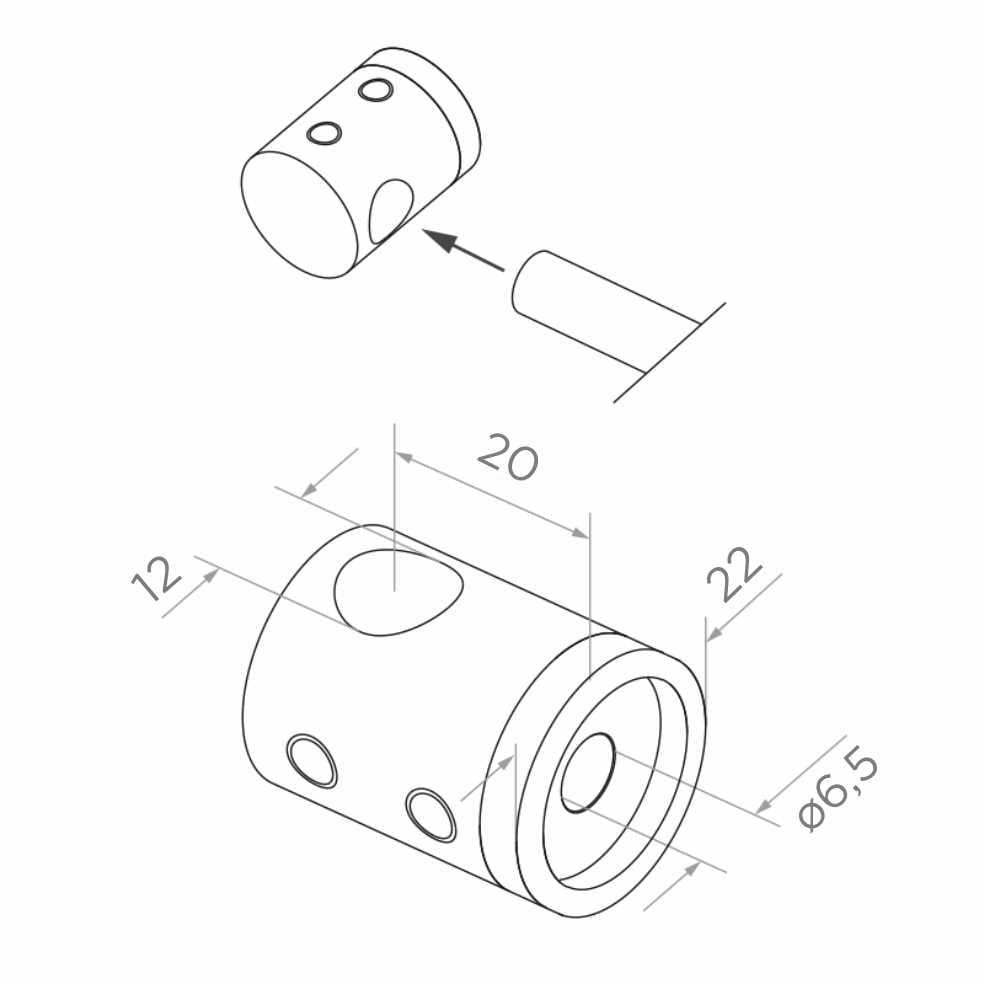

Technical specification
- Type: right end bracket
- System: flat (surface mounting)
- Rod hole diameter: 12 mm dia
- External body diameter: 22 mm
- Distance from mounting surface to rod hole axis: 20 mm
- Mounting hole diameter: 6.5 mm dia
- Material: AISI 304 stainless steel
- Surface finish: bright (polished)
- Weight: 0.055 kg
- EAN: 5901289671408
Application and mounting
The bracket is designed for professional mounting of infill rods in stainless steel balustrades. The 12 mm diameter rod is inserted into the transverse hole of the bracket, and the bracket itself is mounted to the surface of a post or other structural element of the balustrade using the 6.5 mm dia mounting hole. Additional holes for grub screws ensure secure immobilisation of the rod in the bracket.
Product intended for installation companies carrying out stainless steel balustrade mounting — both internal and external. The high quality of AISI 304 steel guarantees durability and resistance to atmospheric conditions, whilst the polished finish gives the entire construction an elegant, modern character.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
