PSG rail profile end cap for suspended gates 35×32 mm galvanised
Leave feedback on the product
PSG rail profile end cap made from galvanised steel, 35×32 mm. For suspended gates with rail cross-section 35×32×1.5 mm. Front plate thickness 2 mm, insert section 33×24 mm. Weight 0.06 kg. Corrosion resistant.
Product code: 001-244
Description
PSG rail profile end cap for suspended gates 35×32 mm galvanised

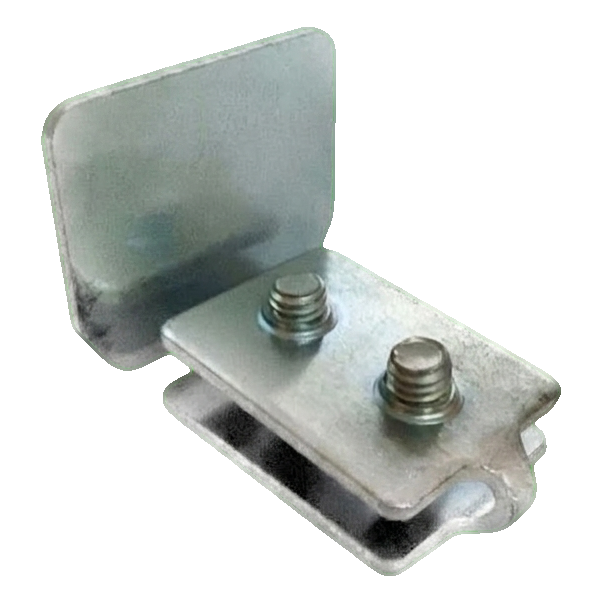

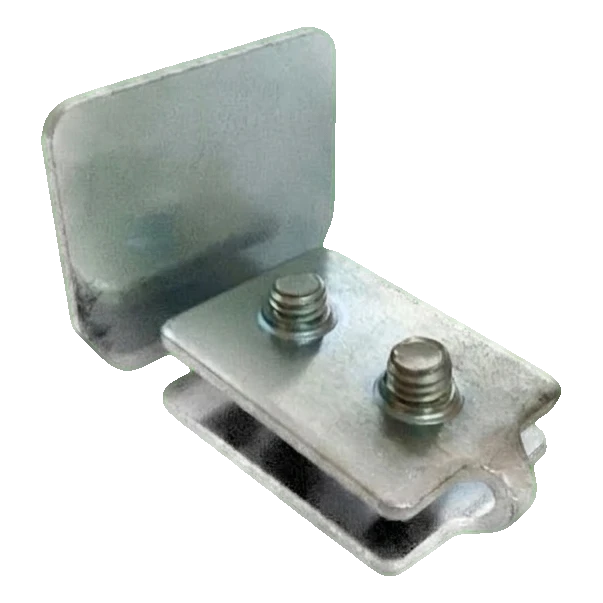

PSG rail profile end cap is a steel, galvanised element designed for closing rail tracks of suspended gates with cross-section 35 × 32 × 1.5 mm. It serves a protective function — prevents running carriages from falling off the rail and gives the construction an aesthetic finish. Thanks to the zinc coating, the product is corrosion resistant, allowing it to be used both indoors and outdoors.
The element consists of a vertical front plate with dimensions 35 × 32 mm and a horizontal section inserted into the rail profile, secured with two screws included in the set. Installation is quick and requires no additional specialist tools — simply insert the element into the rail and tighten the screws.

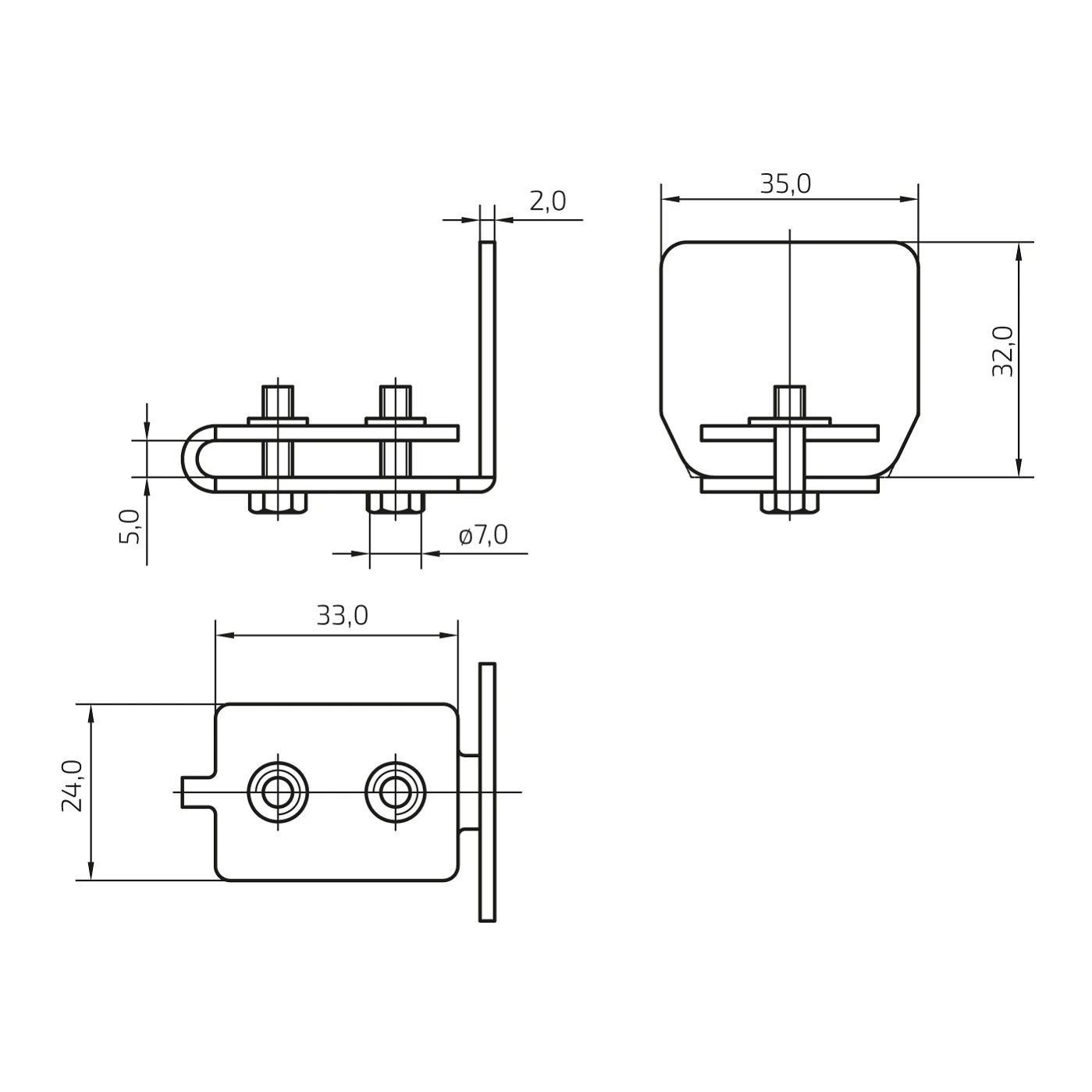

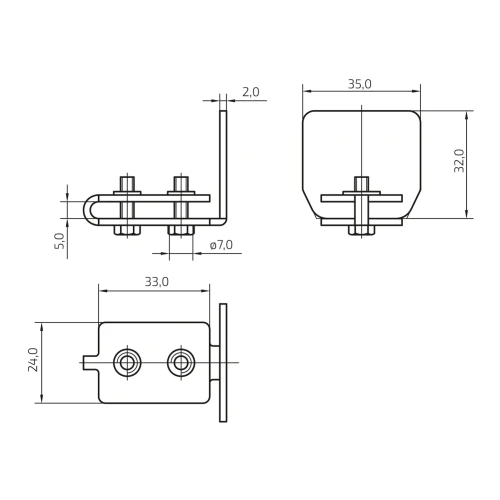

Dimensions and technical data
- Compatibility: running rail 35 × 32 × 1.5 mm
- Front plate width: 35 mm
- Front plate height: 32 mm
- Front plate thickness: 2 mm
- Insert section length: 33 mm
- Insert section width: 24 mm
- Clamping gap clearance: 5 mm
- Screw head diameter: ø7 mm
- Material: galvanised steel
- Weight: 0.06 kg
- Included: mounting screws
- EAN: 5903313203630
The PSG profile end cap is an essential element completing the suspended gate rail track installation. The galvanised surface ensures long-term durability, whilst the compact dimensions and included screws allow for instant installation without the need to order additional accessories.
