PSG rail connector for suspended gate track 59×62 mm galvanised
Description

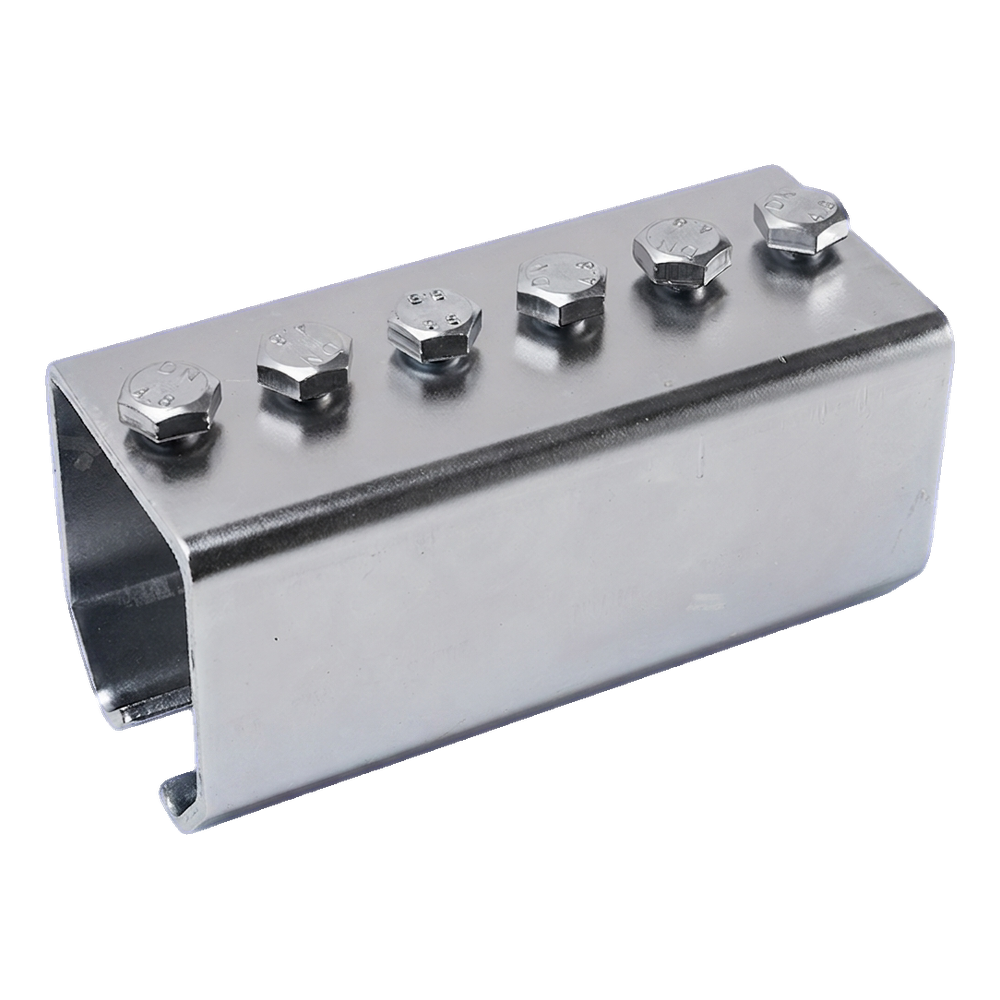

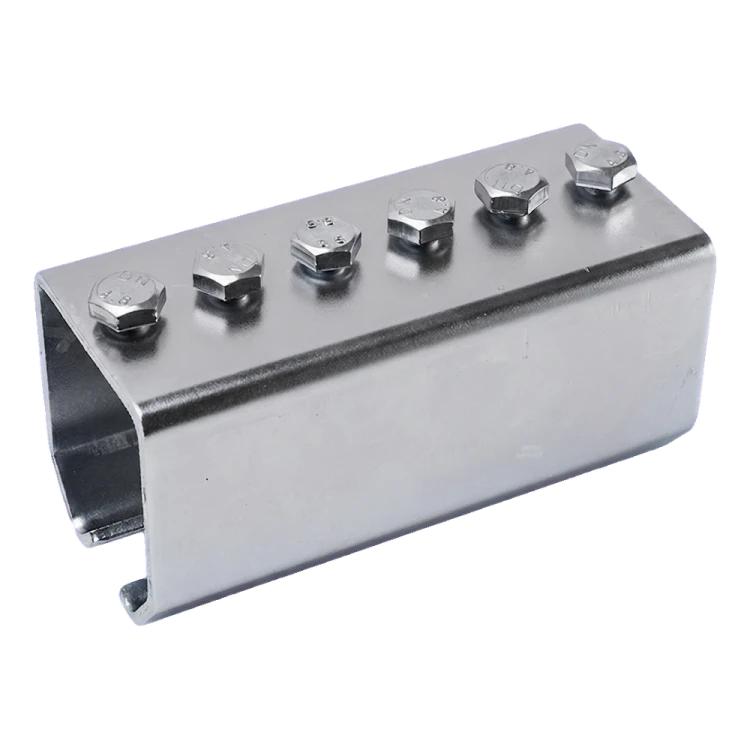

PSG rail connector for suspended gate track 59×62 mm galvanised
Galvanised rail track connector by PSG designed for joining sections of channel rail (track) with dimensions 59×62 mm, used in suspended gates. Robust construction made from galvanised steel and complete set of 6 clamping screws included allow for quick, reliable installation without the need for additional hardware sourcing. The connector slides over the joint of two rails ensuring rigid and durable connection, eliminating play and vibrations during gate operation.
Thanks to the galvanised coating, the component is corrosion-resistant and suitable for installation both inside halls and in outdoor conditions. Length of 160 mm guarantees adequate contact surface for both connected rails, which translates into mechanical strength and stability of the running track.

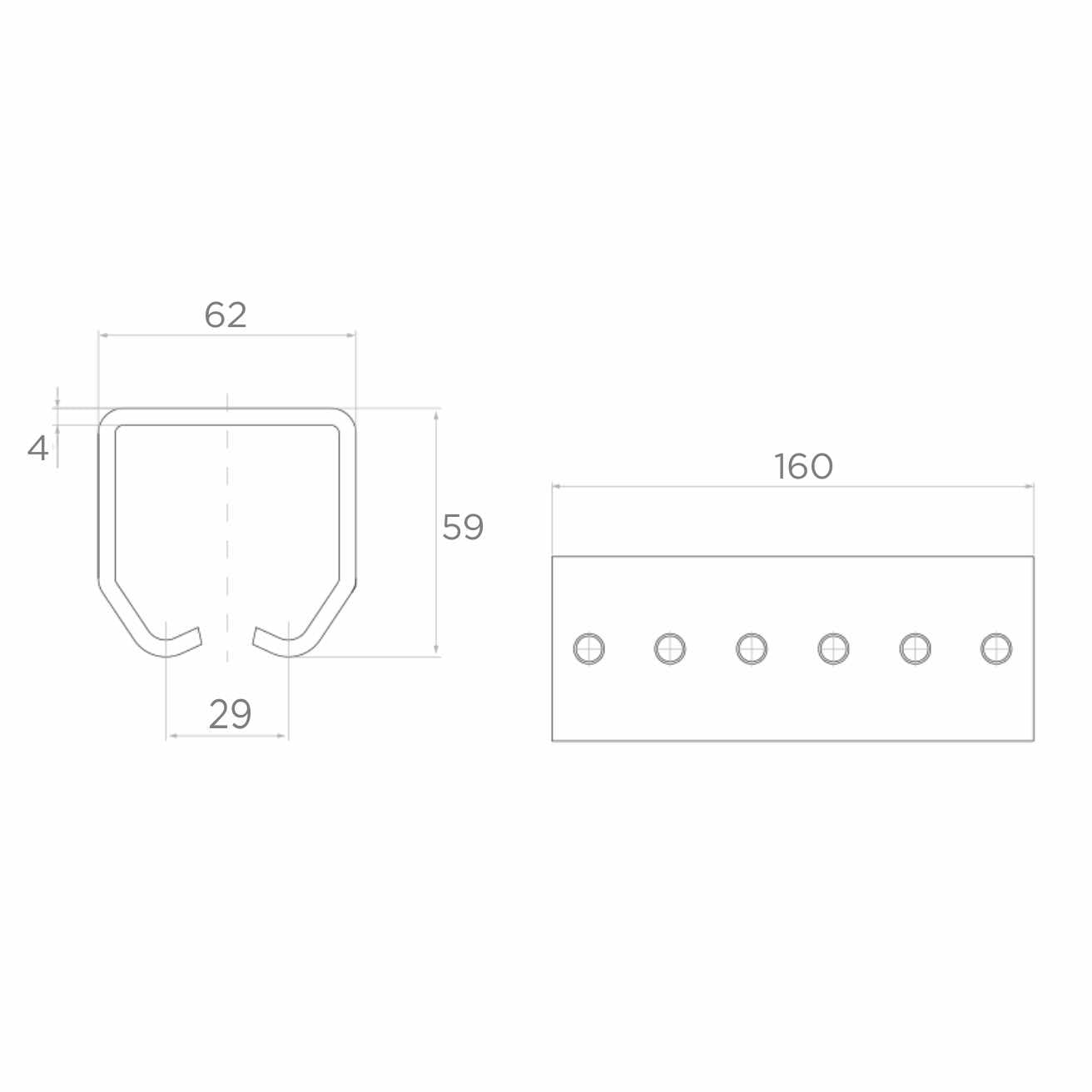

Dimensions and technical data
- Manufacturer: PSG
- Application: running rail (channel) for suspended gate 59×62 mm
- Overall length: 160 mm
- External height: 59 mm
- External width: 62 mm
- Wall thickness: 4 mm
- Bottom slot width: 29 mm
- Number of clamping screws: 6 pcs. (included)
- Material: galvanised steel
- Weight: 1.04 kg
- EAN: 5901289675611
Complete set includes mounting screws — the connector is ready for immediate installation. Proven solution for installation teams carrying out suspended gate installations on channel rails.
