PSG rail connector for sliding gate track 45×46 mm galvanised with screws
Description
PSG rail connector for sliding gate track 45×46 mm galvanised with screws
Galvanised rail connector for sliding gates by PSG, designed for connecting sections of C-channel (running rail) with 45×46 mm profile. Enables quick and secure connection of successive rail segments, ensuring continuity of the running track for gate trolleys. The complete set is supplied with 6 mounting screws — ready for immediate installation without the need to source additional fastening components.

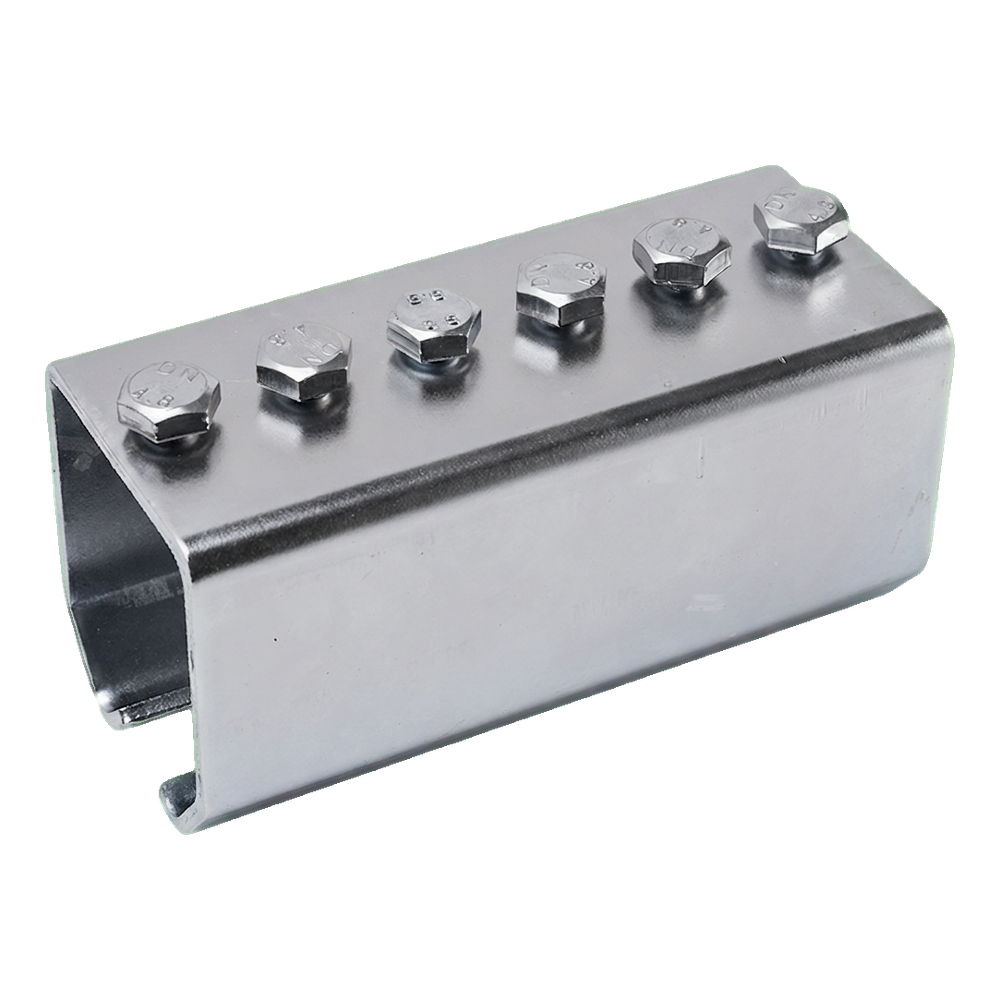

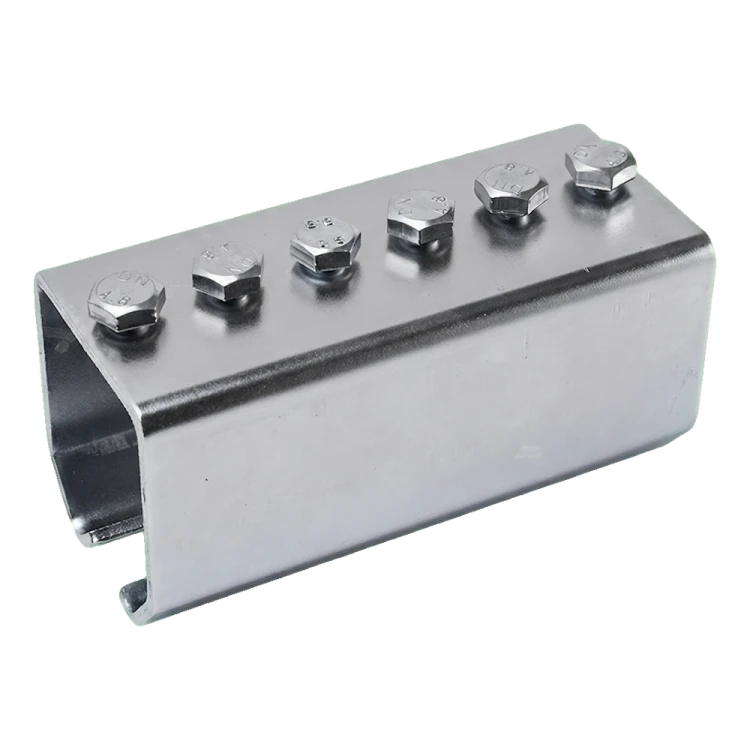

The connector takes the form of a steel cover plate that encompasses the rail profile from both sides, guaranteeing a rigid and stable connection even under heavy gate loads. Six screws distributed evenly along the 160 mm length ensure proper clamping force and eliminate the risk of connection loosening during operation. The galvanised coating protects the component against corrosion, making the connector suitable for both internal hall gates and applications exposed to moisture.

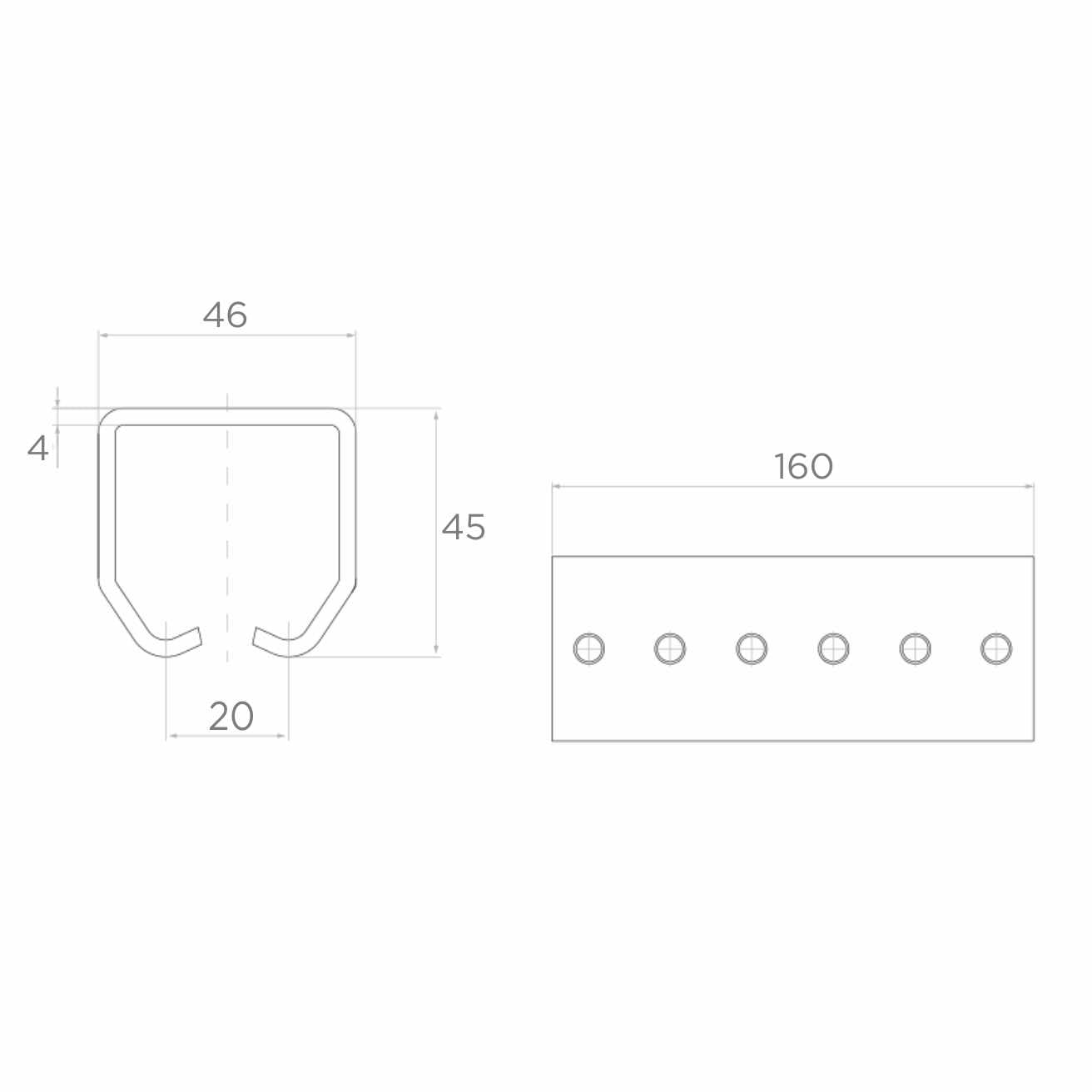

Dimensions and technical parameters
- Manufacturer: PSG
- Connector length: 160 mm
- Rail profile height: 45 mm
- Rail profile width: 46 mm
- Profile wall thickness: 4 mm
- Lower gap width (guide opening): 20 mm
- Number of mounting screws: 6 pcs. (included)
- Material: galvanised steel
- Weight: 0.76 kg
- EAN: 5901289675604
Application
The connector is designed for sliding gate systems (sliding on upper track) using C-channel with 45×46 mm profile. It is used wherever it is necessary to connect two sections of running rail — for longer gate spans, extending existing tracks or repairing damaged segments. Thanks to the complete set of screws included, the installer can mount the connector immediately after unpacking, which reduces installation time and eliminates the need to separately order hardware.
