PSG plastic rack rail for sliding gate with steel core 3×333 mm – up to 600 kg
Description
PSG plastic rack rail for sliding gate with steel core 3×333 mm – up to 600 kg
PSG rack rail made of plastic with steel core is a proven solution for driving self-supporting sliding gates weighing up to 600 kg. The plastic coating of the steel core ensures quiet and smooth operation of the mechanism — without the characteristic metallic noise accompanying traditional steel rails. This is particularly important for installations in residential estates and buildings where acoustic comfort matters.
Complete mounting set
The set includes three sections of rail, each 333 mm long, connected to each other by locks — this gives you a cohesive rack line without the need for precise cutting. Each section is equipped with two mounting brackets that enable quick and convenient screwing of the rail to the gate leaf. The set also includes self-drilling screws with washers, which eliminates the need to complete separate fastening elements — everything needed for installation is in one package.
Wide compatibility
The rail has a tooth module 4, making it compatible with automatic operators from leading manufacturers: FAAC, CAME, NICE, BFT, BENINCA and other drives equipped with a rack of the same module. This allows it to be used both in new installations and as a replacement element when servicing existing systems.
Technical parameters
- Material: plastic with steel core
- Maximum gate load: up to 600 kg
- Section length: 333 mm
- Width: 18 mm
- Number of sections in set: 3 pcs.
- Tooth module: 4
- Distance between mounting points: 237 mm
- Mounting brackets per section: 2 pcs.
- Section connection: lock system
- Set weight: 0.966 kg
- Compatibility: FAAC, CAME, NICE, BFT, BENINCA and others with module 4
- EAN: 5901289675154
Set contents

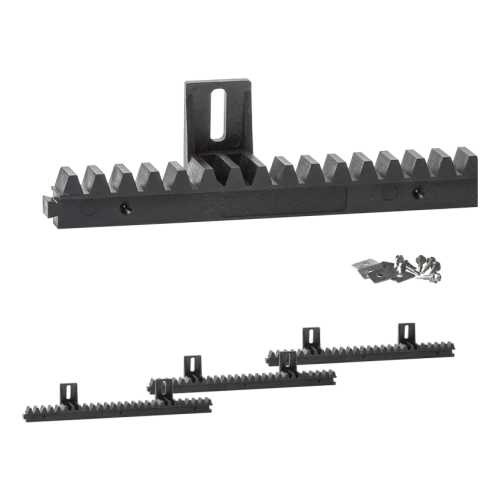

- 3 sections of rack rail 333 × 18 mm with mounting brackets
- Self-drilling screws with washers for fixing
Technical data
| Material | Plastic |
