PSG – nylon guide roller for suspended gate ø40 mm with mounting plate
Leave feedback on the product
Nylon guide roller PSG ø40 mm with mounting plate for suspended gates. Roller made of white nylon on bearing, plate made of galvanised steel 120x30x6 mm. Mounting hole spacing 90 mm, total height 31 mm, weight 0.22 kg.
Product code: 001-332
Description
PSG – nylon guide roller for suspended gate ø40 mm with mounting plate
Nylon guide roller ø40 mm with mounting plate is a component that stabilises the operation of suspended gates. The roller made of white nylon is mounted on a bearing, ensuring low rolling resistance and quiet operation of the mechanism. The mounting plate made of galvanised steel with a thickness of 6 mm guarantees durable and corrosion-resistant mounting.
The PSG brand product is intended for use in suspended sliding gate systems. Thanks to nylon's resistance to wear, the roller maintains its properties for a long operational period, reducing the need for servicing and component replacement.

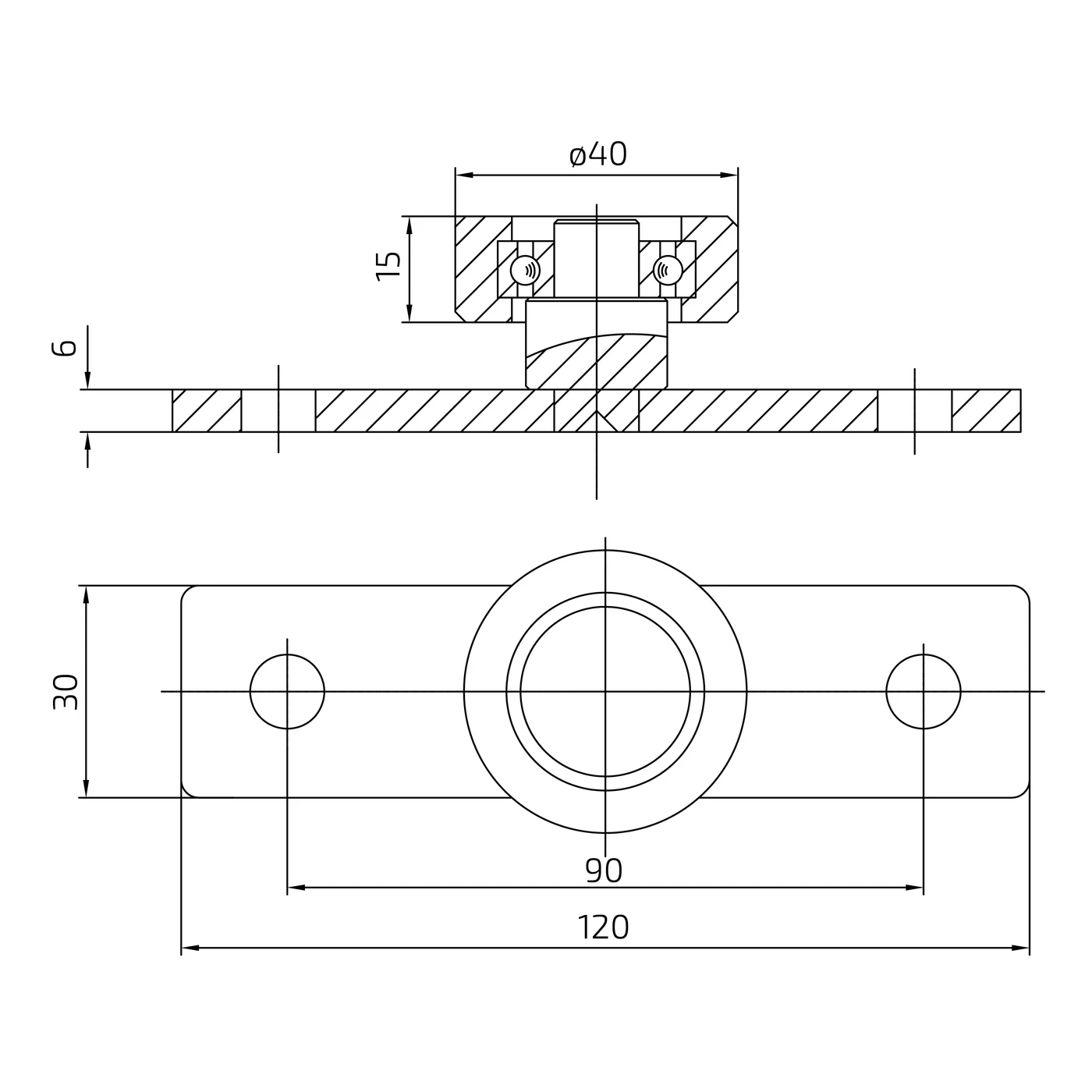

Dimensions and technical specifications
- Roller diameter: ø40 mm
- Roller height: 15 mm
- Roller material: nylon (white)
- Mounting plate length: 120 mm
- Mounting plate width: 30 mm
- Mounting plate thickness: 6 mm
- Mounting hole spacing: 90 mm
- Plate material: galvanised steel
- Total height (H): 31 mm
- Weight: 0.22 kg
- EAN: 5903313203746
Performance features
- Low rolling resistance — smooth and quiet gate operation
- Wear resistance — nylon ensures long service life without frequent replacement
- Galvanised plate — anti-corrosion protection in outdoor conditions
- Ball bearing — durable and reliable roller axle construction
- Easy installation — two mounting holes with 90 mm spacing enable quick bolt fixing
