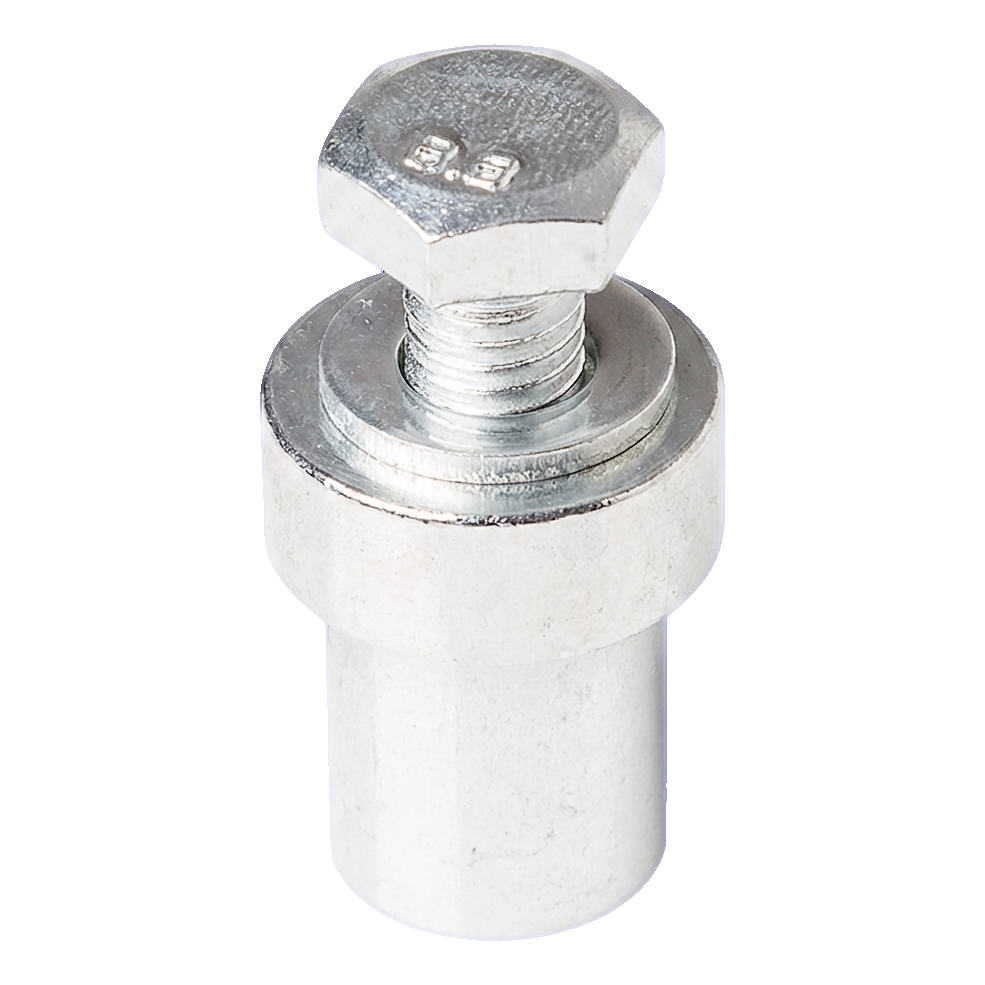

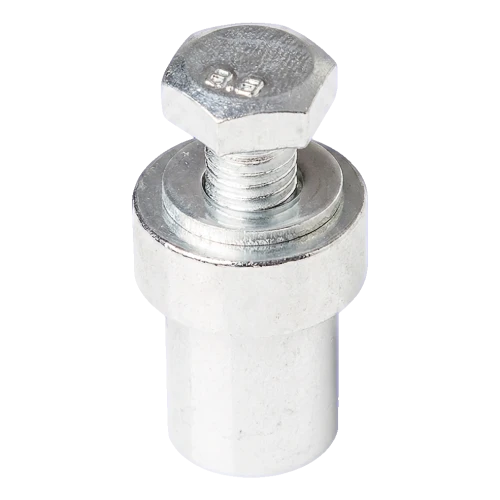

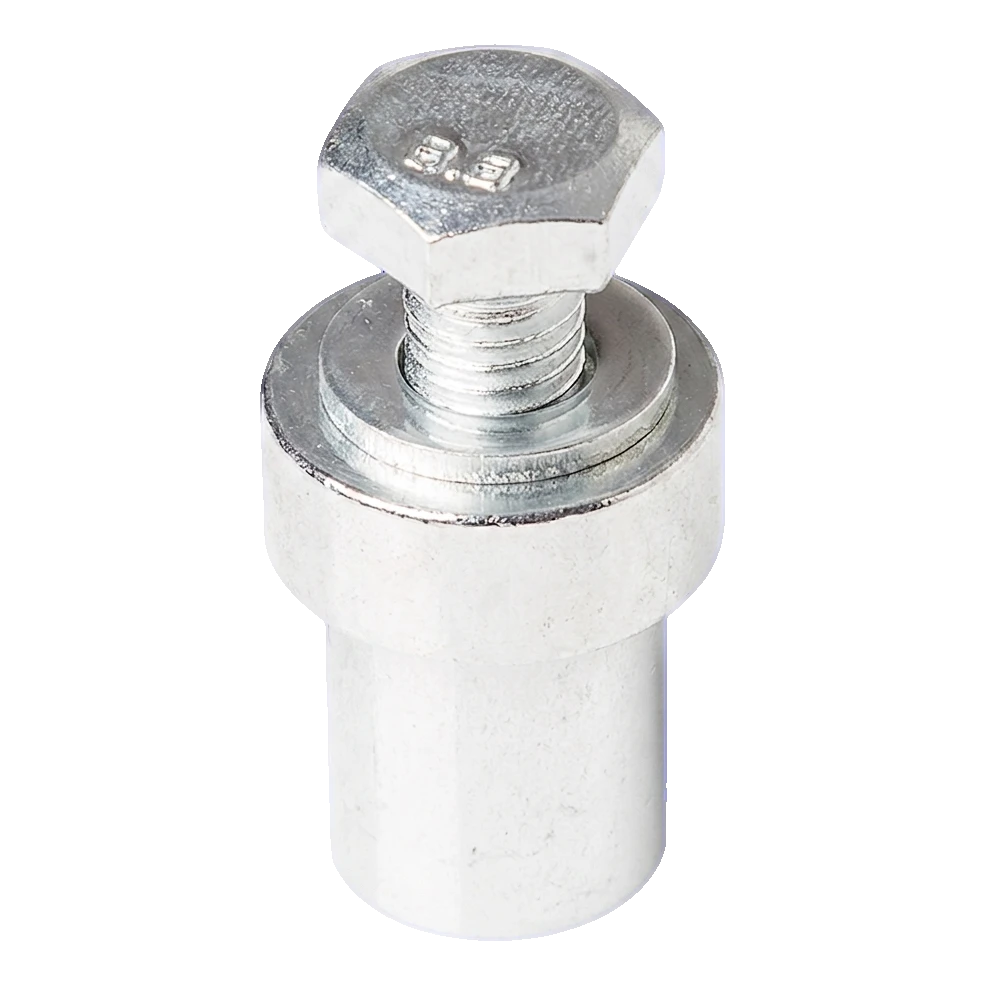

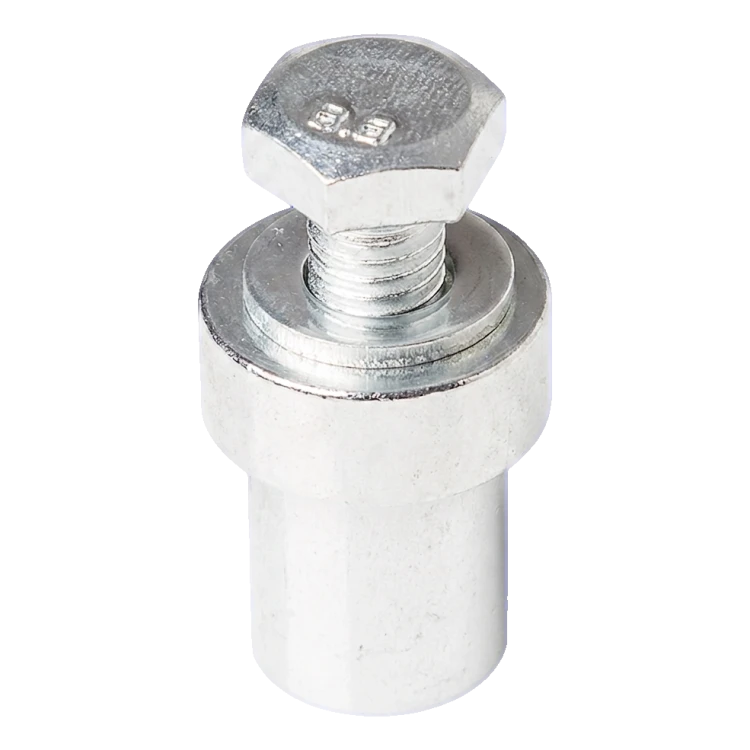

PSG mounting sleeve for rack rail of sliding gate – galvanised M8
Leave feedback on the product
PSG mounting sleeve for sliding gate rack rail, galvanised steel. M8×25mm screw class 8.8, Ø20mm flange, Ø15mm shank, 25mm height. Weight 0.046 kg. For steel rack rails L1000×8mm.
Product code: 001-288
Product features
[PIM] Cat 121 #121
- Material Steel
Description
PSG mounting sleeve for rack rail of sliding gate – galvanised M8
The PSG mounting sleeve is a spacer element used for proper installation of the rack rail on the sliding gate leaf. By using the sleeve, the rack rail maintains the correct distance from the gate surface, ensuring proper meshing with the drive motor's pinion gear and trouble-free operation of gate automation.
The sleeve is galvanised, guaranteeing high corrosion resistance even in demanding atmospheric conditions. Compact construction and low weight (46 g) facilitate installation — a standard hexagonal key for M8 screws is sufficient. The element is supplied complete with an M8 × 25 mm class 8.8 screw and washer, eliminating the need to source additional accessories.
Technical parameters
- Application: spacer for mounting rack rail to sliding gate
- Screw: M8 × 25 mm, strength class 8.8
- Flange diameter: 20 mm
- Shank diameter (under flange): 15 mm
- Total height: 25 mm
- Material: galvanised steel
- Weight: 0.046 kg
- EAN: 5901289675147
- Manufacturer: PSG
Installer benefits
- Complete mounting kit — screw and washer included, no need to order small components separately
- Galvanised surface — long-lasting anti-corrosion protection, ideal for outdoor installation
- Precise dimensions — ensures uniform rack rail spacing along the entire gate length
- Compatibility with steel rack rails of width L1000 × 8 mm
