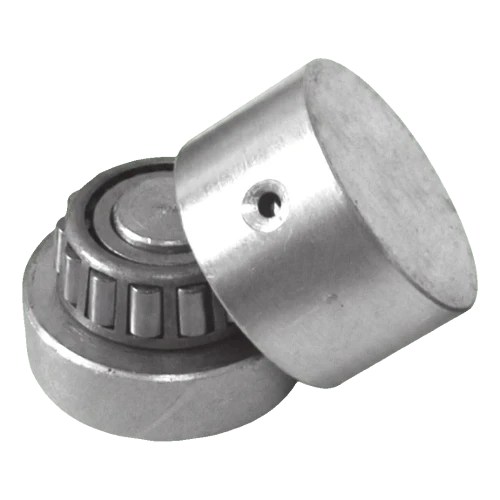

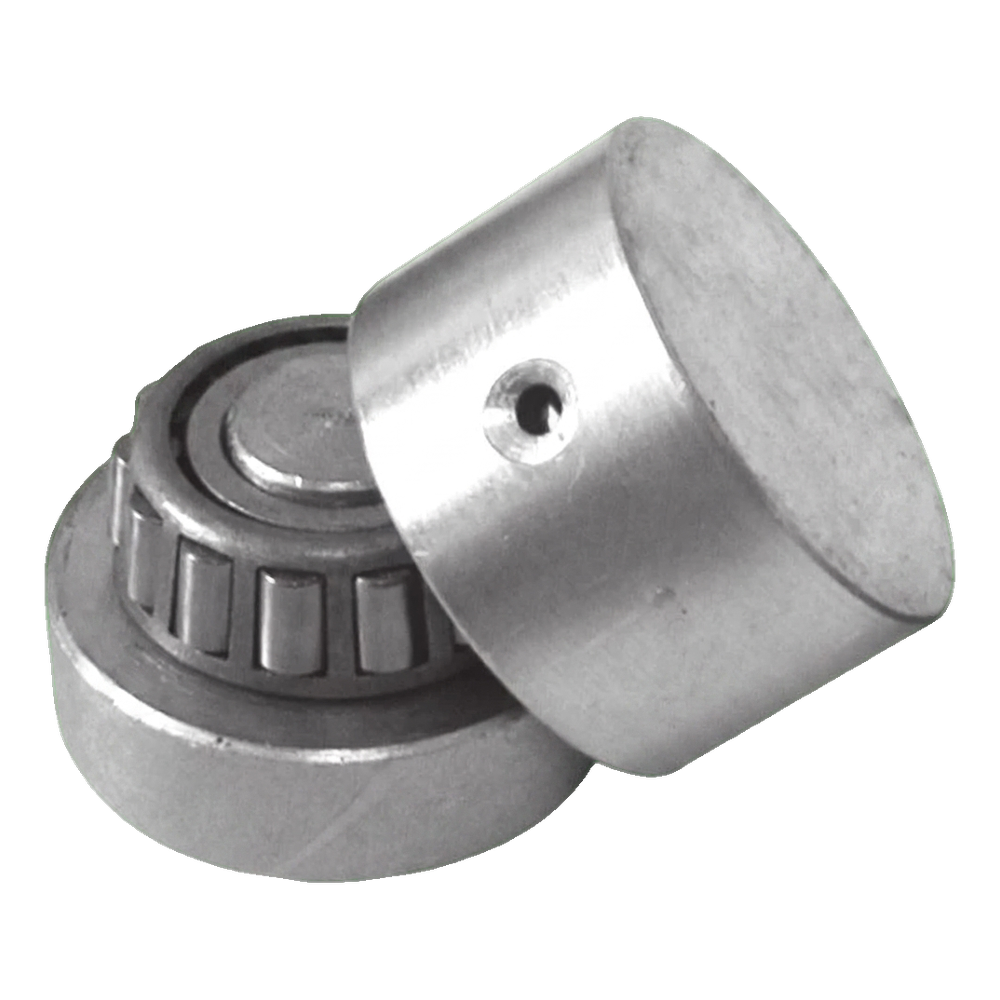

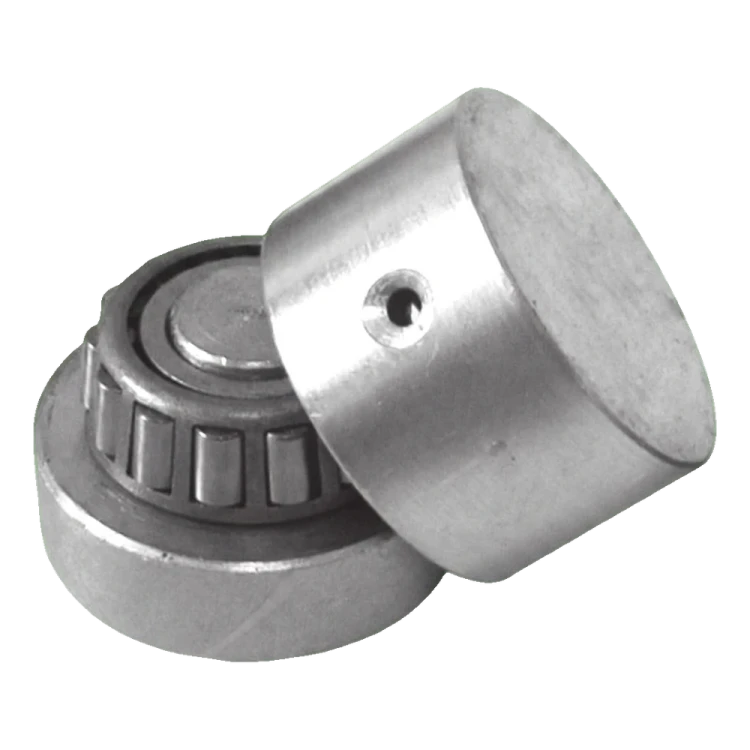

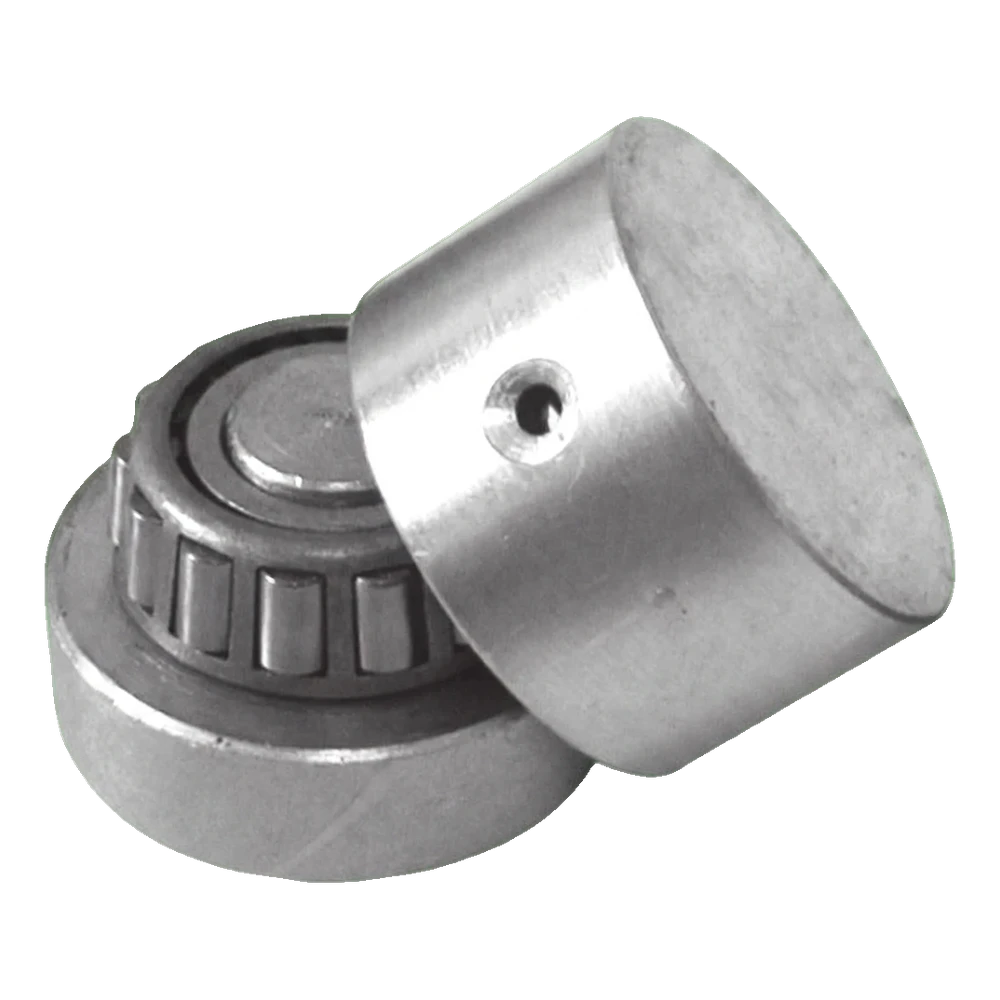

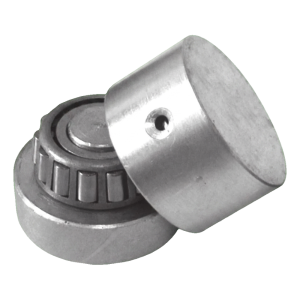

PSG lower gate hinge with bearing fi 50 mm steel
Leave feedback on the product
PSG lower gate hinge with bearing fi 50 mm steel. Dimensions 50x50 mm, weight 0.4 kg. Maximum load for pair of hinges 200 kg with 2 m gate leaf. With grease nipple. For swing gates and garden gates.
Product code: 001-418
Product features
[PIM] zawiasy #113
- Diameter 50
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG lower gate hinge with bearing fi 50 mm steel
Steel lower hinge fi 50 mm with tapered bearing, designed for mounting garden gates or swing gates. The bearing construction ensures smooth and quiet operation even under heavy loads, which translates to durability and comfort of use for years. The permissible load for a pair of hinges on a gate leaf of 2 m length is 200 kg — an ideal solution for gates of standard and increased weight.
The hinge is equipped with a grease nipple, enabling periodic lubrication of the bearing without the need for disassembly — an important feature that facilitates maintenance in the field. The body made of steel guarantees high mechanical strength and resistance to dynamic loads occurring during opening and closing of heavy gate leaves.
The hinge is mounted as a lower element — it forms a pivot axis mounted in the gate post, working together with the upper hinge. The cylindrical shape with a diameter of fi 50 mm ensures compatibility with popular hinge systems used in swing gates and garden gates.

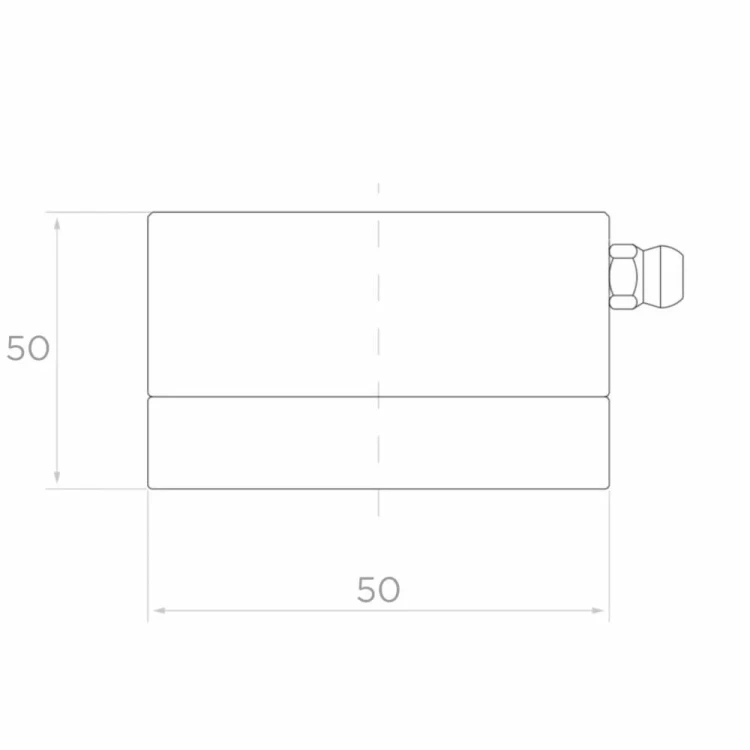

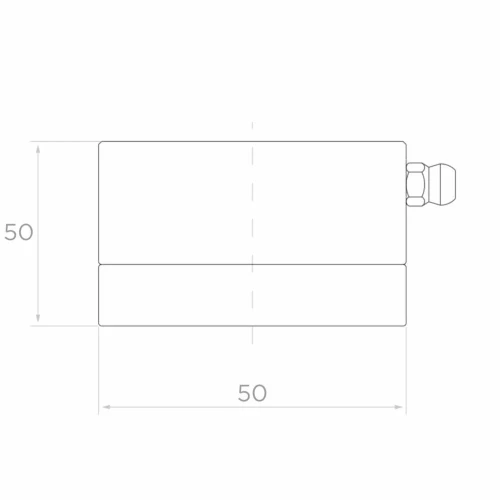

Dimensions and technical data
- Type: bearing lower hinge
- Diameter (fi): 50 mm
- Total height: 50 mm
- Material: steel
- Weight: 0.4 kg
- Permissible load for pair of hinges (2 m gate leaf): 200 kg
- Grease nipple: yes
- Manufacturer: PSG
- EAN: 5901289676359
Application
The hinge is designed for hanging leaves of swing gates and garden gates. It performs well in both steel constructions and those with panel infill. Thanks to the load capacity of 200 kg per pair (with a 2 m gate leaf) it handles most standard single-leaf and double-leaf gates used in residential and industrial construction.
