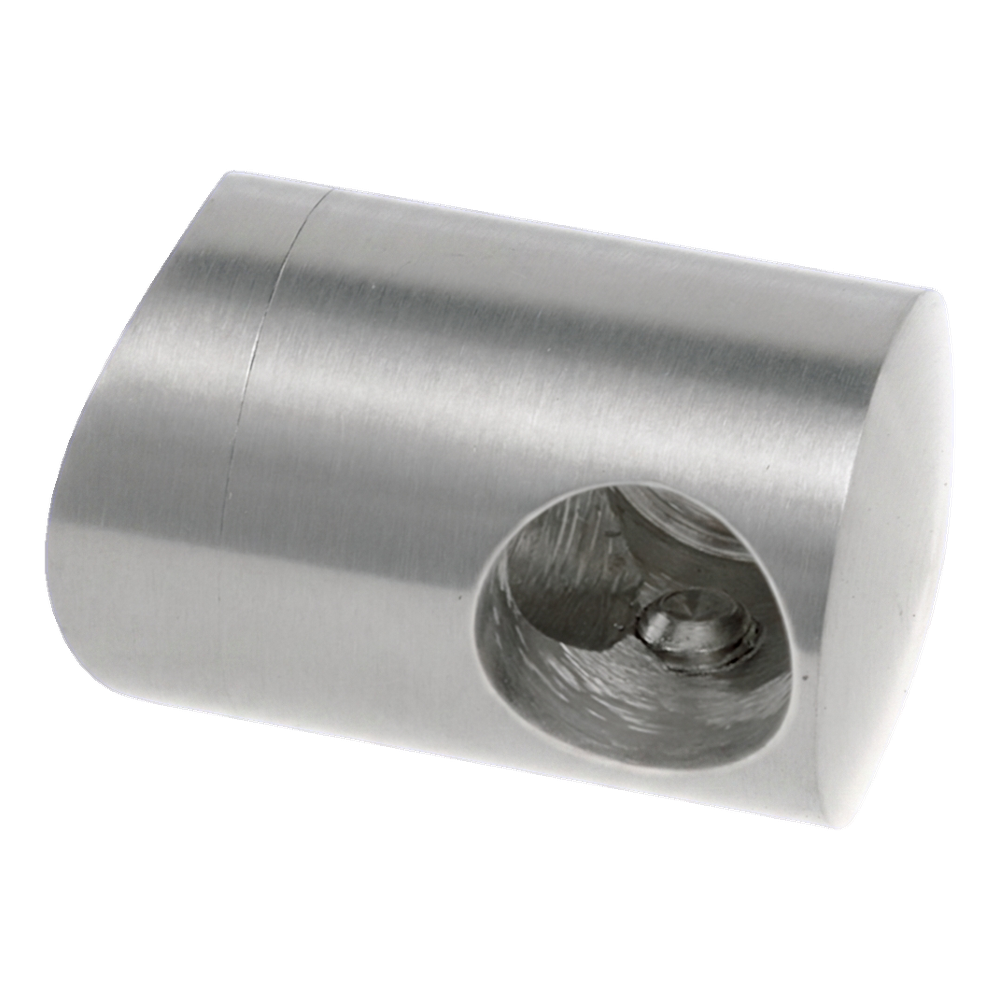

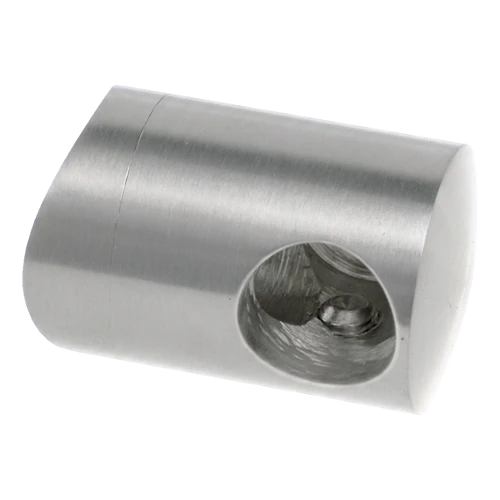

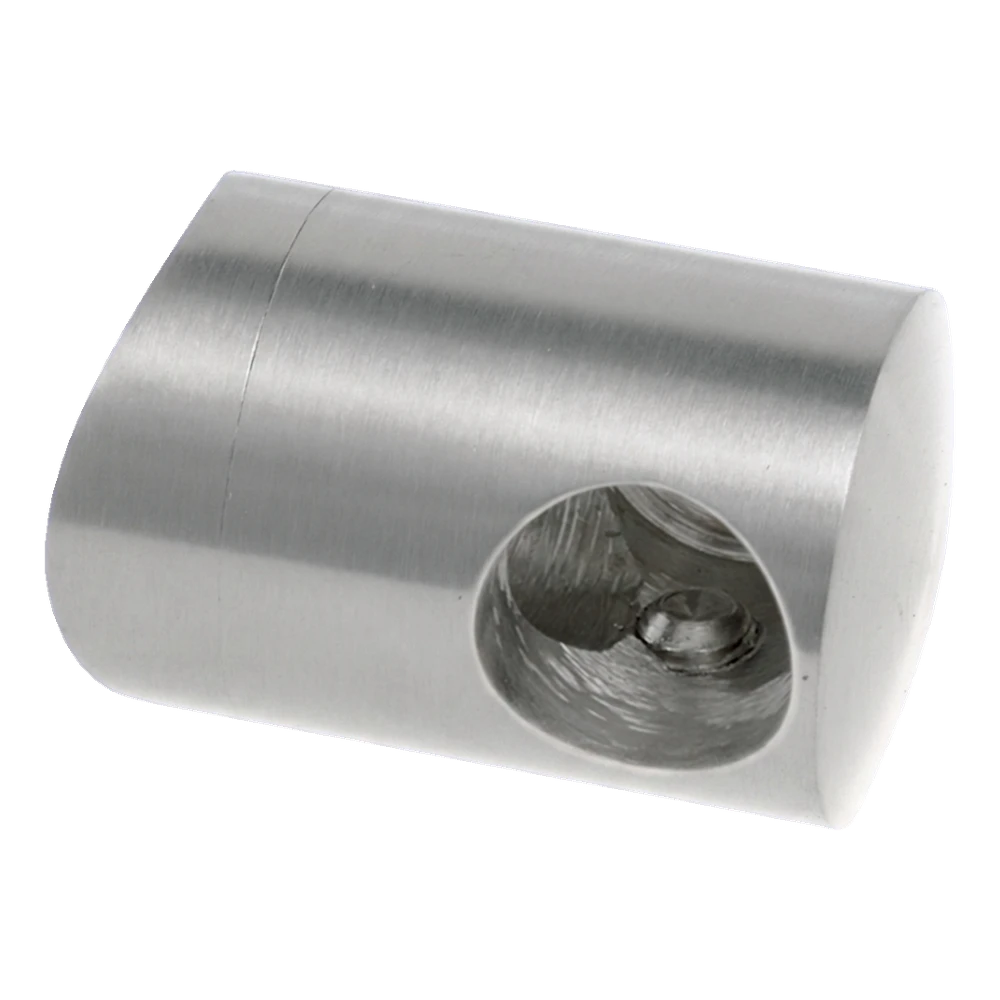

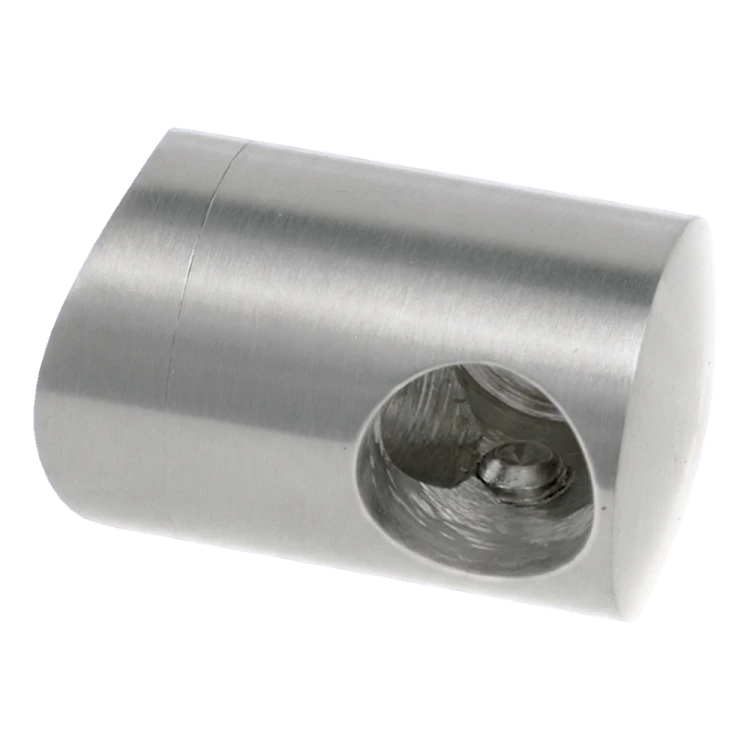

PSG left end bracket for railing rod ø 16 mm on tube 42.4 mm – stainless steel satin
Description
PSG left end bracket for railing rod ø 16 mm on tube 42.4 mm – stainless steel satin
Left end (starting) bracket designed for mounting rod with diameter ø 16 mm on load-bearing tube ø 42.4 mm. Serves as an initial or final element of rod infill in stainless steel railings. Made from grade AISI 304 with satin finish — ensures high corrosion resistance and aesthetic, matt appearance consistent with other elements of the 42.4 mm railing system.
Start and end brackets (left / right) are mounted in pairs in the plane, creating rigid and solid attachment of infill rods. The profiled base with mounting hole ø 6.5 mm perfectly fits the curvature of the load-bearing tube, which facilitates precise positioning and reduces installation time.

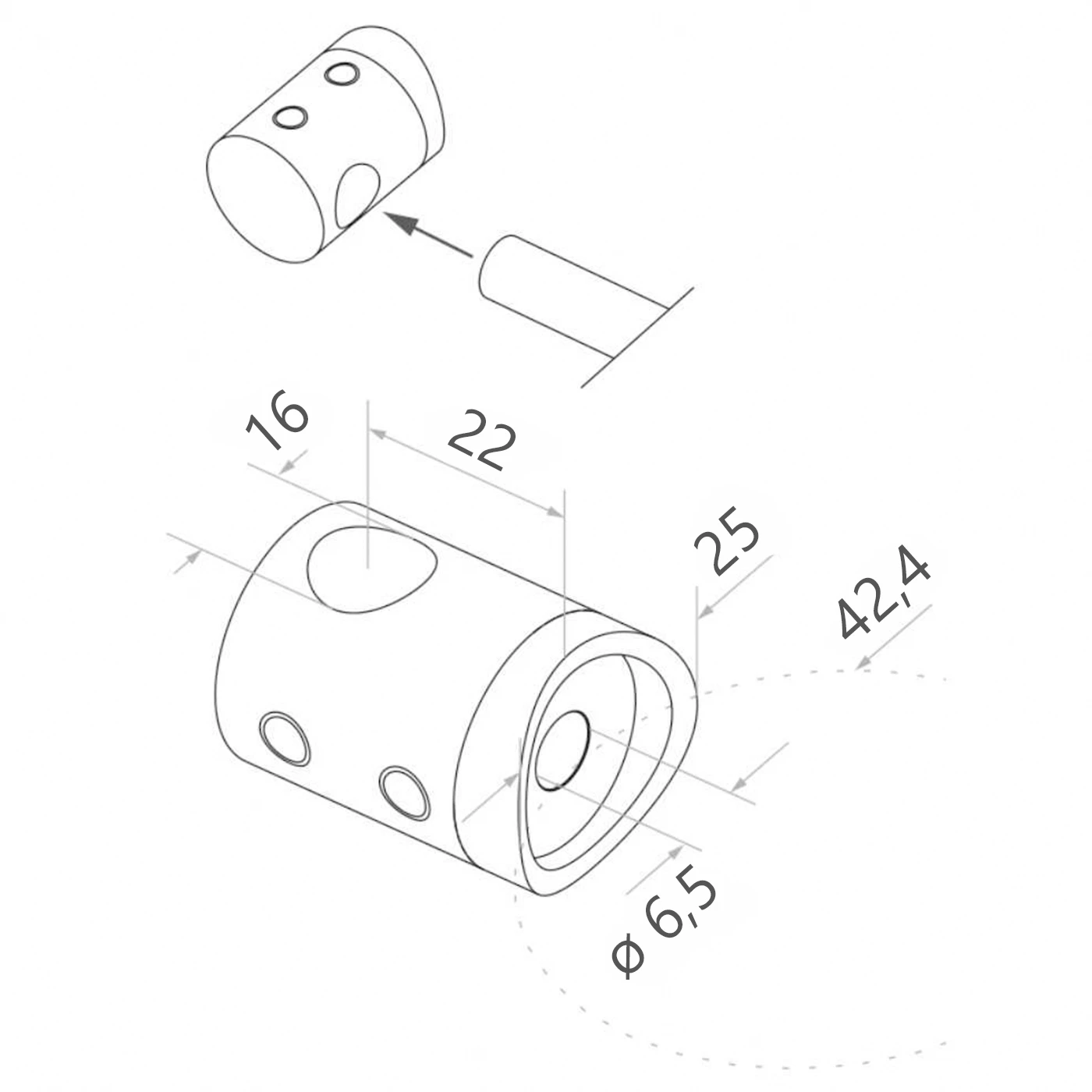

Dimensions and technical specification
- Type: left end bracket (starting)
- Rod hole diameter: ø 16 mm
- External body diameter: 25 mm
- Distance of hole axis from base: 22 mm
- Mounting hole diameter: ø 6.5 mm
- Intended for load-bearing tube: ø 42.4 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- System: 42.4 mm
- Weight: 0.06 kg
- EAN: 5901289671361
Application and installation
The bracket is intended for mounting rod infills in stainless railings — both internal and external. Used in pair with right bracket, creates aesthetic and durable rod termination in the railing plane. The profiled saddle base guarantees stable adherence to load-bearing tube ø 42.4 mm. The product is an element of the 42.4 mm railing system — it is fully compatible with other through brackets, posts and accessories in this system.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
