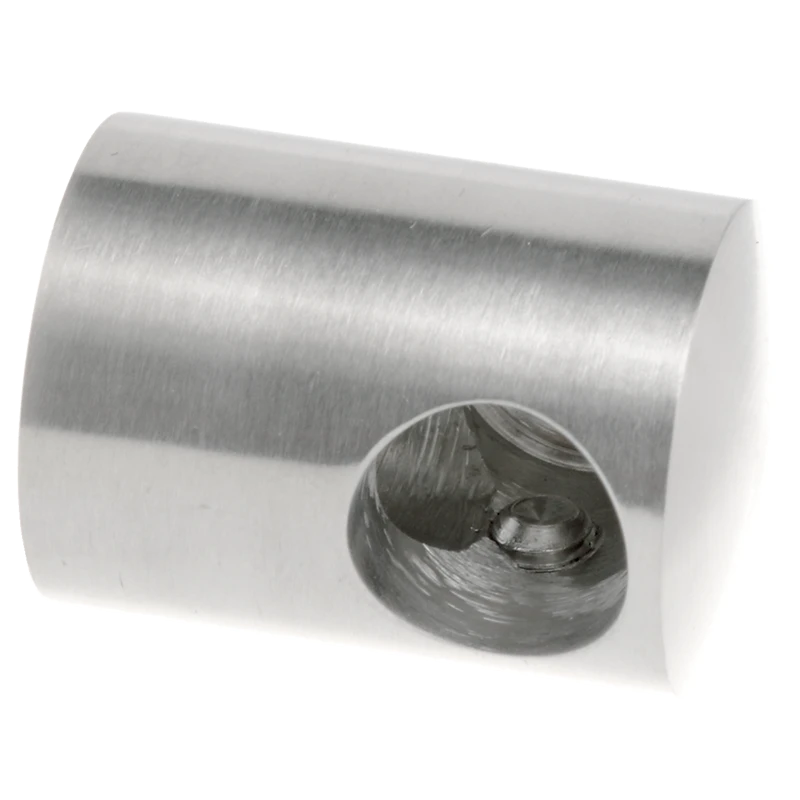

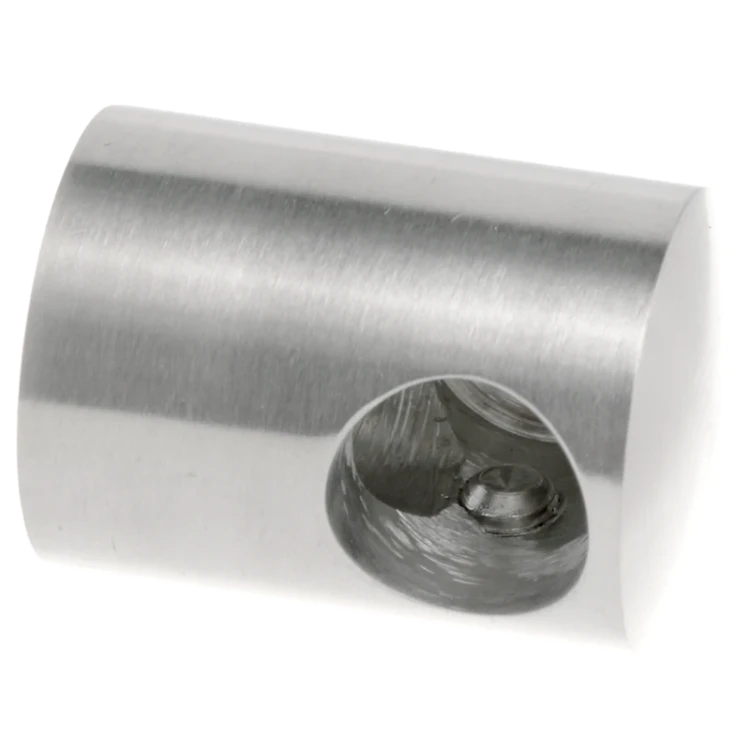

PSG left end bracket for handrail rod ø 16 mm – AISI 304 satin, surface mounting

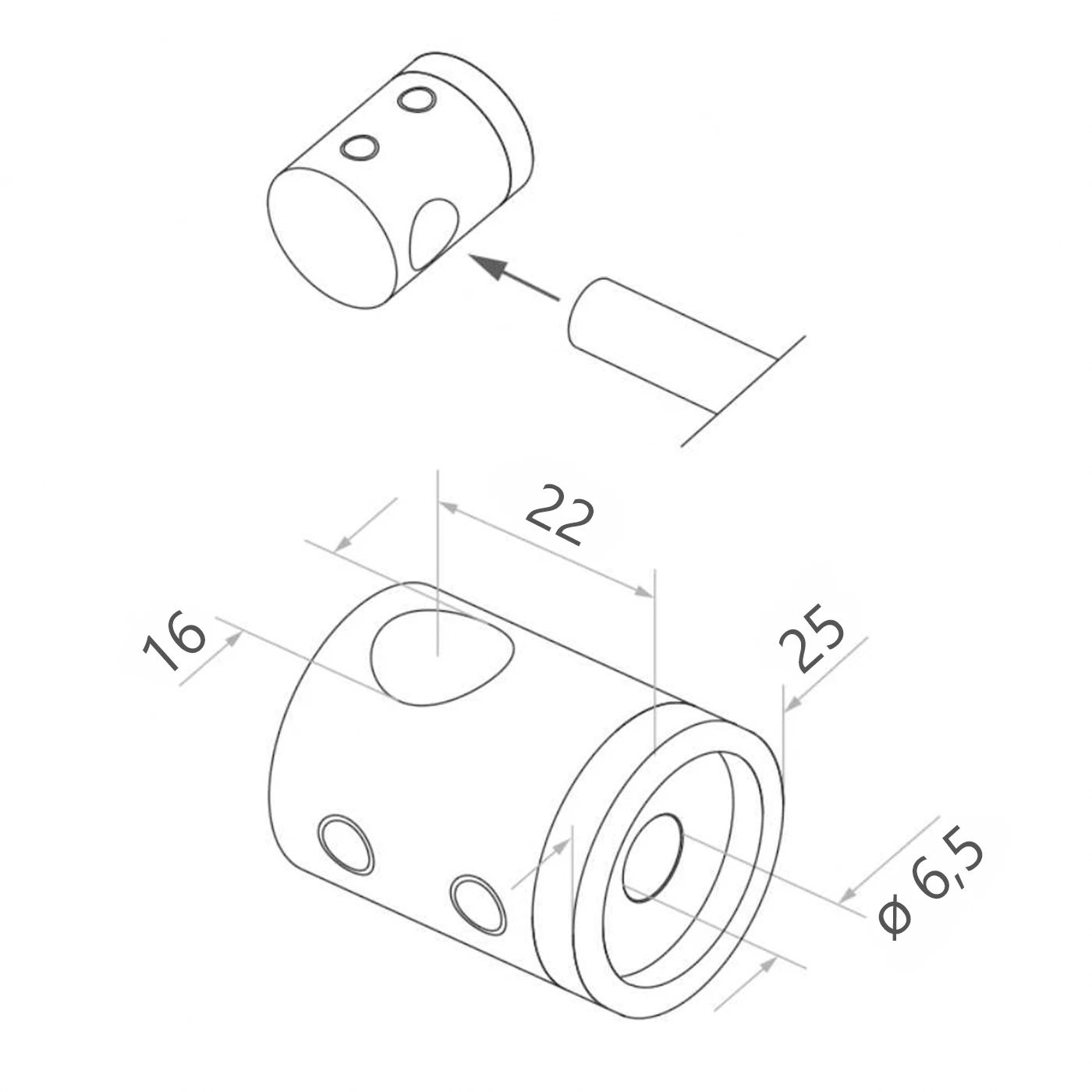

Technical drawing of left end bracket for rod ø 16 mm with dimensions

Left end bracket for rod with diameter 16 mm, designed for mounting infill in stainless steel balustrades. Element mounted directly to surface — ideal as starting or end point for horizontal rod infill in flat system. Made from AISI 304 steel in satin finish, ensures aesthetic, uniform appearance of entire balustrade construction.

Start and end brackets are divided into left and right — select appropriate version depending on mounting side. Use of dedicated end brackets gives construction rigidity and solidity, whilst providing aesthetic finishing.

Dimensions and technical data

Rod hole diameter: 16 mm

External body diameter: 25 mm

Hole axis distance from mounting surface: 22 mm

Mounting hole diameter: ø 6.5 mm

Height: 20 mm

Material: stainless steel AISI 304

Surface finish: satin

Mounting type: surface mounting (flat system)

Version: left (end/start)

Weight: 0.06 kg

EAN: 5901289671378

Application

Bracket designed for mounting rod infill in stainless steel balustrades — both internal and external. Used as start or end element in series of horizontal rods mounted between balustrade posts. Thanks to compact cylindrical construction and satin finish, it discretely complements other elements of balustrade system.

Technical data

Material	AISI 304
Finish	Satin
Mounting System	Flat
