PSG left end bracket for balustrade rod fi 12 mm – stainless steel AISI 304 polished
Description

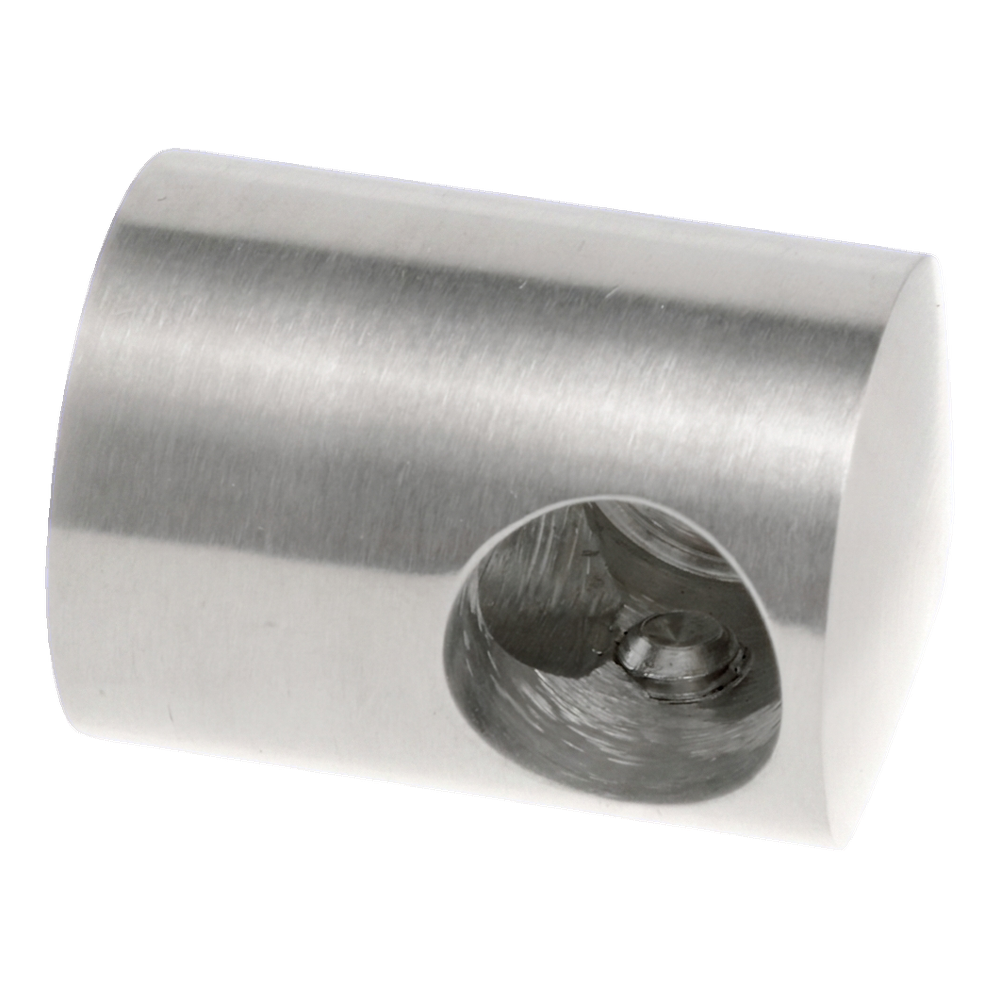

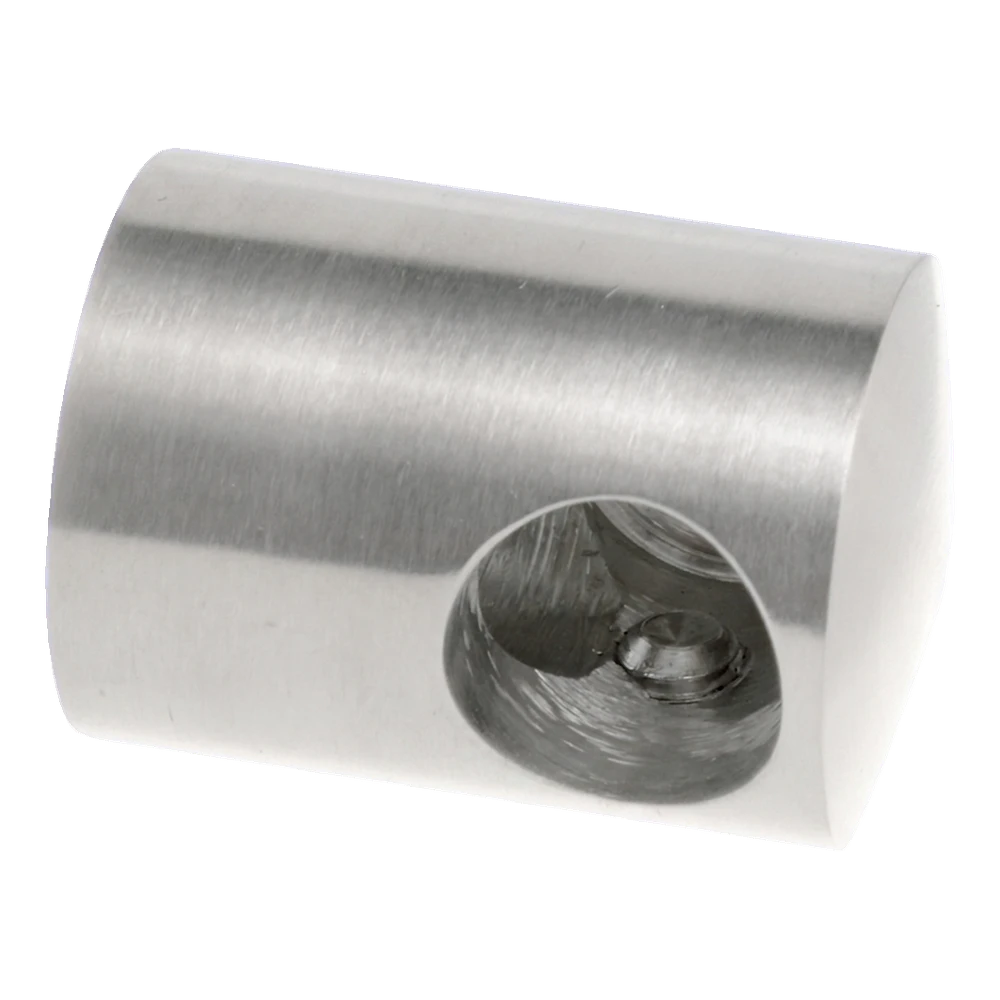

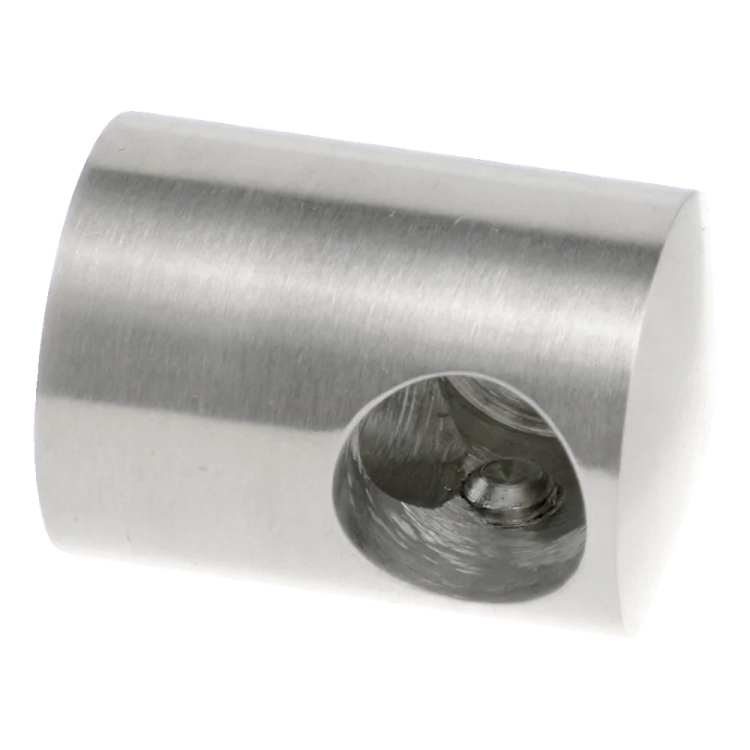

PSG left end bracket for balustrade rod fi 12 mm – stainless steel AISI 304 polished
Left end (starting) bracket for rod with diameter fi 12 mm, designed for mounting infills in stainless steel balustrade constructions. Enables aesthetic and durable attachment of rod or tube in the balustrade plane — ideal as starting or end element of infill run.
Product made from AISI 304 stainless steel with polished finish, guaranteeing high corrosion resistance and elegant appearance for years of operation. Compact, cylindrical construction with two holes for grub screws ensures secure immobilisation of the rod inside the bracket. Mounting hole in the base enables quick attachment to balustrade post or load-bearing element.

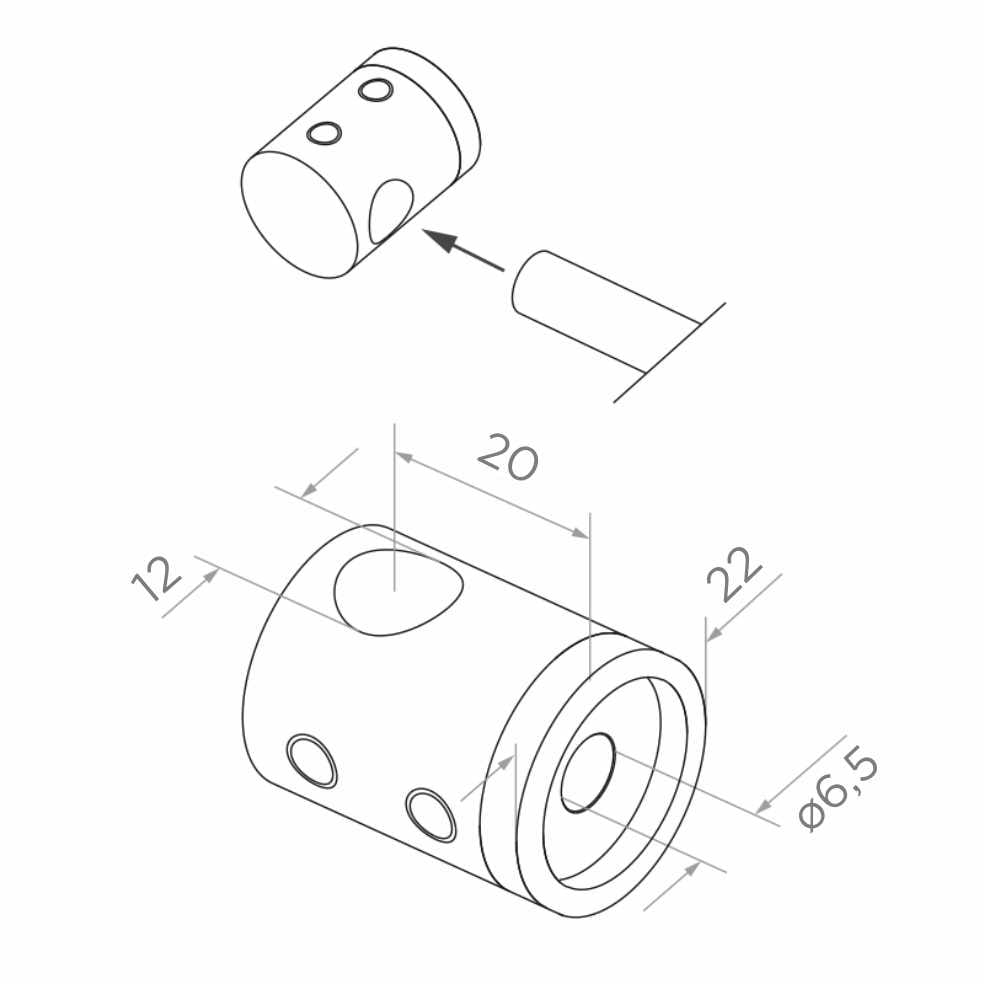

Dimensions and technical data
- Rod hole diameter: fi 12 mm
- External diameter of bracket: 22 mm
- Centre distance of rod hole from base: 20 mm
- Mounting hole diameter: fi 6.5 mm
- Material: AISI 304 stainless steel
- Surface finish: polished
- Type: left (end / starting)
- Mounting system: flat (in-plane mounting)
- Weight: 0.055 kg
- EAN: 5901289671347
Application and installation
The bracket is designed for stainless steel balustrade systems with rod or tube infill. Used as starting or end element of rod runs — mounted in-plane to balustrade post. Paired with right bracket creates complete termination of infill section. Two grub screws at the top of the bracket lock the rod in the hole, ensuring rigid and durable connection. Mounting hole fi 6.5 mm in the base enables trouble-free attachment to load-bearing structure.
Thanks to the use of AISI 304 steel, the bracket performs well both inside buildings and outdoors — it is resistant to weather conditions and requires no additional maintenance. The polished surface aesthetically complements other elements of stainless steel balustrade systems.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
